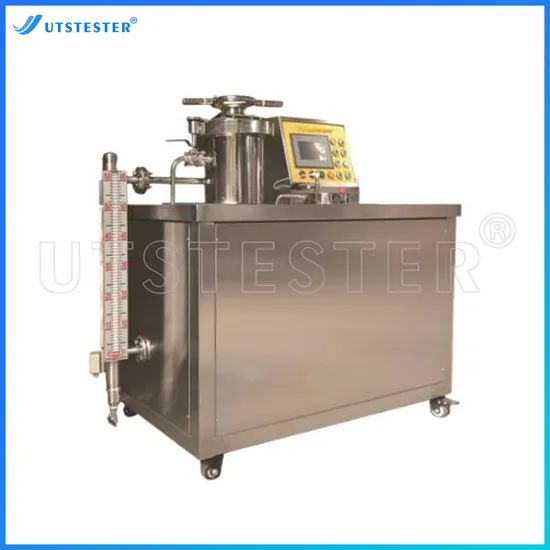

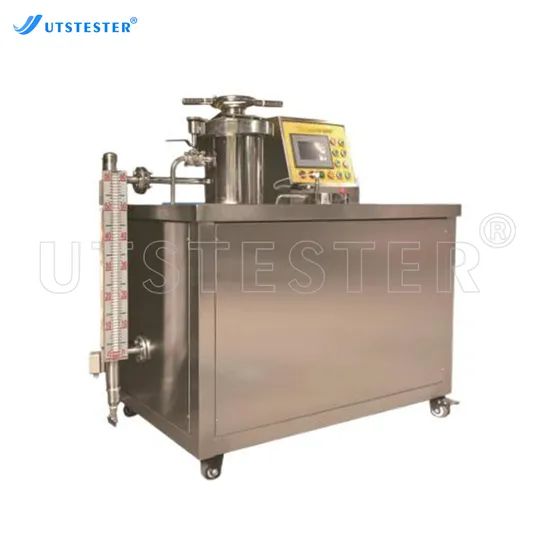

Textile Laboratory Testing Equipment Lab Bobbin Yarn Dyeing Machine
1 Set
$1001 Set
$2,000Product information
High-quality Textile Laboratory Testing Equipment Lab Bobbin Yarn Dyeing Machine supplied by Uts International Co., Ltd. Bulk wholesale pricing ranges from $100 to $2,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
After Sales Service:
12 Months
Specification:
1300 X 320 X 1400mm
Package Size:
140.00cm * 420.00cm * 150.00cm
Weight:
240kg
Package Gross Weight:
270.000kg
Power Supply:
380V, 50Hz
HS Code:
90248000
Dyeing Tester:
Bobbin Yarn Dyeing Machine
Specifications
After Sales Service:
12 Months
Specification:
1300 X 320 X 1400mm
Package Size:
140.00cm * 420.00cm * 150.00cm
Weight:
240kg
Package Gross Weight:
270.000kg
Power Supply:
380V, 50Hz
HS Code:
90248000
Dyeing Tester:
Bobbin Yarn Dyeing Machine
Technological Characteristic Testing Machine Type:
Bobbin Yarn Dyeing Machine
Textile Fabric Testing Machine Type:
Bobbin Yarn Dyeing Machine
Universal Textile Testing Machine Type:
Bobbin Yarn Dyeing Machine
Fabric Style Testing Machine Type:
Bobbin Yarn Dyeing Machine
Dyeing Machine:
Bobbin Yarn Dyeing Tester
Certification:
CE
Certificate:
CE, ISO 17025
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Appearance Quality Testing Machine Type:
Color Fastness Tester for Dyeing Fabric
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Model NO.:
D028
Heating Mode:
Electric Heating
Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP, CIP, CPT, FCA
Payment Term:
LC, T/T, D/P, Western Union
Condition:
New
Automatic Grade:
Semi-Automatic
Transport Package:
Standard Export Wooden Case
Payment Methods:
Support payments in USD
Trademark:
UTSTESTER
Port Of Loading:
XIAMEN, SHANGHAI, SHENZHEN
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-08-05
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, Western Union
Preferred Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP, CIP, CPT, FCA
Port Of Loading:
XIAMEN, SHANGHAI, SHENZHEN
Certificates:
CCPIT, CE Certificate, CE(LVD+EMC), CE(MD+ECM), Client t Excellent Feedback, ILAC-MRA, ISO 17025, ROHS certificate, TUV Rheinland Audited Supplier
Product descriptions from the supplier
It is mainly used for dyeing, boiling, bleaching, washing and other processes of cotton, wool, chemical fiber and other bobbin yarn and loose yarn.
It can also be adapted to the dyeing of small batches of cloth.
The dye is placed in the dye tank, and the heated dye liquid is continuously replaced by the circulating pump and the reversing mechanism.
The circulation direction of the dye liquid can be changed to achieve the purpose of uniform dyeing under the given temperature and time of the process.
The body and all parts in contact with the dye solution are made of corrosion-resistant stainless steel.
Feature
2, dyeing fluid circulation mode: by the corrosion resistant mixed flow pump with reversing device, according to the process needs to achieve positive and negative dyeing fluid Loop.
3, groove sealing form: silicone rubber O-type sealing ring.
4, equipped with pneumatic valve, master cylinder with flap type level controller, equipped with safety interlock mechanism, master cylinder with no Rust steel safety valve, manually open cover, and temperature control, can be set 85ºC safety protection.
5, dyeing liquid reversing control, computer automatic reversing control.
6, the main material: the selection of high-quality stainless steel plate production.
| Model | D028 |
| Minimum working capacity | 1kg(barrel yarn), maximum working capacity: 3kg (barrel yarn) |
| Working pressure | 0-0.40MPa |
| Maximum design pressure | 0.50MPa |
| Operating temperature | room temperature -135ºC |
| Design maximum temperature | 140ºC |
| Working medium | dye |
| Bath ratio range | 1:6 ~ 1:15 |
| Power supply | three-phase 380V, 50HZ |
| Main pump motor power | Main pump motor power: 2.2KW |
| Vertical cylinder | Cylinder body stainless steel 304, inner diameter 200mm, height 800mm |
| Core rod | Round mandrel 45×1.5 with pressure lock head, lower disc |
| Lid seal | Silicone rubber sealing belt, internal pressure self-sealing |
| Open cover system | Manual turn to open the cover |
| Safety device | Lock ring safety mechanism, master cylinder with safety valve, pressure gauge protection device |
| Heating method | Electric heating |
| Reversing device | There is a special reversing device, and the computer controls the automatic flow reversing |
| PLC control | Large screen touch screen PLC control, flexible and convenient operating system, digital setting of process parameters, high degree of automation, can be personalized programming according to customer needs. |
| Chemical feed system | The chemical barrel is equipped with the function of reflux circulation chemical material and automatic proportional feeding and timing feeding |
| Main pump | Centrifugal pump |
| Intake and drainage | Automatic water metering, single entry, single row, stainless steel pneumatic valve control |
| Valve door | Water inlet, sewage: DN20 pneumatic ball valve |
| Liquid level gauge | The master cylinder is equipped with a magnetic replica liquid level gauge, and the chemical barrel is equipped with a liquid level detection system |
| Host processing | The surface is sprayed with stainless steel high temperature metal paint, and the interior is acid-washed and passivated |
| Random gift | Mechanical seal static ring and pot seal each set |
Q: How is your service?
- All of test devices will be calibrated and debugged before delivery to guaranty the quality.
- Ourprofessional after-sale team willhelp you solvingany problem within 24 hours* 7 daysby emails or videos
- English operation manual and operation video will guide you how to use it.
- On-site machine training & installation can be provided with certain charges.
Q: What's your warranty period?
A.12 months. In case of product problems, we provide needed spares parts for free during the warranty (exclude consumables and man-made damages)
Q: What's the payment term?
A: Usually TT, L/C are available. For others, please contact with us for negotiation.
Q: What's your lead time?
A.We have professional production line and stuff whom can make a nice quality in a short time. Usually, within 5-25 days is ok, which is based on the stock status.
Q: Are you able to provide a ISO 17025 calibration certificate?
A: Yes, we generally provide two calibration certificates(optional).
• ISO 17025 certificate provided by a third party inspection company with charges.
• Calibration certificate provided byUTSwithout charges.
Q: Can you send report of fumigation report?
A: Our packing is composite board, not log, so it do not need fumigation treatment.
Thank You ForAlwaysSupportingUTSProducts!
