Thin Sheet Laser Cutting Machinefiber Laser Cutting Machines Cnccnc Laser Cutting Machine 1500W
Piece
Negotiable
Product information
High-quality Thin Sheet Laser Cutting Machinefiber Laser Cutting Machines Cnccnc Laser Cutting Machine 1500W supplied by Bcamcnc Machinery (Shandong) Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Repeatability Accuracy:
0.02mm
Position Accuracy:
0.02mm
Power:
1.5kw 2kw 3kw 6kw 12kw 20kw 30kw 50kw 80kw
Production Capacity:
100000pieces/Year
Laser Wave Length:
1064nm
Max Speed:
120m/Min
Voltage:
3 Phase 380V 50Hz / 60Hz (Customized)
Specification:
5.2*2.3*2.5
Specifications
Repeatability Accuracy:
0.02mm
Position Accuracy:
0.02mm
Power:
1.5kw 2kw 3kw 6kw 12kw 20kw 30kw 50kw 80kw
Production Capacity:
100000pieces/Year
Laser Wave Length:
1064nm
Max Speed:
120m/Min
Voltage:
3 Phase 380V 50Hz / 60Hz (Customized)
Specification:
5.2*2.3*2.5
HS Code:
8456110090
Trademark:
BCAMCNC
Model NO.:
BCM-F
Certification:
CE Standard
Technical Class:
Continuous Wave Laser
Trade Term:
FOB, CFR, EXW, CIF
Structure Type:
Gantry Type
Application:
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Advertising Industry
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Laser Technology:
Laser Fusion Cutting
Applicable Material:
Metal
Machinery Test Report:
Provided
Port Of Loading:
Qingdao Port
Laser Head Brand:
Raytools
Origin:
Shandong China
Cooling System:
Water Cooling
Transport Package:
Wooden Box & Base
Customized:
Yes
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2017-03-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
18
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CFR, EXW, CIF
Port Of Loading:
Qingdao Port
Certificates:
BCAMCNC, CE Certificate of Laser cutting machine, CE Certificate of Laser welding machine, CERTIFICATE of Laser welding machine, Design patent certificate, FDA, ISO9001
Product descriptions from the supplier
ADVANTAGES
1.High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surfaceand no burr.
2.The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
3.Non-deformable cuttingcan be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.
4.We provide customized services including logo, power, color and function customization as well as bed size.
5.We provide user manuals and installation videos, and professional technicians provide free training.
2.The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
3.Non-deformable cuttingcan be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.
4.We provide customized services including logo, power, color and function customization as well as bed size.
5.We provide user manuals and installation videos, and professional technicians provide free training.
SPECIFICATION

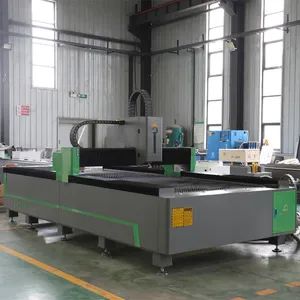

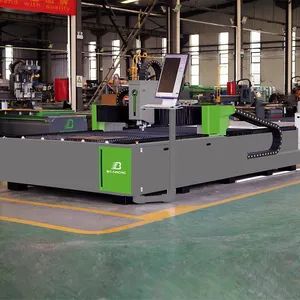

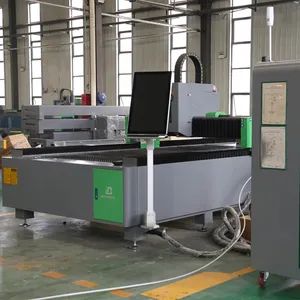

| Product Name | Fiber Laser Cutting Machine BCM F |
| Working Area | 3015/4015/4020/6015/6020/6025/8020/8025/ |
| Laser Power | 1500w/2000w/3000w/4000w/6000w/8000w/10000w/12000W/24000W/50000W/80000W |
| Max Cutting Thickness | 0-100mm(Depends on the power of the machine & cutting material) |
| Max Cutting Speed | 120m/min |
| X,Y,Z Traveling Positioning Accuracy | ±0.02/2000mm |
| Laser Head | Raytools |
| Laser Source | Max/Raycus/IPG |
| Power System | Taiwan Deltamotor and drivers+Japan Shimpo reducer |
| Location System | Red dot indicator |
| Delivery Time | 7 - 10 working days after payment |
| Application Material | stainless steel, carbon steel, electrical steel, galvanized steel, aluminum zinc plate, aluminum, aluminum alloy, titanium alloy,copper, brass, iron . |
MACHINEDETAILS
FIBER LEASE HEAD
The laser head body is increased anti-collision function and can be adapted with a variety of fiber laser.
The laser head body is increased anti-collision function and can be adapted with a variety of fiber laser.
HIGH LIGHT AND RIGIDITY
Aerospace grade aluminum light qualit, high speed.Beam as a whole by the finite element analysis optimization of high rigidity.
Aerospace grade aluminum light qualit, high speed.Beam as a whole by the finite element analysis optimization of high rigidity.
HIGH STABILITY BED
To optimize the design of the sectional welding lathe bed.Lathe bed in the middle of reinforcing bar, improves the lathe bed stability.
To optimize the design of the sectional welding lathe bed.Lathe bed in the middle of reinforcing bar, improves the lathe bed stability.
THE MOTOR AND REDUCER
Machine adopt Taiwan Delta servo motor and Japan Shimpo reducer.
Machine adopt Taiwan Delta servo motor and Japan Shimpo reducer.
TAIWAN TBI LINEAR GUIDE RAIL
Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide reduce wear to maintain accuracy for a longer time.
Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide reduce wear to maintain accuracy for a longer time.
LONG LIFE LASER SOURCE
Fiber laser generator with great and stable performance to have lifespanover 100,000 hours.
Fiber laser generator with great and stable performance to have lifespanover 100,000 hours.
CUTTING PARAMETERS
RECOMMEND PRODUCTS
SAMPLES DISPLAY
CERTIFICATIONS
CUSTOMER REVIEWS
ABOUT BCAMCNC
FAQ
Q: I don't know which one is suitable for me ?A: Just tell me this information and our professional sales colleagues will recommend the right machine for you
1. Whattype of metaldo you want to cut? (e.g., Sheet, tube, or both)
2. Whatkinds of metalmaterials are you interested in? (e.g., Carbon steel, Stainless steel, Aluminium)
3. What is the maximum cuttingthickness and size? (e.g., Thickness: ___, Size: ___)
Q: Are you a factory or a trade company?
A: We are a factory with rich experience.Our factory is in Shandong, China.Or directly make an appointment with the customer for a video factory inspection. Send factory inspection video to customers to watch
Q:What about after-sales problems?
A:Should you encounter any issues with your device, reach out to us immediately and avoid attempting any repairs yourself or through third parties. We'll get back to you promptly within 24 hours to assist you fully.
Q:How to install and run the machine?
A:The equipment is fully assembled prior to delivery. To assist with minor component setup, we include comprehensive instructional videos and operation guides. Nearly all customers manage to operate it independently.
If you have other questions,Please send inquiry. We will reply to you as soon as possible.
