Three Axies 250CNC Multifunction Grinding Machine Tool
1 Piece
$34,0001 Piece
$33,000Product information
High-quality Three Axies 250CNC Multifunction Grinding Machine Tool supplied by Cheng Yu Machinery Technology Co., Ltd.. Bulk wholesale pricing ranges from $33,000 to $34,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Model NO.:
250CNC
Production Capacity::
500
HS Code:
8460292
Automatic Grade:
Automatic
Transport Package:
Box
Certification:
CE
Controlling Mode:
CNC
Specification:
CUSTOM
Specifications
Model NO.:
250CNC
Production Capacity::
500
HS Code:
8460292
Automatic Grade:
Automatic
Transport Package:
Box
Certification:
CE
Controlling Mode:
CNC
Specification:
CUSTOM
Trademark:
CYMT
Origin:
Dongguan
Trade Term:
FOB
Abrasives:
Grinding Wheel
Processing Object:
Hardware Mold Accessories
Precision:
High Precision
Payment Terms::
L/C, T/T, Western Union, Paypal, Money Gram
Condition:
New
Warranty:
One Year
Chuck:
Permanent Magnet Chuck
After Sales Service:
Remote Video Guidance
Propel:
Server
Port::
Shenzhen, China
Cylindrical Grinder Type:
Surface Grinding Machine
Type:
Surface Grinding Machine
System:
Syntec CNC
Payment Term:
To be discussed
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Product descriptions from the supplier
Product Description

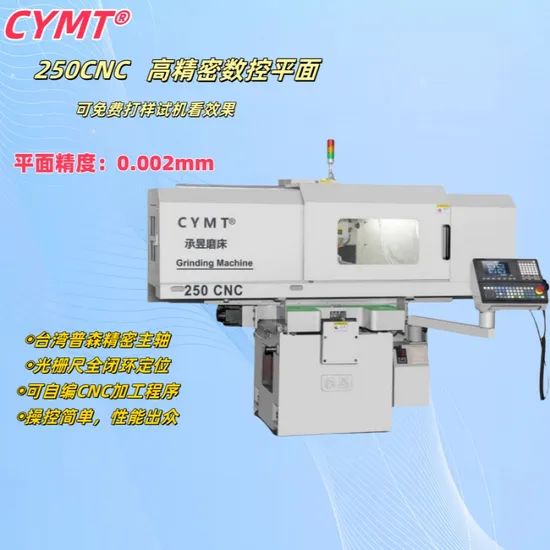

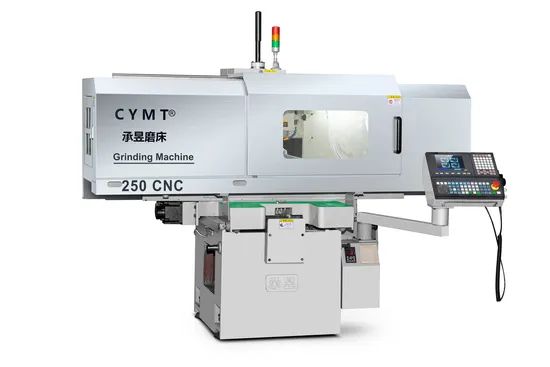

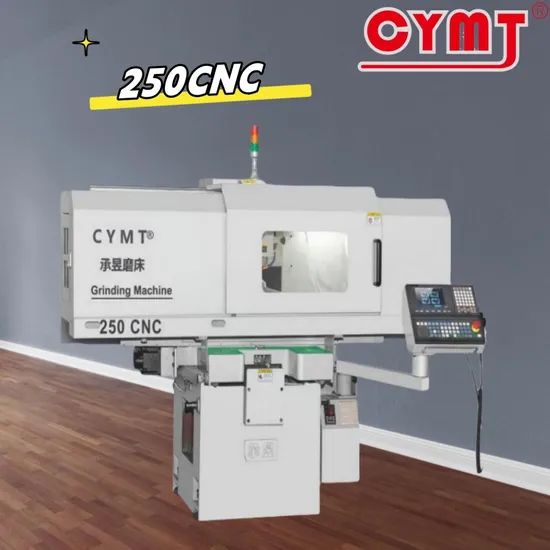

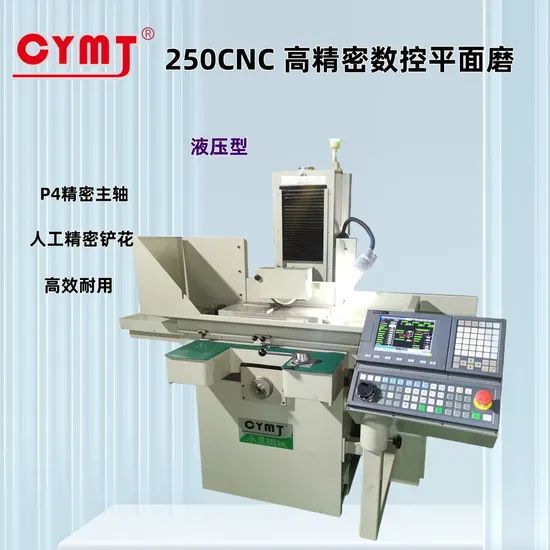

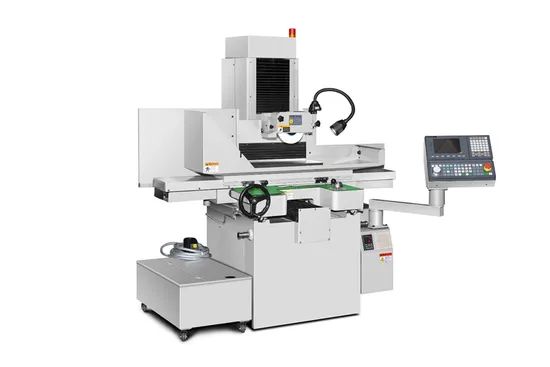

250/2550CNC Surface Grinding Machine
Three Axies 250CNC Multifunction Grinding Machine ToolWe commit to constantly enhancing every product we offer and retain the authority to modify features, structures, or layouts at any time, with no prior notice or duty.
| parameter | unit | CNC-250 | CNC-2550 | |
| general picture | Table size (x*y) | mm | 200×500 | 250*500 |
| X axis travel | mm | 580 | 580 | |
| Y axis travel | mm | 230 | 280 | |
| Max center of wheel to table | mm | 380 | 380 | |
| Maximum load | kg | 200 | 200 | |
| Table | Table T cell specification | mm×N | 14×1 | 14×1 |
| Table speed | m/min | 0-25 | 0-25 | |
| Y axis | Minimum feed | mm | 0.001 | 0.001 |
| Single feed | 0.1~10 | 0.1~10 | ||
| Fast moving speed | mm/min | 0~1200 | 0~1200 | |
| Z axis | Minimum feed | mm | 0.001/0.01 | 0.001/0.01 |
| Fast moving speed | mm/min | 0~800 | 0~800 | |
| grinding | grinding wheel size max | mm | Φ200×Φ31.75×19 | |
| grinding wheel speed | R.P.M | 0~3600 | 0~3600 | |
| motor | spindle motor | HXP | 2×2 | 2×2 |
| the Z axis motor | W | 750 | 750 | |
| the Y axis motor | W | 750 | 750 | |
| the X axis motor | W | 1500 | 1500 | |
| cooling motor | W | 90 | 90 | |
| Size | height of machine | mm | 2000 | 2000 |
| floor space | mm | 2000×1350 | 2000×1450 | |
| weight(about) | kg | 1450 | 1550 | |
Cheng Yu Machinery Technology Co., Ltd. founded in Dongguan, Guangdong, brings 30 years of expertise in grinding machine production, backed by a dedicated team of technical professionals.
CNC machinery is advancing swiftly, with high speed, precision, integration, smart features, open architecture, parallel motion systems, network connectivity, and eco-friendly design now defining its future trajectory.
Dongguan Chengyu Machinery Technology Co., Ltd. focuses on manufacturing and processing machine tools, machine tool components, and related items, guided by the principles of "technology, innovation, reliability," adhering to a "precision-driven" quality standard and the commitment to "delivering top-tier products and outstanding customer service." By deeply analyzing customer workflows, technological needs, production methods, and quality expectations, we leverage advanced design and production capabilities to continuously enhance product relevance, broaden the scope of numerical control solutions, and establish product lines that emphasize high automation, superior accuracy, and consistent quality—backed by a robust, well-structured quality assurance framework, state-of-the-art machinery, and advanced technical expertise.
Chengyu Machinery addresses evolving market needs by developing and producing high-precision CNC surface grinders, CNC forming machines, four-axis punch grinders, vertical slider grinders, and gantry rail grinders, along with industrial robots, automated production systems, and comprehensive integrated solutions. Below is a concise overview of the CNC grinding machine product range:
I. HS series 618 / 250 / 3060 / 4080 / 40100 (servo type / hydraulic type)
Processing capacity: Surface grinding, grooving
Patented hydraulic control system (hydraulic type)
Function: Equipped with grinding program: Flat surface, groove cutting.
Feed mode: Front / back / left / right selectable, each grinding program memory feed mode.
Grinding wheel overload, automatic shutdown.
II. (servo type / hydraulic type)
Processing capacity: Surface grinding, grooving, combined scheduling
Patented hydraulic control system (hydraulic type)
Function: Equipped with various grinding programs: Surface grinding, groove cutting, sole grinding, side grinding, unequal distance and unequal depth displacement grinding.
Automatic bottom surface conditioning based on preset rough and fine grinding dressing durations and quantities, executed throughout the grinding process with self-adjusting compensation.
Feed mode: Front / back / left / right selectable, each grinding program memory feed mode.
Equidistant grooving, not equidistant unequal
3. Four-axis CNC grinding machines are divided into horizontal and vertical types
Processing types: Arbitrary equal division, skipping tooth processing
Waist circle, enter AB size
Triangle fillet, enter inscribed circle size B and fillet size R
Quadrilateral fillet, enter side length A and side length B and fillet size R
Eccentric circle, enter eccentricity and starting and ending diameters
Circle, enter starting and ending diameters
Arc, enter arc size and rotation angle
Step difference, rotation profile, etc.
Processing schedule can be saved as processing file for easy next call
