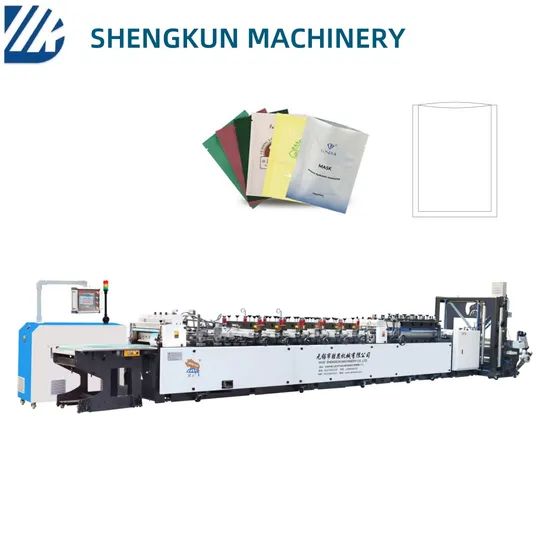

Three Side Sealing Double Feeding Moving Knife Double Cutter Bag Making Machine
1 Piece
$45,0001 Piece
$35,000Product information
High-quality Three Side Sealing Double Feeding Moving Knife Double Cutter Bag Making Machine supplied by Wuxi Shengkun Machinery Co., Ltd.. Bulk wholesale pricing ranges from $35,000 to $45,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Temperature Range:
0~300℃
Lines:
1
Package Gross Weight:
10000.000kg
Production Capacity:
100sets/Month
Wall Thickness:
10mm
Specification:
11600× 2050× 2050mm
Package Size:
118.00cm * 213.00cm * 218.00cm
Temperature Of The Heating Block Number:
18PCS
Specifications
Temperature Range:
0~300℃
Lines:
1
Package Gross Weight:
10000.000kg
Production Capacity:
100sets/Month
Wall Thickness:
10mm
Specification:
11600× 2050× 2050mm
Package Size:
118.00cm * 213.00cm * 218.00cm
Temperature Of The Heating Block Number:
18PCS
Mechanical Highest Beat:
300 Strokes/Min
Voltage:
380V
The Maximum Width:
580mm
HS Code:
8477800000
Total Power:
Around 55kw
Machine Weight:
Around 6500kg
Machine Type:
Bag Forming Machine
Product Line:
Bag Making Machine
Seals Mode:
Center Seals
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Computerized:
Computerized
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Layer:
Double
Trade Term:
FOB, CIF, CFR, EXW
Sealing & Cutting:
Heat-Sealing Cold-Cutting
Speed:
High
Origin:
Jiangsu, China
Payment Term:
LC, T/T, PayPal, D/P, Western Union, Small-amount payment
Bag Dimensions:
Length: 400 mm
Type:
Plastic Bag Making Machine
Trademark:
SK
Model NO.:
SK-600A
Port Of Loading:
Shanghai Port
Model:
Sk-600A-1
Payment Methods:
Support payments in USD
Machine Features:
Three-Side Sealing,Moving Knife Double Cutter Bag
Transport Package:
Wooden Pallet, Rust Proof Bag
Continuous Rolled:
Yes
Maximum Roll Size:
φ 900 × 1250 mm
Max Discharge Line Speed:
≤50 M/Min
Positioning Accuracy:
≤±0.5mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-09-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
31
Preferred Payment Term:
LC, T/T, PayPal, D/P, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Product descriptions from the supplier
Automatic high speed three side sealing bag making machine
Built using exacting machining and careful construction, the machine boasts a sleek, thoughtfully planned exterior. The system runs with quiet, fluid movement and minimal operational noise. Equipped with a PLC-managed dual-servo drive setup, it maintains steady material transport from the unwind source and overhead frame at a consistent pace using an additional traction motor. A digital control system oversees temperature regulation, leading to notable energy savings. The midline tension roller uses real-time adjustment technology to dampen vertical movement during operation and maintain uniform tension across the entire process.
This machine is suitable for making the following types of packaging bags:
| Bag type | Max. Output | Working speed |
| Three-Side Seal Pouch | 6pcs(based on actual size) | 300 strokes/min |
| Four-Side Seal Pouch | optional | |
| Special-Shaped Pouch | optional |
| Model | SK-600A-1 |
| Machine features | Three-side sealing,moving knife double cutter bag making machine,feeding with storage device |
| Main electrical configuration | Traction four servo motors with Panasonic PLC, the main drive AC servo motor, thermostat18Road , unwinding constant tension |
| Control System Model | Panasonic PLC composite film bag making machine speed control system |
| Suitable substrates | Multilayer co-extruded plastic films incorporating BOPP, C0PP, PET, PVC, nylon, and various other materials, aluminum-based composite films, paper and plastic bonded films, and aluminum foil laminated films |
| Mechanical highest Beat | 300 strokes / min, Limited bag length 150mm,depending on material) |
| Maximum discharge line speed | ≤50 m / min ( depending on material ) |
| Bag dimensions | Length: 400 mm , exceeding this length delivery achieved using times ( up to 6 times to send ) |
| The maximum width | 580mm |
| Maximum roll size | Φ 900 × 1250 mm ( diameter × width ) |
| Positioning accuracy | ≤±0.5mm |
| Number of sealing knife | Vertical Seal: 4× top/bottom heating + top/bottom cooling |
| Horizontal Seal: 5× top/bottom heating + 2× top/bottom cooling | |
| Temperature of the heating block number | 18pcs |
| Temperature range | 0~300ºC |
| Total power | Around 55kw(just power on the actual use of power is generally around 35kw, while holding general power of about 30kw) |
| Dimensions | Around 11600×2050×2050mm (L×W×H) |
| Machine weight | Around 6500KG |
| Wall thickness | 10mm( Shanghai Baosteel ) |
| Color | black grey body, stainless steel cover, part black , nickel , chrome |
