Three Stands Continuous Cold Rolling Mill Origin China HS Code 845522 Model NO. 550mm Bearing Table 3 Sets Power Source Hydraulic
Piece
Negotiable
Product information
High-quality Three Stands Continuous Cold Rolling Mill Origin China HS Code 845522 Model NO. 550mm Bearing Table 3 Sets Power Source Hydraulic supplied by Hebei Moran Environmental Protection Technology Corp.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Working Pressure:
10 MPa
Bearing Table:
3 Sets
Max. Coild Width:
450mm
Max. Rolling Weight:
5.6 Ton
Model NO.:
550mm
Production Capacity:
5set/Year
HS Code:
845522
Automatic Grade:
Automatic
Specifications
Working Pressure:
10 MPa
Bearing Table:
3 Sets
Max. Coild Width:
450mm
Max. Rolling Weight:
5.6 Ton
Model NO.:
550mm
Production Capacity:
5set/Year
HS Code:
845522
Automatic Grade:
Automatic
Origin:
China
Diameter Of Steel Coil:
F508-F1600mm
Trade Term:
FOB, CIF, CFR
Power Source:
Hydraulic
Certification:
ISO, SGS
Trademark:
Moran or customized
Transport Package:
Plywood and Plastic Film Packed
Type:
Steel Rolling Equipment
Payment Term:
T/T
Port Of Loading:
Tianjin Port
Specification:
three continuous rolling
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-06-10
Annual Revenue Amount:
Not specified
Numbers Of Employees:
14
Preferred Payment Term:
T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Tianjin Port
Certificates:
Others
Product descriptions from the supplier

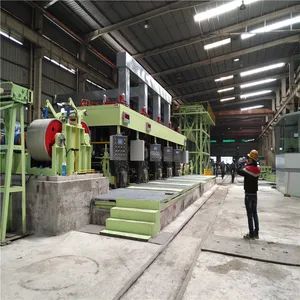

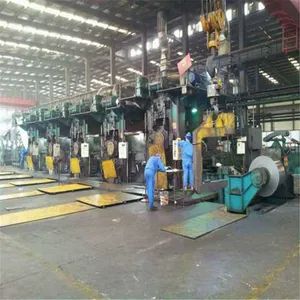

Tandem Cold Rolling Mill
This type of mill is a multi-stand continuous rolling mill consisting of four or six high mills. It is a high yield, low cost and high production efficiency machine.
PRODUCTS DETAILS
This type of unit includes various widths such as 400~1450mm, the fastest rolling speed is 600m/min, the rolling force is up to 1800 tons, the winding tension is up to 20 tons, and there are work roll positive/negative bending rolls, intermediate roll bending rolls, middle Roll twitching, AGC pressing. It can be equipped with double station roll changing machine, roller bearing oil and gas lubrication, reducer thin oil lubrication, and automatic rolling line adjustment device.
The electric drive system uses the SIEMENS S7-400 series PLC main controller, the AGC system uses the SIEMENS S7-416+FM458 control, the key components use the imported products, such as the EMG automatic pair, the MOOG servo valve, the SONY magnetic ruler, the POLYTEC laser tachometer, the Dr-Brandt tension meter and so on.
1. Project case 1: the main technical data of 550mm 3stands continous cold rolling mill
|
No |
Specification |
Data |
|
1 |
The diameter of steel coil |
F508~F1600 mm |
|
2 |
Max width |
450mm |
|
3 |
Max rolling weight |
5.6t |
|
4 |
Bearing table |
3 sets |
|
5 |
Saddle hoist travel |
1000mm |
|
6 |
The trolley transverse travel |
3000mm |
|
7 |
Hoist cylinder specification |
F125/F90×800 mm |
|
8 |
Working Pressure |
10 Mpa |
|
9 |
Thrust force |
90KN |
2. Project case 2:
the main technical data of 1450mm Five-Stand Continuous Cold Rolling Mill (Eight-High)
The incoming material
Material Plain low carbon steel, High Quality low carbon steel
Steel grade Q215, Q235, 08F
Incoming thickness 1.5mm-4mm
Incoming width 800mm-1250mm
Inner diameter of incoming coil 610mm
Outer diameter of incoming coil 2000mm(max.)
1400mm(min.)
Max. coil weight 28000kgs
Incoming material requirement standard Hot rolled strip should meet the national standard (GB709-88) high precision grade hot rolled strip
Material Plain low carbon steel, High Quality low carbon steel
Steel grade Q215, Q235, 08F
Incoming thickness 1.5mm-4mm
Incoming width 800mm-1250mm
Inner diameter of incoming coil 610mm
Outer diameter of incoming coil 2000mm(max.)
1400mm(min.)
Max. coil weight 28000kgs
Incoming material requirement standard Hot rolled strip should meet the national standard (GB709-88) high precision grade hot rolled strip
| Output product specifications | |
| thickness | 0.25m-2mm |
| width | 800mm-1250mm |
| Inner diameter of output coil | 610m |
| Outer diameter of output coil | 2000mm |
| Max. coil weight | 28000kgs |
The Range of Our Main Cold Rolling Mills, Cold Rolling Production Line.
|
Specification of Cold Rolling Mill |
|
|
roller Type |
4-roller , 6-roller, 8-roller, 12-roller, 20-roller cold rolling mill. |
|
Stand Type |
single-stand reversible cold rolling mill; tandem cold rolling mill( from 3 stands to 6 stands) |
|
Size of finished products |
Width: from 350-1450mm; Thickness: from 0.1mm to 3.0mm |
|
Application |
our range of products covers all areas of the cold rolling industry, suitable for the production and upstream & downstream sectors of cold-rolled products such as plain carbon steel, stainless steel, alloy steel coil and plate. |
our advantage:
1) Customized Machine design according to your requirements.
2) High cost-effective price
3). Turn-key Solution Service including factory design, machine disign, installation & commissioning
4) timely and convenient after -sale service including spare parts supply and technical support!
For more information, please feel free to contact us!
