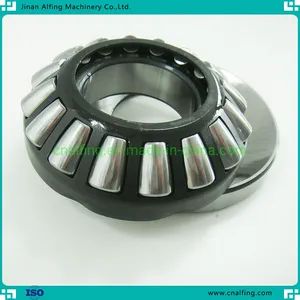

Thrust Self-Aligning Roller Bearings
Pieces
Negotiable
Product information
High-quality Thrust Self-Aligning Roller Bearings supplied by Jinan Alfing Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Specification:
100*150*38
Production Capacity::
100000 Units/ Month
HS Code:
8482300000
Spherical:
Aligning Bearings
Load Direction:
Axial Bearing
Transport Package:
Carton or Wooden Box Packaging
The Number Of Rows:
Double
Usage:
Electric Motor, Auto Mobiles, Appliances, Caster
Specifications
Specification:
100*150*38
Production Capacity::
100000 Units/ Month
HS Code:
8482300000
Spherical:
Aligning Bearings
Load Direction:
Axial Bearing
Transport Package:
Carton or Wooden Box Packaging
The Number Of Rows:
Double
Usage:
Electric Motor, Auto Mobiles, Appliances, Caster
Trade Term:
FOB, CIF
Payment Terms::
L/C, T/T
Payment Term:
LC, T/T
Outer Dimension:
Medium and Large(120-190mm)
Port Of Loading:
Qingdao
Port::
Qingdao, China
Rolling Body:
Roller Bearings
Origin:
Shandong, China
Material:
Stainless Steel
Separated:
Unseparated
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-05-13
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Qingdao
Certificates:
ISO 14001, ISO 9001
Product descriptions from the supplier
Product Description
Products description
1. Spherical roller thrust bearings are produced in two designs depending on the size and series. Bearings up to and including size 68 identified by the designation suffix E have a pressed steel window-type cage which, with the rollers, forms a non-separable assembly with the shaft washer. All other bearings have a machined brass or steel cage which is guided by a sleeve held in the shaft washer bore. The shaft washer and cage with rollers form a non-separable unit.
2. In spherical roller thrust bearings the load is transmitted from one raceway to the other at an angle to the bearing axis. The bearings are therefore suitable to accommodate radial loads in addition to simultaneously acting axial loads. Another important characteristic of spherical roller thrust bearings is their self-aligning capability. This makes the bearings insensitive to shaft deflection and misalignment of the shaft relative to the housing.
3. Spherical roller thrust bearings incorporate a large number of asymmetrical rollers and have specially designed raceways with an optimum conformity. They can therefore support very heavy axial loads and permit relatively high speed operation.
Technical information:
Why choose us?
1). The quality assurance:
Product quality is the lifeline of an enterprise. In order to possessing the leading technology, our company implements the quality control system and establishes a technical and strict inspection team.
2). The convenient & fast transportation to Qingdao port
Our factory is located in liaocheng city, eaierly transport to the port by car
3). 24- hour customers series online:
High quality, good credit and excellent service are the tenet of our factory. Customers'satisfaction is our lifeline, as well as our highest honor. We will do our best to meet your requirements, and will do better in the future.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Other Related
FAQ:
1. Are you a factory or a trading company?
We are a professional manufacture of deep groove ball bearings and other bearings.
2. Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
3. Is the sample available?
Yes, samples are available for you to test the quality.
4. Have the products been tested before shipping?
Yes, all of our bearings have been tested before delivery.
5. How long is your delivery time?
As mentioned above, there are different types of shipping for your order. We make sure to deliver goods once all products are produced and tested.
6. What is your terms of payment ?
You can pay by T/T, L/C, etc., and it can be negotiated according to different orders with different amount.
8.How to stock and maintenance my bearings?
Do not store bearings directly on concrete floors, where water can condense and collect on the bearing;
Store the bearings on a pallet or shelf, in an area where the bearings will not be subjected to high humidityor extreme temperature that may result in condensation forming;
1. Spherical roller thrust bearings are produced in two designs depending on the size and series. Bearings up to and including size 68 identified by the designation suffix E have a pressed steel window-type cage which, with the rollers, forms a non-separable assembly with the shaft washer. All other bearings have a machined brass or steel cage which is guided by a sleeve held in the shaft washer bore. The shaft washer and cage with rollers form a non-separable unit.
2. In spherical roller thrust bearings the load is transmitted from one raceway to the other at an angle to the bearing axis. The bearings are therefore suitable to accommodate radial loads in addition to simultaneously acting axial loads. Another important characteristic of spherical roller thrust bearings is their self-aligning capability. This makes the bearings insensitive to shaft deflection and misalignment of the shaft relative to the housing.
3. Spherical roller thrust bearings incorporate a large number of asymmetrical rollers and have specially designed raceways with an optimum conformity. They can therefore support very heavy axial loads and permit relatively high speed operation.
Technical information:
| Thrust Roller Bearing | |||||
| 292 Series | Bearing No | Boundary dimensions(mm) | Mass(Kg) | ||
| d | D | T | |||
| 29230 | 150 | 215 | 39 | 4.56 | |
| 29232 | 160 | 225 | 39 | 4.88 | |
| 29234 | 170 | 240 | 42 | 6.02 | |
| 29236 | 180 | 250 | 42 | 6.27 | |
| 29238 | 190 | 270 | 48 | 8.8 | |
| 29238E | 190 | 270 | 48 | 8 | |
| 29240 | 200 | 280 | 48 | 9.14 | |
| 29244 | 220 | 300 | 48 | 9.84 | |
| 29256 | 280 | 380 | 60 | 22.3 | |
| 29260 | 300 | 420 | 73 | 34 | |
| 29268 | 340 | 460 | 73 | 34.4 | |
| 29280 | 400 | 540 | 85 | 64 | |
| 293 Series | 29317 | 85 | 150 | 39 | 2.94 |
| 29318 | 90 | 155 | 39 | 3.08 | |
| 29320 | 100 | 170 | 42 | 3.94 | |
| 29322 | 110 | 190 | 48 | 5.78 | |
| 29324 | 120 | 210 | 54 | 7.92 | |
| 29326 | 130 | 225 | 58 | 9.76 | |
| 29326E | 130 | 225 | 58 | 8.17 | |
| 29328 | 140 | 240 | 60 | 11.4 | |
| 29330 | 150 | 250 | 60 | 12 | |
| 29332 | 160 | 270 | 67 | 15.9 | |
| 29334 | 170 | 280 | 67 | 16.6 | |
| 29336 | 180 | 300 | 73 | 21.2 | |
| 29338 | 190 | 320 | 78 | 26 | |
| 29340 | 200 | 340 | 85 | 31.9 | |
| 29344 | 220 | 360 | 85 | 38.6 | |
| 29348 | 240 | 380 | 85 | 40.2 | |
| 29352 | 260 | 420 | 95 | 49.5 | |
| 29352M | 260 | 420 | 95 | 49.5 | |
| 29352E | 260 | 420 | 95 | 53.6 | |
| 29356 | 280 | 440 | 95 | 48.4 | |
| 29360 | 300 | 480 | 109 | 48.4 | |
| 29372 | 360 | 560 | 132 | ||
| 29380 | 400 | 620 | 132 | 134 | |
| 29392 | 460 | 710 | 150 | 217 | |
| 294 Series | 29412 | 60 | 130 | 42 | 2.78 |
| 29413 | 65 | 140 | 45 | 3.44 | |
| 29414 | 70 | 150 | 48 | 4.19 | |
| 29415 | 75 | 160 | 51 | 5.07 | |
| 29416 | 80 | 170 | 54 | 6.09 | |
| 29417 | 85 | 180 | 58 | 7.2 | |
| 29418/YA | 90 | 160 | 60 | 7.6 | |
| 29418 | 90 | 190 | 60 | 8.38 | |
| 29420 | 100 | 210 | 67 | 11.5 | |
| 29422 | 110 | 230 | 73 | 15 | |
| 29424 | 120 | 250 | 78 | 18.6 | |
| 29426 | 130 | 270 | 85 | 23.7 | |
| 29428 | 140 | 280 | 85 | 25.2 | |
| 29430 | 150 | 300 | 90 | 30.5 | |
| 29432 | 160 | 320 | 95 | 37 | |
| 29434 | 170 | 340 | 103 | 45 | |
| 29434E | 170 | 340 | 103 | 40.7 | |
| 29436 | 180 | 360 | 109 | 52.9 | |
| 29438 | 190 | 380 | 115 | 62 | |
| 29438ME | 190 | 380 | 115 | 63.94 | |
| 29440 | 200 | 400 | 122 | 73.3 | |
| 29444 | 220 | 420 | 122 | 68.7 | |
| 29448 | 240 | 440 | 122 | 70 | |
| 29452 | 260 | 480 | 132 | 92 | |
| 29456 | 280 | 520 | 145 | 125.45 | |
| 29460 | 300 | 540 | 145 | 147 | |
| 29464 | 320 | 580 | 155 | 171 | |
| 29468 | 340 | 620 | 170 | 200 | |
| 29472 | 360 | 640 | 170 | 199 | |
| 29476 | 380 | 670 | 175 | 234 | |
| 29494 | 480 | 850 | 224 | 501 | |
Why choose us?
1). The quality assurance:
Product quality is the lifeline of an enterprise. In order to possessing the leading technology, our company implements the quality control system and establishes a technical and strict inspection team.
2). The convenient & fast transportation to Qingdao port
Our factory is located in liaocheng city, eaierly transport to the port by car
3). 24- hour customers series online:
High quality, good credit and excellent service are the tenet of our factory. Customers'satisfaction is our lifeline, as well as our highest honor. We will do our best to meet your requirements, and will do better in the future.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Other Related
FAQ:
1. Are you a factory or a trading company?
We are a professional manufacture of deep groove ball bearings and other bearings.
2. Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
3. Is the sample available?
Yes, samples are available for you to test the quality.
4. Have the products been tested before shipping?
Yes, all of our bearings have been tested before delivery.
5. How long is your delivery time?
As mentioned above, there are different types of shipping for your order. We make sure to deliver goods once all products are produced and tested.
6. What is your terms of payment ?
You can pay by T/T, L/C, etc., and it can be negotiated according to different orders with different amount.
8.How to stock and maintenance my bearings?
Do not store bearings directly on concrete floors, where water can condense and collect on the bearing;
Store the bearings on a pallet or shelf, in an area where the bearings will not be subjected to high humidityor extreme temperature that may result in condensation forming;
