Tiayo High Speed Tmp6 Linear Module for Medical Machine Origin China Lead 32/40mm Model NO. TMP6 Trademark Tiayo Belt Width
1 Piece
$8001 Piece
$200Product information
High-quality Tiayo High Speed Tmp6 Linear Module for Medical Machine Origin China Lead 32/40mm Model NO. TMP6 Trademark Tiayo Belt Width supplied by Hunan Tianyou Precision Technology Co., Ltd.. Bulk wholesale pricing ranges from $200 to $800 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Repeatability Accuracy:
+-0.04
Delivery Time:
10-25 Days, According to Quantity
Stroke:
100-800mm
Belt Width:
12mm
Warranty:
24 Monthes
Lead:
32/40mm
Speed:
333-2000mm/S
Production Capacity:
5000 Sets/Month
Specifications
Repeatability Accuracy:
+-0.04
Delivery Time:
10-25 Days, According to Quantity
Stroke:
100-800mm
Belt Width:
12mm
Warranty:
24 Monthes
Lead:
32/40mm
Speed:
333-2000mm/S
Production Capacity:
5000 Sets/Month
Rated Thrust:
51n
HS Code:
8486402900
Installation:
All Automation Machines
Material:
Aluminium
Feature:
Antiseptic, Heat-Resistant, Wear-Resistant
Product Type:
Belt Drive Linear Module
Certification:
CE
Trade Term:
CIF, FOB, CFR, EXW
Transport Package:
Carton Case with Foamer
Origin:
China
Motor Position:
Exposed/Lower Side/Right Side/Left Side
Max Payload:
Horizontal 15kg
Installation Way:
Horizontal/Wall Installation/Vertical
Sensor:
Inside/Outside/No Sensor
Running Mode:
Moving
Structure:
Semi-Sealed
Driven Type:
Servo Motor
Port Of Loading:
Shenzhen Port
Drive Motor:
Step Motor, Servo Motor
Payment Term:
T/T, LC, D/P, Western Union, Small-amount payment
Model NO.:
TMP6
Trademark:
Tiayo
Linear Guide:
W42*H9.5
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-03-22
Annual Revenue Amount:
Not specified
Numbers Of Employees:
156
Preferred Payment Term:
T/T, LC, D/P, Western Union, Small-amount payment
Preferred Trade Term:
CIF, FOB, CFR, EXW
Port Of Loading:
Shenzhen Port
Certificates:
CDDIA-1, CDDIA-2
Product descriptions from the supplier

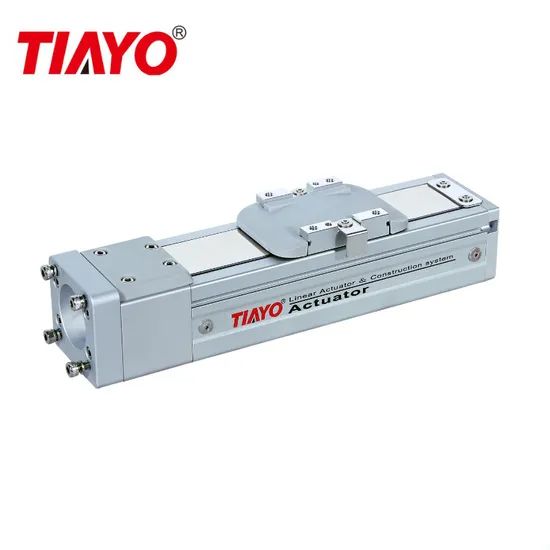

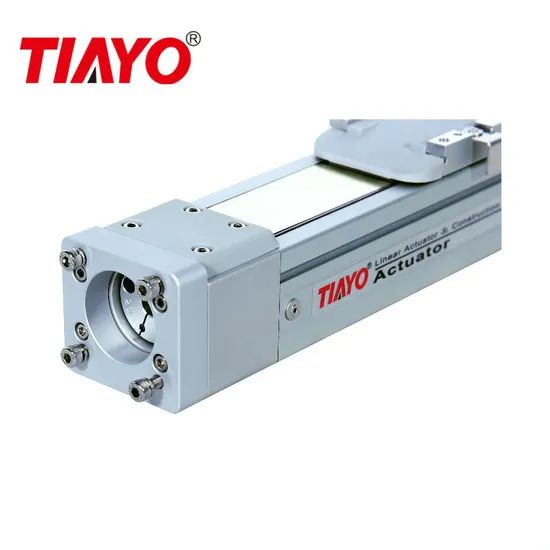

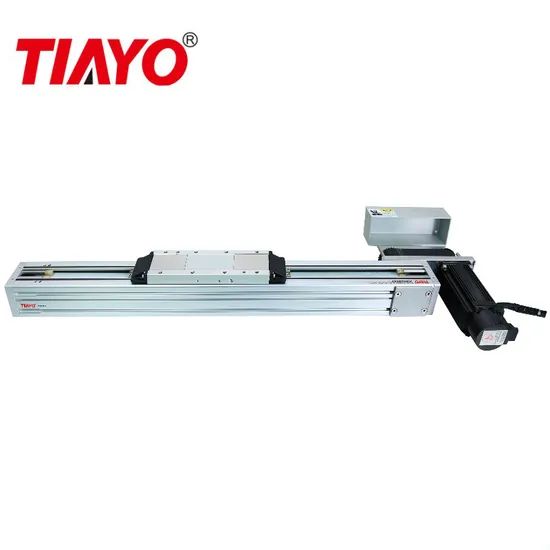

TIAYO high speed TMP6 linear module for medical machine
Product description:
Linear moduleis also known as linear guide rail, rectangular coordinate robot, linear slide table, etc, which is composed of linear guide rail, ball screw, belt,gear and rack and other linear transmission mechanism of automation unit. The linear and curved motion of the load can be assembled through the combination of single or multiple units, which makes the automation equipment more flexible, more convenient in design and more accurate in positioning.
TMP6linear module, one guide and one slider, with high precision, multi-segment repeat positioning, compact structure, strong versatility.
Maximum stroke: 800mm
Repeat accuracy: +-0.04mm
Easy maintenance
The stoke without reducing speed
High rigidity mainframe and cover: one pieceestruded aluminum structure for optimal rigidity and weight ratio.
Product pictures:
Product detailes:
Range of application:

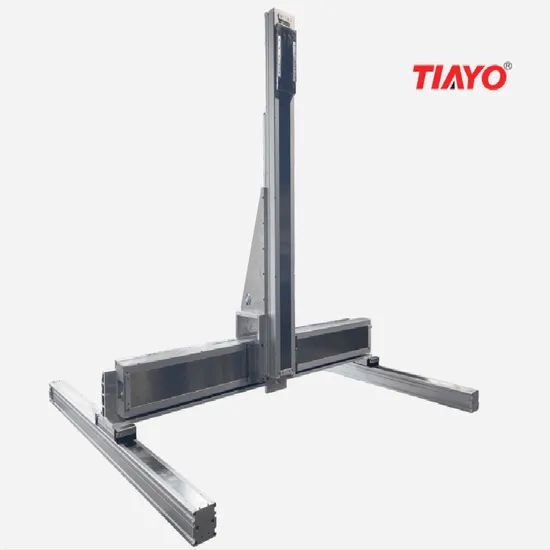

It can be used in combination with single or multiple axes. It is easy to match the required workpieces in various industries and it becomes a simple and practical mechanical arm. It is mainly used in dustfree workshops or special fields such as electronics and medical equipment, such as film, Depreciation, IC printing, CCD on-line inspection, precise positioning detection of soldering automation equipment, laser plus(laser cutting/laser marking/laser engraving/laser drilling,etc.) precision assembly, precision machine tools, semiconductor production equipment, location detection, electronic production equipment , and 3D printing equipment and other fields.
Production and testing:
Our Factory:
Hunan Tianyou Precision Technology Co., Ltd. (called "Tiayo")located in Changsha, Hunan, nearby Changsha Huanghua International Airport where runs the second maglev train in China. Tiayo is a China-based company, established in 2007, specializing in R&D, production, marketing, project consultancy of linear actuators and motors, mainly serve the automation industry.
For over 10 years,we focus on providing high quality products, excellent after sales service and full solutions of automation machine. Our well-quipped facilities, excellent quality control system gained good reputation of overseas and domestic clients.
As for now, our linear actuators have been widely used in PC, LCD, PCB, LED, PDP, biotechnology, semiconductor, automotive, optical, food, medical, energy and related industries.
Tiayo will initiate the second phase of our development strategy, "reasonable price, efficient production time and lifelong time after sales service" is our tenet. We desire to meet more professional business partners to make industrial automation better together.
Our Exhibition:
Tiayo aims to be linear transmission,pneumatic components & vacuum components provider,meanwile we are a linear module manufacturer. We hope to provide a full solution for automation industry to make powerful future.
Our Service:
1. Our products use high-quality materials and adopt mature processing methods.
2. The products of each series are very rich. If you don't see them on the page, please contact customer service.
3. Our products provides 2 years warranty.
4. We can accept customized processing only if you provide drawings.
5. Our quotation is ex-factory unit price. Freight needs to be borne by you. Please consult the freight.
6. Under normal circumstances, the goods will be delivered within 20 days.
7. Our company always listens to your suggestions, if your opinions are favorable.
FAQ:
1. Q: Your products looks nice, can I get a full product catalog with specification for study?
A: Yes, pls contact our TIAYO sales team.
2. Q: Can you tell me what is your company main business?
A: Our factory mainly manufacture linear modules/actuators/motors, OEM is available .
3. Q: Which famous enterprise use your machines?
A: There are BUD,Foxconn, LENS Technology, HUAWEI/Apple/OPPO/Vivo, etc. supply chain manufacturers are our key account .
4. Q: If so, is it possible get sample machines before trial order?
A: Yes, pls tell your detailed requirements to TIAYO sales team, we can modify the 3D drawing, prepare one or pair of customized sample for you .
5. Q: Good, how long is your lead-time?
A: 7 working days for sample prepare, 15-20 working days for bulk order(Confirm each bill of international payment need extra 3 working days)
6. Q: Sounds good, how long is the warranty period of your machines?
A: 24-months warranty is provided for our linear modules/actuators/motors, strictly based on sales contract.
7. Q: Wow, I want to do business with your company, what kind of payment terms should I use ?
A: Sample order, trial order, repeat order, we accept T/T payment, 30% deposit pay in advance, 70% balance pay before transportation.(L/C payment only available for designated countries'client)
8. Q: What is the best shipment way for your products?
A: For samples, the best delivery way is via airplane transport(or land transport),takes one week transfer to destination airport, for large quantity, the best shipping way is via ocean ship(or land transport), takes one month to destination port. The nearest sea port is Shenzhen/Guangzhou.
9. Q: Why choose us?
A: With more than 10 years experience of linear modules .
