Topographic Surveying Equipment Rts352 Total Station Trademark FOIF Model NO. RTS352 Working Range ±3" Field of View
1-4 Set
$2,2005-9 Set
$2,10010 Set
$2,000Product information
High-quality Topographic Surveying Equipment Rts352 Total Station Trademark FOIF Model NO. RTS352 Working Range ±3" Field of View supplied by Tianjin Unique Technology Co., Ltd.. Bulk wholesale pricing ranges from $2,000 to $2,200 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Single Prism:
1 to 5000m
Setting Accuracy:
1"
Shortest Focus Distance:
1.0m
Reflectorless Distance:
1000m
Field Of View:
1°30'
Display Resolution:
1”/5”/10”(or 0.2/1/2mgon)
Package Gross Weight:
21.000kg
Magnification/ Resolution:
30X/ 3.75"
Specifications
Single Prism:
1 to 5000m
Setting Accuracy:
1"
Shortest Focus Distance:
1.0m
Reflectorless Distance:
1000m
Field Of View:
1°30'
Display Resolution:
1”/5”/10”(or 0.2/1/2mgon)
Package Gross Weight:
21.000kg
Magnification/ Resolution:
30X/ 3.75"
Angle Unit:
360°/400gon/6400mil, Selectable
Package Size:
55.00cm * 33.00cm * 41.00cm
Reading System:
Absolute Encoder (Diameter Detecting)
Laser Brightness:
Adjustable
Transport Package:
Carton Package
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Compensator:
Dual-Axis Compensator
Trade Term:
FOB
Trademark:
FOIF
Measuring Time:
Initial: 2s
Data Transfer:
Mini-USB, RS-232c or SD Card
Model NO.:
RTS352
Payment Methods:
Support payments in USD
Origin:
Tianjin, China
Payment Term:
To be discussed
Working Range:
±3"
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
SGS Certificate
Product descriptions from the supplier

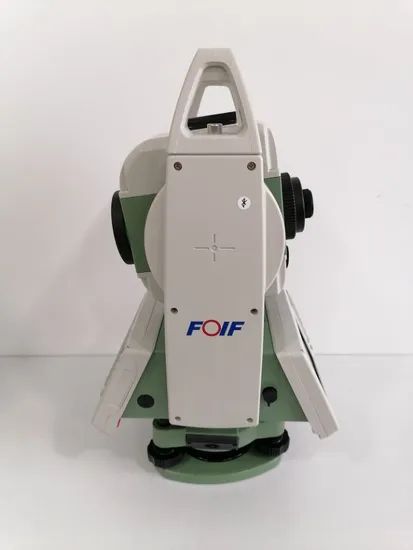

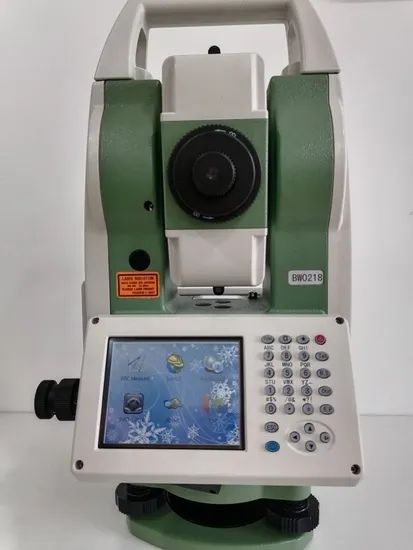

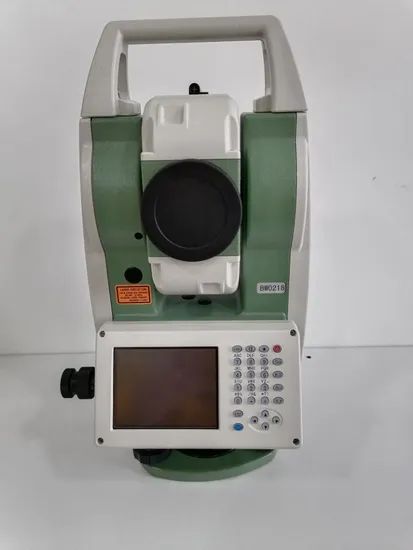

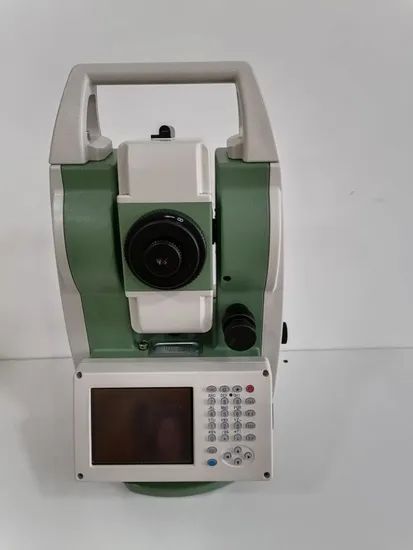

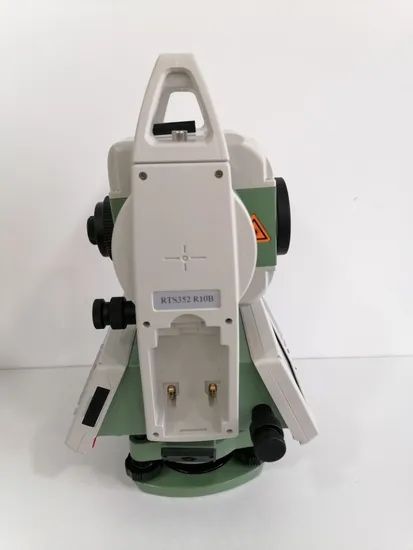

Topographic surveying equipment RTS352 total station
Compact design with Windows CE 7.0 operating system
3.5" colour TFT LCD (320 x 240 dots) touch screen, transflective sunlight readable display
Professional onboard software: FOIF Fieldgenius,FOIF Survey or Carlson SurvCE
Long reflectorless measuring distance reaches to 600m(R600) or 1000m(R1000)
Illuminated keyboard with light sensor, turn on in dark surroundings automatically
Multiple data interfaces,USB host, USB slave, RS-232C or Bluetoot connections are available
Smart battery managing system, display battery life in real-time
Guide light system for fast stake out measurement
Technical data:
|
Telescope |
|
|
Length/Image |
156mm/Erect |
|
Objective aperture |
φ45mm |
|
Magnification |
30x |
|
Field of view |
1°30′ |
|
Shortest focus distance |
1.0m |
|
Angle Measurement |
|
|
Reading system |
Absolute encoder |
|
Angle unit |
360°/400gon/6400mil, selectable |
|
angular surveying accuracy |
1" |
| Display resolution | 0.1″/0.5″/1″(or 0.02mgon/0.1mgon/0.2mgon) |
| Accuracy | 2" |
|
Distance measurement(R600) |
|
|
Display resolution(m/inch selectable) |
0.1mm/1mm |
|
Laser class Prism |
Class 1 |
|
Reflectorless/Reflective sheet |
Class 3R |
|
Measurement range (Good condition ) |
|
|
Reflectorless |
1 to 600m |
|
Reflective sheet/RP60 |
1 to 800m |
| Single prism |
1 to 5000m |
|
Accuracy |
|
|
Prism |
2mm+2ppm |
|
Reflective sheet/RP60 |
3mm+2ppm |
|
Reflectorless |
1-150m:3mm+2ppm; >300m:10mm+5ppm 150-300m:5mm+3ppm; |
|
Measuring time |
Initial:2s |
|
Prism |
typ.1.0-1.5s |
|
Reflective sheet/RP60 |
typ.1.5s |
|
Reflectorless |
typ.1.5-5s, max. 20s |
| Level vial sensitivity | |
|
Plate level vial |
30″/2mm |
|
Circular level vial |
8′/2mm |
|
Compensator |
Dual axis compensator |
|
Working range |
±3′ |
| Setting accuracy | 1″ |
|
Laser plummet(Standard) |
|
|
Accuracy |
±1.0mm/1.5m |
|
Laser class |
Class 2/IEC60825-1 |
|
Laser brightness |
Adjustable |
|
Laser wave length |
635nm |
|
Optical plummet(Factory optional) |
|
|
Accuracy |
±0.8mm/1.5m |
|
Image |
Erect |
|
Magnification |
3x |
|
Field of view |
4° |
|
Focus range |
0.5m to ∞ |
|
Display |
3.5" colour TFT LCD (320 x 240 dots) touch screen transflective sunlight readable display |
|
Power |
|
|
Battery |
3400mAh Li-ion Rechargeable |
|
Output voltage |
7.4V DC |
|
Continuous operation time (Single distance measurement every 30 seconds) |
8 hours |
| Charger | FDJ6-LI(100V /240V ) |
| Charging time(at +20ºC) | Approx. 4 hours |
| Application programs | |
| Data collection/Stake out/Resection/REM/MLM/Point to line | |
| AREA/Z coordinate/OFFset/3D Road/Traverse adjustment | |
| Tape measurement/section/Axis positioning measurement | |
| Others | |
| CPU | ARM Cortex A8 |
| Memory | 4GB internal memory |
| Sensors | Built-in temperature and pressure sensors |
| Keyboard | Alphanumerical illuminated key board, both sides |
| Guide Light System | Factory optional |
| Weight(including batteries) | 5.5kg |
| Dimensions(WxDxH) | 185x220x360mm |
| Interface | USB host/USB slave/RS-232C/Bluetooth(Optional |
| Water and dust protection | IP55(IEC60529) |
| Data transfer&processing software | FOIF Geomatics Office(FGO) |
| Data collector | F58, fully rugged PDA(Optional) |
The warranty period is 12 months.
