Touch TFT LCD Display 5" Inch Vertical Type HDMI Raspberry Pi Driver Board Module
2-99 Piece
$25100-999 Piece
$24.41000 Piece
$24Product information
High-quality Touch TFT LCD Display 5" Inch Vertical Type HDMI Raspberry Pi Driver Board Module supplied by RONBO ELECTRONICS LIMITED. Bulk wholesale pricing ranges from $24 to $25 per Piece with a minimum order of 2 Piece. Inquiry for latest prices.
Package Gross Weight:
0.150kg
Package Size:
10.00cm * 7.00cm * 2.00cm
Active Area:
108.0*64.8mm
Response Time:
10ms
Module PCB Size:
120.7*75.8mm
Brightness:
350CD/M²
Screen Size:
5.0"
Production Capacity:
500000
Specifications
Package Gross Weight:
0.150kg
Package Size:
10.00cm * 7.00cm * 2.00cm
Active Area:
108.0*64.8mm
Response Time:
10ms
Module PCB Size:
120.7*75.8mm
Brightness:
350CD/M²
Screen Size:
5.0"
Production Capacity:
500000
Resolution:
800*480
HS Code:
901383010
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Type:
Color
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Trade Term:
EXW
Interface:
HDMI
Viewing Angle:
IPS
Display Type:
IPS
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Model NO.:
MPI5011
Specification:
Rohs
Origin:
Shenzhen, China
Payment Methods:
Support payments in USD
Display Technology:
TFT
Trademark:
ronbo
Port Of Loading:
shenzhen port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-06-07
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
EXW
Port Of Loading:
shenzhen port
Certificates:
Business Registration Certificate, ISO 9001:2008, ROHS Certification, Subliencse Agreement
Product descriptions from the supplier
Touch TFT LCD Display 5" inch Vertical Type HDMI Raspberry Pi Driver Board Module
Product Specification:
- 5" standard display, 800x480 resolution,maximum HDMI resolution 1920X1080 is supported
- Capacitive touch screen, support 5 point touch maximum
- Built-in OSD menu adjustment function (adjustable Contrast/ Brightness/Saturation, etc.)
- It is compatible with mainstream mini PC such as Raspberry Pi, BB Black, Banana Pi
- It can also be used as a general-purpose HDMI display, connecting computers, TV boxes, Microsoft Xbox360 and so on
- Used as a Raspberry Pi display that supports Raspbian, Ubuntu, Kodi, Win10 IOT, single-touch, free drive
- Work as a PC monitor, support Win7, Win8, Win10 system 5 point touch (XP and older version system: single-point touch), free drive
- Support HDMI audio output
- CE, RoHS certification
Parameters:
- Size: 5.0 (inch)
- SKU: MPI5011
- Resolution: 800 × 480 (dots)
- Touch: 5 point capacitive touch
- Audio output: support
- Dimensions: 120.7*75.8 (mm)
- Package Size: 153*135*51 (mm)
- Rough Weight(Package containing): 259 (g)
- Power Dissipation: 0.30A*5V

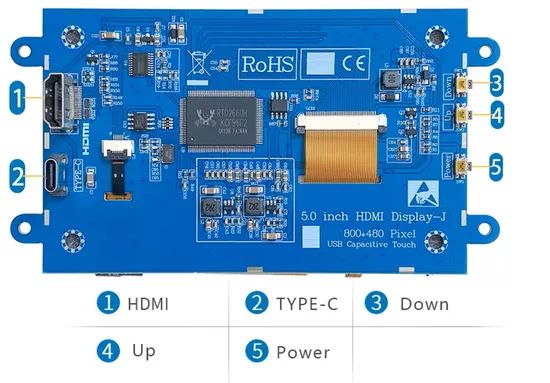

Hardware Description:
1) HDMI: HDMI interface ( For connecting motherboard and LCD monitor)
2) Typc-C: Type-C connector ( For power supply and touch output)
3) Down: Direction Down (Backlight shortcut key)
4) Up: Direction Up (Backlight shortcut key)
5) Power: Controls the backlight turned on and off to save power
Relatived Products:
If you need other size Raspberry Pi HDMI Display, please click Model No. below to review the details:
| Size | Model No. | Resolution | Module PCB Size (W*H mm) |
Active Area (W*Hmm) |
Brightness (cd/m²) |
Display Type | Interface | T/P | Remark |
| 3.5" | MPI3508 | 480*320 | 85.5*60.6 | 48.96*73.44 | 350 | TN | HDMI | RTP | support HDMI input and HDMI audio output interface |
| 3.5" | MPI3509 | 480*320 | 85.4*73.28 | 48.96*73.44 | 500 | TN | HDMI | RTP | support HDMI input and HDMI audio output interface |
| 3.5" | MPI3516 | 480*320 | 93.44*81.91 | 48.96*73.44 | 500 | TN | HDMI | CTP | support HDMI input and HDMI audio output interface |
| 4.0" | MPI4008 | 800*480 | 98.60*58.05 | 51.84*86.4 | 350 | TN | HDMI | RTP | support HDMI input and HDMI audio output interface |
| 4.3" | MPI4301 | 800*480 | 106.0*85.0 | 107.1*86.40 | 400 | IPS | HDMI | CTP | support HDMI input |
| 4.3" | MPI4303 | 800*480 | 106.0*68.0 | 95.04*53.86 | 400 | IPS | MIPI DSI | CTP | support MIPI DSI input |
| 4.3" | MPI4305 | 800*480 | 106.0*85.0 | 95.04*53.86 | 400 | IPS | HDMI | CTP | support HDMI input |
| 5.0" | MPI5001 | 800*480 | 121.11*95.24 | 108.0*64.8 | 350 | TN | HDMI | CTP | support HDMI input and HDMI audio output interface |
| 5.0" | MPI5002 | 800*480 | 122.1*99.39 | 108.0*64.8 | 400 | IPS | HDMI | CTP | support HDMI input and HDMI audio output interface |
| 5.0" | MPI5003 | 800*480 | 121.1*77.9 | 108.0*64.8 | 400 | IPS | MIPI DSI | CTP | support MIPI DSI input |
| 5.0" | MPI5004 | 800*480 | 122.1*78.1 | 108.0*64.8 | 400 | IPS | HDMI | CTP | support HDMI input and HDMI audio output interface |
| 5.0" | MPI5008 | 800*480 | 121.11*77.93 | 108.0*64.8 | 350 | TN | HDMI | RTP | support HDMI input |
| 5.0" | MPI5011 | 800*480 | 120.7*75.8 | 108.0*64.8 | 400 | IPS | HDMI | CTP | support Vertical HDMI input |
| 5.5" | MPI5518 | 1920*1080 | 143.4*75.3 | 120.96*68.04 | 400 | IPS | HDMI,Type-C | -- | support HDMI input, LCD Monitor with Cabinet |
| 7.0" | MPI7001 | 800*480 | 164.9*124.27 | 154.08*85.92 | 350 | TN | HDMI | CTP | support HDMI input, |
| 7.0" | MPI7002 | 1024*600 | 164.9*124.27 | 154.21*85.92 | 350 | IPS | HDMI | CTP | support HDMI input, |
| 7.0" | MPI7003 | 800*480 | 164.90 *102.00 | 154.08*85.92 | 350 | TN | MIPI DSI | CTP | support MIPI DSI input, |
| 7.0" | MPI7004 | 1024*600 | 165.0*129.0 | 154.21*85.92 | 350 | TN | HDMI,VGA | CTP | support HDMI VGA input, |
| 7.0" | MPI7005 | 1024*600 | 166.5*120.0 | 154.21*85.92 | 350 | IPS | HDMI | CTP | support HDMI input, |
| 7.0" | MPI7006 | 1024*600 | 164.90 *102.00 | 154.21*85.92 | 350 | IPS | HDMI | CTP | support HDMI input, With Speaker and Bracket, |
| 7.0" | MPI7007 | 1024*600 | 167.02*102.63 | 154.21*85.92 | 500 | IPS | HDMI | -- | support HDMI input, With Thin Metal Cabinet, With Speaker and Bracket |
| 7.0" | MPI7008 | 1024*600 | 180.0*125.0 | 154.21*85.92 | 350 | IPS | HDMI,VGA, AV |
CTP | support HDMI input, with Plastic Cabinet,With Speaker and Bracket, |
| 7.0" | MPI7009 | 1024*600 | 175.0*112.0 | 154.21*85.92 | 400 | IPS | Mini HDMI, Type-C |
CTP | support Mini HDMI input, With Hard Iron Shell,With Speaker and Holster, |
| 7.0" | MPI7010 | 1024*600 | 170.0*105.0 | 154.21*85.92 | 500 | IPS | HDMI,VGA, AV |
-- | support HDMI VGA AV input,With Thin Metal Cabinet,With Speaker and Bracket |
| 7.0" | MPI7011 | 1024*600 | 170.0*131.0 | 154.21*85.92 | 350 | IPS | HDMI,VGA | CTP | support HDMI VGA input,With Thin Metal Cabinet,With Speaker and Bracket, |
| 7.0" | MPI7012 | 1024*600 | 174*117*19 | 154.21*85.92 | 350 | IPS | HDMI,VGA,AV, USB |
-- | support HDMI VGA AV USB input, With Plastic Cabinet and Bracket |
| 8.0" | MPI8001 | 1024*768 | 183.0 *159.0 | 162.05*121.54 | 300 | TN | HDMI | CTP | support HDMI input |
| 8.0" | MPI8002 | 1024*768 | 183.0 *159.0 | 162.05*121.54 | 600 | IPS | HDMI | CTP | High Brightness for Outdoor Application, support HDMI input, |
| 8.0" | MPI8008 | 1280*800 | 197.0*132.0 | 172.22*107.64 | 300 | IPS | HDMI | CTP | support HDMI input, LCD Monitor with Cabinet, |
| 10.1" | MPI10101 | 1024*600 | 236.00*145.57 | 222.72*125.28 | 350 | IPS | HDMI | CTP | support HDMI input |
| 10.1" | MPI10102 | 1280*800 | 229.46*149.1 | 216.96*135.6 | 500 | IPS | HDMI | CTP | support HDMI input |
| 10.1" | MPI10103 | 1280*800 | 255.0*172.6 | 216.96*135.6 | 500 | IPS | HDMI | CTP | support HDMI input |
| 10.1" | MPI10105 | 1024*600 | 236.5*144.5*13.0 | 222.72*125.28 | 350 | IPS | HDMI | CTP | support HDMI input |
| 10.1" | MPI10106 | 1024*600 | 240.0*152.0*16.0 | 222.72*125.28 | 350 | IPS | HDMI | -- | support HDMI VGA AV input, No Touch, With Plastic Cabinet and Bracket |
| 10.1" | MPI10108 | 1280*800 | 239.4*157.4*12.3 | 216.96*135.6 | 350 | IPS | HDMI | CTP | support HDMI input |
| 10.1" | MPI10109 | 1280*800 | 242.5*161.2*10.7 | 216.96*135.6 | 250 | IPS | Mini HDMI & VGA |
CTP | support HDMI input |
| 10.1" | MPI10110 | 1280*800 | 250.0*170.0*35.0 | 216.96*135.6 | 350 | IPS | HDMI/VGA /USB/AV |
CTP | Optical Bonding |
| 13.3" | MPI13301 | 2560*1440 | 310.0*190.0*10.0 | 293.76*165.24 | 300 | IPS | Mini HDMI, Type-C, Audio |
CTP | Optical Bonding, support Mini HDMI and Type-C input, With Thin Metal Cabinet, |
| 13.3" | MPI13302 | 2560*1440 | 310.0*210.0*5.5 | 293.76*165.24 | 300 | IPS | Mini HDMI, Type-C, Audio |
-- | support Mini HDMI and Type-C input, LCD Monitor with Cabinet, |
| 13.3" | MPI13303 | 1920*1080 | 322.0*204.0*13.0 | 293.76*165.24 | 300 | IPS | Mini HDMI,Micro USB,Audio | -- | support Mini HDMI and Micro USB input, With Thin Metal Cabinet, |
| 13.3" | MPI13303-2K | 2560*1440 | 322.0*204.0*13.0 | 293.76*165.24 | 300 | IPS | Mini HDMI,Micro USB,Audio | -- | support Mini HDMI and Micro USB input, With Thin Metal Cabinet, |
Packaging & Shipping & Delivery
Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation by our cargo agent.
Delivery Details:
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
Our Company:
Ronbo Electronics Ltd., is one of the leading display suppliers. Its production line includes small to medium size LCD, TFT and IPS modules for a variety of industrial and consumable application. We are one of the leading display providers of character LCD modules, graphic LCD modules, TFT & IPS modules and Touch Screen. High-quality LCD modules are made based on our experienced engineering knowledge, well-managed supply chain.
Moreover, our company has passed ISO 9001 certifications as well as RoHS.
By adopting computerized management system, automatic manufacturing process and advanced technology, we can able to continuously supporting our worldwide customers with qualified and reliable products.
Our website:
Our Advantage:
☆Responsibility:
We take all responsibilities for any mistakes what we do make. We will remake all wrong pieces and ship out shortly.
☆Fast response:
Quickly realize your customized ideas, and have a sample ready in short time
☆Free Design:
We offer free design service depending on your ideas, logos, colors, etc.
Good knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client
☆Efficient Communication:
Our sales are all with high English language skills, they are working so hard and efficient.
☆High Quality:
All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008, ISO 14001:2004 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
☆Quick Delivery (Production Time):
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
Product Line:
☆Clean Room class[email protected], Pressurec 0.8kgf
☆Antistatic floor, resistance : 1x10 ohm to 1x10 ohm
☆COG production lines: 4 .
☆Backlight production lines: 2 .
☆Existing machine capacity will be 1KK per month.
Quality Policy:
All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
Certification:
FAQ:
Q: How can I get some samples?
A: We don't provide free one, but we can have a discount when you reorder according to different quantity, and you will win at least 3% discount.
Q: What is the MOQ?
A: It depends on different products. Please keep in touch with sales to confirm the MOQ.
Q: How do you control quality?
A: All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008, ISO 14001:2004 management system.
Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment0*480 CapacitouScreenCDsplay
Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products.
Q: What's your payment method?
A: Payment: T/T, Paypal, Western Union, etc.
For samples: payment in advance.
For mass production: 30% deposit and 70% balance before shipment.
Q: Do you offer custom solution?
A: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements.
