Trademark Cly Mobile Phone Screen Repair Machine
1 Piece
$12,000Product information
High-quality Trademark Cly Mobile Phone Screen Repair Machine supplied by Guangzhou Chuang Li You Machinery Co., Ltd.. Bulk wholesale pricing is $12,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
1000
Package Gross Weight:
250.000kg
Specification:
250KG
HS Code:
8486309000
Package Size:
88.00cm * 78.00cm * 165.00cm
Trademark:
CLY
Model NO.:
CLY-823LS
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Specifications
Production Capacity:
1000
Package Gross Weight:
250.000kg
Specification:
250KG
HS Code:
8486309000
Package Size:
88.00cm * 78.00cm * 165.00cm
Trademark:
CLY
Model NO.:
CLY-823LS
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
FOB, CIF
Origin:
Guangzhou
Port Of Loading:
Guangzhou Huangpu Port
Payment Term:
LC, T/T
Payment Methods:
Support payments in USD
Training:
Teach Online or Learning for Training Videos
Transport Package:
Wooden Box
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2016-09-27
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Guangzhou Huangpu Port
Certificates:
CE
Product descriptions from the supplier
| Company Name | Guangzhou Chuang Li You Machinery Co., Ltd. |
|---|---|
| Product Name | All Brand Mobile Phone LCD Screen White/Pink/Yellow Laser Repair Machine Cly-823ls |
| Keywords | Mobile Phone Laser Repair Machine, Mobile Phone LCD Laser Repair Machine, OLED Corrosion Repair Machine, Laser Machine for Phone, ITO Laser Machine for Mobile Phone |
| Attributes | After-sales Service: Online 24 Hours, Warranty Period: 1 Year, Shipping Packaging: Wooden Box |

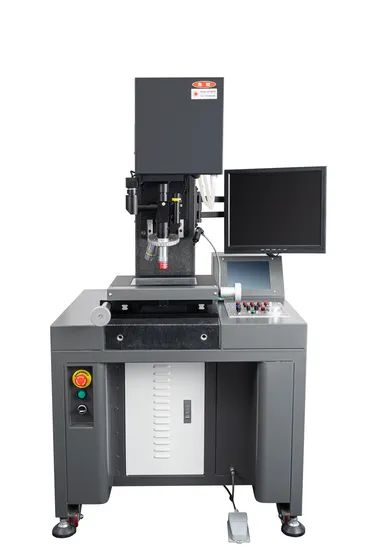

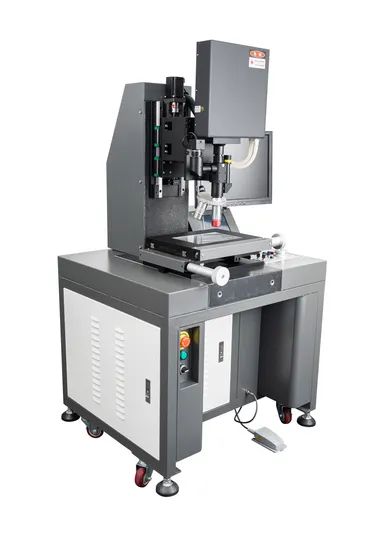

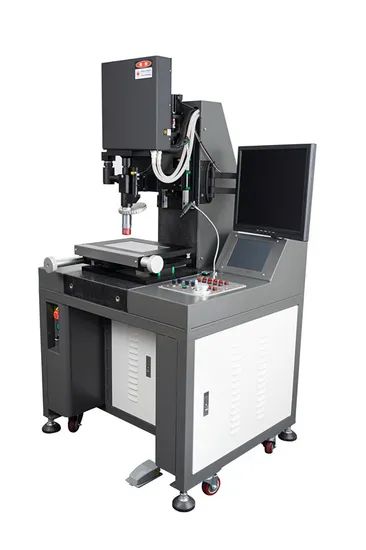

Revitalize mobile phone LCD screens with unmatched precision using the CLY-823LS Laser Repair Machine. Benefit from our round-the-clock online support, a comprehensive 1-year warranty, and the assurance of secure shipping in a sturdy wooden box.
| Item | Parameters | REMARK |
| LASER SYSTEM |
LASER TYPE:Xenon lamp LASER | |
| MODEL:CLY-823LS | ||
| Wavelength: 1064nm IR/GR (wavelength optional) | ||
| Pulse width: 8ns | ||
| Frequency: 1-30Hz | ||
| Maximum energy output: 80mj | ||
| Output parameter stability: ± 3% | ||
| Spot size: square/adjustable in length | ||
| Minimum spot: 2.5um * 2.5um (optional under 50x objective state) | ||
| Spot size adjustment range: 50X MAX-24um * 24um Min-2.5um * 2.5um (optional) 20X MAX-60um*60um MAX-3um*3um |
||
| Imaging system | model:CLY-823LS | |
| Imaging lens: IR/GR antireflective film | ||
| Objective lens: 10X (APO), 50X (NIR) | ||
| Objective switching: manual | ||
| CCD brand: Sony, Japan | ||
| CCD pixel: 2 million image capture | ||
| Display: 17 inch 1920 * 1080 | ||
software systems |
Control function: 1. Laser energy, frequency, wavelength switching, spot size adjustment and storage 2. Workbench movement and processing status parameter display |
|
| Rack structure | Material: Sheet metal steel frame | |
| External dimensions: L1800mm * W1200mm * H1500mm | ||

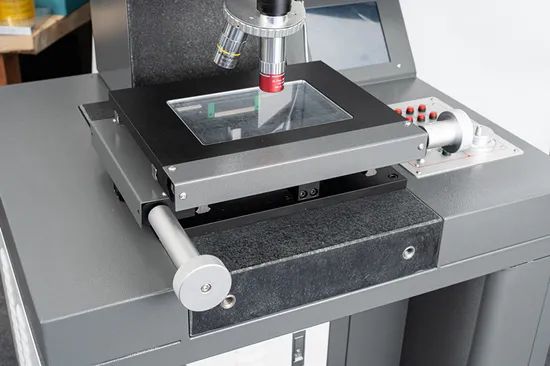

| Workbench size: 1100mm * 1500mm | ||
| XY axis stroke: 1200mm * 720mm | ||
| Z-axis stroke: 100mm | ||
| XYZ axis movement speed: High speed ≥ 10mm/s Low speed: 2mm/s Manual fine adjustment: 0.25mm/260 degrees |
||
| XYZ axis movement accuracy: ± 0.02mm | ||
| Platform surface: padded with high-strength glass | ||
| Z-axis guide rail: oil-free guide rail | ||
| Appearance paint coloring: gray with glossy oil (dust-free type) | ||
| Suspension beam structure: marble structure | ||
| Display holder: adjustable for front and rear swing | ||

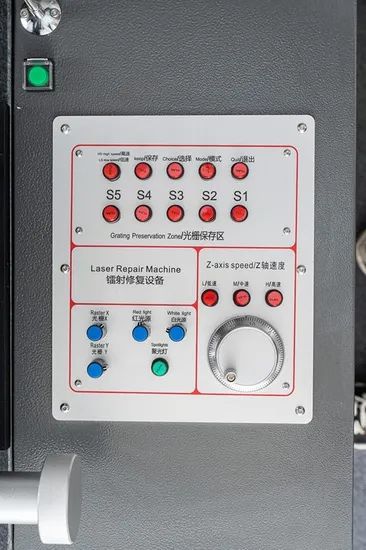

| Electrical part | Operating keyboard functions: 1. Shift between fast and slow 3 gears 2. XYZ axis coarse adjustment and fine adjustment 3. Illumination light source brightness adjustment 4. Start power switch 5. Start button 6. Laser energy compensation knob 7. Emergency stop |
|
| Input power supply: single-phase AC 220V 50-60Hz 10A | ||
| Application Principles | Use high-energy pulse laser to cut or fuse specific circuits in the ito conductive coating of OLED/LED/LCD, repairing the normal function of OLED/LED/LCD circuits. | |
| Application | 1. Fusion welding at the break of the circuit outside the box of the COP structure flexible screen. 2. External corrosion ITO circuit cutting and fusion of OLED screens (including COG and COF). 3. ITO circuit disconnection and fusion of TFT screen 4. ITO: Indium TinOxide, OLED/LED/LCD conductive circuit 5.COP: Chip On PI; Sheet on PI material. PI material is a flexible substrate. For example, 12Pro max, 13,13Pro, Samsung flexible screen, etc COF: Chip On Flex; The chip is on the ribbon. For example, i-Phonemax, 11pro max, 12,12Pro, and Samsung S6, S7, A51, A70, etc |

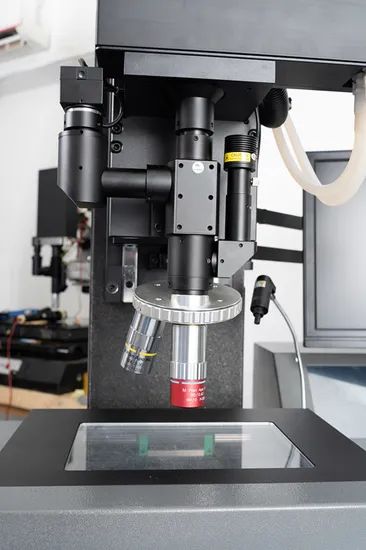

Advanced Optical Imaging System
High-Resolution Microscope: Ideal for detailed observation, laser processing, and specialized tasks
State-of-the-Art CCD: 1/2" Color CCD
Superior Fall Shoot Light Source: High brightness halogen light system (100W)
Transmission Light Source: High brightness halogen system (150W)
Guide Light System: High brightness halogen light source (100W)
Versatile Objective Switching System: 4-hole manual operation for seamless transitions
Precision Optical Lens Group: 10x and 50x magnifications, perfect for observation and laser processing
About Us
At Guangzhou Chuang Li You Machinery Co., Ltd., we excel in crafting diverse machinery equipment, including TAB bonding machines, ACF bonding machines, LCD screen laser repair machines, soldering stations, digital multimeters, and more. With our dedicated R&D team in Guangzhou, we strive to create a flawless world.
FAQs
1. Can you do OEM?
Absolutely, we can tailor products to meet your specific requirements.
2. Is 110V available?
Yes, our products are versatile and can switch between 110V and 220V.
3. What kind of plug does your product come with?
Our products include American, Australian, European, UK plugs, or other types upon request.
