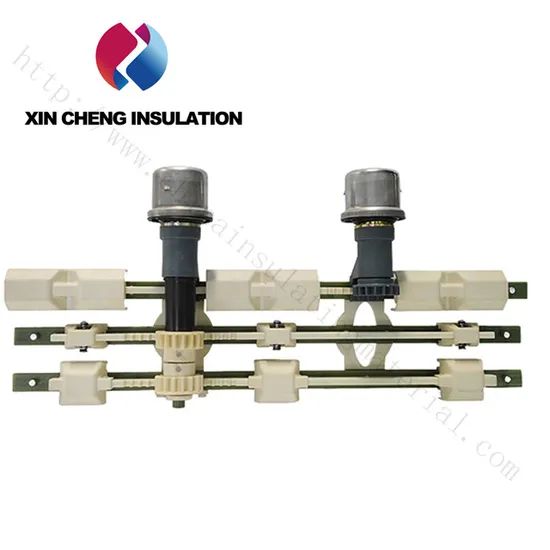

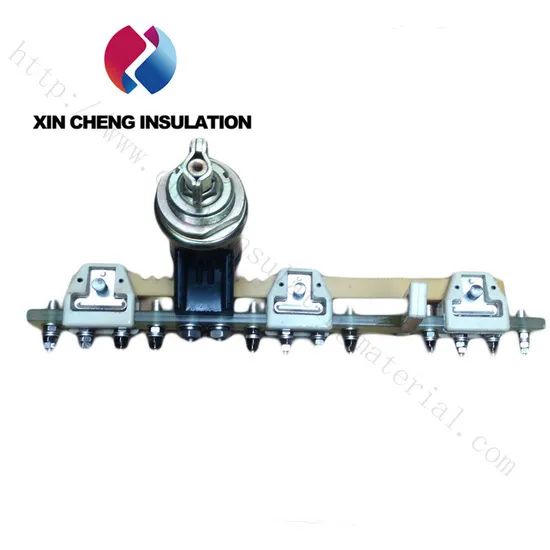

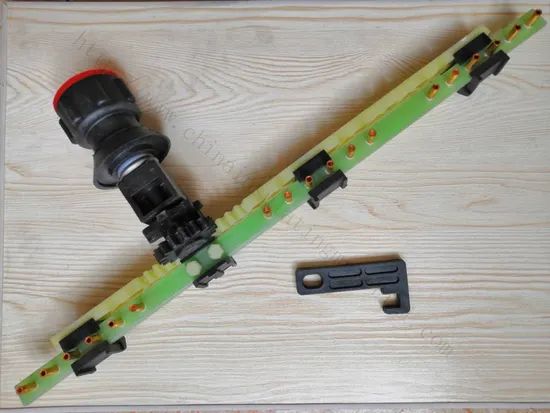

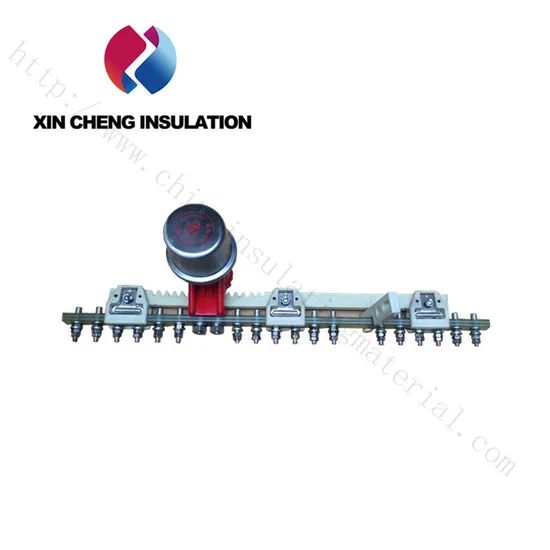

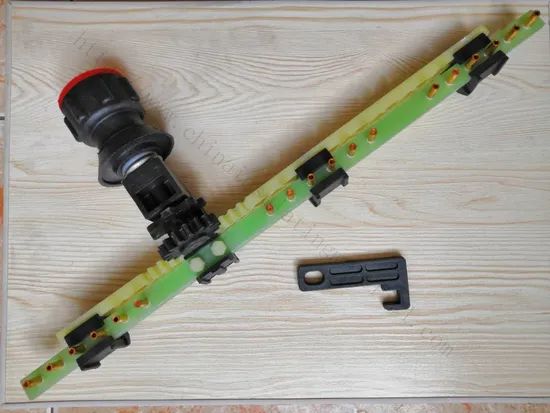

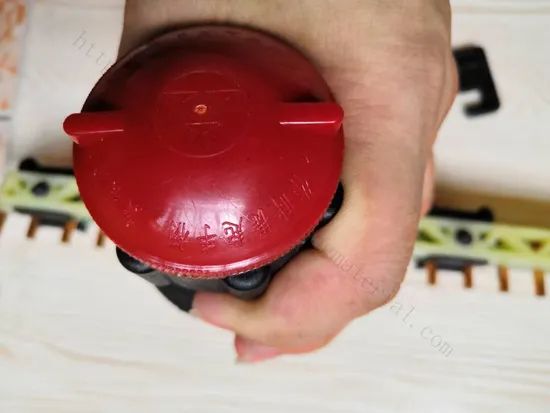

Transformer Electric off Load Tap Changer with Linear

Quick Details
Place of Origin: China (Mainland)                                        Brand Name: XINCHENG
Product name: off circuit tap changer                                   Model Number: W_ T_
Rated current: Under 500A                                                   Max. Voltage: 10-35KV, 35KV
Regulation: 2.5% per position                                              Type: Off Load
Function: Voltage Regulating                                               Phase Type: Three or single
Grade No.: 3 - 9 different as different product                     Tapping position: 5-7-8 different as different product
Usage: oil immersed distribution transformer & power transformer
Regulating Position1: Neutral/Central/Terminal
Regulating Position2: Y-Triangle conversion/ series-parallel connection     Mechanical Life: 20000times
Supply Ability: 35000 Piece/Pieces per Month


A non-excitation tap changer is designed for oil-filled transformers operating at either 50Hz or 60Hz. When the transformer is not energized (meaning no winding is active), the switch can be adjusted either by hand or through an electrical signal to alter the tap setting, thereby modifying the voltage transformation ratio, allowing for precise control and stabilization of the secondary output voltage.

Specific introduction:
These switches consist of a switch housing and a control mechanism. Designed for oil-filled transformers operating at 50Hz or 60Hz frequencies, they can be mounted either on the transformer casing or the cover, allowing adjustment, setting, and modification while the transformer is energized.
1.This kind of electric off circuit tap changer applies to the single-phase, three-phase, combination oil-immersed transformer of electrical power .
2.The frequency of 50HZ,60HZ,rated voltage of 10KV,35KV,rated current of 30A~250A;the voltage-regulating places are: central part, neutral
point, can be directly fixed on the box-cover of the transformer
3.under the non-excitation condition regulating and changing.
4.power device


Chinese manufacturer off circuit tap changer

WST series off-circuit off load tap changer for transformer
This switch is designed for single-phase, three-phase, or combined oil-filled transformers, operating at 50Hz or 60Hz, with rated voltages of 10KV or 35KV and currents ranging from 30A to 500A; it supports voltage regulation at the core, terminal, or neutral point, and can be securely mounted on the transformer tank lid and swapped out while the system is de-energized.


Non-excited tap changer for voltage control: Designed for single-phase, three-phase, or combined oil-filled transformers operating at 50Hz or 60Hz, with rated voltages up to 10kV or 35kV and currents ranging from 30A to 500A; offers tap adjustment at central position, terminal point, or neutral point; can be mounted directly onto the transformer tank and operated while the circuit is de-energized.


Our other product series:

WST series off-circuit off load tap changer for transformer
This switch is designed for single-phase, three-phase, or combined oil-filled transformers, operating at 50Hz or 60Hz, with rated voltages of 10KV or 35KV and currents ranging from 30A to 500A; it features voltage regulation at the center tap, terminal, or neutral point, allowing direct mounting on the transformer tank and replacement during de-energized operations.

Off-circuit Single Phase Linear Tap Changer
-Used in mineral oil or silicon oil                            -Used in mineral oil or silicon oil
-Rated voltage 10KV-35KV                                 -Rated voltage 10KV-24KV
-Rated current from 63A-250A                              -Rated current from 30A-63A
-Tapping position:3-7                                     -Tapping position:3-7
-Regulation 2.5% per position                               -Regulation 2.5% per position

Off-circuit Three Phase Linear Tap Changer
-Used in mineral oil or silicon oil                            -Used in mineral oil or silicon oil
-Rated voltage 10KV-35KV                                -Rated voltage 10KV-35KV
-Rated current from 63A-300A                             -Rated current from 63A-250A
-Tapping position:3-9                                    -Tapping position:3-7
-Regulation 2.5% per position                             -Regulation 2.5% per position

Off-circuit Combination Linear Type (ZH2)Three Phase Linear Tap Changer
-Used in mineral oil or silicon oil
-Rated voltage 10KV-35KV
-Rated current from 63A-250A
-Tapping position:3-5
-Regulation 2.5% per position
Off-circuit Combination Linear Type (ZH3)Three Phase Linear Tap Changer
-Used in mineral oil or silicon oil
-Rated voltage 20KV
-Rated current from 63A-250A
-Tapping position:3-5
-Regulation 2.5% per position


FAQ
1. Can you offer test report of the product?
A: We test every product before packing and delivery. Test report will be provided by requirement.
2. Can you offer components of the products?
A: Yes, we also sell components separately too.
3. Shall we pay for the sample charges? How to pay and how to deliver us?
For low-cost sample orders, we offer free shipping (FOC), but the customer must cover courier freight via Western Union or another method, such as providing a freight collect account with DHL, THT, or FedEx, as samples will be dispatched through these carriers.
4. Could you manufacture the products according to my drawing or sample?
A: Yes, ODM is available, we also could manufacture the products according to customer's drawing or replicate sample.
5. If new mould is needed, shall we pay for the mould cost? If mould cost will be refunded?
A: Yes, customer will be asked to pay for the mould cost, this mould cost will be deducted gradually from your orders.
6. More question
A:Feel free to contact me, you will get immediately reply


Packaging & Delivery
Packaging Details    standard export packing  Carton Box + Wooden Pallet
Delivery Time  2-4 weeks upon deposit
Port: Tianjin, Shanghai, Qingdao
