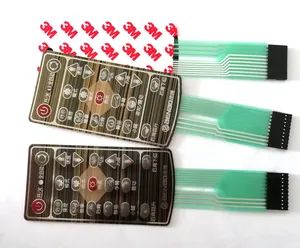

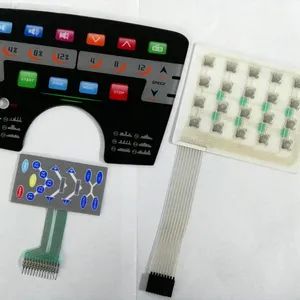

Transparent Keyboard Rubber Button Push Button Membrane Switch Keyboard Switches
Pieces
Negotiable
Product information
High-quality Transparent Keyboard Rubber Button Push Button Membrane Switch Keyboard Switches supplied by Xiamen Mingcai Electronic Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Working Temperature:
- 20 °c - + 70 °c
Storage Temperature:
- 40 °c - + 85 °c, 95% ± - 5%
QC Control:
100% Inspection
Production Capacity:
2, 000, 000PCS/Year
Specification:
30x25x25cm
Adhesive:
3m Self Adhesive
HS Code:
8538900000
Atmospheric Pressure:
86 - 106kpa
Specifications
Working Temperature:
- 20 °c - + 70 °c
Storage Temperature:
- 40 °c - + 85 °c, 95% ± - 5%
QC Control:
100% Inspection
Production Capacity:
2, 000, 000PCS/Year
Specification:
30x25x25cm
Adhesive:
3m Self Adhesive
HS Code:
8538900000
Atmospheric Pressure:
86 - 106kpa
Reliability Service Life:
> 1 Million Times
Usage:
Change-over Switch, Control Switch
Origin:
China
Contact Type:
Contact Switch or Touch Panel
Detection Method:
Correlation Type
Trademark:
Custom
Logo:
Custom Silk Screen Printing, Digital Printing
Push Button Type:
Embossed Poly Dome, Metal Dome, Flat, Non Tactile
Trade Term:
FOB, CIF, CFR, EXW
Surface:
Glossy / Matte Finish
Used For:
High Temperature, Long Term UV Exposure
Application:
Home Appliance, Telecommunication Equipment, With Remote Control, Calculator, Camera
Certification:
ISO9001, CE
Payment Term:
LC, T/T, PayPal, Western Union
Model NO.:
MK001-42
Brand:
Mc
Number Of Switch:
Multi Control Switch
MOQ:
No MOQ Limited
Dimension/Shape:
OEM Service
Color:
Pantone Color Number
Material:
Pet, PC, Acrylic, 3m, Silicone, Rubber
Transport Package:
Plastic Bags / Foam Bags / Cartons
Function:
Waterproof, Dustproof, UV Resistant
Port Of Loading:
Xiamen Port
Insulation Resistance:
≥ 100m Ω (100V / DC)
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2011-06-03
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Xiamen Port
Certificates:
Others
Product descriptions from the supplier
CUSTOM MEMBRANE SWITCH
STRUCTURE
The membrane switch is an operating system which integrates key function, indicating element and instrument panel.Made up of four components: surface layer, top conductor, insulating barrier, and bottom conductor. When the membrane is pressed, the top conductor bends down, making the bottom conductor's surface electrically active. Once the finger lifts, the top conductor returns to its original position, breaking the circuit and sending a signal. This type of switch features a robust design, attractive finish, and strong resistance to environmental factors. It offers water resistance and durable operation over time. Commonly found in telecommunications, test devices, manufacturing systems, healthcare tools, automotive systems, smart gadgets, home electronics, and various other applications.
The membrane switch is an operating system which integrates key function, indicating element and instrument panel.Made up of four components: surface layer, top conductor, insulating barrier, and bottom conductor. When the membrane is pressed, the top conductor bends down, making the bottom conductor's surface electrically active. Once the finger lifts, the top conductor returns to its original position, breaking the circuit and sending a signal. This type of switch features a robust design, attractive finish, and strong resistance to environmental factors. It offers water resistance and durable operation over time. Commonly found in telecommunications, test devices, manufacturing systems, healthcare tools, automotive systems, smart gadgets, home electronics, and various other applications.
Material
| Base Material | PET / PC |
| Surface | Glossy / Matte Finish |
| Temperature Resistance | -30ºC-120ºC |
| Thickness | Membrane: 0.05-0.25mm Plate: 0.25-2.0mm |
| Characteristic | High Temperature Resistance, Wear Resistance, High Stability |
| Circuit Layer | Silver paste Carbon paste |
Type
| Flat Non Tactile Type |
| Tympanic Tactile Type |
| Metal Elastic Type |
| LED Backlight Type |
Technical Parameter
| Electrical | 1.Voltage: ≤ 50V (DC) 2.Current: ≤ 100mA 3.Contact resistance: 0.5 - 10 Ω 4.Insulation resistance: ≥ 100M Ω (100V / DC) 5.Substrate withstand voltage: 2KV (DC) 6.Rebound time: ≤ 6ms 7.Loop resistance:≤ 100Ω, or 500Ω-1KΩ according to the needs of users. 8.Insulation ink withstand voltage: 100V / DC |
| Mechanical |
2. Standard working force: 100 - 750g. 3. The silver paste line is free of oxidation and impurities 4. silver paste line width ≥ 0.3mm. 5. pin spacing standard 2.54, 2.50, 1.27, 1.25, 1.0, 0.5mm. 6. The bending resistance of tail cable shall be rolled 80 times with d = 10mm steel rod. 7. The adhesion of printing ink should be passed test by Cross-Cut Tester. |
| Environmental | 1. Working temperature: - 20 ºC -+ 70 ºC 2. Storage temperature: - 40 ºC - + 85 ºC, 95% ± 5% 3. Atmospheric pressure: 86 - 106kpa |
Test Equipment and Test Laboratory
We are a manufacturing factory with 11 years of R&D and production experience, specializing in the production and custom of Membrane Switch, Acrylic Touch Panel, Industrial Nameplate, Metal Badge and Self-Adhesive Sticker. Our products are widely used in Smart household appliances and industrial control equipment. It has been exported to Europe and the United States and other countries. We can customize the products you need according to your requipments and specifications. If you interested in us, please feel free to contact us any time, and provide us with your drawing and specifications. Our physical factories and workshops as below: |
Application
FAQ
Q1. Do you provide free samples?
A1. We can provide samples and charge freight free of charge.
If you have any special sample requirements, please contact us for more details.
Q2. Can the product be produced according to customer requirements?
A2. We can customize according to the required specifications and drawings.
Q3. Is it allowed to visit the factory?
A3. Yes, we always welcome customers to visit our factory.
Q4. How to solve the faults of the equipment during use?
A4. Please email us about the problem of pictures or small videos. I will be better. I will find the problem and solve it.
Q5. Where is your factory?
A5. Our factory address is: 4th floor, No. 308, Tong'an Park, Tong'an Industrial Zone, Xiamen, China.
Q6. What is the quality level of your products?
A6. We have CE, ISO and other certificates.
Q7. What is screen printing?
A7. Screen printing involves creating a printing stencil using a mesh base and a photo-sensitive coating process. Once the stencil is made, ink passes through the openings corresponding to images and text, while remaining areas block the ink from flowing through.
It operates based on the fundamental nature of ink. During the process, ink is poured onto one side of the screen printing plate, pressure is exerted on the ink-covered area using a blade, and the plate is then pushed toward the opposite end simultaneously
As it travels at a steady pace, ink is forced through the mesh of the image-bearing component by the blade and transferred onto the material, creating the customer's specified design.
Its advantages are:
- not limited by the size and shape of the substrate
- Strong optical rotation resistance
- The layout is soft and the printing pressure is small
- Flexible printing methods
- Strong ink layer coverage
- Strong adhesion
- Suitable for various types of inks
- Suitable for long-term display and expressive advertising outdoors
Q8. Can the color of the product be customized?
A8. Our colors can be customized according to PMS( Pantone matching system) .
Q9. Can the membrane switch be equipped with LED lights?
A9. Yes. Generally, there are monochrome lamps, two-color lamps and three-color lamps. Please contact us for specific requirements.
Q10. What is the thickness of the membrane switch?
A10. Generally 0.9 ~ 1.3mm.
Q11. What are the types of convex keys on the membrane switch panel?
A11. Including round, pan, convex edge, convex key shape, no convex, etc. Please contact us for specific requirements.
Q12. How many layers can the membrane switch be customized?
A12. The general design is 6 layers, but can be customized according to special requirements.
Q13. What is the distance between the tail wires of the membrane switch?
A13. Generally 2.54mm, but there are other specifications of 1mm lamps. Please contact us for specific requirements.
A14. Yes, we need your drawings.
Theformat of the drawing you can carry the cabinet as below.
PDF file, or AI file, etc.
In addition, you need to provide the circuit drawing.
