Trenchless Moling HDD Boring Tools
Piece
Negotiable
Product information
High-quality Trenchless Moling HDD Boring Tools supplied by Langfang Baiwei Drill Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Air Pressure:
0.4-0.8MPa
Drill Hole Depth:
1m-9999m
Impact Frequency:
2.2-3.1Hz
Drill Hole Diameter:
40-140mm
Weight Of The Main Unit:
45kg
Production Capacity:
50pieces/Month
Standard Pipe Diameter:
75mm
Outer Diameter Of The Main Unit:
90mm
Specifications
Air Pressure:
0.4-0.8MPa
Drill Hole Depth:
1m-9999m
Impact Frequency:
2.2-3.1Hz
Drill Hole Diameter:
40-140mm
Weight Of The Main Unit:
45kg
Production Capacity:
50pieces/Month
Standard Pipe Diameter:
75mm
Outer Diameter Of The Main Unit:
90mm
Transport Package:
According to Clients' Needs
Model NO.:
BM90
Specification:
BM90
Origin:
China
Bit Type:
Diamond Bit
Trade Term:
FOB, CIF, CFR, EXW
Type:
Grease Squirt
Certification:
ISO 9001:2000, ISO 9001:2008
Drilling Way:
Impactor
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Trademark:
Longway
Condition:
New
Port Of Loading:
Tianjin Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2006-06-28
Annual Revenue Amount:
Not specified
Numbers Of Employees:
54
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port
Certificates:
ISO9001:2015
Product descriptions from the supplier
SONA2024 2.2.1

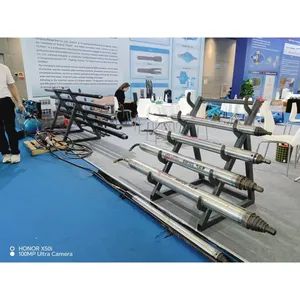

BM Series Pneumatic Mole Pneumatic Piercing Tools
The BM series pneumatic mole is designed for short-distance horizontal pipe laying in various soil conditions, including layers with few pebbles or some boulders. Its front impact head operates independently of the mole body, delivering forward impact that easily breaks through pebbles and boulders. When encountering impassable obstacles, simply turn the hose to the right to retract the mole.
Technical Specifications
(Custom configurations available upon request.)
Type | BM60 | BM75 | BM90 | BM105 | BM120 | BM140 | Imported assembly 95 |
Impact frequency (Hz) | 2.2-3.3 | 2.2-3.0 | 2.2-3.1 | 2.1-2.9 | 2.1-2.8 | 2.0-2.7 | 2.1-2.8 |
Air pressure (MPa) | 0.4-0.8 | 0.4-0.8 | 0.4-0.8 | 0.4-0.8 | 0.4-0.8 | 0.4-0.8 | 0.4-0.8 |
Air consumption (m³/min) | 0.6-1.2 | 0.6-1.5 | 1.2-2.0 | 1.6-2.5 | 2.0-3.0 | 3.0-4.0 | 1.0-1.5 |
Outer diameter (mm) | 60 | 75 | 90 | 105 | 120 | 140 | 95 |
Length (mm) | 1050 | 1170 | 1380 | 1530 | 1750 | 1873 | 1532 |
Weight (kg) | 20 | 25 | 45 | 70 | 95 | 150 | 56 |
Interface spec | G3/8" | G1/2" | G3/4" | G3/4" | G1" | G1-1/4" | Special |
Standard pipe diameter (mm) | 50 | 63 | 75 | 90 | 110 | 125 | 75 |
Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
Certifications
After Sales Service
Global Support:24/7 technical assistance and spare parts supply.
Training:On-site or remote operation/maintenance training.
Training:On-site or remote operation/maintenance training.
Company Profile
LANGFANG BAIWEI DRILL CO..LTD.
LONGWAY CONSTRUCTION MACHINERY CO., LTD
LONGWAY CONSTRUCTION MACHINERY CO., LTD
Langfang Baiwei Drill Co., Ltd., located in Hebei Yongqing Industrial Park, the hinterland ofBeiling Tianjin Hebei economic circle, covers an area of 16,700m2, is a professional manu-factur-ing enterprise engaged in the R & D, design, production and sales of trenchlessdrilling tools,Longway Construction Machinery Co.. Ltd.a branch established in jiujiang byLangfang Baiwei drilling tool manufacturing Co., Ltd. lt is located at the intersection ofGangcheng Avenue and Bei-jing Kowloon high speed railway in Chengxigang District.Jiujiang City. The plant covers an area of more than 20.000m2.The company's main products include various tvpes of trench-less drill pipes, various typesof pilot bits. swivels, reamers, pipe ramming hammers, pneumatic moles and pipe replace-ment ma-chine, as well as various geological drill pipes such as double wall drill pipes.water well drill pipes, mine drill pipes and gas drainage drill pipes.Adhering to the common values of Langwei people, "pragma-tism, innovation, unity andefficiency" is the corporate culture of Langwei people, and building an international famousbrand is our qoal.
