Tsk Series Tilting Rotary Table Machine Tools
Piece
Negotiable
Product information
High-quality Tsk Series Tilting Rotary Table Machine Tools supplied by Weihai Hanming Automation Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
1000pieces/Year
Origin:
China
Trade Term:
FOB, EXW, CFR, CIF
Payment Term:
LC, T/T
Model NO.:
TSK160
Type:
Universal Dividing Head
Transport Package:
Woodencase
Specifications
Production Capacity:
1000pieces/Year
Origin:
China
Trade Term:
FOB, EXW, CFR, CIF
Payment Term:
LC, T/T
Model NO.:
TSK160
Type:
Universal Dividing Head
Transport Package:
Woodencase
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023-07-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Not specified
Product descriptions from the supplier

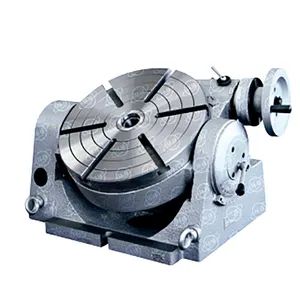

The TSK range of tilting rotary tables serves as a key attachment for milling, boring, and drilling equipment. They enable single-setup processing of inclined holes, angled surfaces, and compound-angle features. Additionally, the design allows for vertical mounting, facilitating center work when paired with a tailstock.
This table can be tilted to any position from 0°to 90° and locked.
A unique flange for attaching a scroll chuck is provided separately, packaged individually. For custom requests, the dividing plate accessory enables the operator to precisely split the 360° rotation of the clamping face into intervals from 2 to 66, and all multiples of 2, 3, and 5 ranging from 67 to 132.
| ITEM | TSK160 | TSK200 | TSK250 | TSK320 | TSK400 |
| Diameter of table mm | φ160 | φ200 | φ250 | φ320 | φ400 |
| Morse taper of the cente r hole | 2# | 3# | 4 # | ||
| Diameter of the center hole mm | φ25×6 | φ30×6 | φ40×10 | ||
| Width of T-s lo t mm | 10 | 12 | 14 | ||
| Modules of worm and worm gear | 1.5 | 1.75 | 2 | 2.5 | 3.5 |
| Width of the loca t ing key mm | 12 | 14 | 18 | ||
| Adjacent angle of T-slot | 90° | 60° | |||
| Transmission ratio of the worm gear | 1:90 | ||||
| Graduation of the table | 360° | ||||
| Til ting angle | 0°~ 90° | ||||
| Readout of the handwheel | 1' | ||||
| Minimum value of vernier | 10" | ||||
| Minimum reading of the tilting vernier | 2' | ||||
| Indexing accuracy | 80" | 60" | |||
| Max.bearing(with table Hor.)kg | 100 | 150 | 200 | 250 | 300 |
| Max.beari ng(w i th table Vert.)kg | 50 | 75 | 100 | 125 | 150 |
| Net weight Kg | 36 | 57 | 80 | 135 | 280 |
| Gross weigh t Kg | 44 | 67 | 93 | 150 | 305 |
| Case dimensions mm | 425×380×300 | 492×423×306 | 550×430×330 | 630×490×395 | 830×600×460 |
| Maching chuck | K11125 | K11160 | K11200 | K11250 | K11325 |
Installation sketch and dimensions:
| TSK160 | TSK200 | TSK250 | TSK320 | TSK400 | |
| A | 255 | 296 | 310 | 380 | 500 |
| B | 172 | 213 | 252 | 322 | 400 |
| C | 168 | 186 | 235 | 252 | 306 |
| D | φ160 | φ200 | φ250 | φ320 | φ400 |
| E | 11 | 14 | 16 | ||
| F | 138 | 175.5 | 199 | 241 | 295 |
| H | 100 | 120 | 140 | 175 | 217 |
| L | 160 | 180 | 205 | 255 | 320 |
| M | MT2 | MT3 | MT4 | ||
| P | 40 | 50 | |||
| d | F25 | φ30 | φ40 | ||
| h | 6 | 10 | |||
| Accessories T-slot bolt set 2sets Optional: Hole plate 1set Flange 1set |
|||||
