Tube Pipe Making Extrusion Machine for PVC Fiber Reinforced Pipe
Set
Negotiable
Product information
High-quality Tube Pipe Making Extrusion Machine for PVC Fiber Reinforced Pipe supplied by Qingdao Guangyue Rubber Machinery Manufacturing Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
After Sales Service:
2
Production Capacity:
30sets/Month
HS Code:
84778000
Automation:
Automatic
Certification:
CE, ISO9001:2008
Origin:
China (Mainland)
Computerized:
Computerized
Customized:
Customized
Specifications
After Sales Service:
2
Production Capacity:
30sets/Month
HS Code:
84778000
Automation:
Automatic
Certification:
CE, ISO9001:2008
Origin:
China (Mainland)
Computerized:
Computerized
Customized:
Customized
After Sales Service Provided:
Engineers Available to Service Machinery Overseas
Trade Term:
FOB, CFR, CIF, DDP, DAP
Trademark:
GUANGYUE
Sj50/28 Single Screw Extruder:
Hauling and Cutting Machine
Advantage:
High Effencicy, High Technology, High Production
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Money Gram
Condition:
New
Port Of Loading:
Qingdao
Rubber Mixing Machine:
Rubber Machinery
Model NO.:
SJ35 SJ45 SJ50 SJ65 Acoording to your requirments
Screw No.:
Single-screw
Transport Package:
Standard
Rubber Mixing Mill:
Two Roll Rubber Open Mixing Mill
Rubber Mixing Mill Price:
Used Rubber Mixing Mill
Specification:
accoridng to the model
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-04-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Money Gram
Preferred Trade Term:
FOB, CFR, CIF, DDP, DAP
Port Of Loading:
Qingdao
Certificates:
CE Certificate, ISO 9001, SGS, SGS cert
Product descriptions from the supplier
Tube Pipe Making Extrusion Machine For Pvc Pu Fiber Reinforced Pipe
we can produce different line according to your requirments.
1. Equipment list
2. Technical parameters
3. Production flow
Material→Vacuum loading machine→extruders→extruder mould→vacuum calibrating&cooling→spray cooling→hauling machine→ printer→auto cutting→stacker→check →packing
4,Machine description

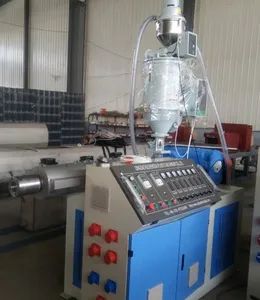

4.1 SJ65/32 single screw extruder 1set
Screw diameter: ∮65mm
L/D ratio: 32:1
Screw &barrel material: 38CrMoAIA under Chroming treatment
Nitriding layer thickness: 0.4-0.7mm
Motor power: 37KW, AC motor, Shanghai Xianwei brand, ABB inverter control
Barrel heating power: 4zone, 16kw
Barrel cooling power: 4zone*180w
Gear material 20CrMnTi, quenching, tooth grinding treatment
Gear type bevel wheel
Cooling mode outside cycle water cooling
Vacuum loading and heating machine: 1set SJU-50KG
Electric control cabinet
Inverter ABB
Contactor Omron
Temperature controller Siemens

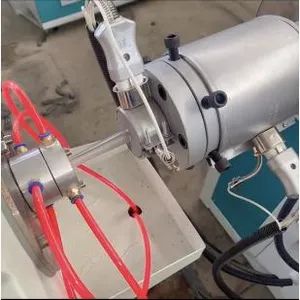

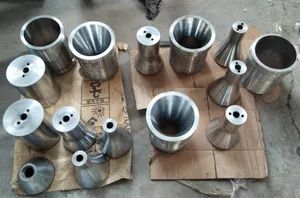

4.3 Moulds 1set
Mould type: bracket type, mouth mould and core mould adopt chrome polishing treatment
Mould material: high quality die steel, chrome planted for core mould
Heating mode: stainless steel heating collar
Mould size: Od: 38mm Id: 25mm
Material of calibrating sleeves: tin bronze
Heating power: 6kw
4.4 SZD-6000 calibrating cooling water tank 1set
Materials: stainless steel
Tank length 6000mm
Vacuum pump 5.5Kw ×1 set
Max Vacuum Degree 0.06Mpa
Water pump 3kw×1 set, 4 kw×1 set
Electric moving device length 600mm
Cycloid pin wheel speed reducer: XWD0.75-2-23, 1set, 0.55kw
4.5SPX-6000 Spray cooling water tank 1set
This system is used for constant compelled pipe cooling.
Spray water tank 6000 mm
Water Pump power 4 Kw
Materials of the Tank: stainless steel

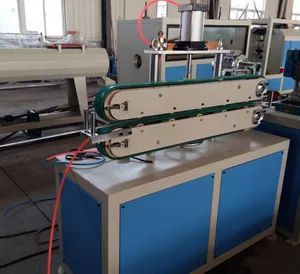

4.6SQY-200 Hauling machine 1set
Power 2.2 Kw
Frequency control ABB inverter control
Clamp mode pneumatic clamp
Valid clamp length 1800mm
Rubber block width 200mm
4.7 Chipless cutting machine 1set
Travel 600mm
Blade diameter 60mm
Blade material 9CrSi
Motor power 1.1kw

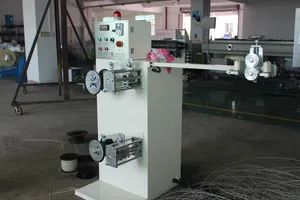

4.8 Double-work- position winding machine 1set
It is used for the winding of the finished product with a center automatic arraying coiler.
It consists of the winding shaft, winding core and main frame.
Type: Double-work-position
Drive motor 8 n/m
we can produce different line according to your requirments.
1. Equipment list
| Item | Description | Model | Qty | Remarks |
| 1.1 | Single Screw Extruder with Vacuum drying loader with Electric controlling cabinet | SJ65×32 | 1set | |
| 1.2 | Mould | 1set | ||
| 1.3 | Vacuum calibrating water tank | SZDX-6000 | 1set | |
| 1.4 | Spray cooling water tank | SPX-6000 | 1set | |
| 1.5 | hauling machine | SQY-200 | 1set | |
| 1.6 | Chipless Cutting machine | SJG-50 | 1set | |
| 1.7 | Double-work-position Winder | 1set | ||
| Item | Description | Parameters |
| 2.1 | material | HDPE |
| 2.2 | Pipe diameter specification | Od: 38mm Id: 25mm |
| 2.3 | Production capacity | About 100kg/h |
| 2.4 | Total installed power | About 85kw |
| 2.5 | Power actual consumed | About 60 kw |
| 2.6 | power supply | AC,380V,50Hz, or at customer's request |
| 2.7 | water supply | Circulating water, water Temp. 15-25ºC |
| 2.8 | working temperature | 0-40ºC |
| 2.9 | Man power | 2 persons per shift |
| 2.10 | outline size | 25m×2m×2.8m |
3. Production flow
Material→Vacuum loading machine→extruders→extruder mould→vacuum calibrating&cooling→spray cooling→hauling machine→ printer→auto cutting→stacker→check →packing
4,Machine description
4.1 SJ65/32 single screw extruder 1set
Screw diameter: ∮65mm
L/D ratio: 32:1
Screw &barrel material: 38CrMoAIA under Chroming treatment
Nitriding layer thickness: 0.4-0.7mm
Motor power: 37KW, AC motor, Shanghai Xianwei brand, ABB inverter control
Barrel heating power: 4zone, 16kw
Barrel cooling power: 4zone*180w
Gear material 20CrMnTi, quenching, tooth grinding treatment
Gear type bevel wheel
Cooling mode outside cycle water cooling
Vacuum loading and heating machine: 1set SJU-50KG
Electric control cabinet
Inverter ABB
Contactor Omron
Temperature controller Siemens
4.3 Moulds 1set
Mould type: bracket type, mouth mould and core mould adopt chrome polishing treatment
Mould material: high quality die steel, chrome planted for core mould
Heating mode: stainless steel heating collar
Mould size: Od: 38mm Id: 25mm
Material of calibrating sleeves: tin bronze
Heating power: 6kw
4.4 SZD-6000 calibrating cooling water tank 1set
Materials: stainless steel
Tank length 6000mm
Vacuum pump 5.5Kw ×1 set
Max Vacuum Degree 0.06Mpa
Water pump 3kw×1 set, 4 kw×1 set
Electric moving device length 600mm
Cycloid pin wheel speed reducer: XWD0.75-2-23, 1set, 0.55kw
4.5SPX-6000 Spray cooling water tank 1set
This system is used for constant compelled pipe cooling.
Spray water tank 6000 mm
Water Pump power 4 Kw
Materials of the Tank: stainless steel
4.6SQY-200 Hauling machine 1set
Power 2.2 Kw
Frequency control ABB inverter control
Clamp mode pneumatic clamp
Valid clamp length 1800mm
Rubber block width 200mm
4.7 Chipless cutting machine 1set
Travel 600mm
Blade diameter 60mm
Blade material 9CrSi
Motor power 1.1kw
4.8 Double-work- position winding machine 1set
It is used for the winding of the finished product with a center automatic arraying coiler.
It consists of the winding shaft, winding core and main frame.
Type: Double-work-position
Drive motor 8 n/m
