Turret Tool Grinding Machine
Piece
Negotiable
Product information
High-quality Turret Tool Grinding Machine supplied by Hangzhou Zhenhuan Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Grinding Precision:
+/-0.05mm
Min. Grinding Measure Setting:
0.001mm
Production Capacity:
20 Sets Per Month
Max. Tool Height:
250mm
Max. Tool Diameter:
300mm
Automatic Grade:
Automatic
Grinding Wheel:
Boron Carbide
Trade Term:
CFR, FOB, CIF, EXW
Specifications
Grinding Precision:
+/-0.05mm
Min. Grinding Measure Setting:
0.001mm
Production Capacity:
20 Sets Per Month
Max. Tool Height:
250mm
Max. Tool Diameter:
300mm
Automatic Grade:
Automatic
Grinding Wheel:
Boron Carbide
Trade Term:
CFR, FOB, CIF, EXW
Controlling Mode:
CNC
Origin:
China (Mainland)
Certification:
GS, CE, RoHS, ISO 9001
Abrasives:
Grinding Wheel
Specification:
ISO
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Model NO.:
NCT-300
Condition:
New
Precision:
Precision
Processing Object:
Punching Tools
Port Of Loading:
Shanghai Port, Ningbo Port
Type:
Tool Grinding Machine
Transport Package:
Wooden Case
Trademark:
ZHENHUAN
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
2020-09-23
Annual Revenue Amount:
Not specified
Numbers Of Employees:
5
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
CFR, FOB, CIF, EXW
Port Of Loading:
Shanghai Port, Ningbo Port
Certificates:
Certificate, report1, report10, report11, report12, report13, report14, report2, report3, report4, report5, report6, report7, report8, report9, SGS Report
Product descriptions from the supplier
Amada Trumpf tool grinding machine, turret punch tool grinding machine, turret punch tool sharpening machine for grinding tools in CNC turret punch press.
Turret Punch Press Tool Grinding Machine, punch tool grinding machine, tool grinding machine, tool sharpening machine
It is suitable for grinding & sharpening any kind of punch tools used in CNC turret punch press.
I Description of the machine
This machine is specially designed and produced for grinding tools used in CNC turret punch press. Max. Grinding diameter is 300mm and the rotating worktable is inclinable to be 0-10 degree which is for grinding rooftop tools.
The dual-alleyway water cooling system and high-grade grinding wheel prevent tools from burning and so raise the life of tools.
Both top and bottom tools can be grinded by this spcial machine.
II Features comparing to surface grinding machine:
Convenient and fast fixing tools into the machine. Since the top punching tools are long and they are not easy to be fixed on the surface grinding machine
Small occupying area: Can be closed to the turret punching machine. If you dont have spare tools, this is most important.
Axis of grinding wheel is designed to be same to that of the working face. So the grinding result is of high precision.
Grinding measure can be preset and automatically controlled

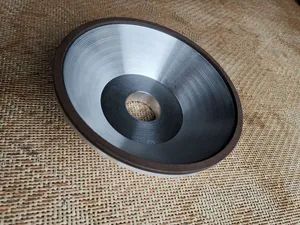

Special grinding wheel with big pores, long life & more smooth & clean grinding results
III Structure
This machine is comprised of grinding wheel frame, grinding measure adjusting mechanism, feeding mechanism, three jaw self centering holding chuck, motor and cooling system.
The grinding measure adjusting mechanism can make gring wheel frame move up and down; The wheel frame can be swung towards to the grinding measure adjusting mechanism; The wheel frame rotates alongside the holding chuck and grinds the tools.
The rotate worktable is mounted with three jaw chuck or permanent magentic chuck suitable for various top and bottom tools. The quick-locking-device can achieve interchange between three-jaw chuck and magnetic chuck within few seconds.
NC control: The grinding measure, quick grinding speed, slow grinding speed, non-feeding grinding time, etc., can be preset on the touch screen. The minimum stroke setting is 0.001mm. The slowest feeding speed is 0.015mm/s.
Machine dimension: 1000 x 1000 x 1200mm
Machine weight: About 500kg
Turret Punch Press Tool Grinding Machine, punch tool grinding machine, tool grinding machine, tool sharpening machine
It is suitable for grinding & sharpening any kind of punch tools used in CNC turret punch press.
I Description of the machine
This machine is specially designed and produced for grinding tools used in CNC turret punch press. Max. Grinding diameter is 300mm and the rotating worktable is inclinable to be 0-10 degree which is for grinding rooftop tools.
The dual-alleyway water cooling system and high-grade grinding wheel prevent tools from burning and so raise the life of tools.
Both top and bottom tools can be grinded by this spcial machine.
II Features comparing to surface grinding machine:
Convenient and fast fixing tools into the machine. Since the top punching tools are long and they are not easy to be fixed on the surface grinding machine
Small occupying area: Can be closed to the turret punching machine. If you dont have spare tools, this is most important.
Axis of grinding wheel is designed to be same to that of the working face. So the grinding result is of high precision.
Grinding measure can be preset and automatically controlled
Special grinding wheel with big pores, long life & more smooth & clean grinding results
III Structure
This machine is comprised of grinding wheel frame, grinding measure adjusting mechanism, feeding mechanism, three jaw self centering holding chuck, motor and cooling system.
The grinding measure adjusting mechanism can make gring wheel frame move up and down; The wheel frame can be swung towards to the grinding measure adjusting mechanism; The wheel frame rotates alongside the holding chuck and grinds the tools.
The rotate worktable is mounted with three jaw chuck or permanent magentic chuck suitable for various top and bottom tools. The quick-locking-device can achieve interchange between three-jaw chuck and magnetic chuck within few seconds.
NC control: The grinding measure, quick grinding speed, slow grinding speed, non-feeding grinding time, etc., can be preset on the touch screen. The minimum stroke setting is 0.001mm. The slowest feeding speed is 0.015mm/s.
Machine dimension: 1000 x 1000 x 1200mm
Machine weight: About 500kg
