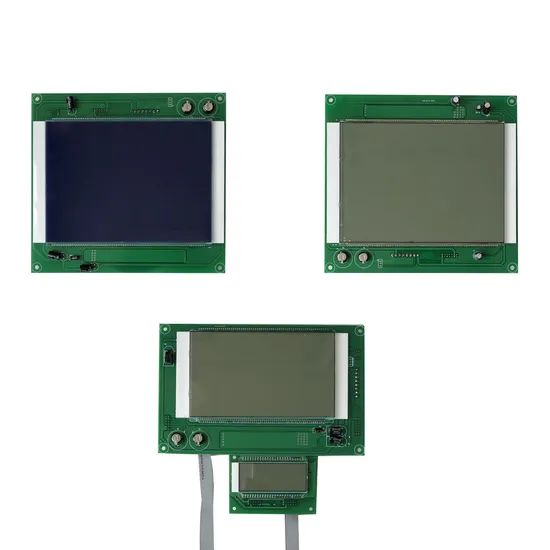

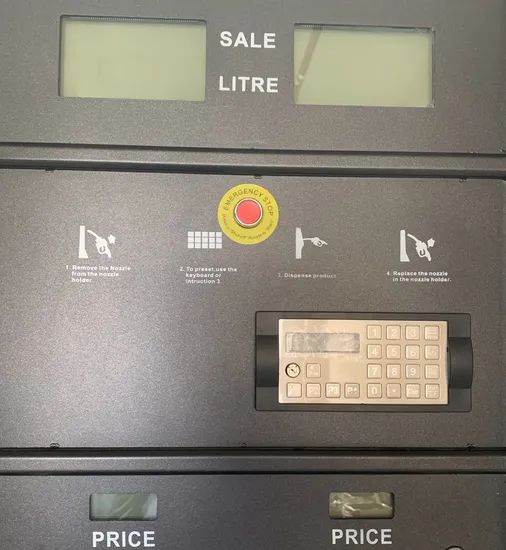

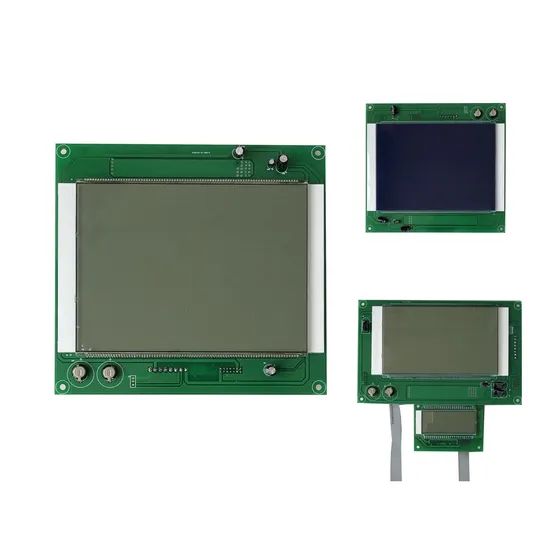

Two Split Screen Fuel Dispenser Blue Display

Eletronic Controller provide varies ofDisplay Board for option to achieve the different demand from different areas and diverse function. Our customer can choose from 886 digits to 664 digits display, can choose different display background color, like white, blue, yellow, etc.

Parameters:
Two Split Full Screen
White digits in Blue background
Sale-Liter-Price: 6-6-4 Digits
Decimal Reserved Digits: Standard 2-2-2 and other optional


Features:
1. Long service life
2.Clear displaying
3.Stable performance

»Working Ambient:
1) Adapt temperature: -40ºC~+60ºC
2) Relative humidity: ≤95%
3) Air pressure: 86~106kPa
»Power:
1) Voltage: AC220V±20% / AC380V±20% AC110V±20%
2) Frequency: (50±1)Hz / (60±1)Hz
»Unit price range: 0~9999, 0~999999 (changeable)
»Single range:1~9999.99, 1~ 99999.99 (changeable)
»Accumulative range: 0~9999999999.99
»Can set the decimal point for the display, so can be used in many countries with different currency rate.

Varies of keyboards and displays are available:

Wide Range of Product Lineup

Ecotec Energy's product lineup meets various requirement of sites and customers, the best model with the best function:


1. Suitable for Single nozzle toTen nozzles
2.Suitable for both Suction and Submersible type
3. Suitable for Gilbarco, Tatsuno, Tokhem, Bennett, LPG and CNG dispenser
4.Suitable for Regular flow rate and High flow rate
5. Option withTV, LED, Printer, RFID, GPRS, Bank card readeretc.

1. Suitable for Single nozzle toTen nozzles
2.Suitable for both Suction and Submersible type
3. Suitable for Gilbarco, Tatsuno, Tokhem, Bennett, LPG and CNG dispenser
4.Suitable for Regular flow rate and High flow rate
5. Option withTV, LED, Printer, RFID, GPRS, Bank card readeretc.


• Using the bestMOTORfrom China which have bothATEXandUL listed, single phase, three phase available
• Using the bestPUMPmade in China, Tatsuno Gear Type inbuilt with Air separator, two stage of filter and bypass valve to adjust the pressure, water and ethanol resistant
• Using the bestFlow Metermade in China, 4 Piston type provides safe refueling environment without deterioration in performance for a long period of time, also water and ethanol resistant

• Electronic Calibration available by preset keyboard and communication protocol
• Long and short display value, display sequence settable
• Decimal position settable
• Motor standby time adjustable to meet the different requirement
• Fueling with integer, ten bits, hundred bit and thousand bit
• Re-display recall and settable
• 50 Filling record recall
• Lock function, lock by password, lock by monthly control, lock by remote control
• Shift record printing
• Ticket content settable, such as station name, address, products
• Continue last interrupted fueling after power resume
• Different password control
• Error code to indicate the problem of dispenser
• Integration with ITL, PTS, DOMS, Fusion

WENZHOU ECOTEC ENERGY EQUIPEMNT CO.,LTD. as a professional supplier of petroleum equipment and energy device, always offers customers the best products with reasonable price.


Ecotec Energy was established in Wenzhou in 2019, but the Ecotec team members are all with experience for over 10 yearsin the field of energy equipment. We providecomplete package service from design, manufacturing, delivery to after-sale service, and have exported to over 80 countriesand regionsso far, meanwhile have agentsin many countries in Africa, Middle East, Asia and South America.
Precise, convenient and safe, customer and user first is the top priority inEcotec Energydesign and manufacturing.

HereEectec Energy are on the position to offer the below products:

1. Fuel station: fuel dispenser, tank, pump, flow meter, other fuel accessories, AdBlue equipment and mobile containerstation etc.

2. LPG station: LPG dispenser, LPG pump, LPG meter, LPG Tank, LPG skid, LPG cylinder and other LPG station equipment

3. CNG station: CNG dispenser, CNG compressor, CNG cylinder and CNG skid station

4. LNG Station: LNG dispenser, LNG pump, LNG pumping skid, LNG vaporizeretc.

5. Valves for petroleum industrial: ball valve, gate Valve, global valve, check valve with differentstandard

6. Station automation system: station retail system, smart phone APP system, tank gauging system

7. Auto parts: tyre inflator, wheel Balancer, car washing machine, fuel hoses, UPP etc

Customer and dedication is what we standingfor,Eectec Energywill alwaysfocus on customer′s need, and struggle for it.
Looking forward to cooperate with you.

Free replacement of damaged parts




Technical support for remote software



Site construction and installation instructions

A1: We are both a factory and a trading company, provide integrated services from design to production, then to sales and transportation.


A2: Yes, we provide OEM services under customers's requirements.


A3: Yes, from products model to LOGO.
