Tx121500 Digital Display Manual Motor Rotary Table
Piece
Negotiable
Product information
High-quality Tx121500 Digital Display Manual Motor Rotary Table supplied by Weihai Hanming Automation Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
1000pieces/Year
Origin:
China
Trade Term:
FOB, EXW, CFR, CIF
Payment Term:
LC, T/T
Model NO.:
TX121500
Type:
Universal Dividing Head
Transport Package:
Woodencase
Specifications
Production Capacity:
1000pieces/Year
Origin:
China
Trade Term:
FOB, EXW, CFR, CIF
Payment Term:
LC, T/T
Model NO.:
TX121500
Type:
Universal Dividing Head
Transport Package:
Woodencase
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023-07-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Not specified
Product descriptions from the supplier
TX121000 adds a Heidenhain encoder as a indexing display element on the basis of TS1000A to help complete the accurate positioning of the workbench.

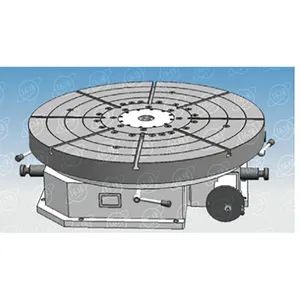

TX121500 digital display manual motor turntable, installed horizontally on the work surface when working.It employs a high-precision double-lead worm gear set as the primary positioning component and a high-accuracy Heidenhain encoder as the display component to ensure precise table alignment. In addition, in the measurement work, it can also be used for precision Angle measurement.The system begins by employing a variable frequency motor to move the worm gear set, enabling initial alignment. The current position is checked via the digital readout. Once the motor halts, a manual adjustment is made using the hand wheel located at the opposite end of the worm. Lastly, precise alignment is achieved by turning the fine adjustment knob, ensuring exact positioning.

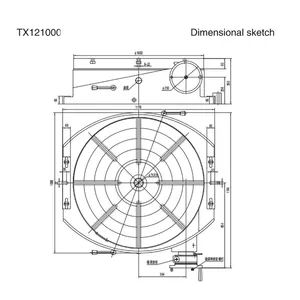

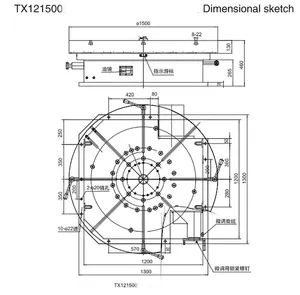

| TX121000 | TX121200 | TX121500 | |
| Diameter of table mm | 1000 | 1500 | |
| Total thickness mm | 350 | 460 | |
| Center bore diameter mm | φ75 | φ100 | |
| Morse tape r of the centr hole | Morse No.6 | Morse No.6 | |
| Width of the T-slot mm | 8-22 | 8-22 | |
| Module of worm gear mm | 5.5 | 5 | |
| Worm gear ratio | 1:120 | 1:144 | |
| Total reduction ratio of motor or handwheel | 1:360 | ||
| Total transmission ratio | 1:7200 | 1:14400 | |
| Table gyration angle per pulse | 0.1-4r/min | ||
| Max torque capacity of worm gear | 500 | 800 | |
| Load capacity | 2500 | 3000 | |
| Graduation of the table | 360° | 360° | |
| Minimum angular resolution | 1" | 1" | |
| Dividig accuracy | 10" | 5" | |
| Repeatability accuracy | 4" | 3" |
