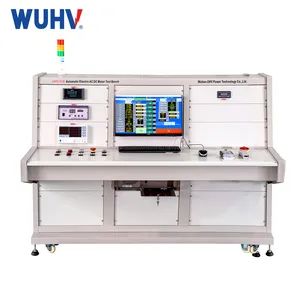

Uhv-316 Multi-Function High Voltage Electric Motor Test Bench
Set
Negotiable
Product information
High-quality Uhv-316 Multi-Function High Voltage Electric Motor Test Bench supplied by Wuhan UHV Power Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Power Factor:
0.1~0.9999, 3 Digital
Current Measuring Range:
0.1~200A, Error: ±(0.2% Reading +0.1% Rang
Temperature:
0~40℃
Production Capacity:
100 Sets Per Month
Dimension:
2500*1060*1500(mm), 100kg~1000kg (Customized)
HS Code:
9030841000
Power Supply:
AC220V±10%, 50Hz±2%
Origin:
China Wuhan
Specifications
Power Factor:
0.1~0.9999, 3 Digital
Current Measuring Range:
0.1~200A, Error: ±(0.2% Reading +0.1% Rang
Temperature:
0~40℃
Production Capacity:
100 Sets Per Month
Dimension:
2500*1060*1500(mm), 100kg~1000kg (Customized)
HS Code:
9030841000
Power Supply:
AC220V±10%, 50Hz±2%
Origin:
China Wuhan
Trade Term:
FOB, CIF, CFR, EXW
Standard:
GB 1094.1-2013, GB 1094.2-2013, GB 1094.3-2017
Certification:
ISO9001, ISO14001, ISO45001
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Of Loading:
Shanghai Port, Wuhan Port, Shenzhen Port, Ningbo Port
Power:
U*I, Error: ±(0.2% Reading +0.1% Range)
Trademark:
UHV
Model NO.:
UHV-316
Transport Package:
Wooden Case; Carton
Specification:
see details
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2021-03-15
Annual Revenue Amount:
Not specified
Numbers Of Employees:
111
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port, Wuhan Port, Shenzhen Port, Ningbo Port
Certificates:
CE
Product descriptions from the supplier
Brief introduction
The motor test bench conforms to GB/T755-2019, GB/T14711-2013, GB/25442-2010 and other relevant national standards.
According to the technical requirements and Party A's actual test motor type, capacity, test project, this test bench is designed for Party A non-standard, in line with the standard use requirements.
The test bench is designed based on the principles of safety, reliability, economy, practicality, ease of operation and scalability, and adopts advanced technology to complete more complicated test functions.
The test bench can complete the test function of high and low voltage three-phase asynchronous motor and DC motor.
The motor test bench conforms to GB/T755-2019, GB/T14711-2013, GB/25442-2010 and other relevant national standards.
According to the technical requirements and Party A's actual test motor type, capacity, test project, this test bench is designed for Party A non-standard, in line with the standard use requirements.
The test bench is designed based on the principles of safety, reliability, economy, practicality, ease of operation and scalability, and adopts advanced technology to complete more complicated test functions.
The test bench can complete the test function of high and low voltage three-phase asynchronous motor and DC motor.
Products features
1,the motor test bench to reliability, safety, economy, practicality, operability, maintainability as the design principle,while taking into account the advanced nature.
2,The measurement and control system of the testing equipment adopts industrial control computer +PLC control + digital display measuring instrument.
3,the test system all the bench, electric control cabinet, box surface spray treatment, all marks are clear and not easy to fall off.
4,All the equipment and installation materials in the testing equipment are new parts, and the measurement units of the parts and meters of the equipment and all the drawings and data adopt the international unit (SI) standard.
Techniqueparameters
1,the motor test bench to reliability, safety, economy, practicality, operability, maintainability as the design principle,while taking into account the advanced nature.
2,The measurement and control system of the testing equipment adopts industrial control computer +PLC control + digital display measuring instrument.
3,the test system all the bench, electric control cabinet, box surface spray treatment, all marks are clear and not easy to fall off.
4,All the equipment and installation materials in the testing equipment are new parts, and the measurement units of the parts and meters of the equipment and all the drawings and data adopt the international unit (SI) standard.
Techniqueparameters
Equipment power supply
|
Power supply voltage
|
460V
|
Frequency
|
60Hz
|
|
Phase number
|
3 Phase
|
Rated capacity
|
Not less than 500KVA
|
Test capacity
|
Serial number
|
Motor type
|
Rated voltage
|
Test frequency
|
No-load test
|
Remark
|
|
1
|
Low voltage three-phase asynchronous motor
|
230V-660V
|
Sine wave 50Hz, 60Hz
|
3kW-1250kW
|
The high-power motor adopts low-voltage test, and the motor rotates at full speed
|
|
2
|
High voltage three-phase asynchronous motor
|
3KV-13.2KV
|
Sine wave 50Hz, 60Hz
|
50kW-8000kW
|
|
|
3
|
DC motor
|
DC800V or less
|
DC
|
100kW-800kW
|
|
The main test parameters and accuracy of the test bench
|
Alternating current voltage
|
|||
|
Low pressure measurement
|
10-700Vac
|
Precision
|
±0.2%FS
|
|
Alternating current
|
|||
|
Low pressure measurement
|
1-1200A
|
Precision
|
±0.2%FS
|
|
High voltage measurement
|
1-500A
|
Precision
|
±0.2%FS
|
|
DC measurement
|
1-500A
|
Precision
|
±0.2%FS
|
|
DC resistance
|
0.005-2000Ω
|
Precision
|
±0.2%FS
|
|
Temperature
|
-20-200ºC
|
Precision
|
±1ºC
|
|
Frequency
|
45-65Hz
|
Precision
|
±0.1Hz
|
