Universal Milling Machine Model Xaw320 Origin China Condition New Model NO. XAW320 Main Motor 3.0kw Table Size 1500*320mm
Piece
Negotiable
Product information
High-quality Universal Milling Machine Model Xaw320 Origin China Condition New Model NO. XAW320 Main Motor 3.0kw Table Size 1500*320mm supplied by Anhui Chizhou Household Machine Tool Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Table Size:
1500*320mm
Specification:
1900x1850x2000mm
Main Motor:
3.0kw
Production Capacity:
50 Sets / Month
Table Travel(Horizontal/Cross/Vertical):
850/340/400mm
Controlling Mode:
Artificial
Certification:
CE, ISO 9001
Origin:
China
Specifications
Table Size:
1500*320mm
Specification:
1900x1850x2000mm
Main Motor:
3.0kw
Production Capacity:
50 Sets / Month
Table Travel(Horizontal/Cross/Vertical):
850/340/400mm
Controlling Mode:
Artificial
Certification:
CE, ISO 9001
Origin:
China
Trade Term:
FOB, CIF
Transport Package:
Full Closed Polywood
Precision:
High Precision
Payment Term:
LC, T/T, D/P, Western Union
Condition:
New
Automatic Grade:
Semiautomatic
Port Of Loading:
Shanghai Port
Trademark:
WHITE EAGLE OR CUSTOMER LOGO
Model NO.:
XAW320
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Year Established:
1994-06-30
Annual Revenue Amount:
Not specified
Numbers Of Employees:
122
Preferred Payment Term:
LC, T/T, D/P, Western Union
Preferred Trade Term:
FOB, CIF
Port Of Loading:
Shanghai Port
Certificates:
ISO9001:2015
Product descriptions from the supplier
Features :
-X/Y/Z axis mechanical feed

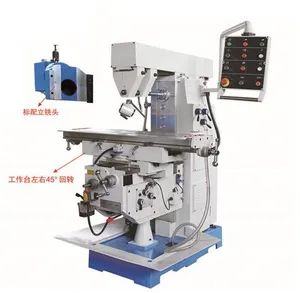

-working table rotate 45 °for right side and left side
-machine equipped with a universal connection end milling head. The end milling function is added on the basis of horizontal milling.
-the main machine is also equipped with a 45-degree swivel function on the table to process heterosexual parts.
Specification :
Packing list (with standard accessories )
Optional accessories :
1.Universal dividing head (like pic showed)
2. Three axis DRO
-X/Y/Z axis mechanical feed
-working table rotate 45 °for right side and left side
-machine equipped with a universal connection end milling head. The end milling function is added on the basis of horizontal milling.
-the main machine is also equipped with a 45-degree swivel function on the table to process heterosexual parts.
Specification :
| Items | XAW320 |
| Spindle taper | ISO40(H) ISO40(V) |
| Distance between spindle and table surface | 0-400mm |
| Range of spindle speed | (12steps)30-1500(r.p.m) |
| Max turning angle of working table | 45 degrees |
| Table size | 1500x320mm |
| Table travel(horizontal/cross/vertical) | 850/340/400mm |
| Range of longitudinal,cross travel | (8steps)30-605mm/min(max1100) |
| Range of cross travel | (8steps)30-605mm/min(max1100) |
| Range of vertical travel | (8steps)20-280mm/min(max680) |
| T-slot NO./width/distance of table | 3/14/70mm |
| Main motor | 3.0kw |
| Motor for rapid device of table | 1100w |
| Motor for vertical device of table | 1100w |
| Motor of cooling pumps | 90w |
| Speed of cooling pumps | 25L/min |
| Max weight of workpiece | 450kg |
| Overall dimension | 1900x1850x2000mm |
| N.W/C.W | 1700/1800kg |
Packing list (with standard accessories )
| NO. | NAME | SPECIFICATION | Q'ty |
| Milling machine | |||
| 1 | Vertical milling head | 1 | |
| 2 | Mill chuck | 1 | |
| 3 | Inner-hexagonal spanner | 5 | 1 |
| 4 | Wrench | S17-19/S22-24 | 1 |
| 5 | Machine vice | 160 | 1 |
| 6 | Milling arbor | φ16φ22φ27 φ32 | 1 |
| 7 | Draw arbor | 2 | |
| 8 | Taper | 1 | |
| 9 | Handle | 7:24 ISO40/MS4 | 1 |
| 10 | Operation manual | 1 | |
| 11 | Certificate of inspection | 1 | |
| 12 | Packing list | 1 |
Optional accessories :
1.Universal dividing head (like pic showed)
2. Three axis DRO
