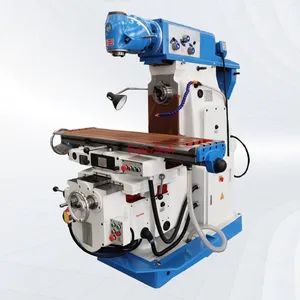

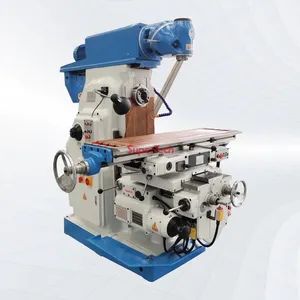

Universal RAM Multifunctional Manual Milling Machine X6432 with Rectangular Guideway
set
Negotiable
Product information
High-quality Universal RAM Multifunctional Manual Milling Machine X6432 with Rectangular Guideway supplied by Supertech Machine Tool Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Warranty Of Core Components:
1.5 Years
T Slots:
3/18/70
Table Size:
320*1325
Longitudinal Travel:
700/680
Controlling Mode:
Artificial
Certification:
CE, ISO 9001
Trade Term:
FOB, CIF, CFR, EXW
Precision:
High Precision
Specifications
Warranty Of Core Components:
1.5 Years
T Slots:
3/18/70
Table Size:
320*1325
Longitudinal Travel:
700/680
Controlling Mode:
Artificial
Certification:
CE, ISO 9001
Trade Term:
FOB, CIF, CFR, EXW
Precision:
High Precision
Milling Cutter Structure:
Indexable Type
Origin:
Jiangsu, China
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Application:
Metal Machining
Product Name:
Metal Milling Machine
Function:
Milling Drilling Tapping Routing Chamfering
Keyword:
Milling Machine Manual
Name:
Mini Milling Drilling Machine
Condition:
New
Marketing Type:
New Product 2020
After Sales Service Provided:
Online Support
Structure:
Ram
Automatic Grade:
Semiautomatic
Port Of Loading:
Shanghai Port
Trademark:
Supertech
Object:
Tool
Type:
Tool Milling Machine
Machine Type:
Vertical Drilling Milling
Milling Cutter Type:
Vertical Milling Cutter
Transport Package:
Wooden Case Package /Filling Into Container
Model NO.:
X6432
Specification:
standard
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2015-05-06
Annual Revenue Amount:
Not specified
Numbers Of Employees:
5
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
CE
Product descriptions from the supplier
SONA2024 2.2.1
Product Description
Mainspecifications | Unit | X6432(B) | X6436 | X6440 |
Tablesize | mm | 320*1325(1600) | 360*1600 | 400*1700 |
T-slots(Number/Width/D) | mm | 3/18/70 | 3/18/70 | 3/18/90 |
Longitudinal travel(manual/auto) | mm | 700/680 | 900/880 | 900/880 |
Cross travel(manual/auto) | mm | 255/240 | 255/240 | 315/300 |
Vertical travel(manualVauto) | mm | 350/330 | 350/330 | 385/365 |
Spindle hole taper(Vertical/Horizontal) | / | ISO 40/ISO 50 | ISO 40/ISO 50 | ISO 50/ISO 50 |
Spindle speed steps(VerticalVHorizontal) | Steps | 12/18 | 12/18 | 12/18 |
Spindle speed range(Vertical/Horizontal) | r/min | 35-1600/30-1500 | 35-1600/30-1500 | 35-1600/30-1500 |
Vertical milling head rotation Angle | 360 | 360 | 360 | |
Worktable rotation Angle | · | 45 | 45 | 45 |
Power of spindle motor(Vertical/Horizontal) | KW | 4/7.5 | 4/7.5 | 5.5/7.5 |
Overall dimension | mm | 2292*1770*1910 | 2395*1770*1910 | 2556*2160*2260 |
Net weight | kg | 2900 | 3000 | 4250 |
COMPANY PROFILE
SUPERTECH MACHINE TOOL CO.,LTDFounded in 2010, focusing on lathe manufacturing, Supertech has aggressively expanded its presence in global industrial machinery exports. Driven by a rising international demand and consistent team dedication, the company is now evolving into a full-service provider of advanced metal machinery solutions tailored for modern industrial setups and emerging projects, successfully implementing them in real-world applications.
In 2020, the company broadened its operational reach by establishing the Xinpin facility, dedicated to manufacturing and advancing turning tools, and launching exports of metalworking machinery including lathes, milling machines, grinders, and boring machines—clearly showcasing Supertech’s robust capabilities in industrial equipment. Concurrently, Supertech co-founded the Superlianz brand to offer laser cutting, press brake, rolling, and grooving systems for metal sheet processing, and introduced the Superketa brand to co-develop automated robotic welding technologies, achieving significant success.
In 2023, Supertech introduced its core mission: "Machine,weaving life's beauty," focusing on enhancing everyday living by integrating advanced technology and refining product quality. This mission underscores the company’s dedication to blending engineering with artistic design, motivating every team member to approach their responsibilities with greater commitment and passion, and collectively advancing the company’s long-term growth and evolution.
Supertech has established itself as a key player in mechanical manufacturing through long-term growth and consistent progress. Moving forward, the company will uphold its disciplined, cautious, and thoughtful approach, continuously enhancing product excellence and service delivery to deliver superior, dependable mechanical solutions and applications worldwide.
OUR FACTORY
CUSTOMERS FEEDBACKS
Packaging & Shipping
Once the machine type and agreement are finalized, we’ll assess the required container space. Typically, we handle container loading internally at our facility. However, we also accommodate EXW arrangements and encourage customers to bring additional machinery or goods to our site for joint loading. Our team specializes in secure loading and securing for trucks, sea containers, rail, and more. |
We’re open to using a forwarder, but must verify fair port charges. Additionally, we’ve partnered with a forwarder for years and can provide shipping or training estimates as required. |
1.Q:Where is your factory located? How can I visit there?
Our facility is situated in Yancheng, Jiangsu Province, China. By rail, it's roughly a 2.5-hour journey from Shanghai or Nanjing; by air, approximately 2 hours from Guangzhou or Beijing.
2.Q: What is the lead time?
A: It depends on your order quantity. Standard machines15-30 days, special configurations need 30-45 calendar days.
3.Q: Where is your loading port?
A: Mainly it's Shanghai port, others as discussion.
4.Q: What are your payment terms?
A: T/T 30% deposit and balance payment before shipment; or 100% LC at sight.
5.Q: Can you export and supply the customs clearance documents we need?
A: We have much experience on exporting, supply the CE certificate, Form E, price certification and so on as standard, special documents with discussion
6.Q:What's the guarantee time for your machines?
A: Our guarantee time is 15 months after machines leaving our factory, technical support for life.
