Universal Tensile Strength Testing Machine with Auto Grip Start Post Test Auto Open
1 Set
$7,5001 Set
$5,500Product information
High-quality Universal Tensile Strength Testing Machine with Auto Grip Start Post Test Auto Open supplied by Quanzhou Gester Instruments Co., Ltd.. Bulk wholesale pricing ranges from $5,500 to $7,500 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Weight:
0-100Kg, 100-500kg
Accuracy Grade:
0.5, 0.2
Force Resolution:
1/100, 000
Max Diameter Of Workpiece:
1000mm
Gross Weight:
175kg
Package Gross Weight:
216.000kg
Net Weight:
216kg
Production Capacity:
300/Year
Specifications
Weight:
0-100Kg, 100-500kg
Accuracy Grade:
0.5, 0.2
Force Resolution:
1/100, 000
Max Diameter Of Workpiece:
1000mm
Gross Weight:
175kg
Package Gross Weight:
216.000kg
Net Weight:
216kg
Production Capacity:
300/Year
External Dimension:
820*630*1800 mm (L*W*H)
HS Code:
90248000
Package Size:
91.00cm * 58.00cm * 200.00cm
Package Dimension:
910*630*1820 mm (L*W*H)
Maxcapacity:
<1000KN, 10kN
Mass Scope Of Workpiece:
<900kg
Force Accuracy:
<=+-0.2%
Power Source:
AC220V, AC220V
Load Way:
Both, Electronic Load
Certificate:
CE, ISO 17025, ISO 9001-2008
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Control:
Computer Control, Computer Control
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Specification:
Customized
Display:
Digital, None
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
GESTER
Model NO.:
GT-C01-1
Payment Term:
LC, T/T, Western Union
Oil Cylinder Position:
No Have, None
After Sales Service:
Perfect After-Sales-Service
Loading Method:
Static Load, None
Payment Methods:
Support payments in USD
Type:
Tensile Testing Machine, Universal Testing Machine
Product:
Testing Machine
Transport Package:
Wooden Package
Port Of Loading:
Xiamen Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2014-06-09
Annual Revenue Amount:
Not specified
Numbers Of Employees:
68
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Xiamen Port
Certificates:
ISO9001:2015
Product descriptions from the supplier
SONA2024 2.2.1

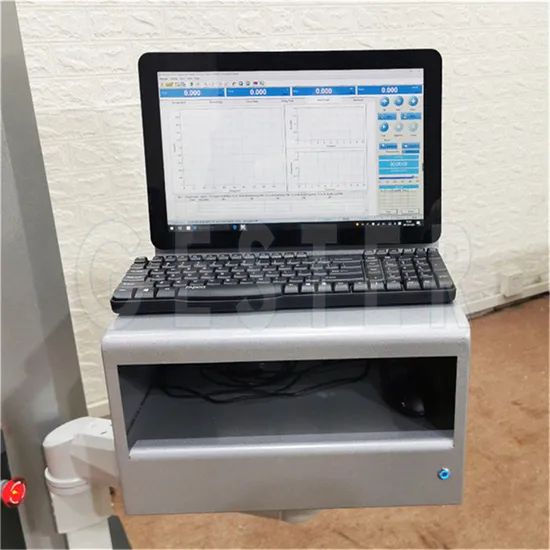

This machine adopt open system:user can edit test program, data analysis formula, test report according to test material's category, character and test methods requires.
This machine provide many kinds of humanity automatic mode.

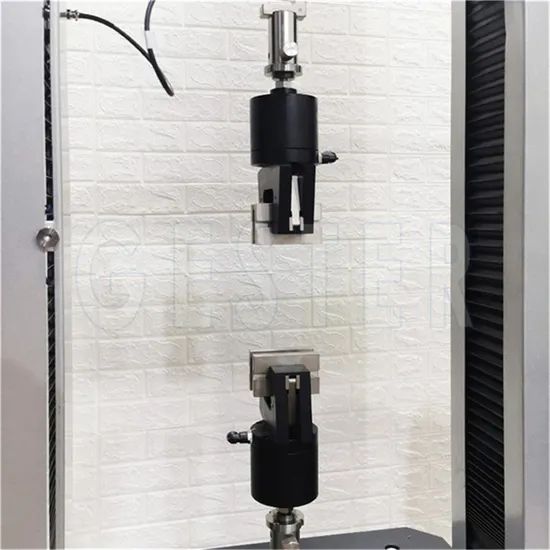

During electronic clamp operation, trial start can be configured for automatic clamp engagement either at grip initiation or pre-tension phase. It additionally enables auto-release of the clamp once testing is complete.
This machine also can set clamping distance and auto location.
The distance of scraping can be set freely.
Product Description

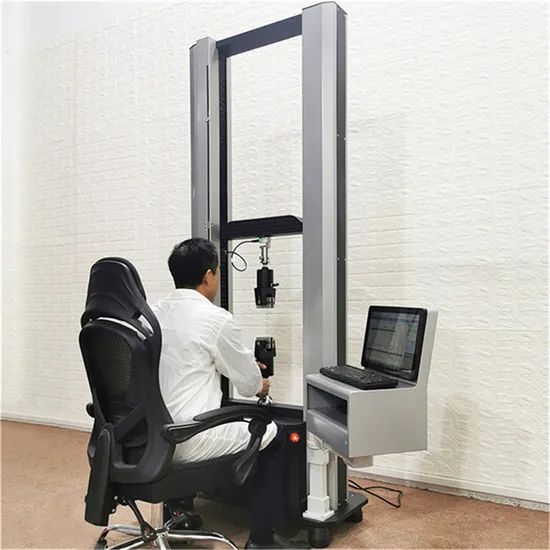

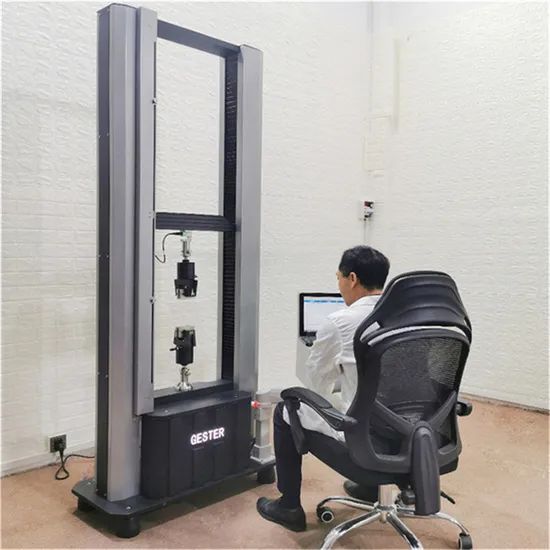

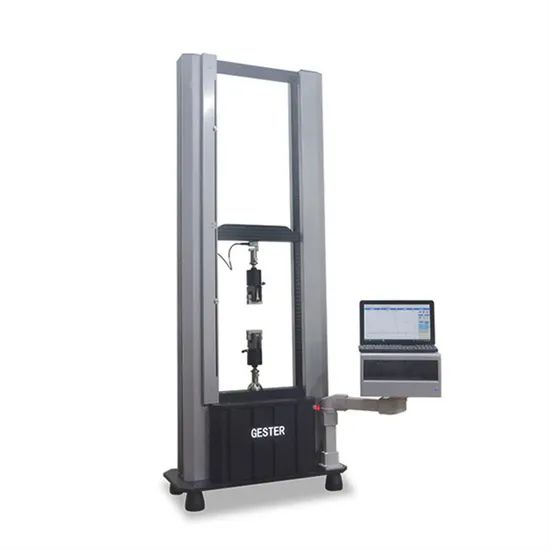

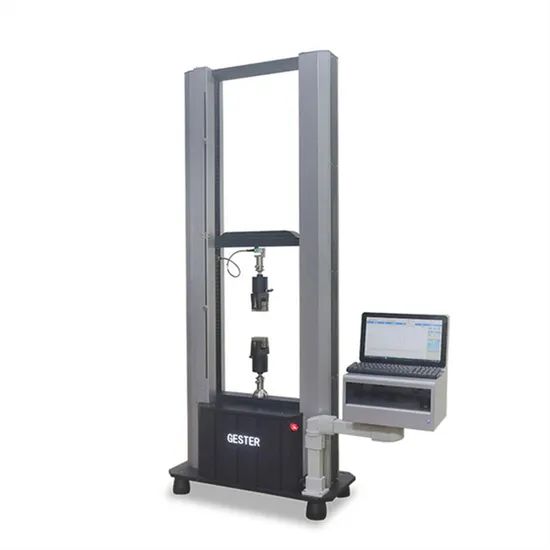

Universal Tensile Strength Tester (Dual Column) GT-C01-1
Application:
This versatile strength testing device performs tensile, compressive, flexural, shear, adhesion, separation, rupture, and various other evaluations on rubber, plastic, leather, metal, nylon cord, textiles, paper, aerospace, packaging, building materials, petrochemicals, electrical components, automotive products, and similar substances. A universal testing system serves as fundamental instrumentation in quality assurance, incoming checks, physical analysis, mechanical investigation, and new material formulation.
Standards:
ISO13934-1, 13934-2, 13935-1, 13935-2, 13936-1, 13936-2, 13936-3, 13937-2, 13937-3, 13937-4, 1421, 2411, 2062, 4674-1, 5082, 9073.3, 9073.4, 9073.18
ASTM D 434, D751, D885 , D1683, D2256, D2261, D2724, D2731, D3787, D4034, D4964, D5034, D5035, D5587, D5733, D5735 .
BS 2543, 2576, 3320, 3424, 4303 , 4304,
M&S P11, P12, P13, P14
JIS L1096
ASTM D 434, D751, D885 , D1683, D2256, D2261, D2724, D2731, D3787, D4034, D4964, D5034, D5035, D5587, D5733, D5735 .
BS 2543, 2576, 3320, 3424, 4303 , 4304,
M&S P11, P12, P13, P14
JIS L1096
Feature:
Equipped with Panasonic AC servo drive, Taiwan SESAME gear unit, synchronous pulley, and TBI high-precision ball screw, the instrument beam achieves smooth, quiet operation and exceptional extension accuracy.
Adopt aluminum alloy column shell, deal with high temperature & solidify injection on the machine surface will never fade.
Adopt aluminum alloy column shell, deal with high temperature & solidify injection on the machine surface will never fade.
This machine adopt many kinds of protection measures:
Beam's limit cams protecting device
Clamp touch avoid protecting device
Set up protection on displacement & load software
Sensor overload protection
Sample load software protection
Overcurrent & overvoltage protection
Real time supervision to main parts, more safe & reliable while using machine.
Beam's limit cams protecting device
Clamp touch avoid protecting device
Set up protection on displacement & load software
Sensor overload protection
Sample load software protection
Overcurrent & overvoltage protection
Real time supervision to main parts, more safe & reliable while using machine.
This machine adopt open system:user can edit test program, data analysis formula, test report according to test material's category, character and test methods requires.
This machine provide many kinds of humanity automatic mode.
During electronic clamp operation, trial start can be configured for automatic clamp engagement either at grip initiation or pre-tension phase. It additionally enables auto-release of the clamp once testing is complete.
This machine also can set clamping distance and auto location.
The distance of scraping can be set freely.
Key Specifications
Model | GT-C01-1A | GT-C01-1B | |
Max. Capacity | 5KN | 10KN | |
Display | Computer Display Mode | ||
Force Resolution | 1/100,000 | ||
Force Accuracy | ≤+/-0.2% | ||
Stroke Resolution | 0.001 mm | ||
Test Speed | 0.01-1000mm/min, Can Set by Computer | ||
Stroke Space | 1400mm | ||
Gantry Structure Width | 400mm | ||
Stop Mode | Overload Stop, Emergency Stop Button, Specimen Damage Automatic Stop, Upper & Lower Limit Set Automatic Stop, Automatic Return Function | ||
Machine Drive | Servo Motor Drive, Synchronous Wheel and Precision Ball Screw Drive | ||
Dimensions(WxDxH) | 820x630x1800mm | 820x630x1600mm | |
Power Supply | AC 220V 50/60HZ 10A | ||
Weight | 140kg | ||
Accessories | 1set | Pneumatic Grips |
1pc | English Operation Software | |
1pc | Cable Connect with PC | |
1pc | Load Cell | |
1set | Computer | |
Optional accessories | Optional | Load Cell 50N, 100N, 250N, 500N, 750N, 1KN, 2.5KN |
Optional | Other Grips |
