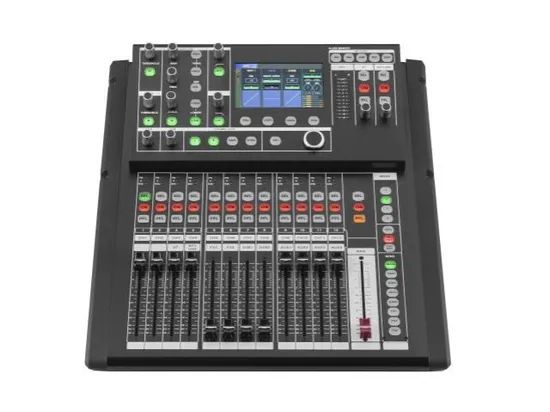

User Can Customize Multi-Operating System Control Software Digital Mixing Console
1 unit
$751.771 unit
$758.86Product information
High-quality User Can Customize Multi-Operating System Control Software Digital Mixing Console supplied by Guangzhou Jinbao Sound Equipment Co., Ltd.. Bulk wholesale pricing ranges from $751.77 to $758.86 per unit with a minimum order of 1 unit. Inquiry for latest prices.
Input Analog Gain:
-32dB to 10dB
Power Supply:
100-240VAC, 50-60h, 70W
Gross Weight:
12.5kg
Specification:
497*515*215MM
Length, Width And Height:
497*515*215mm
Packing Size:
620*620*310mm
Net Weight:
9.69kg
Trademark:
ASY
Specifications
Input Analog Gain:
-32dB to 10dB
Power Supply:
100-240VAC, 50-60h, 70W
Gross Weight:
12.5kg
Specification:
497*515*215MM
Length, Width And Height:
497*515*215mm
Packing Size:
620*620*310mm
Net Weight:
9.69kg
Trademark:
ASY
Origin:
China
Trade Term:
FOB, CIF, EXW
Payment Term:
LC, T/T
Input Impedance (XLR/Trs):
Mic > 5K
Port Of Loading:
Shenzhen port, Guangzhou port
Model NO.:
T16
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2021-02-02
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, EXW
Port Of Loading:
Shenzhen port, Guangzhou port
Certificates:
certificate
Product descriptions from the supplier
Product parameter
• Based on Linux operating system development, without fear of viruses, more secure and stable operation
• · 12 MIC input 1 set of stereo input,1 digital input: fiber/sound card, MP3
• · Input channel sound and image adjustment
• · MIC input gain adjustment (digital gain)
• · +48V phantom power supply (MIC channels can be opened and closed independently)
• · Built-in noise gate, pressure limiter, high-low pass, 5-stage parametric equalization, delay, sound and image balance adjustment of the transmission channel
• · Fast copy of channel parameters
• · Input/output EQ ON/OFF
• Multi-function knob
• · Each channel has a multi-function menu, mute and monitor
• · Channels are equipped with 100MM electric push rods, signal and peak lights (13 ALPS electric faders)
• · 8 signal outputs (main output L,R,4 AUX outputs,2 marshalling outputs)
• Based on Linux operating system development, without fear of viruses, more secure and stable operation
• · 12 MIC input 1 set of stereo input,1 digital input: fiber/sound card, MP3
• · Input channel sound and image adjustment
• · MIC input gain adjustment (digital gain)
• · +48V phantom power supply (MIC channels can be opened and closed independently)
• · Built-in noise gate, pressure limiter, high-low pass, 5-stage parametric equalization, delay, sound and image balance adjustment of the transmission channel
• · Fast copy of channel parameters
• · Input/output EQ ON/OFF
• Multi-function knob
• · Each channel has a multi-function menu, mute and monitor
• · Channels are equipped with 100MM electric push rods, signal and peak lights (13 ALPS electric faders)
• · 8 signal outputs (main output L,R,4 AUX outputs,2 marshalling outputs)
Product parameter
•AUX output (before/after fader)
• · Output processing: high-low pass filter, 12-stage parametric equalization, compressor, delay, phase
• · Digital recording function
• · User can customize the layer, output mixed editing function
• · Double row 3-color 12-segment level indicator
• Dual USB interface, built-in sound card (MP3, PC directly play music)
• · 4 quick scene call modes, 20 scene storage
• · Storage and retrieval of user parameters (can be managed on a pc)
• · Built-in two-channel dual DSP digital effect device
• · FX foot switch interface
• · Fiber input/output
· Multi-operating system control software (IOS, Android, WINDOWS)
• · Support wired network port adjustment (or external router wireless adjustment)
• · 5-inch 480*272 resistance touch screen, English and Chinese operation interface
•AUX output (before/after fader)
• · Output processing: high-low pass filter, 12-stage parametric equalization, compressor, delay, phase
• · Digital recording function
• · User can customize the layer, output mixed editing function
• · Double row 3-color 12-segment level indicator
• Dual USB interface, built-in sound card (MP3, PC directly play music)
• · 4 quick scene call modes, 20 scene storage
• · Storage and retrieval of user parameters (can be managed on a pc)
• · Built-in two-channel dual DSP digital effect device
• · FX foot switch interface
• · Fiber input/output
· Multi-operating system control software (IOS, Android, WINDOWS)
• · Support wired network port adjustment (or external router wireless adjustment)
• · 5-inch 480*272 resistance touch screen, English and Chinese operation interface
Technical parameter
Input microphone/Line input: 1-12 balanced, XLP with 1/4 TRS jack control fader ALPS 100mm electric
Input sensitivity (XLR/TRS) XTR1.5mv,TRS changed to 7mv touch screen 5 "TFT, 480×272 resolution
Input analog gain -32db to 10db, 0.6 to 0.7 step output group
Max input level (XLR/TRS) +19dBu/+29dBu Mute group None
Input impedance (XLR/TRS) MIC > 5K, LINE > 10K Networking TCP/IP Ethernet is used for PC and applications
Mic input stereo link has system upgrade U disk upgrade
Parameter Link Equalization, Dynamic, delay, assignment, Send Wired connection Windows PC software connection
Normal polarity/flip wireless connection to Windows PC/android
Input microphone/Line input: 1-12 balanced, XLP with 1/4 TRS jack control fader ALPS 100mm electric
Input sensitivity (XLR/TRS) XTR1.5mv,TRS changed to 7mv touch screen 5 "TFT, 480×272 resolution
Input analog gain -32db to 10db, 0.6 to 0.7 step output group
Max input level (XLR/TRS) +19dBu/+29dBu Mute group None
Input impedance (XLR/TRS) MIC > 5K, LINE > 10K Networking TCP/IP Ethernet is used for PC and applications
Mic input stereo link has system upgrade U disk upgrade
Parameter Link Equalization, Dynamic, delay, assignment, Send Wired connection Windows PC software connection
Normal polarity/flip wireless connection to Windows PC/android
Technical parameter
Stereo line input input processing input source local CH1-CH12, ST1 local ST2 numbers
ST1 balance, 1/4 TRS jack EQ 5 section parameter, (20HZ--20KHZ)±12dB,Q0.3~15 adjustable
ST2 interface (digital) USB audio stream, U disk, S/PDIF high-low pass 12db/24db,(BT/BS/LRK),20-20K
Input sensitivity nominal 4dB noise door through switch
Input analog gain -32db to 10db, 0.6 to 0.7 stepper gate threshold -135db to -40db
Max input level +29dB Shock/release 50us-300ms/10ms-5s
Input impedance >7KΩ voltage limiter through switch
The stereo link has a threshold ratio of -40dB -+6db/1:1 to infinity
Parameter link balance, dynamic, delay, distribution, send delay up to 20ms
Normal polarity/reversal
Output mix 1-8 Balanced with left and right outputs, XLR, L/R,4SUB,4AUX output processing Output channels L/R,2SUB,4AUX
Output impedance <75Ω EQ 12 section parameters, (20HZ--20KHZ)±12dB,Q0.3~15 adjustable
Stereo line input input processing input source local CH1-CH12, ST1 local ST2 numbers
ST1 balance, 1/4 TRS jack EQ 5 section parameter, (20HZ--20KHZ)±12dB,Q0.3~15 adjustable
ST2 interface (digital) USB audio stream, U disk, S/PDIF high-low pass 12db/24db,(BT/BS/LRK),20-20K
Input sensitivity nominal 4dB noise door through switch
Input analog gain -32db to 10db, 0.6 to 0.7 stepper gate threshold -135db to -40db
Max input level +29dB Shock/release 50us-300ms/10ms-5s
Input impedance >7KΩ voltage limiter through switch
The stereo link has a threshold ratio of -40dB -+6db/1:1 to infinity
Parameter link balance, dynamic, delay, distribution, send delay up to 20ms
Normal polarity/reversal
Output mix 1-8 Balanced with left and right outputs, XLR, L/R,4SUB,4AUX output processing Output channels L/R,2SUB,4AUX
Output impedance <75Ω EQ 12 section parameters, (20HZ--20KHZ)±12dB,Q0.3~15 adjustable
Technical parameter
Nominal output +4dbu=0db level meter reading high/low pass 12db/24db,(BT/BS/LRK),20-20KHZ
Residual output noise =-91dbu voltage limiter self-chain side chain
The mix insert assigns FX into the mix channel threshold value ratio -40db-+6db/1:1 to infinity
Dynamic range 112dB Maximum delay 30ms
SNR XLR≥ 92db,TRS≥82db USB driver CH340(USB A)
Maximum output voltage 4VAC MAX device using a USB hard drive (USB flash drive)
Distortion < 0.0003% (1KhzFull Power) Stereo recording 2 channels (wav/mp3)48KHz 24
Frequency response 20HZ-20KHZ+/-0.5db Stereo playback 2-pass (WAV/MP3)32-96KHz,16-24 bit
Sampling rate 48KHz ±100PPM USB Audio card USB B
ADC/DCA 24-bit Delta-sigma sends uplink 2-channel full format, 32KHz-96KHz 24-bit
FX Internal FX 2xFX engine, send > return or insert Send downlink 2 channels, MP3,48KHz, 24-bit
Type Reverb, delay, chorus, edger, symphonic chorus, etc
2 dedicated stereo FX return faders, audio, mute, send to mix /LR, 5 EQ
System Linux System English and Chinese language Switching Power supply 100-240VAC,50-60H,70W
Nominal output +4dbu=0db level meter reading high/low pass 12db/24db,(BT/BS/LRK),20-20KHZ
Residual output noise =-91dbu voltage limiter self-chain side chain
The mix insert assigns FX into the mix channel threshold value ratio -40db-+6db/1:1 to infinity
Dynamic range 112dB Maximum delay 30ms
SNR XLR≥ 92db,TRS≥82db USB driver CH340(USB A)
Maximum output voltage 4VAC MAX device using a USB hard drive (USB flash drive)
Distortion < 0.0003% (1KhzFull Power) Stereo recording 2 channels (wav/mp3)48KHz 24
Frequency response 20HZ-20KHZ+/-0.5db Stereo playback 2-pass (WAV/MP3)32-96KHz,16-24 bit
Sampling rate 48KHz ±100PPM USB Audio card USB B
ADC/DCA 24-bit Delta-sigma sends uplink 2-channel full format, 32KHz-96KHz 24-bit
FX Internal FX 2xFX engine, send > return or insert Send downlink 2 channels, MP3,48KHz, 24-bit
Type Reverb, delay, chorus, edger, symphonic chorus, etc
2 dedicated stereo FX return faders, audio, mute, send to mix /LR, 5 EQ
System Linux System English and Chinese language Switching Power supply 100-240VAC,50-60H,70W
Application: conference room, multi-function hall, small performance, small band, government, school, bar, wedding company, rental company, banquet hall,, cultural auditorium, cultural center, exhibition and so on
Guangzhou Jin Bao sheng yin Xiangequipment Co.,Ltd is located in the beautiful Yangcheng - Baiyun District, Guangzhou City.Along with the continuous progress of the footsteps, specializing in audio products dedicated to 25 years of research and development and design. With more than 20 years of industry experience in amplifier engineers and audio R & Dengineers team, is an independent research and development, production, sales, technical services in one of the high-end professional audio manufacturers. The main products are: professional speakers, professional amplifiers,professional karaokeequipment, professional stage audio series, home theater series, professional peripheral series products, as well as conference systems, microphones and mixing consoles and other equipment products.Jin Bao sheng has technologically advanced processing production line and perfect online testing system. The factory has independent product development department, sales department, electroacoustic laboratory, electronic laboratory, equipped with German DASS, the United States LMS audio test system, the United States MARTIN, Germany IWATSW oscilloscopes,automatic distortion meter, low-frequency signal generator and other testing instruments. Delicate vocals, strong low-frequency, uniform mid-high frequency and HIFI technology perfectly combine to give Jin Bao sheng sound every product tailored to the best sound good quality unit.
Among them, there are world famous Italian B&C unit, RCF unit, faital unit, CELESTION unit, German BMS unit and so on.After years of research and development, in the audio industry laid a unique personalized products, won the user's praise. Our products are sold throughout the country, but also in accordance with customer demand, to provide OEM services; the factory to undertake large gymnasiums. School playground. Theater. Opera house. Theater. Conference room. Multi-functional halls.Lecture halls. Banquet hall. Dance hall. Cab. Nightclubs. Large hotels. Conference and public broadcasting lighting and sound engineering, including engineering consultants, installation and commissioning and other related businesses.
"Quality first. Reputation first. Service first" is the factory's business purposes, exquisite technology, the best effect is our goal. Create more perfect professional audio products with heart, hope to work with you! Create a win-win situation!
Q1. Can I get samples?
Yes.Q2. Can I use my own logo or design on the products?
Yes, we offer OEM/ODM service; your logo and design can be made on the Productsy.
Q3. Do you have a factory?
Yes, we have a factory in Baiyun District, Guangzhou City. Welcome to visi-tour factory.We are a professional audio manufacturer and provide OEM/ODM service to our customers.
Q4. How many days you could deliver?
For the sample order, we could send by Express upon receipt of this funds.
You receive them approx 3-5 days after we receive the deposit.
For the batch order, we will produce on the premise of guarantee quality as so possible.
Q5. What's mode of transportation?
For the sample order, we will deliver by Express, like DHL, Fedex, TNT and EM. Of course, it is more economical by sea for batch order.
