Valve DIP Coating System Model NO. fa Origin China Condition New Material Steel Coating Powder Trademark HANNA HS Code 8424300000

Product Description

Equipment Structure & Function

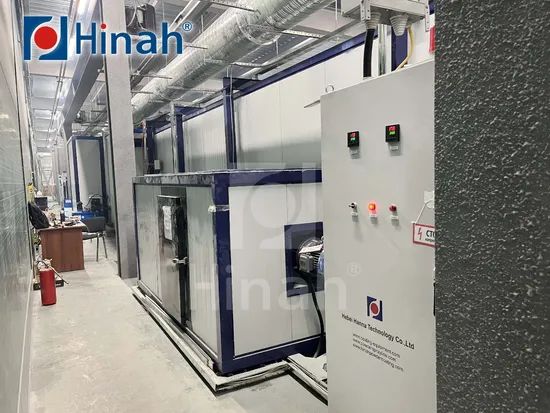

High Temperature Pre-heating and curing Oven
The body of the high-temperature preheating furnace adopts 200mm composite silicate rock wool board jointed by the upper and lower cladding angles, which has the characteristics of beautiful appearance, small thermal conductivity and good insulation effect. The inlet and outlet are equipped with two-way sliding doors to effectively prevent the hot air from spilling out, and the inlet and outlet of the chamber is equipped with an exhaust fan to automatically discharge the exhaust gas from the preheating chamber.The
thermal energy system of the high temperature preheating chamber adopts SUS304 infrared heating tube to rapidly heat the workpiece. The power controller is adopted for the drying group control to automatically heat the workpiece efficiently and reduce the consumption of electric energy to the maximum extent.

Dipping Chamber Body
The chamber body is composed of a skeleton, a wall panel, a filter unit for the top layer, a convenient door, a lighting device, a window, a grille, etc.Both sides of the chamber are more than 800mm from the ground to install the lighting glass, the height of the lighting glass is 1000mm, the use of 5mm thick tempered glass, the chamber glass adopts film protection to prevent the pollution of the glass surface, when the paint particles on the glass too much can be replaced with the film.

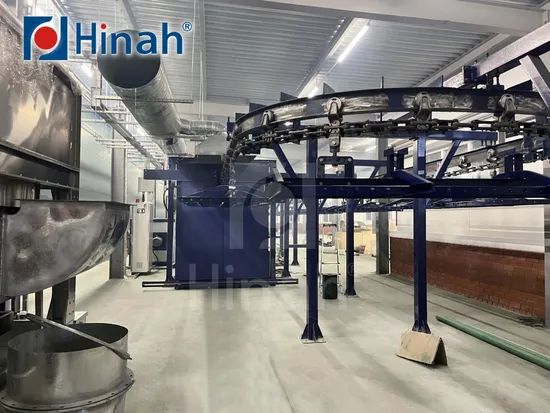

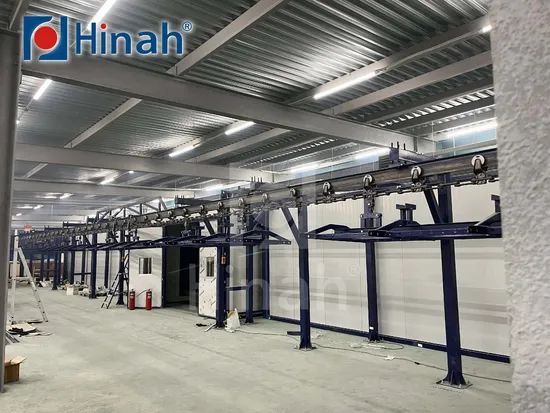

Transportation System
Cycled operating lines feature high flexibility and suitability for lower throughputs, wide range of parts or large dimension parts for treatment. Continuous operating lines using overhead chain conveyor are suitable for high productivity, high capacity requirements and for high throughputs of same or similar parts.

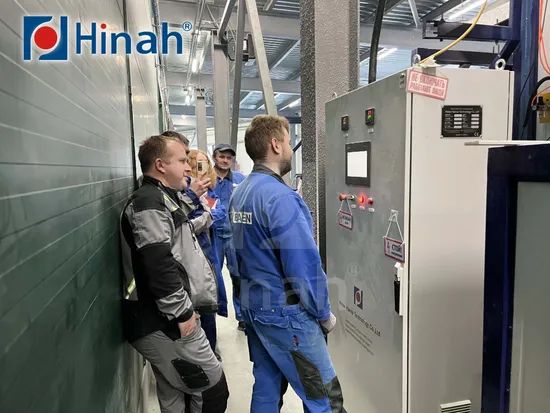

Electric Control System
Pre-heating control system, dipping room control system, conveyor control system, curing oven control system.

Product Appliation

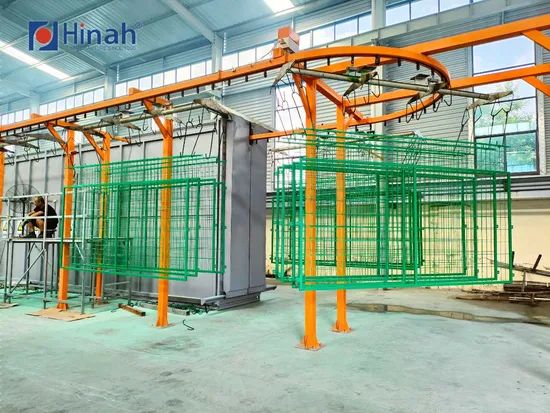

Dip coating line is applicable to all kinds of panels, such as Fence panels, Slat fencing, pool fencing, Fence net, Welded Wire Mesh Panel and so on.
Metal mesh is generally installed outdoors, so anti-corrosion is very important. One of the anti-corrosion methods is hot-dip plastic treatment, which is an anti-corrosion treatment method for the frame. It is preheated at high temperature and immersed in the flow of plastic powder. In the chemical bed, the plastic melts and adheres to the surface of the frame to form a plastic anti-corrosion layer. The advantage of this anti-corrosion treatment method is that after the plastic layer, it is not afraid of bumps and the anti-corrosion time is long.

Since 1990, from simple manual spraying to automatic powder spraying system. We can provide you with innovative, rational and economical solutions. We can support you with advanced technologies.Delivering the best powder coating equipments and turn-key solutions. We've built thousands of optimal customized lines and systems for powder coating operations across China and around the world. Our continuous research on the field as well as our constantly developing techniques and innovative nature of our engineering dpt. enable our customers to catch up to the latest developments by modernizing their equipment partly or wholly, so as to improve performance, increase profits and maintain their competitiveness in the world of trade. Our company has passed ISO9001 certification,CE certification, and has obtained more than 70 patents.

Are you a trader or a factory?
We are manufacturer and exporter. Our own factory was found in 1990,Our export office was established in 2014.

What should I provide if interested in your powder coating equipment ?
A. The material/size(max)/weight(max)of your workpiece.
B. How many of your daily output(one day=8hours,one month=30days)?
C. What heating power do you prefer: electric,gas, diesel or coal?
D. The size of your factory(length, width and height)?

How to ensure the quality of the equipment?
A. We have hundreds of patents and passed the IS9001:2015 quality management system certification.
B. The Technical Review Committee,reasonably determines and divides the stages of design, production, installation and
commissioning, and formulates detailed progress plans for each stage, Strengthen the quality assurance system and quality protection measures of equipment manufacturing department.
C. We manning quality inspectors specially to control the processing quality of product strictly.
