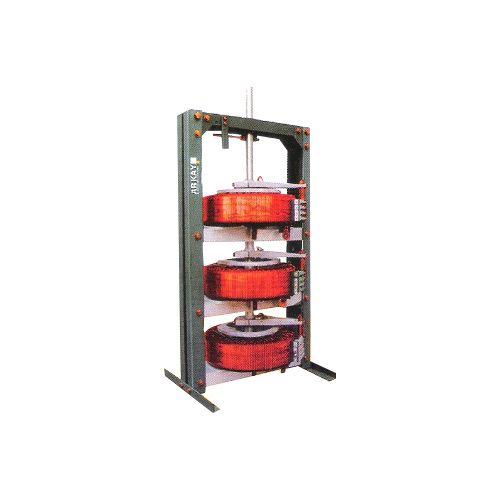

Variable Autotransformer Input Voltage 240v, 50hz, 415v, 50hz No Load Current Less Than 2% Of Full Load Efficiency High Efficiency With Very Low
Negotiable
Product information
High-quality Variable Autotransformer Input Voltage 240v, 50hz, 415v, 50hz No Load Current Less Than 2% Of Full Load Efficiency High Efficiency With Very Low supplied by Arkay Electronic Systems. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Input Voltage:
240v, 50hz, 415v, 50hz
Voltage Regulation:
Better Regulation With Output Voltage Substantially Independent Of Load
Design Features:
Compact Design, Rugged Construction, Simple Brush Replacement, Ganging Capability On One Shaft For Series, Parallel Or Three-phase Operation
Dial Readability:
Easily Readable With Large, Clear Numerals Visible At A Distance
Output Voltage Range:
From Zero To 12.5% Above Line Voltage
Efficiency:
High Efficiency With Very Low Losses
No Load Current:
Less Than 2% Of Full Load
Temperature Rise:
Less Than 50 °c For Continuous Duty
Specifications
Input Voltage:
240v, 50hz, 415v, 50hz
Voltage Regulation:
Better Regulation With Output Voltage Substantially Independent Of Load
Design Features:
Compact Design, Rugged Construction, Simple Brush Replacement, Ganging Capability On One Shaft For Series, Parallel Or Three-phase Operation
Dial Readability:
Easily Readable With Large, Clear Numerals Visible At A Distance
Output Voltage Range:
From Zero To 12.5% Above Line Voltage
Efficiency:
High Efficiency With Very Low Losses
No Load Current:
Less Than 2% Of Full Load
Temperature Rise:
Less Than 50 °c For Continuous Duty
Output Voltage Variation:
Linear Output Volts Varying With Angle Of Rotation Of Control Knob
Operating Life:
Long Life Equivalent To Standard Fixed Ratio Power Transformer
Available Models:
Open, Enclosed, Portable (with Or Without Meters), Oil Cooled, Double Wound, High Frequency, Special Voltage (120v, 240v, 400v, Etc), Capacity Up To 500 Amp
Application:
Supply Voltage Correction, Voltage Boosting, Line Stabilization, Dc Voltage And Current Control In Rectifiers, Motor Speed Control In Textile, Blow Molding, Injection Molding, Printing And Packaging Machines, Testing And Calibration Of Meters, Voltage And Current Control In Development And Experiments, Heating Control Of Ovens And Furnaces, Lighting Control In Theaters, Auditoriums, Hotels, Restaurants, Studios, And Dark Rooms
Trade Term:
To be discussed
Payment Term:
To be discussed
Business Details
Country:
India
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2006
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
Not specified
Port Of Loading:
Not specified
Product descriptions from the supplier
We are a prominent organization that is involved in manufacturing, supplying and exporting high quality Variable Autotransformer. The offered products have many operating advantages and conveniences over other manually operated voltage control devices for alternating current use. These products are offered in various specifications to meet diverse requirements of clients.
Features:
Other Details:
Specifications:
These include:
Varistat Application:
Features:
- High efficiency
- Compact design
- Better regulation
Other Details:
- Varistat continuously Variable Auto Transformers have many operating advantages and conveniences over other manually operated voltage control devices for alternating current use.
- Smooth Control: The Varistat can be set to any output voltage within its range. Output voltage is continuously adjustable from zero to maximum
- Small Size: The variable Auto Transformers is much smaller than any other type of control of equal rating
- Better Efficiency: Very low losses under all loud conditions. Toroidal Varistat have low-loss grain oriented strip wound cores
- Better Regulation: Output voltage is substantially independent of loud
- Linear Output Volts: Output Voltage varies linearly with angle of rotation of control knob
- Temperature rise: Less than 50 °C for continuous duty
- Advanced Design: Excellent electrical specification is matched by rugged, compact construction. Brush replacement is simple and convenient. Two, Three or more units can be ganged on one shaft for series, parallel or three-phase operation
- Long Life: When used correctly the Varistat has a very long operating life. The life of a Varistat is essentially the same as that of any standard fixed ratio power transformer
Specifications:
- Input Voltage: The voltage that should be applied to the input terminals to make the dial calibration
- correct is 240v, 50Hz, 415v, 50Hz
- Output Voltage: The output voltage from the varistat is continuously adjustable from zero to 12.5%
- above the line voltage (i.e. 270V or 470V). The dial reads the approximate voltage
- No load current: Less than 2% of full load
- Indian Standards: All Varistat unit conform to I.S.S. 5142-1969.
- Easily Read Dials: Dials are single - reading with large, clear numerals, easy to read at a distance.
- Wide range of models: Varistat are available in a wide range of models to suit various requirements.
These include:
- Open: for panel mounting purpose
- Enclosed: Suitable for table mounting
- Portable: with or without meters
- Oil Cooled: for increased ratings
- Double Wound: Where the primary is isolated from the secondary prominent for manufacturer of servo-control voltage stabilizer
- High Frequency: for various loads
- Special Voltage: 120v, 240v, 400v, etc
- Capacity up to 500 AMP
Varistat Application:
- Supply Voltage Correction, Boosting of low lines and line voltage stabilization, either manually or automatically in automatic voltage stabilizers
- Control of D.C. voltage and current through rectifiers. Control of rectifiers in electroplating, battery chargers etc
- Motor speed control in textile machines, blow molding machines, injection molding machines, printing and packaging machineries etc
- Testing and calibration of voltmeters, ammeters, wattmeter's, power-factor meters etc
- Voltage and current control in development and experimental works
- Heating control of ovens,furnaces, infra-red heaters etc. in production and experimental works
- Lighting control in theaters, auditorium, hotels, restaurant, photographic studios and dark-rooms, reading houses, etc
