$6,000Product information

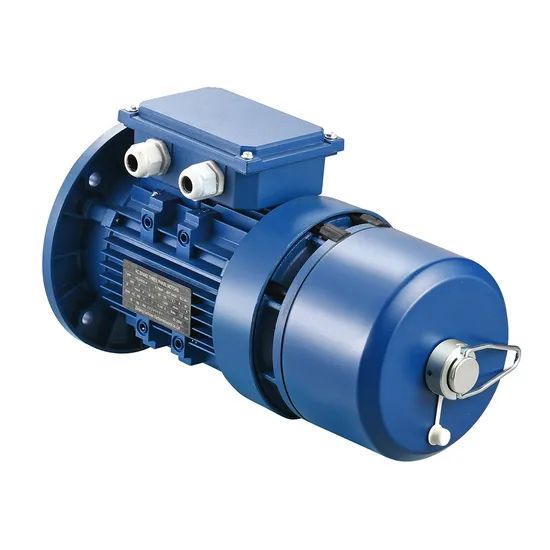

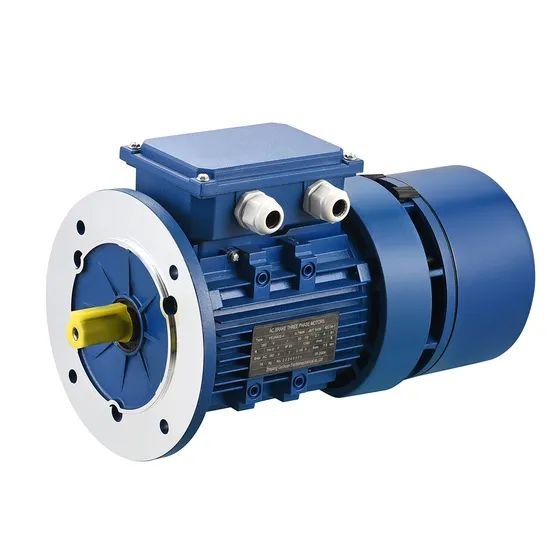

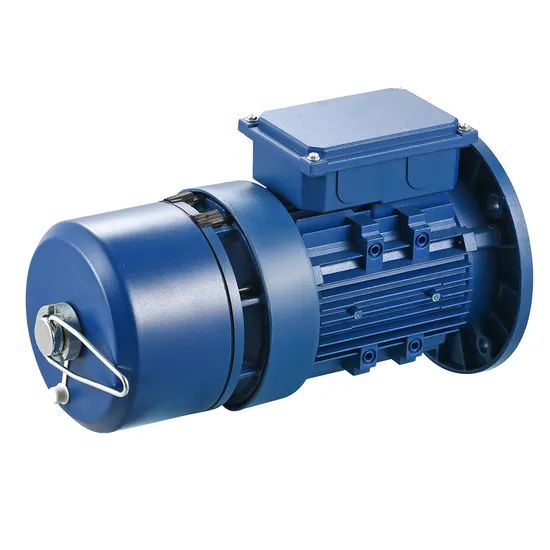

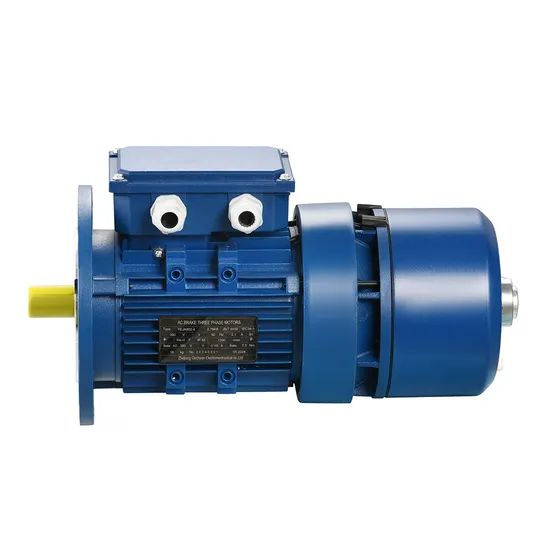

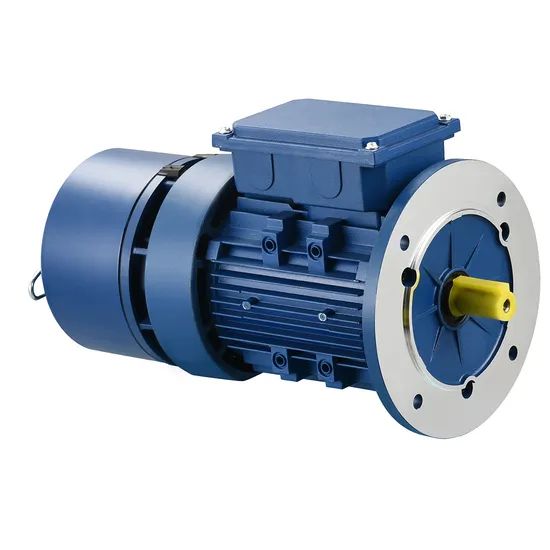

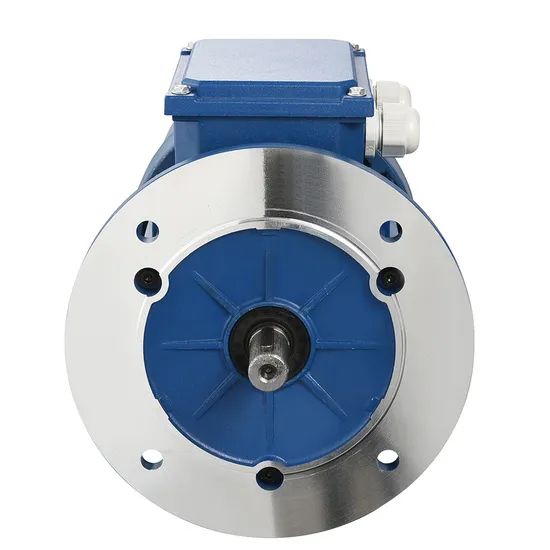

High-quality Variable Frequency Vf Adjustable-Speed Speed Regulation Three Phase Brake AC Electric/Electrical Motors supplied by Zhejiang Aolong Motor Technology Co.,Ltd. Bulk wholesale pricing ranges from $35 to $6,000 per Piece with a minimum order of 10 Piece. Inquiry for latest prices.
100% Pure Copper
12 Months
20 Days
210.000kg
220V, 380V, 440V, 660V and Others
2p, 4p, 6p, 8p, 10p, 12p
4
50Hz or 60Hz
100% Pure Copper
12 Months
20 Days
210.000kg
220V, 380V, 440V, 660V and Others
2p, 4p, 6p, 8p, 10p, 12p
4
50Hz or 60Hz
78.00cm * 39.00cm * 54.00cm
80000pieces/Year
85015350
ALONMAX
Alonmax
B3, B5, B35, B14, B34, V1, V5 and So on
CIF, FOB, CFR, EXW
Carton Box with Pallet; Honeycomb Box; Wooden Box
Casting iron shell or Alu. shell
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Closed Type
Contact the supplier about freight and estimated delivery time.
Direct on-line Starting
Driving
F
From 120W to 630kw
ISO9001, CCC, Explosion Proof Motor Test Report
Ningbo Port, Shanghai Port
Optional or Customized
Support payments in USD
T/T, D/P, LC, PayPal, Western Union
Taizhou, China
Three-Phase
YVF-180L-4(22KW)
China
Not specified
Not specified
2018-08-27
Not specified
82
T/T, D/P, LC, PayPal, Western Union
CIF, FOB, CFR, EXW
Ningbo Port, Shanghai Port
CCC, CE, Others, ISO9001:2015
| Type | Rated Power | Rated Current(A) | Rated Speed(r/min) | Efficiency(%) | Power Factor(CosΦ) | |
| KW | HP | |||||
| 380V 50HZ Synchronous Speed 3000r/min(2Poles) | ||||||
| YE3-80M1-2 | 0.75 | 1 | 1.7 | 2880 | 80.7 | 0.82 |
| YE3-80M2-2 | 1.1 | 1.5 | 2.4 | 2880 | 82.7 | 0.83 |
| YE3-90S-2 | 1.5 | 2 | 3.2 | 2890 | 84.2 | 0.84 |
| YE3-90L-2 | 2.2 | 3 | 4.6 | 2890 | 85.9 | 0.85 |
| YE3-100L-2 | 3 | 4 | 6 | 2910 | 87.1 | 0.87 |
| YE3-112M-2 | 4 | 5.5 | 7.8 | 2910 | 88.1 | 0.88 |
| YE3-132S1-2 | 5.5 | 7.5 | 10.6 | 2945 | 89.2 | 0.88 |
| YE3-132S2-2 | 7.5 | 10 | 14.4 | 2940 | 90.1 | 0.88 |
| YE3-160M1-2 | 11 | 15 | 20.6 | 2950 | 91.2 | 0.89 |
| YE3-160M2-2 | 15 | 20 | 27.9 | 2950 | 91.9 | 0.89 |
| YE3-160L-2 | 18.5 | 25 | 34.2 | 2950 | 92.4 | 0.89 |
| YE3-180M-2 | 22 | 30 | 40.5 | 2960 | 92.7 | 0.89 |
| YE3-200L1-2 | 30 | 40 | 54.9 | 2970 | 93.3 | 0.89 |
| YE3-200L2-2 | 37 | 50 | 67.4 | 2975 | 93.7 | 0.89 |
| YE3-225M-2 | 45 | 60 | 80.8 | 2975 | 94 | 0.9 |
| YE3-250M-2 | 55 | 75 | 98.5 | 2970 | 91.5 | 0.89 |
| YE3-280S-2 | 75 | 100 | 134 | 2980 | 94.7 | 0.9 |
| YE3-280M-2 | 90 | 125 | 160 | 2980 | 95 | 0.9 |
| YE3-280L-2 | 110 | 150 | 195 | 2980 | 95.2 | 0.9 |
| YE3-315S-2 | 110 | 150 | 195 | 2975 | 95.2 | 0.9 |
| YE3-315M-2 | 132 | 180 | 234 | 2975 | 95.4 | 0.9 |
| YE3-315L1-2 | 160 | 200 | 279 | 2975 | 95.6 | 0.91 |
| YE3-315L2-2 | 185 | 250 | 323 | 2975 | 95.7 | 0.91 |
| YE3-315L2-2 | 200 | 270 | 349 | 2975 | 95.8 | 0.91 |
| YE3-315L4-2 | 220 | 295 | 383 | 2975 | 95.8 | 0.91 |
| YE3-355M1-2 | 220 | 295 | 383 | 2980 | 95.8 | 0.91 |
| YE3-355M2-2 | 250 | 340 | 436 | 2980 | 95.8 | 0.91 |
| YE3-355L1-2 | 280 | 375 | 488 | 2980 | 95.8 | 0.91 |
| YE3-355L2-2 | 315 | 420 | 549 | 2980 | 95.8 | 0.91 |
| YE3-355L3-2 | 355 | 475 | 619 | 2980 | 95.8 | 0.91 |
| YE3-4001-2 | 355 | 475 | 626 | 2985 | 95.8 | 0.9 |
| YE3-4002-2 | 400 | 535 | 705 | 2985 | 95.8 | 0.91 |
| YE3-4003-2 | 450 | 600 | 793 | 2985 | 95.8 | 0.9 |
| YE3-4004-2 | 500 | 670 | 881 | 2985 | 95.8 | 0.9 |
| YE3-4005-2 | 560 | 750 | 976 | 2985 | 95.8 | 0.9 |
| YE3-4006-2 | 630 | 840 | 632 | 2985 | 95.8 | 0.91 |
| Type | Rated Power | Rated Current(A) | Rated Speed(r/min) | Efficiency(%) | Power Factor(CosΦ) | |
| KW | HP | |||||
| 380V 50HZ Synchronous Speed 1500r/min(4Poles) | ||||||
| YE3-80M1-4 | 0.55 | 0.75 | 1.4 | 1435 | 80.8 | 0.75 |
| YE3-80M2-4 | 0.75 | 1 | 1.8 | 1435 | 82.5 | 0.75 |
| YE3-90S-4 | 1.1 | 1.5 | 2.6 | 1440 | 84.1 | 0.76 |
| YE3-90L-4 | 1.5 | 2 | 3.5 | 1440 | 85.3 | 0.77 |
| YE3-100L1-4 | 2.2 | 3 | 4.8 | 1450 | 86.7 | 0.81 |
| YE3-100L2-4 | 3 | 4 | 6.3 | 1450 | 87.7 | 0.82 |
| YE3-112M-4 | 4 | 5.5 | 8.4 | 1450 | 88.6 | 0.82 |
| YE3-132S-4 | 5.5 | 7.5 | 11.2 | 1470 | 89.6 | 0.83 |
| YE3-132S2-4 | 7.5 | 10 | 15 | 1470 | 90.4 | 0.84 |
| YE3-160M-4 | 11 | 15 | 21.5 | 1475 | 91.4 | 0.85 |
| YE3-160L-4 | 15 | 20 | 28.8 | 1475 | 92.1 | 0.86 |
| YE3-180M-4 | 18.5 | 25 | 35.3 | 1480 | 92.6 | 0.86 |
| YE3-180L-4 | 22 | 30 | 41.8 | 1480 | 93 | 0.86 |
| YE3-200L-4 | 30 | 40 | 56.6 | 1475 | 93.6 | 0.86 |
| YE3-225S-4 | 37 | 50 | 69.6 | 1485 | 93.9 | 0.86 |
| YE3-225M-4 | 45 | 60 | 84.4 | 1485 | 94.2 | 0.86 |
| YE3-250M-4 | 55 | 75 | 103 | 1480 | 94.6 | 0.86 |
| YE3-280S-4 | 75 | 100 | 136 | 1490 | 95 | 0.88 |
| YE3-280M-4 | 90 | 125 | 163 | 1490 | 95.2 | 0.88 |
| YE3-280L-4 | 110 | 150 | 195 | 1490 | 95.4 | 0.9 |
| YE3-315S-4 | 110 | 150 | 197 | 1485 | 95.4 | 0.89 |
| YE3-315M-4 | 132 | 180 | 236 | 1485 | 95.6 | 0.89 |
| YE3-315L1-4 | 160 | 200 | 285 | 1485 | 95.8 | 0.89 |
| YE3-315L2-4 | 185 | 250 | 326 | 1485 | 95.9 | 0.9 |
| YE3-315L3-4 | 200 | 270 | 352 | 1485 | 96 | 0.9 |
| YE3-315L4-4 | 220 | 295 | 387 | 1485 | 96 | 0.9 |
| YE3-355M1-4 | 220 | 295 | 387 | 1490 | 96 | 0.9 |
| YE3-355M2-4 | 250 | 340 | 440 | 1490 | 96 | 0.9 |
| YE3-355L1-4 | 280 | 375 | 492 | 1490 | 96 | 0.9 |
| YE3-355L2-4 | 315 | 420 | 554 | 1490 | 96 | 0.9 |
| YE3-355L3-4 | 355 | 475 | 624 | 1490 | 96 | 0.9 |
| YE3-4001-4 | 355 | 475 | 638 | 1490 | 96 | 0.88 |
| YE3-4002-4 | 400 | 535 | 719 | 1490 | 96 | 0.88 |
| YE3-4003-4 | 450 | 600 | 809 | 1490 | 96 | 0.88 |
| YE3-4004-4 | 500 | 670 | 899 | 1490 | 96 | 0.88 |
| YE3-4005-4 | 560 | 750 | 996 | 1490 | 96 | 0.89 |
| YE3-4006-4 | 630 | 840 | 645 | 1490 | 96 | 0.89 |
| Type | Rated Power | Rated Current(A) | Rated Speed(r/min) | Efficiency(%) | Power Factor(CosΦ) | |
| KW | HP | |||||
| 380V 50HZ Synchronous Speed 1000r/min(6Poles) | ||||||
| YE3-80M1-6 | 0.37 | 0.55 | 1.1 | 928 | 73.5 | 0.7 |
| YE3-80M2-6 | 0.55 | 0.75 | 1.5 | 928 | 77.2 | 0.72 |
| YE3-90S-6 | 0.75 | 1 | 2 | 950 | 78.9 | 0.71 |
| YE3-90L-6 | 1.1 | 1.5 | 2.8 | 950 | 81 | 0.73 |
| YE3-100L-6 | 1.5 | 2 | 3.8 | 955 | 82.5 | 0.73 |
| YE3-112M-6 | 2.2 | 3 | 5.4 | 955 | 84.3 | 0.74 |
| YE3-132S-6 | 3 | 4 | 7.2 | 970 | 85.6 | 0.74 |
| YE3-132M1-6 | 4 | 5.5 | 9.5 | 970 | 86.8 | 0.74 |
| YE3-132M2-6 | 5.5 | 7.5 | 12.7 | 970 | 88 | 0.75 |
| YE3-160M-6 | 7.5 | 10 | 16.2 | 980 | 89.1 | 0.79 |
| YE3-160L-6 | 11 | 15 | 23.1 | 980 | 90.3 | 0.8 |
| YE3-180L-6 | 15 | 20 | 30.9 | 980 | 91.2 | 0.81 |
| YE3-200L1-6 | 18.5 | 25 | 37.8 | 985 | 91.7 | 0.81 |
| YE3-200L2-6 | 22 | 30 | 44.8 | 985 | 92.2 | 0.81 |
| YE3-225M-6 | 30 | 40 | 59.1 | 990 | 92.9 | 0.83 |
| YE3-250M-6 | 37 | 50 | 71.7 | 990 | 93.3 | 0.84 |
| YE3-280S-6 | 45 | 60 | 85.8 | 990 | 93.7 | 0.85 |
| YE3-280M-6 | 55 | 75 | 103 | 990 | 94.1 | 0.86 |
| YE3-280L-6 | 75 | 100 | 143 | 990 | 94.6 | 0.84 |
| YE3-315S-6 | 75 | 100 | 143 | 990 | 94.6 | 0.84 |
| YE3-315M-6 | 90 | 125 | 170 | 990 | 94.9 | 0.85 |
| YE3-351L1-6 | 110 | 150 | 207 | 990 | 95.1 | 0.85 |
| YE3-315L2-6 | 132 | 180 | 244 | 990 | 95.4 | 0.86 |
| YE3-355L3-6 | 160 | 200 | 296 | 990 | 95.6 | 0.86 |
| YE3-355M1-6 | 160 | 200 | 296 | 990 | 95.6 | 0.86 |
| YE3-355M2-6 | 185 | 250 | 342 | 990 | 95.7 | 0.86 |
| YE3-355M3-6 | 200 | 270 | 365 | 990 | 95.8 | 0.87 |
| YE3-355L1-6 | 220 | 295 | 401 | 990 | 95.8 | 0.87 |
| YE3-355L2-6 | 250 | 340 | 456 | 990 | 95.8 | 0.87 |
| YE3-355L3-6 | 280 | 375 | 510 | 990 | 95.8 | 0.87 |
| YE3-355L4-6 | 315 | 420 | 609 | 995 | 95.8 | 0.82 |
| YE3-4001-6 | 355 | 475 | 687 | 995 | 95.8 | 0.82 |
| YE3-4002-6 | 400 | 535 | 764 | 995 | 95.8 | 0.83 |
| YE3-4003-6 | 450 | 600 | 860 | 995 | 95.8 | 0.83 |
| YE3-4004-6 | 500 | 670 | 550 | 995 | 95.8 | 0.83 |
| Type | Rated Power | Rated Current(A) | Rated Speed(r/min) | Efficiency(%) | Power Factor(CosΦ) | |
| KW | HP | |||||
| 380V 50HZSynchronous Speed 750r/min(8Poles) | ||||||
| YE3-80M1-8 | 0.18 | 0.25 | 0.8 | 650 | 58.7 | 0.61 |
| YE3-80M2-8 | 0.25 | 0.35 | 1 | 650 | 64.1 | 0.61 |
| YE3-90S-8 | 0.37 | 0.5 | 1.3 | 670 | 69.3 | 0.61 |
| YE3-90L-8 | 0.55 | 0.75 | 1.9 | 670 | 73 | 0.61 |
| YE3-100L1-8 | 0.75 | 1 | 2.3 | 690 | 75 | 0.67 |
| YE3-100L2-8 | 1.1 | 1.5 | 3.1 | 690 | 77.7 | 0.69 |
| YE3-112M-8 | 1.5 | 2 | 4.1 | 690 | 78.7 | 0.7 |
| YE3-132S-8 | 2.2 | 3 | 5.7 | 710 | 81.9 | 0.71 |
| YE3-132M-8 | 3 | 4 | 7.5 | 710 | 83.5 | 0.73 |
| YE3-160M1-8 | 4 | 5.5 | 9.8 | 720 | 84.8 | 0.73 |
| YE3-160M2-8 | 5.5 | 7.5 | 13.1 | 720 | 86.2 | 0.74 |
| YE3-160L-8 | 7.5 | 10 | 17.4 | 720 | 87.3 | 0.75 |
| YE3-180L-8 | 11 | 15 | 25.2 | 730 | 88.6 | 0.75 |
| YE3-200L-8 | 15 | 20 | 33.5 | 730 | 89.6 | 0.76 |
| YE3-225S-8 | 18.5 | 25 | 41 | 730 | 90.1 | 0.76 |
| YE3-225M-8 | 22 | 30 | 47.3 | 730 | 90.6 | 0.78 |
| YE3-250M-8 | 30 | 40 | 63.2 | 730 | 91.3 | 0.79 |
| YE3-280S-8 | 37 | 50 | 77.5 | 740 | 91.8 | 0.79 |
| YE3-280M-8 | 45 | 60 | 93.9 | 740 | 92.2 | 0.79 |
| YE3-280L-8 | 55 | 75 | 112 | 740 | 92.5 | 0.81 |
| YE3-315S-8 | 55 | 75 | 112 | 740 | 92.5 | 0.81 |
| YE3-315M-8 | 75 | 100 | 151 | 740 | 93.1 | 0.81 |
| YE3-315L1-8 | 90 | 125 | 179 | 740 | 93.4 | 0.82 |
| YE3-315L2-8 | 110 | 150 | 218 | 740 | 93.7 | 0.82 |
| YE3-315L3-8 | 132 | 180 | 260 | 740 | 94 | 0.82 |
| YE3-355M1-8 | 132 | 180 | 260 | 740 | 94 | 0.82 |
| YE3-355M2-8 | 160 | 200 | 314 | 740 | 94.3 | 0.82 |
| YE3-355L1-8 | 185 | 250 | 362 | 740 | 94.5 | 0.82 |
| YE3-355L2-8 | 200 | 270 | 387 | 740 | 94.6 | 0.83 |
| YE3-355L3-8 | 220 | 295 | 426 | 740 | 94.6 | 0.83 |
| YE3-355L4-8 | 250 | 340 | 502 | 740 | 94.6 | 0.8 |
| YE3-4001-8 | 315 | 420 | 632 | 740 | 94.6 | 0.8 |
| YE3-4002-8 | 355 | 475 | 713 | 745 | 94.6 | 0.8 |
| YE3-4003-8 | 400 | 535 | 462 | 745 | 94.6 | 0.8 |
| Type | Rated Power | Rated Current(A) | Rated Speed(r/min) | Efficiency(%) | Power Factor(CosΦ) | |
| KW | HP | |||||
| 380V 50HZSynchronous Speed 600r/min(10Poles) | ||||||
| YE3-315S-10 | 45 | 60 | 99.1 | 590 | 92 | 0.75 |
| YE3-315M-10 | 55 | 75 | 121 | 590 | 92 | 0.75 |
| YE3-315L1-10 | 75 | 100 | 162 | 590 | 92.8 | 0.76 |
| YE3-315L2-10 | 90 | 120 | 191 | 590 | 93 | 0.77 |
| YE3-355M1-10 | 90 | 120 | 191 | 590 | 93 | 0.77 |
| YE3-355M2-10 | 110 | 150 | 230 | 590 | 93.3 | 0.78 |
| YE3-355M3-10 | 132 | 180 | 274 | 590 | 93.8 | 0.78 |
| YE3-355L1-10 | 160 | 215 | 332 | 590 | 93.8 | 0.78 |
| YE3-355L2-10 | 185 | 250 | 384 | 590 | 93.8 | 0.78 |
| YE3-4001-10 | 200 | 270 | 437 | 590 | 93.9 | 0.74 |
| YE3-4002-10 | 250 | 335 | 547 | 590 | 93.9 | 0.74 |
| YE3-4003-10 | 315 | 420 | 658 | 595 | 94.4 | 0.77 |
| YE3-4004-10 | 355 | 475 | 742 | 595 | 94.4 | 0.77 |
