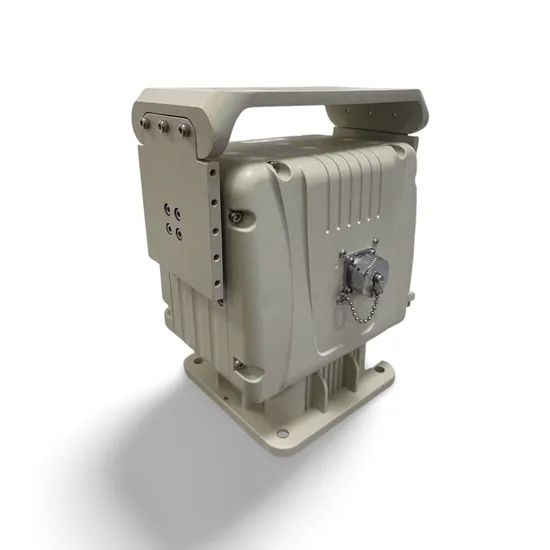

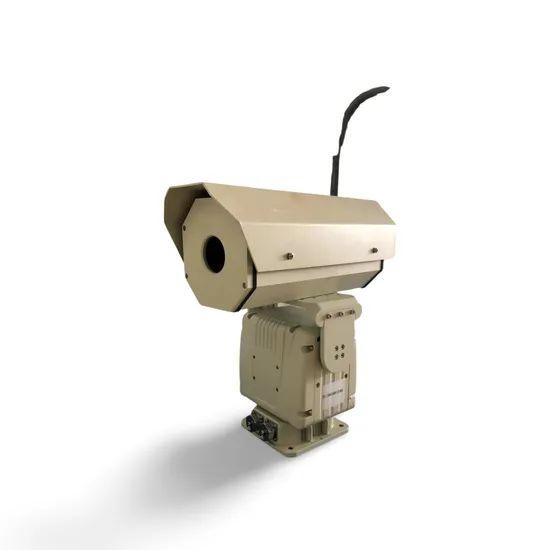

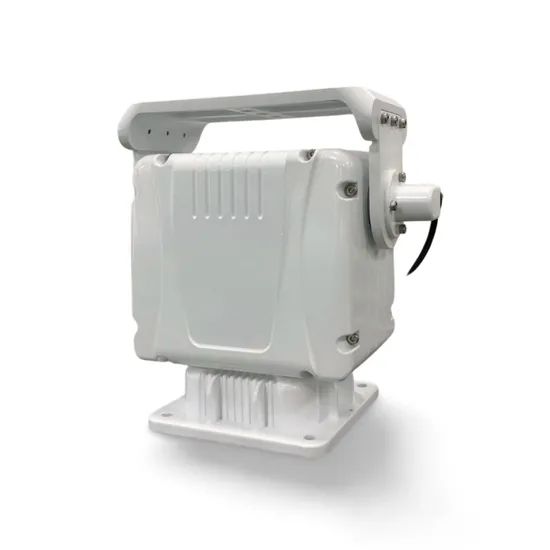

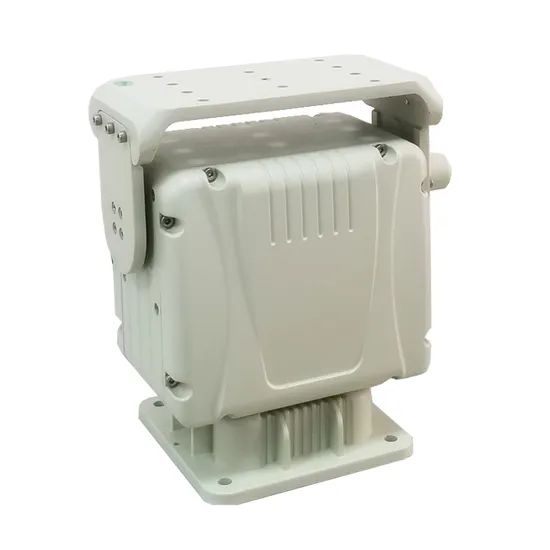

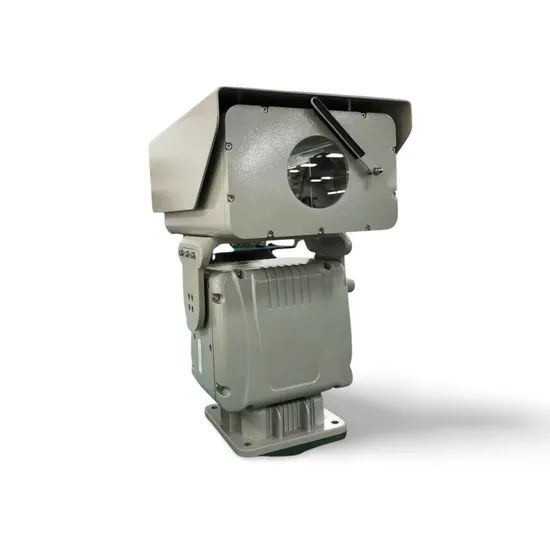

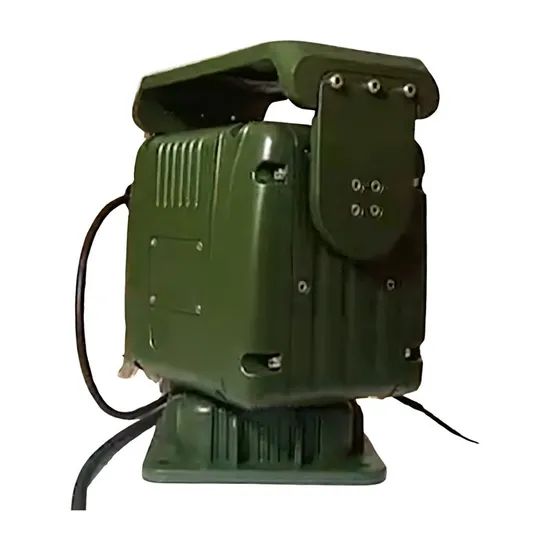

Variable Speed High Precision Customizable Fast Intelligent Pelco-D Gimbal
1 Piece
$700Product information
High-quality Variable Speed High Precision Customizable Fast Intelligent Pelco-D Gimbal supplied by Cangzhou Haina Electronic Technology Co., Ltd. Bulk wholesale pricing is $700 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Production Capacity:
10000PCS/Year
Model NO.:
1510
Specification:
35X33X25
HS Code:
8529904900
Application:
CCTV
Transport Package:
Carton
Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Specifications
Production Capacity:
10000PCS/Year
Model NO.:
1510
Specification:
35X33X25
HS Code:
8529904900
Application:
CCTV
Transport Package:
Carton
Origin:
China
Trade Term:
FOB, CIF, CFR, EXW
Payment Term:
LC, T/T, D/P, PayPal, Small-amount payment, Western Union
Communication Protocol:
Pelco-D
Port Of Loading:
Tianjin Port
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2013-10-23
Annual Revenue Amount:
Not specified
Numbers Of Employees:
2
Preferred Payment Term:
LC, T/T, D/P, PayPal, Small-amount payment, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Tianjin Port
Product descriptions from the supplier
CCTV pan tilt head, Motorized pan tilt unit, PTU, Pan tilt platform.
Our company is the professional manufacturer of CCTV pan tilt head. The pan tilt load weight can be 5kg, 10kg, 15kg, 35kg , 50kg, 80kg and so on.
we product high precision pan tilt and normal precision pan tilt. If you need our pan tilt, please no hesitate contact us.
Features:
Max Load:7kg
Support kinds of lens preset with self-adaptive function
High resetting accuracy, up to ±0.1º
Adopt die-cast aluminum alloy material
Adopt high-strength worm-gear driven, self-locked when power is off
Pan:0º~360º continuous
Protection Class: IP66
OSD menu,Network(optional)
Optional function: returning data of pan tilt position, focal length, focus etc.
Specification:
| Model | MG-15 |
| Rotating Speed | Pan:0.01º~30º/s,Tilt:0.01º~15º/s |
| Rotation Angle | Pan:0º~360º continuous, Tilt: +60º~ -60º |
| Number of Presets | 200 |
| Preset Positioning Accuracy | ±0.1º |
| Optional function | Pan tilt position data ,focal length etc. |
| Auxiliary Switch | 2 groups |
| Lens Preset | Support,with self-adaptive function |
| Auto Cruising | 8 tracks(each with 10 presets) |
| Homing time | It can be set up within the scope of 1~60 min |
| Auto Scan | 1 path |
| Protocol | Pelco-D/P |
| Baud Rate | 2400/4800/9600/19200bps |
| Interface | RS485(RS422 optional) |
| Input Voltage | AC24V±20%,50/60HZ;DC28V±20% |
| Power Consumption | ≤30W |
| Operation Temperature | temp:-25ºC~+65ºC ,humidity:90%±3% RH; without condensation(-40ºC~+65ºC) |
| Storage Temperature | -40ºC~+70ºC |
| Max Load | 10 kg |
| Load Mode | top-mounted |
| Driven way | Worm-gear |
| Protection Class | IP66 |
| Weight | 6 kg |
| Dimensions | 223mm*140mm*235mm(L*W*H) |
