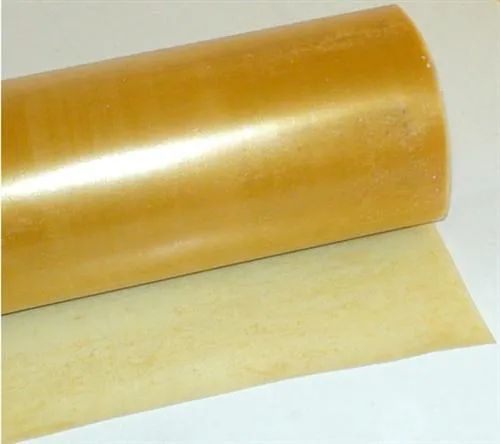

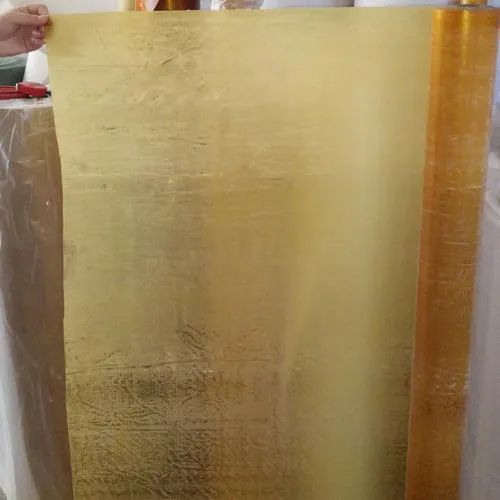

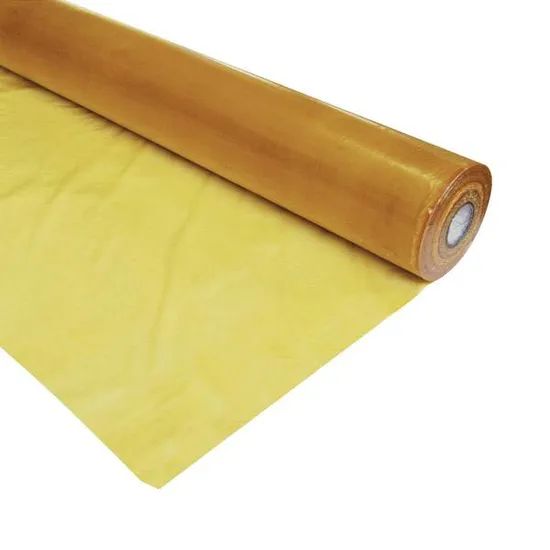

Varnished Fiberglass Cloth Factory Price
100 kg
$13.2100 kg
$10.8Product information
High-quality Varnished Fiberglass Cloth Factory Price supplied by Eric (Tianjin) Technology Group Co., Ltd.. Bulk wholesale pricing ranges from $10.8 to $13.2 per kg with a minimum order of 100 kg. Inquiry for latest prices.
Specification:
0.08mm-0.2mm
Heat Resistance:
130degree
Production Capacity::
20000
Width:
20mm-1250mm
Model NO.:
2310
Weight:
50kg, 105kg
Maximum Voltage:
<10KV
Thermal Rating:
A 105
Specifications
Specification:
0.08mm-0.2mm
Heat Resistance:
130degree
Production Capacity::
20000
Width:
20mm-1250mm
Model NO.:
2310
Weight:
50kg, 105kg
Maximum Voltage:
<10KV
Thermal Rating:
A 105
Origin:
China
Brand:
Eric
Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW, Others
Material:
Fiberglass
Sample:
Free
Chemistry:
Hybrid Insulation
Classification:
Hybrid Insulation Materials
Application:
Insulators, Electrical Winding Insulation, Winding Wire Coating Insulation, Electrical Base, Shell, Motor, Insulating Varnish, Switch Baseplate, Transformer
Payment Terms::
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Transport Package:
Pallet
Certification:
SGS
Port::
Shanghai, China
Type:
Solid
Port Of Loading:
TIANJINSHANGHAI
Color:
Yellow
Trademark:
eric
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-07-17
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Preferred Trade Term:
FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW, Others
Port Of Loading:
TIANJINSHANGHAI
Certificates:
License Photo
Product descriptions from the supplier
Product Description
2310 Oil varnished synthetic fabric,also known as yellow waxed silk,is made of electrician silk evenly soaked with oily insulating varnish,dried and cut.
2310 Oil varnished synthetic fabric has certain electrical and mechanical properties and can be used for a long time at 105°C. It also has the flexibility and tensile strength of cloth,so it is suitable for thin layer wrapping insulation or liner insulation in transformers,motors,and electrical appliances that require high dielectric properties.
Detailed technical parameters
Thickness: 0.08, 0.11, 0.12, 0.15, 0.17, 0.18, 0.20, 0.25mm
Width: 20mm-1250mm
Color: yellow
Elasticity (when the nominal elongation is 6%): 1~15N
Tensile force: radial 7~24N/10mm, weft 5~22N/10mm
Volume resistivity: ≥1%
The effect of oil on lacquered silk (105ºC/18): No sticky layer, no paint stripping
Breakdown voltage (0.04~0.14mm): 1.0~9.8 KV
Whether to customize: yes
Packing: carton, pallet.
Transportation and storage condition
2310 Oil varnished synthetic fabric shall be stored in a dry and clean stockhouse with good ventilation and away rom fire and away from fire and sunshine.
