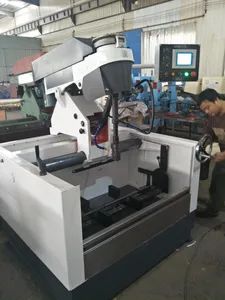

Vertical Cylinder Honing Machine Condition New Origin Shanghai HS Code 846019900 Certification ISO 9001 Automatic Grade Manual
Piece
Negotiable
Product information
High-quality Vertical Cylinder Honing Machine Condition New Origin Shanghai HS Code 846019900 Certification ISO 9001 Automatic Grade Manual supplied by Xian Foreign Trade and Economic Development Corporation. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
100
HS Code:
846019900
Controlling Mode:
Artificial
Trade Term:
FOB, CIF, CFR
Precision:
High Precision
Certification:
ISO 9001
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Automatic Grade:
Manual
Specifications
Production Capacity:
100
HS Code:
846019900
Controlling Mode:
Artificial
Trade Term:
FOB, CIF, CFR
Precision:
High Precision
Certification:
ISO 9001
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Automatic Grade:
Manual
Condition:
New
Origin:
Shanghai
Port Of Loading:
Shanghai Port
Cylindrical Grinder Type:
Universal Cylindrical Grinder
Transport Package:
Wooden Case
Specification:
honing diamet 40-170mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
1991-04-28
Annual Revenue Amount:
Not specified
Numbers Of Employees:
104
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai Port
Product descriptions from the supplier
Model SHM-100
Vertical Honing Machine
Main specifications
Main technical specifications
3MQ9814 LIGHT CYLINDER HONER MACHINE
echnical Parameters
HONING MACHINES
Model VHM170 Vertical Honing Machine
Instructions to Installation, Debugging and Operation
MODEL 3MB9817
Cylinder Honing Machine:
Model: 3MB9817
Features
The machine is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
- The machine table can shift of the fixture change 0 degree, 30degree, 45degree
- The machine table is easily up and down manually 0 -180 mm
- Reverse precision 0-0.4mm.
- Select mesh-wire degree 0-90degree or non-mesh-wire.
- reciprocating speed of up and down 0-30m/min
- The machine is reliable performance widely use honing, easy operation and high productivity.
- Good rigidity, amount of cutting
Model: 3MB9817, 3MB9808, 2M2217A.
Vertical Honing Machine
Main specifications
| No. | Items | Unit | Parameters | |
| 1 | Honing diameter | mm | Φ 28 ~ Φ 100 | |
| 2 | Max. honing depth | mm | 200 | |
| 3 | Spindle up and down reciprocating speed | Manual | ||
| 4 | Worktable size(L * W) | mm | 290 * 150 | |
| 5 | Work chamber scope(L * W) | mm | 390 * 200 | |
| 6 | Cooling pump motor power | kW | 0.04 | |
| 7 | Spindle speed | rpm | 125,250 (Three-phase) |
200,290 (Single-phase) |
| 8 | Main motor power | kW | 0.37 / 0.18 | 0.55 |
| 9 | Voltage | V | 3-380,3-220 | 1-220 |
| 10 | Frequency | Hz | 50,60 | 50,60 |
| 11 | External dimensions(L * W * H) | mm | 400 * 580 * 1600 | |
| 12 | Main unit weight | kg | 117 | |
MODEL 3MB9808
VERTICAL CYLINDER HONINGMain technical specifications
| NO. | Item | Unit | Technical data | |
| 1 | Max. honing diameter | mm | Φ40~Φ82 | |
| 2 | Max. honing depth | mm | 200 | |
| 3 | Spindle speeds | r/min | 200-280 | |
| 4 | Spindle strokes | stroke/min | 19-27 | |
| 5 | Spindle travel | mm | 70 | |
| 6 | Motor power | kw | 0.55 | |
| 7 | Motor power of cooling pump | kw | 0.09 | |
| 8 | Dimension of the table surface | Mm1300 | 600×380 | |
| 9 | Voltage | V | 3-220,3-380 | |
| 10 | Frequency | Hz | 50 | 60 |
| 11 | Exterior dimension of the machine(L×W×H) | mm | 600×1200×1300 | |
| 12 | Machine weight | Kg | 250 | |
3MQ9814 LIGHT CYLINDER HONER MACHINE
echnical Parameters
| 1. | Bore honing diameter range | Φ40~Φ140mm |
| 2. | Max.bore honing depth | 320mm |
| 3. | Honing spindle speed | 125/250rpm |
| 4. | Max.spindle stroke | 340mm |
| 5. | Spindle lifting and lowering speed (stepless) | 0-14m/min |
| 6. | Working accuracy | |
| (1)Cylimdricity | 0.0075mm | |
| (2)Circularity | 0.0050mm | |
| (3)Surface finish | 0.63 | |
| 7. | Total capacity of electric motors; | 2.52KW |
| Including :Honing head motor | 0.90KW | |
| Oil pump motor | 1.50Kw | |
| Cooling pump motor | 0.12Kw | |
| 8. | Power supply | |
| Voltage | AC380V,220V | |
| Frequency | 50Hz 60Hz | |
| 9 | Overall dimensions | 1300*812*2075mm |
| 10 | Net weight | 650Kg |
HONING MACHINES
Model VHM170 Vertical Honing Machine
Instructions to Installation, Debugging and Operation
| No. | Item | Unit | Parameters | Remarks |
| 1 | Range of honing hole diameter | mm | 40~178 | Matched with MFQZ40~62 |
| 2 | Max. honing hole depth | mm | 300 | |
| 3 | Workpiece size (L*W*H) | mm | 1168*558*673 | |
| 4 | Workpiece weight | kg | 680 (incl. the fixture) | |
| 5 | Spindle motor | kw | 2.2 | |
| 6 | Spindle speed | rpm | 90~350 stepless adjustable | |
| 7 | Stroke motor | kw | 0.75 | |
| 8 | Stroke rate | Hz | 40~80 stepless adjustable | |
| 9 | Stroke length range | mm | 0~240 | |
| 10 | Cooling pump motor | kw | 0.12 | |
| 11 | Coolant capacity volume | dm3 | 210 | |
| 12 | Floor area (L*W*H) | mm | 2318*1835*2197 | |
| 13 | Machine tool net weight | kg | 860 | |
| 14 | Machine tool weight (with coolant) | kg | 1100 | |
| 15 | Ground load | kg/m2 | 800 | |
| 16 | Gross weight of machine tool (with package, without coolant) | kg | 1100 |
MODEL 3MB9817
VERTICAL CYLINDER HONER
Cylinder Honing Machine:
Model: 3MB9817
Features
The machine is mainly used for honing single line engine cylinders and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
- The machine table can shift of the fixture change 0 degree, 30degree, 45degree
- The machine table is easily up and down manually 0 -180 mm
- Reverse precision 0-0.4mm.
- Select mesh-wire degree 0-90degree or non-mesh-wire.
- reciprocating speed of up and down 0-30m/min
- The machine is reliable performance widely use honing, easy operation and high productivity.
- Good rigidity, amount of cutting
Model: 3MB9817, 3MB9808, 2M2217A.
