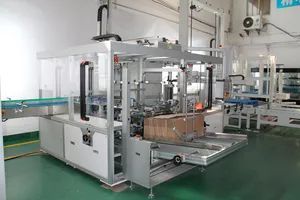

Vertical Pick and Place Case Loading Machine
Set
Negotiable
Product information
High-quality Vertical Pick and Place Case Loading Machine supplied by Jiangsu Ketchview Machinery Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
20set/Month
HS Code:
8422303090
Type:
Assembly Line
Packaging:
Cartons
Driven Type:
Electric
Trade Term:
FOB, CIF, CFR
Soft And Hardness:
Flexible Package
Circulation Function:
In the Packaging
Specifications
Production Capacity:
20set/Month
HS Code:
8422303090
Type:
Assembly Line
Packaging:
Cartons
Driven Type:
Electric
Trade Term:
FOB, CIF, CFR
Soft And Hardness:
Flexible Package
Circulation Function:
In the Packaging
Trademark:
Ketchview
Payment Term:
LC, T/T, D/P
Packaging Material:
Paper
Port Of Loading:
Shanghai Port
Origin:
Shanghai, China
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-06-29
Annual Revenue Amount:
Not specified
Numbers Of Employees:
35
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shanghai Port
Certificates:
CE
Product descriptions from the supplier
Breif Introduction
The biggest feature of the machine is that it integrates unpacking, packing and sealing, which is also called three-in-one packing machine
According to the customer's arrangement requirements, the products are automatically arranged in layers and groups, and the carton is automatically opened and positioned before filling, and the products are loaded into the carton by top load, side push, robot ect
It can meet the requirements of various specifications and realize automatic unpacking and sealing.
The machine can be sealed by tape or hot melt adhesive according to customer requirements
Adopt the PLC control, the touch screen can show the running status and error alarm, such as no material alarm, door open alarm, other faults alarm.
Packing products are widely used in tissue paper, wet tissue paper, food, medicine, cosmetics, health products, bottle, can, hardware and other various products
Technical parameter
| Model | YMKZF05 | YMKZF03 |
| Packing method | Vertical type, robot control | Vertical type, servo control |
| Table Height | 750±50mm | 750±50mm |
| Packing speed | 1-12box/min | 1-12box/min |
| Carton Size | L 150-600mm, W100-450mm H 100-450mm | L 150-600mm, W100-450mm H 100-450mm |
| Power | 380V,7KW, 50/60HZ | 380V,8KW, 50/60HZ |
| Gas source | 0.4-0.8Mpa | 0.4-0.8Mpa |
| Sealing method | Tape or hot melt adhesive | Tape or hot melt adhesive |
| Machine size | 3500*1900*2000mm | 3500*1900*2300mm |
| Machine weight | 2500kg | 2300kg |

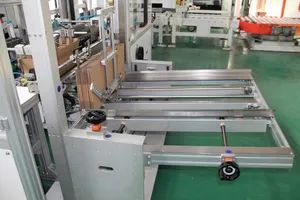

- Automatic case erecting system: controlled by servo, higher efficiency, smaller space than the conventional erecting machine. Can accommodate around 100 cases at the same time
- Automatic delivery system:can be connected with the existing assembly line, automatic feeding, and alarm if no feending...

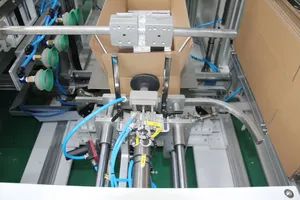

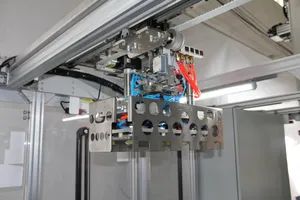

- Automatic loading system:controlled by servo or robot system, flexibly and accurately
- Automatic sealing system:seal carton packaging with tape, economical and fast, both seal the upper and bottom side at one time.
- Screen touch:All functions are centralized in the screen touch, showing the running status and fault alarm, easy to operate and control
