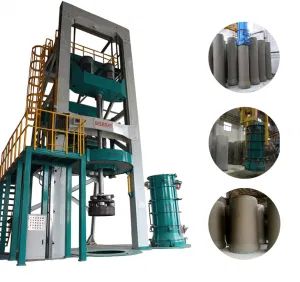

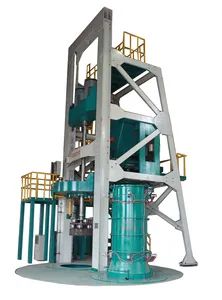

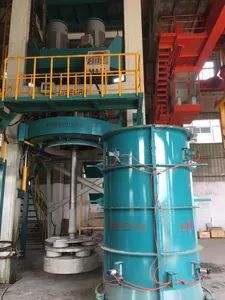

Vertical Radial Press Concrete Pipe Making Machine Culvert Pipe Making Machine
Set
Negotiable
Product information
High-quality Vertical Radial Press Concrete Pipe Making Machine Culvert Pipe Making Machine supplied by Suzhou Arisons New Material Co.,Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
10 Set/Sets Per Month
Coupling Load:
240kw
Capacity:
30-120 Pieces/Hour
Pipe Diameter:
300-1200mm
Voltage:
380V
Package Gross Weight:
40000.000kg
Frequency:
50Hz
Specification:
5100*3200*11500mm
Specifications
Production Capacity:
10 Set/Sets Per Month
Coupling Load:
240kw
Capacity:
30-120 Pieces/Hour
Pipe Diameter:
300-1200mm
Voltage:
380V
Package Gross Weight:
40000.000kg
Frequency:
50Hz
Specification:
5100*3200*11500mm
Package Size:
800.00cm * 800.00cm * 3000.00cm
HS Code:
8477590000
Power:
90kw
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Customized:
Customized
Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP
Application:
Industry
Model NO.:
JX300-1200
Origin:
Jiangsu
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Condition:
New
Core Components:
PLC, Engine, Motor, Pressure Vessel
Type:
Pipe Production Line
Port Of Loading:
SHANGHAI, NINGBO, QINGDAO
Pipe Material:
Stainless Steel
Payment Methods:
Support payments in USD
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2019-07-03
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, EXW, CFR, CIF, DDP, DAP
Port Of Loading:
SHANGHAI, NINGBO, QINGDAO
Certificates:
a patent certificate, AN XIN TESTING CERTIFICATION, Patent certificate, The patent certificate
Product descriptions from the supplier
Vertical Press Concrete Pipe Making Machine 300-1200
| Equipment model | JX300-1200 | JX800-1650 |
| Production diameter | 300-1200mm | 800-1650mm |
| Production length | 2m,2.5m,3m | |
| Production tube type | Bell and spigot, tongue and groove | |
| Special shaped pipe can be produed | Pre-bed pipes | |
Vertical Extrusion Pipe Making Machine is high production efficiency, high degree of automation, environmental protection and energy saving, become the most popular machine for making concrete pipe diameter under 1600mm in Europe.
|
Item
|
Data
|
Item
|
Data
|
|
Total installed power
|
143.5kw
|
Speed of extrusion head
|
30-180r/min
|
|
Extrusion head stroke
|
3600mm
|
Maximum torque of extrusion head
|
100-3000Nm
|
|
Insert molding disc stroke
|
2500mm
|
Lifting speed of power head box
|
5-25mm/s
|
|
Vibration molding device stroke
|
400mm
|
Feeding speed of feeder
|
200-900mm/s
|
|
Hopper volume
|
1.9m 3
|
Chassis speed
|
2r/min
|
|
Hydraulic system pressure
|
16MPa
|
Compressed air
|
0.4-0.7MPa
|
|
Length × width
|
10250× 7500mm
|
Height above ground of frame
|
10200mm
|
|
The depth of the pit
|
2260mm
|
Weight
|
24000kgs
|
|
The environment temperature
|
5-35ºC
|
Maximum noise
|
75dB(A)
|
|
Relative humidity
|
25-80%
|
Production diameter
|
Φ300-φ1200
|
|
Production length
|
2M, 2.5M, 3M
|
Production tube type
|
Bell and spigot, tongue and groove
|
Advantages and characteristics of radial extrusion press:
1. The amount of mold is small, only one set of extrusion head and two sets of molds are needed for each specification
2. The maintenance method saves energy, adopts rigid concrete production, and can adopt open steam curing after stripping
3. Vertical production and maintenance, saving workshop space
4. No waste residue is discharged in the production process, which is environmentally friendly
5. Less operation personnel, easy to manage production
6, mechanical and electrical hydraulic integration, programmed control easy to operate
7. Low mechanical noise
8. High production efficiency and low labor intensity
2. The maintenance method saves energy, adopts rigid concrete production, and can adopt open steam curing after stripping
3. Vertical production and maintenance, saving workshop space
4. No waste residue is discharged in the production process, which is environmentally friendly
5. Less operation personnel, easy to manage production
6, mechanical and electrical hydraulic integration, programmed control easy to operate
7. Low mechanical noise
8. High production efficiency and low labor intensity
Q:Do you have set up an independent factory?
A:We have our own factory. Has the specialized cement machinery product equipment factory, also has the large-scale cement drain pipe production factory.
Q:What can you do for us?
A:1. Before sales can be targeted to give some constructive Suggestions. 2.Make a specific plan for your needs. 3. After sales reference specific products, different products have different services. Refer to the specific product description.
Q: Can you do the basic design for us?
A: Yes, we have a professional team with rich experience in basic design of cement pipe making equipment with CAD software. You just need to tell us your ideas and requirements, and we will provide you with the most perfect design.
Q: What are the main equipment of vertical radial extrusion?
A: The vertical radial extrusion equipment is mainly composed of fuselage, power reducer, feeding mechanism, feeding grinding device, mold changing turntable, socket forming mechanism, mold and accessories.
Q: Does the buyer need to buy any other equipment? The buyer needs to buy the automatic Rolling welder, PC bar, forklift, mixing plant, steam boiler, etc., which is necessary in the later production. If the buyer needs one-stop service, we can also provide everything for the buyer.
Q:Can your engineers train our workers in our factories? Yes, we have a very large engineering installation team that can train and instruct your workers to operate the installation equipment.
Q: What about the quality of your equipment? We are concerned about the quality. We have more than 30 years experience in manufacturing different types of cement products. We are in strict accordance with ios9001: 2000 system for production and management. And can meet all CE standards or more stringent standards. Our cement piping equipment operates well in more than 30 countries.
Q:If we provide the parameter requirements, can we make it to order? We provide customized services as long as you provide the appropriate drawings and product requirements.
Q:How long is your lead time? Our delivery time varies according to the quantity of the order, usually around 30 days.
