Vet Dr Pet Digital Radiography System ODM Accept OEM Accept Origin China Category Class II Model NO. HE-DR200C Departments
Set
Negotiable
Product information
High-quality Vet Dr Pet Digital Radiography System ODM Accept OEM Accept Origin China Category Class II Model NO. HE-DR200C Departments supplied by Harbin Howell Medical Apparatus And Instruments Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
ODM:
Accept
OEM:
Accept
Origin:
China
Category:
Class II
Port Of Loading:
Dalian Port
Departments:
Diagnostics
Trade Term:
FOB, CIF, CFR, EXW
Model NO.:
HE-DR200C
Specifications
ODM:
Accept
OEM:
Accept
Origin:
China
Category:
Class II
Port Of Loading:
Dalian Port
Departments:
Diagnostics
Trade Term:
FOB, CIF, CFR, EXW
Model NO.:
HE-DR200C
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Transport Package:
Wooden Case
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Not specified
Year Established:
2010-01-06
Annual Revenue Amount:
Not specified
Numbers Of Employees:
107
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Dalian Port
Certificates:
Others, ISO9001:2015
Product descriptions from the supplier
1. Introduction

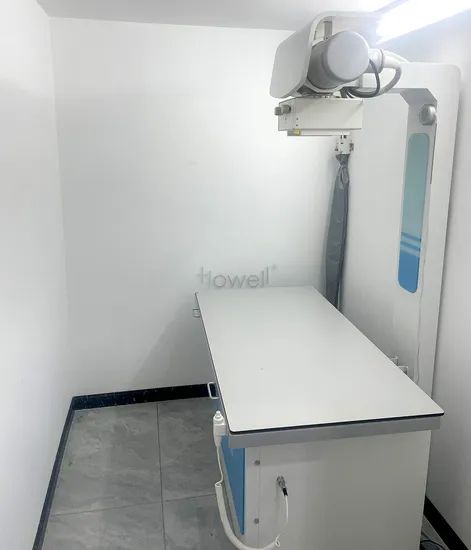

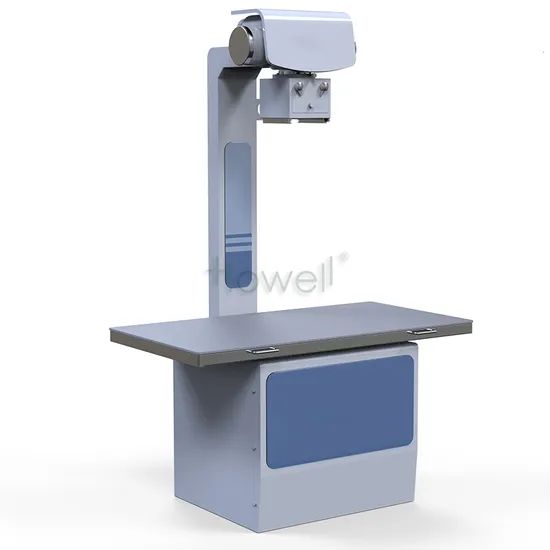

Vet DR, also known as pet digital radiography system, is professionally used for digital X-ray examination of pet, with the computer reconstructing the image and then making a series of post-processing. It is a must-purchased equipment for high-end and mid-high end pet hospitals, and it is to perform X-ray imaging of different parts of pet to assist vet doctors in timely and accurate diagnosis and treatment.
2. Function Features
Self-developed detector
The 16bits image display technology provides more exquisite images and ensures good image quality;
High-end tube provides high-quality X-rays to achieve image clarity;
There are two 380V and 220V power conditions are available and the power of 22KW and 32KW for customer to choose
Simple operation, easy to diagnose
It takes no more than 5 seconds to generate images, with professional functions such like zooming, rotating, measuring and etc. to get more accurate diagnosis. It also can realize the functions of printing, storing, transmission, and remote diagnosed with built-in DICOM3.0 standard interface.
Small and novel appearance
It is convenient for easy installation in domestic and oversea pet hospitals, and the height of the bed is suitable for users to operate. The bed surface is very easy to clean, and is design with the anti-scratch technology ;
3. Parameters for main parts
| Item | Parameters |
| Working conditions of the Photographic system | (1) Environmental conditions Operating temperature: 10ºC~40ºC Relative humidity: 30%~75%, non-condensing (2)Power supply voltage:single-phase 220VAC±10%, 50Hz |
| High voltage generator | (1) Output power: 22KW (2) Tube voltage range: 40~125kV (3) Tube current range: 10mA~320mA (4) Load time range: 1.0ms~10000ms (5) Maximum inverter frequency: 200kHz (6) mAs Rang: 0.1~100mAs (7) Maximum power: 22KW (8) Power supply: single-phase 220VAC±10%, 50Hz |
| High-end tube | (1) Nominal tube voltage: 40KV~125KV (2) Focus: 1.0mm/2.0mm (3) Focus power: small focus≥20KW/large focus ≥40KW |
| Flat panel detector | (1) Material: amorphous silicon cesium iodide (2) Effective imaging area: 427mm x427mm (3) Acquisition matrix: 3072 x 3072 pixels (4) Pixel size: 140μm (5) Image read-out time: ≤7S (6) Spatial resolution: 3.7lp/mm |
| Beam limiter | (1) LED beam light (2) Time limit for indicator light: 30±3s (3) Inherent filtration: 1.0 mm Al.EQ. (4) Maximum irradiation field: ≥430 mm x 430 mm when SID (FFD) = 1000mm (5) Minimum irradiation field: 0 mm x 0 mm (6) Operation mode: manual knob adjustment |
| Mechanical device performance | (1) Bed size: 1220mm×640mm, (±50mm) (2) The height between the bed surface and the ground: 670mm, ( ±50mm) (3) The maximum bearing capacity of the bed surface: 70kg (4) Distance from focus to detector (SID): 1000mm, ( ±50mm) (5) Horizontal and vertical floating range of the bed surface: 110mm, ( ±5.5mm) (6) Horizontal and horizontal floating range of the bed surface: 350mm, (±17.5mm) |
| Pet workstation software | (1) Screen size: 21.5 inches (2) Type: LCD (3) Resolution (pixel matrix): 1920 x 1080 (4) CPU: Intel Pentium G4400 processor (5) Memory: 4GB (6) Hard disk: 500G (7) DVD burning: available |
| Software functions | (1) Software direct exposure control (2) Patient management (3) Image processing (4) Film printing |
