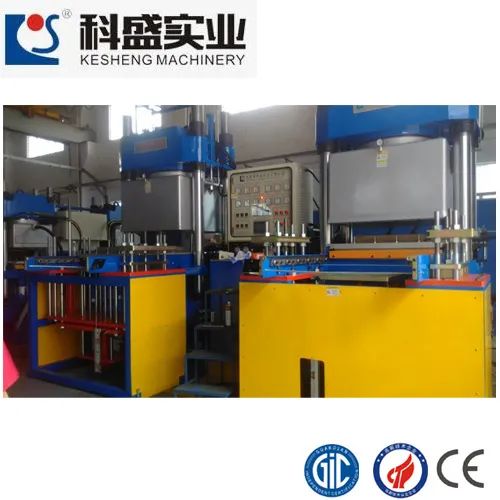

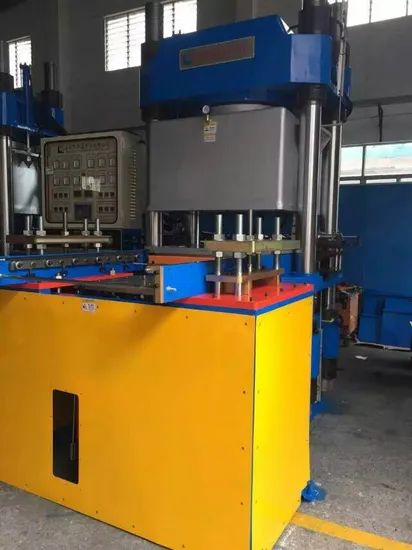

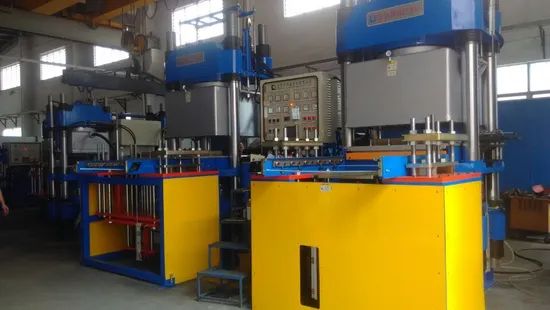

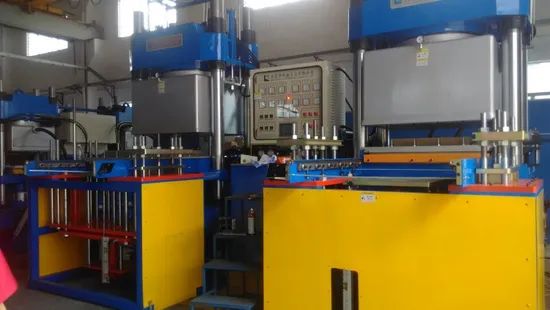

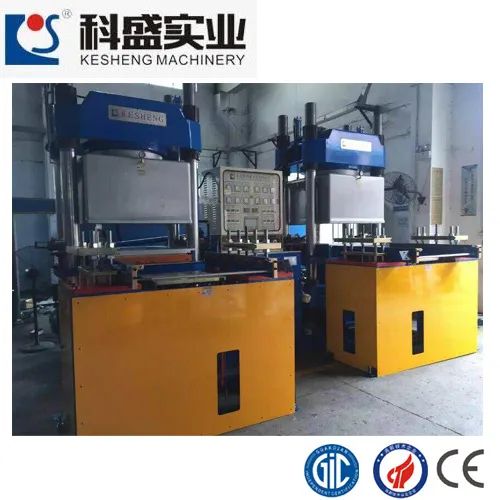

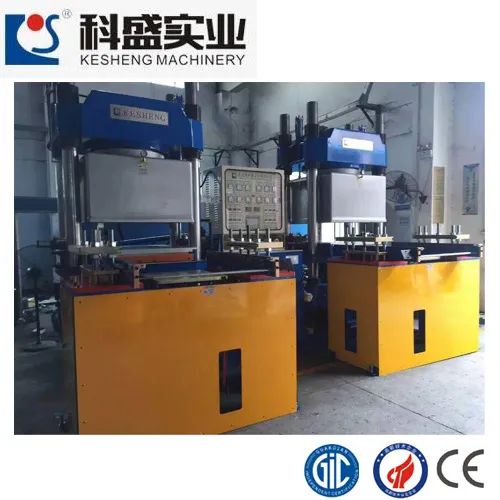

Vulcanizer Press Machine for Making Large Rubber Products (KS500VF)
1 set
$100,000Product information
High-quality Vulcanizer Press Machine for Making Large Rubber Products (KS500VF) supplied by Dongguan Kesheng Intelligent Equipment Technology Co., Ltd.. Bulk wholesale pricing is $100,000 per set with a minimum order of 1 set. Inquiry for latest prices.
Horse Power:
15HP * 2
Mould Open Type:
2 Layer Mould Open Style
Gross Weight:
23500kg
Stroke:
300mm
Machine Size:
4200*3600*3300mm
Clamping Force:
500 Ton
Main Sylinder Diameter:
560mm
Electrical Power:
72kw
Specifications
Horse Power:
15HP * 2
Mould Open Type:
2 Layer Mould Open Style
Gross Weight:
23500kg
Stroke:
300mm
Machine Size:
4200*3600*3300mm
Clamping Force:
500 Ton
Main Sylinder Diameter:
560mm
Electrical Power:
72kw
Production Capacity:
800 Sets/Year
HS Code:
84774090
Automatic Grade:
Automatic
Specification:
CE
Customized:
Customized
Origin:
Dongguan China
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
KESHENG
Model NO.:
KSV-2RT-500T
Payment Term:
LC, D/P, T/T, PayPal, Western Union, Small-amount payment
Transport Package:
Naked Pack / Wooden Case
Port Of Loading:
Shenzhen Port
Structure:
Vertical
Heating Plate Size:
up 1000 X 1000mm, Down1100 X1100mm
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2006-03-13
Annual Revenue Amount:
Not specified
Numbers Of Employees:
171
Preferred Payment Term:
LC, D/P, T/T, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shenzhen Port
Certificates:
ISO14001, ISO9001:2015
Product descriptions from the supplier
500Ton large plate style hign precision rubber and silicone vacuum machine, full automatic, fast speed, 2 layer open mould style hydraulic molding machine.
Machine main feature:
1. Adopt dual power individual circuit design, stable, quiet, low failure rate, two axes can be operated simultaneously, saving 50%
2. Front mold is suitable for variety 2-layers or multi-layers molds, it is a kind of new multi-function machine
3. Lift and clamping mold speed can be adjustable, accuracy and reliability
4. Out-In mold positioning accuracy, positioning 100% security, to ensure that mold does not damage
5. Vacuum chamber can reach 650-700mmHg within 5 seconds
6. Has a fast, slow correction mode selection function, so that the mold can be correction more accurate, more secure
Main parts instruction for plate & vacuum rubber machine
| NO. | Item | Branch/Material | Remarks |
| 1 | Motor | Taiwan Tatung | Large torque type, quiet and silent |
| 2 | Oil Pump | Japan branch | Collective style circuit design |
| 3 | PLC | Japan Mitsubishi | Independent written, easy to operate |
| 4 | LCD touch screen | Taiwan PanelMaster | Clear and intuitive, convenient, easy to operate |
| 5 | Heating pipes | Taiwan branch | Nickel-chromium alloy wire, never rust |
| 6 | Oil seal | Japan NOK | Wear-resistant, durable, no leakage |
| 7 | Solenoid valve | Taiwan Victoria | Controlled fast, long life |
| 8 | Other electrical configuration |
Japan Fujitsu, Great Wall, Chint and so on |
Performance and stability |
| 9 | Thermostat | Omron | Using PID correction, temperature uniform distribution, the error value at ± 3 ºC |
| 10 | Pressure sensor | Denmark TRAFAG | Conduction pressure accurate, unbiased, and easy to use |
| 11 | Heating control system |
Taiwan Solid State Relays |
temperature uniform distribution, the error value at ± 3 ºC |
| 12 | Machine body casting | FCD50 Ductile Iron | Aging passivation, high tensile strength |
| 13 | Column | Carbon Steel | Hardness up to HRC55--58 |
| 14 | Work plate | Size as per quotation | 45 # high carbon steel, grinding, surface nitriding hardness HRC50-55 |
| 15 | Machine Middle body | Umbrella tapered design | Make the machine rise and fall by force, the mold cavity pressure evenly, the product is not lack of material, no bubbles |
| 16 | Vacuum Pump | Germany Busch | Evacuated quickly, can reach 760 mm Hg within 5 seconds |
Applicable products:
Applied to Auto parts, rubber fasteners, O-ring, silicon button, home application rubber, bottle stoppers, industrial rubber, silicon/rubber multi-layer molded products.
Parameter:
| Model | 200Ton | 250Ton | 300Ton | 350Ton | 400Ton | 500Ton |
| Clamping force(Ton) | 200 | 250 | 300 | 350 | 400 | 500 |
| Stroke(mm) | 250 | 250 | 250 | 300 | 300 | 300 |
| Heating plate size(mm) | up 503x508mm down 554x560mm |
up 600x600mm down 600x650mm |
up 600x600mm down 650x650mm |
up 700x700mm down 750x750mm |
up 800x800mm down 850x850mm |
up 950x950mm down 1000x1000mm |
| Main cylinder diameter(mm) | 355 | 400 | 450 | 475 | 500 | 560 |
| Horse power(HP) | 10x2 | 10x2 | 10x2 | 15x2 | 15x2 | 15x2 |
| Electrical power(KW) | 22 | 34 | 34 | 43 | 48 | 72 |
| Gross weight(KG) | 90000 | 11500 | 13500 | 16500 | 19500 | 23500 |
| Machine size(L*W*H mm) | 3000x2360x2330 | 3300x2710x2530 | 3450x2630x2600 | 3600x2950x2600 | 3800x3300x2800 | 4200x3600x3300 |
Any inquiry please feel free to contact with us, thank you for your attention.
