Product information
High-quality Walk Through Steel Frame Scaffolding Construction-Equipment-Tools supplied by Nanjing Uni-Tech Metalwork Co.,Ltd. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Size:
1-2m
Production Capacity:
5000pieces/Year
HS Code:
7308400000
Transport Package:
Bag / Pallet
Origin:
China
Framework:
Combined Scaffolding
Lapping Form:
Double Scaffolding
Standard:
En74-1/BS1139/As1576
Specifications
Size:
1-2m
Production Capacity:
5000pieces/Year
HS Code:
7308400000
Transport Package:
Bag / Pallet
Origin:
China
Framework:
Combined Scaffolding
Lapping Form:
Double Scaffolding
Standard:
En74-1/BS1139/As1576
Erection Position:
External Scaffolding
Trade Term:
FOB, EXW, CFR, CIF
Scaffolding Part Type:
Frame Scaffolding
Keyword01:
Frame Scaffolding
Keywords:
Frame Scaffolding System
Type:
Frame Scaffolding System
Keyword03:
H Frame Scaffolding
Move Method:
Horizontal mobile Scaffolding
Finsh:
Hot DIP Galvanized/Powder Coated
Construction Properties:
Installation Scaffold
Payment Term:
LC, T/T
Keyword02:
Mason Frame Scaffolding
Structural Style:
Multi-Pole Scaffolding
Supporting Mode:
Projecting Scaffolding
Steel:
Q235/Q355
Material:
Steel
Trademark:
U T M
Model NO.:
UTM-FS
Specification:
steel / pallet
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2021-04-26
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, EXW, CFR, CIF
Port Of Loading:
Not specified
Certificates:
ringlock scaffolding certificate, scaffolding couplers certificate, Scaffolding Product certificate, scaffolding safety net fan certificate
Product descriptions from the supplier

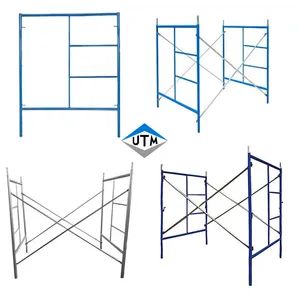

Walk Through Steel Frame Scaffolding construction-equipment-tools
Its main components include frames, cross braces (diagonal braces), catwalk (steel or aluminum), joint pins, jack base and castors. It's always widely used as mobile scaffoldings, outdoor scaffoldings and indoor shoring.
Mason Frame / Step Scaffold Frame
Frame Scaffolding Cross Brace
Frame Scaffolding Lock Pins
Frame Scaffolding find widespread use in buildings, halls, bridges, as well as in the interior and exterior control grids of tall structures.
| Material | Q235,Q355 |
| Variety | Walk through type & Mason type |
| Type | H frame scaffolding system & A frame scaffolding |
| Tube Thickness | 1.8mm, 2.0mm, 2.5mm, 3mm 3.2mm 3.25mm, 3.5mm, 4mm or customize |
| Surface treatment | Hot Dip Galvanized/Powder Coated |
| Color | Silver, red, blue, yellow, green or customize |
| Certificate | ISO9001:2000 |
| Standard | EN74, BS1139, AS1576 |
| Advantage | Easy erection, strong loading capacity, safety and stability |
| Main components | Frame, catwalk, joint pin, cross brace, base jack, u-head jack and caster |
| Application scenario | bridge, tunnel, petrifaction, shipbuilding, railway, airport, dock industry, civil building, etc. |
Frame scaffolding, also known as tubular steel frame scaffolding, is a well-established modular system used for construction and decoration purposes. It provides a stable working platform and is made up of various components such as main frames, catwalks or walk boards, braces, brackets, coupling pins, guardrails, and sometimes casters.
There are different styles of frame scaffolding available, including walk-through frames, open-end frames, step frames, ladder frames, H frames, and shoring frames.
To meet the specific requirements of clients in different countries and regions, there are various types of frame scaffolding available. These include American type galvanized scaffolding, pre-galvanized walk-through frames, Mason single and double ladder frames, lightweight Italian painted ladder frames, and powder-coated Korean type steel frame scaffolds.
To meet the specific requirements of clients in different countries and regions, there are various types of frame scaffolding available. These include American type galvanized scaffolding, pre-galvanized walk-through frames, Mason single and double ladder frames, lightweight Italian painted ladder frames, and powder-coated Korean type steel frame scaffolds.
Advantages
-
1)Easy to install and disassemble.
-
2)High carrying capacity.
-
3)High construction efficiency, labor and time saving.
Frame Scaffold Main components
Walk Through Frame Scaffolding
| Code | Name | Width | Height | Surface Treatment | Band |
| UTM-WTF-3*4 |
Walk Through Frame |
914.4mm | 1219.2mm |
galvanized/Powder Coated |
UTM |
| UTM-WTF-3*5 | 914.4mm | 1524mm | |||
| UTM-WTF-3*6.8 | 914.4mm | 2032mm | |||
| UTM-WTF-5*6.8 | 1524mm | 2032mm |
Walk through frameis designed to help prevent stacked frames from sliding, it is heavy-duty and made with high-carbon steel so that they do not easily bend if dropped or if something runs into them. Walthrought Frame allows a person to pass underneath unobstructed. This allows greater freedom of movement along a work surface.
Mason Frame / Step Scaffold Frame
| Code | Name | Width | Height | Surface Treatment | Band |
| UTM-MS-2.1 |
Mason Frame |
1524mm | 635mm |
galvanized/Powder Coated |
UTM |
| UTM-MS-3.1 | 939.8mm | ||||
| UTM-MS-4.1 | 1244.6mm | ||||
| UTM-MS-5.1 | 1549mm | ||||
| UTM-MS-6.7 | 2006.6mm |
Mason Frame/Step Frameis the most common type of scaffold used by contractors of all types. It is manufactured with high-strength steel tubingIt's easy to set up and dismantle and allows you to get to the height you need fairly quickly.
Frame Scaffolding Cross Brace
| Code | Name | A | B | C | Surface Treatment | Band |
| UTM-LF-1 |
Frame Brace |
1524mm | 1219mm | 1951mm |
galvanized |
UTM |
| UTM-LF-2 | 3048mm | 81208mm | 2283.2mm | |||
| UTM-LF-3 | 2133.6mm | 812.8mm | 3154.43mm | |||
| UTM-LF-4 | 3048mm | 1219mm | 3284.7mm |
scaffolding frame bay bracesare used for the lateral bracing frame scaffolding.Bay braces can also be used as obtuse angle mid rail and top pr hand rails in conjunction with our stair system.Were made of high strength structural steel with hot dip galvanizing finish.
Scaffolding Toggle Pinis essential to locking scaffold frames and accessories together. Frames, posts, casters and any other attachable accessory is designed to be locked together via scaffolding toggle pins or spring clips.
Frame Scaffolding Coupling pin
Coupling pins are used to connect scaffolding frames together vertically. The pins fit on the inside of the frame and are used in conjunction with span pins, toggle pins, and clips to hold them in place.
Coupling pins are used to connect scaffolding frames together vertically. The pins fit on the inside of the frame and are used in conjunction with span pins, toggle pins, and clips to hold them in place.
Frame Scaffolding Caster Wheels
Caster wheel that fits into the bottom of scaffolding frame legs. The wheel has a hole in the stem for a pin to lock it to the frame. When the lock is engaged, it keeps the wheel from rolling and also from swiveling. Fit's all major scaffolding frame styles.
Caster wheel that fits into the bottom of scaffolding frame legs. The wheel has a hole in the stem for a pin to lock it to the frame. When the lock is engaged, it keeps the wheel from rolling and also from swiveling. Fit's all major scaffolding frame styles.
The Applications of Frame Scaffolding
Frame Scaffolding find widespread use in buildings, halls, bridges, as well as in the interior and exterior control grids of tall structures.
They can also be utilized for mechanical and electrical installations, renovation projects, equipment servicing, painting and whitewashing, and temporary viewing platforms, among other activities.
