Waste Paper Carton Recycled Making Paperboard Machine Box Paper Machine with CE Certificate
1 Piece
$1,000,0001 Piece
$200,000Product information
High-quality Waste Paper Carton Recycled Making Paperboard Machine Box Paper Machine with CE Certificate supplied by Zhengzhou Dingchen Machinery Co., Ltd.. Bulk wholesale pricing ranges from $200,000 to $1,000,000 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
Capacity:
2-60tons Per Day Accepted
Production Capacity:
30 Sets Per Year
Model No.:
3800mm
HS Code:
84392000
Automation:
Automatic
Trademark:
Dingchen machinery
Trade Term:
FOB, EXW, CFR, CIF, CIP, CPT
Boiler:
Gas, Coal, Diesel Boiler Can Be Choosed
Specifications
Capacity:
2-60tons Per Day Accepted
Production Capacity:
30 Sets Per Year
Model No.:
3800mm
HS Code:
84392000
Automation:
Automatic
Trademark:
Dingchen machinery
Trade Term:
FOB, EXW, CFR, CIF, CIP, CPT
Boiler:
Gas, Coal, Diesel Boiler Can Be Choosed
Specification:
ISO
Certification:
ISO 9001:2000
Payment Term:
LC, T/T, D/P
Transport Package:
National Standard
Condition:
New
Suitable For:
Paper
Port Of Loading:
Qingdao port
Origin:
Qinyang City, Henan Province in China
Sales Service:
Support
Technical Training:
Support
Paper Thickness:
Thick Paper
Used Fields:
Virgin Craft Paper, Making Kraft Bag Paper
Output Paper:
Virgin Kraft Paper, Corrugated Paper
Raw Material:
Waste Paper Waste Carton
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2002-03-02
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P
Preferred Trade Term:
FOB, EXW, CFR, CIF, CIP, CPT
Port Of Loading:
Qingdao port
Product descriptions from the supplier
Fluting Paper/Kraft Paper/Corrugated Paper/Cardboard Paper Making Machine
Paper making machine Technical requirement
Paper and pulp ratio
Paper type: fluting and test liner paper
Paper weight: 85-100g / m2
Proportion of pulp: determined and adjusted by the user according to the product
Paper machine specifications
Output: 120t / 24h
Design width:
Wire width (nominal): 2950mm
Paper roll width: 2560mm
Finished paper width: 2500mm
Gauge: 3600mm (subject to final design)
Various speed:
Designed speed: 400 m / min
Balance speed: 450 m / min
Transmission speed: 400 m / min
Rolling roller balancing speed: 1200m / min
Working speed: 300-400 m / min
Dryness:
Out of wire section: 20-22% (± 1%)
After press section: 44-46% (± 1%)
Before sizing: 92%
Paper roll machine: 92%
Arrangement of the paper machine: Stand at the roll machine and look at the wire section, the drive is on the left (right) hand side.
Paper machine layout form: Single layer layout
Paper Making Machine Raw material
UseWheat Straw pulp, Rice Straw, Waste Books Paper, Wood Chips, Waste Paper, Bagasse, Wood pulp board, waste paper to produce Kraft paper, test liner paper, corrugated paper, fluting paper, cardboard paper.
Why choose us?
(1) professional engineer team with 30 years experience;
(2) we can supply turn-key solution without any trouble;
(3) we have strict quality control system and ensure there is no unqualified product;
(4) professional installation technician and clear technical training for your workers;
(5) strict recalling system: if any problem of Paper Making Machine, we will recall it and change a new one for free;
Paper Making Machine Main Equipment
Pulp Making Equipments
High contentration hydrapulper, Vibrating screen, Pressure Screen,Double disc pulp refiner, Pulp pump, Low concertration cleaner,Impeller, High concentration cleaner, High speed washer, Decker thickener, Fiber separator, Rejector separator
Paper Making Equipments
Headbox, Cylinder mold, Cylinder vat, Touch roll, Press roll, Leading roll, Dryer, Sizing machine, Calender machine, Winding machine, Rewinder, Foundation frame
(1) professional engineer team with 30 years experience;
(2) we can supply turn-key solution without any trouble;
(3) we have strict quality control system and ensure there is no unqualified product;
(4) professional installation technician and clear technical training for your workers;
(5) strict recalling system: if any problem of Paper Making Machine, we will recall it and change a new one for free;
Paper Making Machine Main Equipment
Pulp Making Equipments
High contentration hydrapulper, Vibrating screen, Pressure Screen,Double disc pulp refiner, Pulp pump, Low concertration cleaner,Impeller, High concentration cleaner, High speed washer, Decker thickener, Fiber separator, Rejector separator
Paper Making Equipments
Headbox, Cylinder mold, Cylinder vat, Touch roll, Press roll, Leading roll, Dryer, Sizing machine, Calender machine, Winding machine, Rewinder, Foundation frame
| No. | Item | Function |
| Pulp making section | ||
| 1 | D type Hydra-pulper | To break the waste paper into pulp and drop down the impurity and pins |
| 2 | High density pulp cleaner | To separate and sieve the small stone,staples,heavy impurity in the pulp |
| 3 | Fiber separator | To beating pulp again and separate long and short fiber |
| 4 | Vibrating screen | To separate and remove the small impurity(such as broken plastic tape,foam,etc) |
| 5 | Pulp refiner | To grind pulp fiber |
| 6 | Low concentration pulp cleaner | To remove the sand and tiny impurity in the water and pulp |
| 7 | Pressure screen | To screening pulp fiber |
| 8 | Impeller | To stir the pulp and make sure the pulp and water mixed well |
| 9 | Pulp pump | To provide the pulp for the needed machine |
| Paper making section | ||
| 10 | Cylinder mold part | To forming wet paper web |
| 11 | Vacuum dewatering part | To absorb the water in the wet paper |
| 12 | Press part | To dewatering by mechanical gravity press force |
| 13 | Dryer section part | To dry wet paper |
| 14 | Sizing press part | To glue paper surface to improve paper quality strength and stop printing ink spreading |
| 15 | Dryer section part | To dry paper after gluing wet |
| 16 | Calendering part | To glazing paper surface,control paper thickness,tightness |
| 17 | Winding part | To reeling output paper be a jumbo paper roll |
| 18 | Paper rewinding part | To rewind the jumbo roll paper to different size (width&diameter) according to your requirement |
| Boiler section | ||
| 19 | Gas/diesel/coal boiler | To provide high temperature and pressure steam to dryer to dry paper |

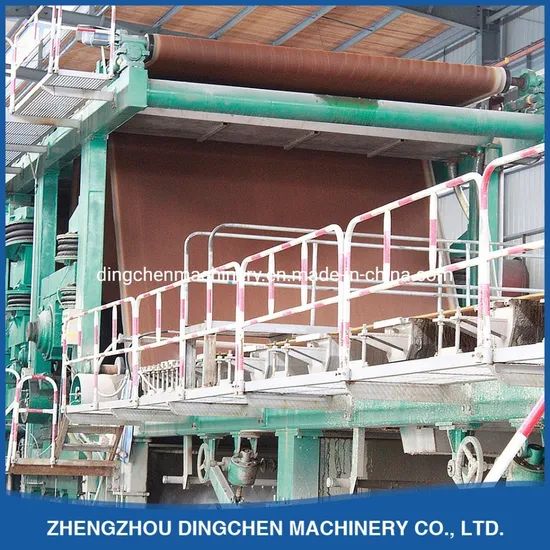

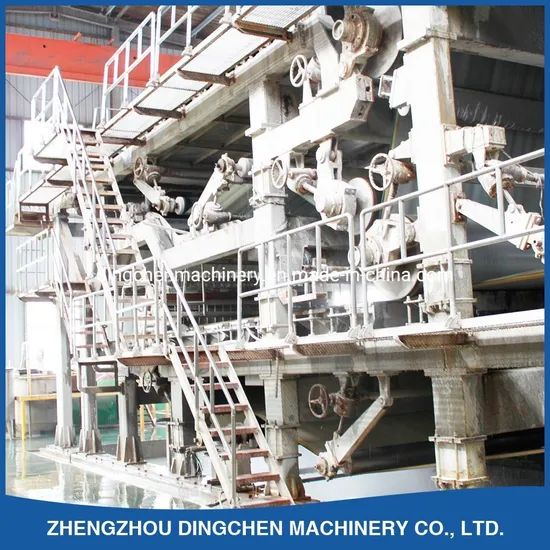

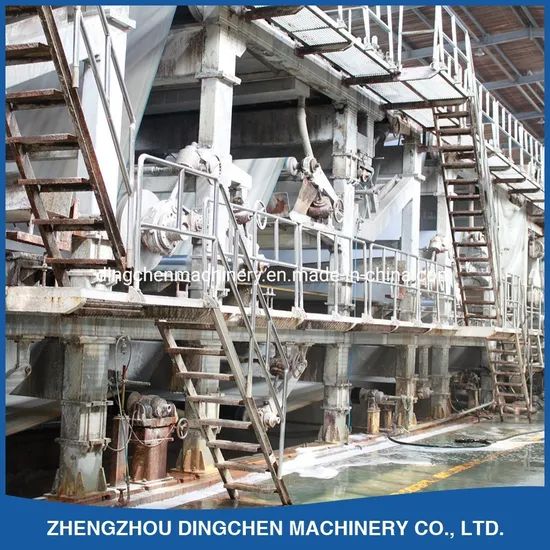

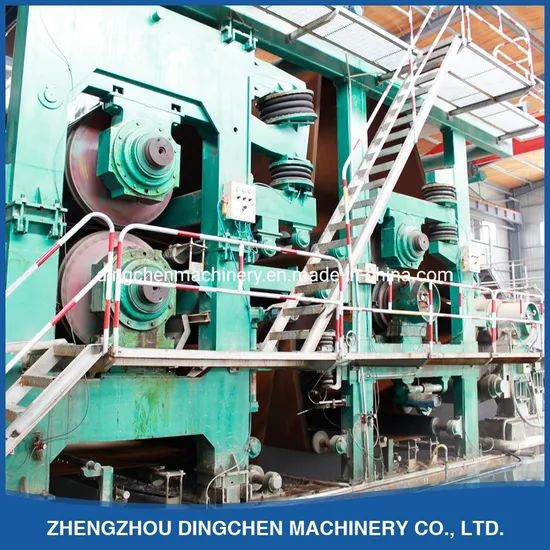

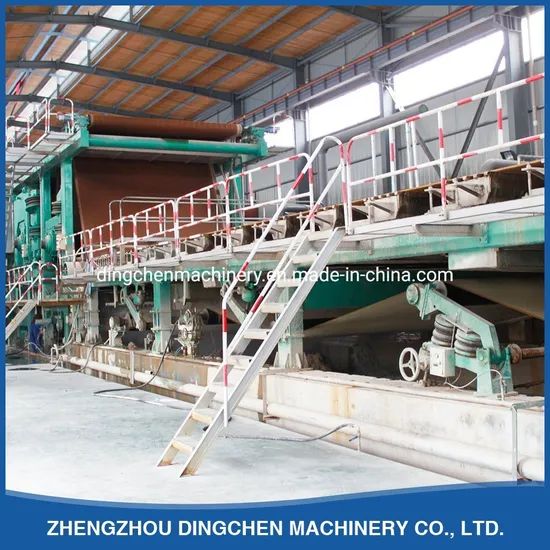

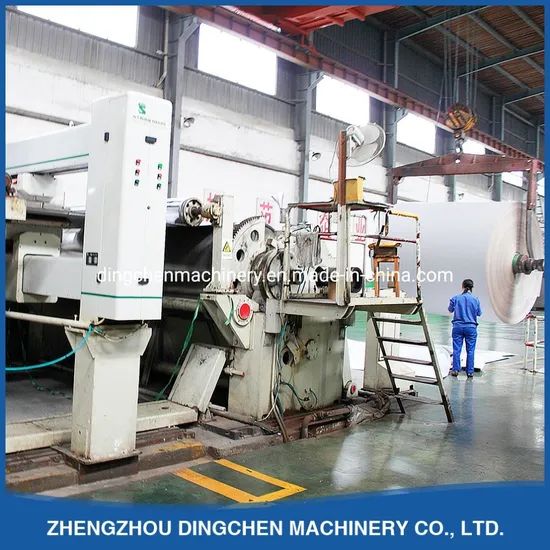

Details of Paper Making Machine
Description: Kraft and Corrugated Paper Making Machine is a production line that use waste books paper, wood pulp board, waste paper box, old corrugated carton, wheat straw pulp, wood etc. to produce Kraft paper,test liner paper, corrugated paper, fluting paper, cardboard paper.
Kraft and corrugated Paper Making Machine Is Mainly Used as The Package Material, High Strength, Brown Color. Full Bleached or The Half Bleached Kraf Paper Pulp Is Light Brown Color , Cream Color, or The White Color. Most Are Jumbo Rolls, Some Are Sheets. The Kraft Paper Is Generally Made Into The Cement Paper Bags, Envolope, and Cables Protective Paper. Good Quality Waste Carton Recycle Corrugated Paper Making Machine.
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.
have won customers' consistent affirmations.
We have a large scale of products regarding paper machinery, including:
A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure
screen, screen basket, pulp pump etc.)
B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper
machine, head box, cylinder mould, dryer cylinder, roller etc.)
C.Paper making finished devices (Paper calender, pope reel,size press,
paper rewinder etc.)
Meet customers' requirements and exceed customers' expects.
We wish to found long-termcooperation with your company
Technical Advantage
1.Experienced producing team
2.Advanced technological strength
Product Advantage
1.Through the international authentication
2.The same material the most preferential price
3.A lot of varieties for the customer to choose
Service Advantage
1.Technical consultation
2.Project evaluation
3.Detailed design of factory
4.Installing and testing the whole production line
5.Training engineers and workers
6.Supplying spare parts for long time
The business process
1.send your requirements:raw material,capacity,paper grammage
2.we make the solution to you
3.come visit and negotiate
4.sign contract
5.first payment
6.production
7.pay spare money
8.delivery
9.installation ,training,test run
10.production consultlation
1.Toilet paper machine
2.Cultural paper machine
3.Kraft paper machine
4.Paper core tube machine
5.Toilet paper converting/rewinding machine
