Waste Recycling Machines Production Line Paper Board Making Machine Corrugated Cardboard Plant
Set
Negotiable
Product information
High-quality Waste Recycling Machines Production Line Paper Board Making Machine Corrugated Cardboard Plant supplied by Qinyang Haiyang Paper Machinery Co., Ltd. Zhengzhou Branch. Bulk wholesale pricing is negotiable. Inquiry for latest prices.

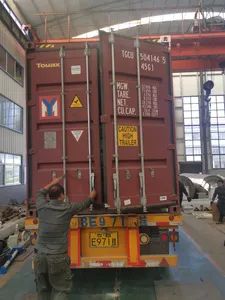

Transport Package:
1. Fixed All The Movable Parts with Plastic Films.
Production Capacity:
10 Sets Per Year
Working Speed:
100 M / Min
Model NO.:
2500mm
Trimmed Width:
2500mm
Capacity:
30t/Day
Rail Gauge:
3500mm
Basis Weight Width:
80-220g / M2
Specifications
Transport Package:
1. Fixed All The Movable Parts with Plastic Films.
Production Capacity:
10 Sets Per Year
Working Speed:
100 M / Min
Model NO.:
2500mm
Trimmed Width:
2500mm
Capacity:
30t/Day
Rail Gauge:
3500mm
Basis Weight Width:
80-220g / M2
HS Code:
8439200000
Drive Way:
A/C Converter Speed Controlling, Section Drive.
Transmission Type:
AC Motor Variable Frequency Speed Regulation Segme
After Warranty Service:
After Warranty Service
Automation:
Automatic
Origin:
China
Main Market:
Egypt, Iran, Turkey, Russia, India, Syria, Pakista
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
HY
Paper Grade:
High-Strength Corrugated Paper, Liner Paper
Certification:
ISO 9001:2000
Payment Term:
LC, T/T
Paper Thickness:
Normal Specification Paper
Applicable Industry:
Paper Mill
Port Of Loading:
Qingdao Port
Suitable For:
Recycled Material
Raw Material:
Waste Paper, Carton Paper
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-10-15
Annual Revenue Amount:
Not specified
Numbers Of Employees:
76
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
CE, ISO9001:2015
Product descriptions from the supplier
Fluting Duplex Corrugated Kraft Test Liner Packing Paper Roll Making Machine recycling machine
Technical requirement
| Paper grade | Kraft paper |
| Basis weight width | 80 ~ 220g/m2 |
| Production capacity | 30T/day |
| Trimmed width | 2500mm |
| Working speed | 100m/min |
| Transmission speed | 120m/min |
| Rail gauge | 3500mm |

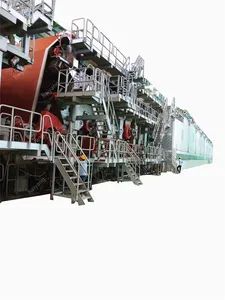

1. Brief introduction:
Net paper width is 3600mm, is mainly used for making high strength corrugated paper. The paper machine is mainly divided into the following parts: Headbox, Fourdrinier Wire Section, Press Section, Front Dryer Section, Sizing Machine, Back Dryer Section, Calender, Reeling Section.
2. Headbox:
Air-cushion headbox, by controlling the gas pressure inside the headbox to control and stabilize the pulping pressure head.
3. Wire Section:
Fourdrinier wire, the main components: breast roll, forming plate, dehydration board, vacuum box, vacuum couch roll, wire-driving rollers, wire-guiding roll and frame, etc, and equipped with a piece of forming wire.
4. Press Section:
It is divided into 1st press, 2nd press. 1st press is the press with large diameter roll with a vacuum suction roller, equipped with two coating metal rollers, and with upper felt and lower felt; 2nd press is large diameter roll, equipped with two coating metal rollers, and with upper felt and lower felt. 1st press, 2nd press are equipped with leading felt roller and felt suction box. 1st press, 2nd press pressurized way is oil hydraulic cylinder pressure.
5. Front Dryer Section:
Φ1800 dryer cylinder, group drive, each group with dryer wire, wire-guiding roll. Equipped with semi-enclosed gas hood.
6. Sizing Machine:
Equipped with a surface chrome-plated metal roller, a coating metal roller. The surface sizing press machine pressurized way is corrugated tire pressure.
7. Back Dryer Section:
Φ1800 dryer cylinder, group drive, each group with dryer wire, carrier roll. Equipped with semi-enclosed hood.
8. Reeling Section:
Pneumatic horizontal reeling machine.
Raw material
UseWheat Straw pulp, Rice Straw, Waste Books Paper, Wood Chips, Waste Paper, Bagasse, Wood pulp board, waste paper to produce Kraft paper, test liner paper, corrugated paper, fluting paper, cardboard paper.
Why choose us?
(1) professional engineer team with 30 years experience;
(2) we can supply turn-key solution without any trouble;
(3) we have strict quality control system and ensure there is no unqualified product;
(4) professional installation technician and clear technical training for your workers;
(5) strict recalling system: if any problem of machine, we will recall it and change a new one for free;
Main Equipment
Pulp Making Equipments
High contentration hydrapulper, Vibrating screen, Pressure Screen,Double disc pulp refiner, Pulp pump, Low concertration cleaner,Impeller, High concentration cleaner, High speed washer, Decker thickener, Fiber separator, Rejector separator
Paper Making Equipments
Headbox, Cylinder mold, Cylinder vat, Touch roll, Press roll, Leading roll, Dryer, Sizing machine, Calender machine, Winding machine, Rewinder, Foundation frame
Details of product
(1) professional engineer team with 30 years experience;
(2) we can supply turn-key solution without any trouble;
(3) we have strict quality control system and ensure there is no unqualified product;
(4) professional installation technician and clear technical training for your workers;
(5) strict recalling system: if any problem of machine, we will recall it and change a new one for free;
Main Equipment
Pulp Making Equipments
High contentration hydrapulper, Vibrating screen, Pressure Screen,Double disc pulp refiner, Pulp pump, Low concertration cleaner,Impeller, High concentration cleaner, High speed washer, Decker thickener, Fiber separator, Rejector separator
Paper Making Equipments
Headbox, Cylinder mold, Cylinder vat, Touch roll, Press roll, Leading roll, Dryer, Sizing machine, Calender machine, Winding machine, Rewinder, Foundation frame
Description: Kraft and Corrugated Paper Making Machine is a production line that use waste books paper, wood pulp board, waste paper box, old corrugated carton, wheat straw pulp, wood etc. to produce Kraft paper,test liner paper, corrugated paper, fluting paper, cardboard paper.
Kraft and corrugated Paper Making Machine Is Mainly Used as The Package Material, High Strength, Brown Color. Full Bleached or The Half Bleached Kraf Paper Pulp Is Light Brown Color , Cream Color, or The White Color. Most Are Jumbo Rolls, Some Are Sheets. The Kraft Paper Is Generally Made Into The Cement Paper Bags, Envolope, and Cables Protective Paper. Good Quality Waste Carton Recycle Corrugated Paper Making Machine.

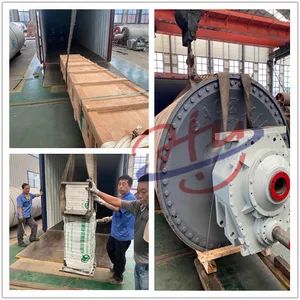

Parts Picture
Company Profile
Since 1989 Qinyang City Haiyang Papermaking Machinery Co., Ltd has been established who is specialist in manufacturing a wide range of Paper Machines for Kraft, Test liner, Fluting paper, Corrugate, Writing & Printing, Newspaper, Duplex Board. We have more than 30 years expertise lies in applying state of the art technology to provide cost effective custom designed solutions to suit their varied requirements. The main series of the products are tissue paper machine; kraft paper/testliner /fluting paper machine;writing paper machine and special paper machine,etc. This company provides customers high efficiency and practical paper making production line with low carbon environmental protection thought. At present, our products have been sold to more than twenty provinces, cities and autonomous regions in domestic region and exported to Vietnam,Egypt, Bangladesh,Malaysia,Pakistan,Iran and other countries.
Certificate
Our service
Pre-sale Service
--24 hours phone, email, trade manager online services;
--We will supply the detailed project report, detailed general drawing, detailed flow process design, detailed layout factory drawing for you until meet your requirement;
--we welcome you to come to our paper making machine factory and paper mill factory to have a look and check;
--We will tell you all the necessary cost when set up a paper mill factory;
--We will answer you all the questions within 24 hours;
--We will send you various quality paper samples made by our paper machine for free;
--We can supply turn key-project service.
On-purchase Service
--We will accompany you to check all the equipment made by us, and help you to make the plan of installation;
--We will supply paper machine assembly drawing, the foundation and foundation load diagram, transmission diagram, formal installation drawing, use and installation instructions and a full set of technical data after signing the contract.
After-sales Service
--We will delivery the machine as soon as possible according to your requirement, within 50 days;
--We will send rich practiced experience engineers to you to install and test the machine and train your worker for free;
--We will give you one year guarantee time after the machine can run well;
--After one year, we can guide and help you to maintain the machines;
--Every 2 years, we can help to overhaul the complete machines for free;
--We will send you spare part in lower price.
This is Summer, manufacturer of paper machine with turn key service.We mainly produce all kinds of paper making machine. Please send inquiry to get more details.
