Waste Rubber Recycling Machine Voltage 380V Origin China Model NO. XKP-560 Structure Vertical Trademark guangyue HS Code 8477800000

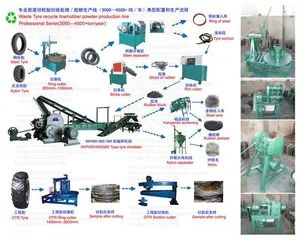

Tire ring cutter, tyre bread ring cutter machine, tyre sidewall cutting machine




1. Ring cutter

This machine mainly used to cut the sidewall of steel wire tire, and then to the next step of segmentation. First, put the tire on the platform, then rotate the hand wheel, the three claws will stick the inner tire firmly, Second, Starting power, work platform will rotation, cutting tool according to need to cut tire slowly step by step. Until the tire side cut off.

2. Strips cutter

Strips cutting machine can cut cycle machine to remove the wire tire sidewall cut into strips, and the width of the adjustable section. Two circular knives for special materials, hard and durable, can be used repeatedly grinding for no more than 1200 steel tires.

3. Block cutter

Block cutter is designed to cut car, truck and rear tractor tire. Range is up to 120cm truck tires. The tire cutter adds flexibility to your total tire cutting system by providing you the opportunities of accepting tires up to 120cm into your system, The unit also allows your system to cut 60-70 truck tires per hour or 120-150 car tires per hour.

4. Bead wire separation

Be utilized to separate rubber and steel wire of bead in order to get whole steel wire.

Feature: It is easy operation, easy to be installed and maintained high efficiency and clean etc.


5. Tyre crusher
This machine is mainly used to crush waste tire and rubber. The structure is gear transmission.

Structure:

This kind of machine consists of seat, Rack, two rollers, motor, cooling system, heating system etc

1. Rollers are made of chilled cast iron, which are abrasion resistant with long service life.

2. Rear roller is equipped with distance adjustment device, easy operation and convenience, turn the turbine to adjust the distance

3. Perfect emergency stop device can ensure the safety of personnel and equipment.

4. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.

5. Human nature designed operating system reduces labor intensity

A load test running will be made to the assembled equipment in our company to save debugging time for customers.

1)Gap adjustment mode:

Manual or auto; Grease or thin oil

2)Lubricating method:

Manual or auto; Grease or thin oil

3)Emergency stop device

Pull rod and emergency button

4)Roller bearings:

Nylon Bushing or Copper Sleeve or Spherical Roller Bearing


If you are interested the products, please contact me, I will try my best to tell you the details. Looking forward to your reply.





WHY CHOOSE US?
-Qingdao Chaoguangyue Industry Co.,Ltd established in 1971,we are specializing in producing rubber machines,and we had a great feedback from our customers.
-Superior quality:we have obtained ISO9001,CE,SGS certification,we can guarantee the quality of the machines.
-All adopt 35CrMo material hardened surface reducer,it has the advantage of low noise,large transmission power,wear,impact resistance,adopt quenching gear for transmission to improve machine's life.
-Fast delivery time:within 20 working days.
-Competitive price compared with others with the same quality.
-Comfortable after-sales service:Quality problems of our machines will be attached high attention,we will response within 24 hours and we will solve the problem ASAP.
-Great supports for marketing.




BUSINESS FAQ
1.Q:Are you a trading company or a factory?
A:We are 100% real manufacturer,we have more than 30000 square meters of factory buildings and workshops for producing machines,welcome to visit our factory.
2.Q:Do you have machine warranty?
A:Yes,we have 2 years warranty,however,the using life of our machines is usually more than 10 years.
3.Q:I have special requirement about machines,such as length,diameter,or others,can you meet it?
A:Yes,we can manufacture various non-standard specifications of machines,if you have special requirement,please contact us.
4.Q:I want to purchase your company's open mixing mill,can you send me a quotation?
A:Sure,please tell me the model of the open mixing mill  that you need,I will provide you a suitable price.If you don't know which model suits you,contact me,I will recommend a suitable machine to you.
5.Q:What's your payment term?
A:30% of total value in advance by TT,a further 70% will be paid before loading.
6.Q:What's your MOQ?
A:The MOQ is 1 set,but if you order more than 1 machine,you will get different discounts according to the quantity.
7.Q:How is the safety of your machine?
A:Our rubber open mixing mill can equip four kinds of safety protecting devices:pole-type safety device,push botton safety device,chest touch safety device and treadle type safety decive.These devices can protect workers' safe.

If you have any questions about our machines,please contact me any time and I'm glad to provide service to you!
