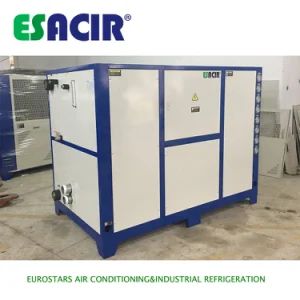

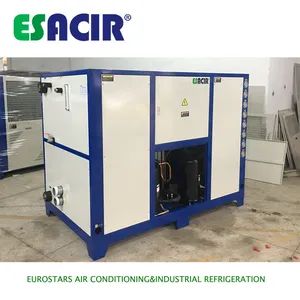

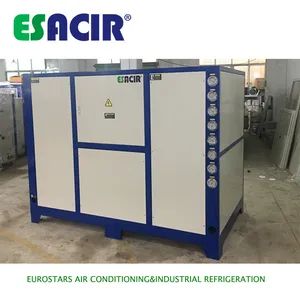

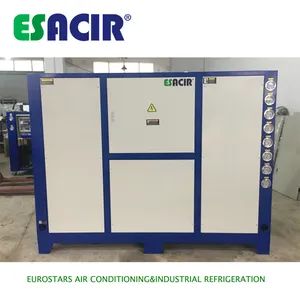

Water Cooled Industrial Water Chiller Incorporate with Cooling Tower
Piece
Negotiable
Product information
High-quality Water Cooled Industrial Water Chiller Incorporate with Cooling Tower supplied by Shenzhen Eurostars Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Compressor Number:
1,2,3,4,5
Selected Voltage:
220~460V-50Hz/60Hz-3pH
Production Capacity:
3000 Units Per Year
HS Code:
8418692090
Casing:
Anti-Corrosion
Casters:
Available for Small Models
Color:
Blue White (Can Be Customized Color)
Certification:
CE
Specifications
Compressor Number:
1,2,3,4,5
Selected Voltage:
220~460V-50Hz/60Hz-3pH
Production Capacity:
3000 Units Per Year
HS Code:
8418692090
Casing:
Anti-Corrosion
Casters:
Available for Small Models
Color:
Blue White (Can Be Customized Color)
Certification:
CE
Structure:
Cabinet or Open Type
Application Machine:
Combination machine
Compressor:
Copeland, Danfoss, SANYO
Expansion Valve:
Danfoss, Emerson
Trademark:
ESACIR
Model NO.:
ESSW Series
Trade Term:
FOB, CIF, CFR
Unit Structure:
Integral
Payment Term:
LC, T/T
Noise Level:
Low
Controller:
Microcomputer Control Punp
Condition:
New
Service:
OEM, ODM
Solenoid Valve:
Optional Castel
Application Fields:
Pharmaceutical
Evaporator:
Plate, Shell Tube, Coil in Tank
Transport Package:
Plywood Case
Refrigerant:
R407c, R22, R134A, R404A
Specification:
Scroll Cooling Only
Condenser:
Shell and Tube
Origin:
Shenzhen
Port Of Loading:
Shenzhen Port
Tank:
Stainless Steel
Water Pump:
Stainless Steel Chilled Pump (Cnp)
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2013-06-03
Annual Revenue Amount:
Not specified
Numbers Of Employees:
45
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR
Port Of Loading:
Shenzhen Port
Certificates:
CE
Product descriptions from the supplier
Water Cooled Industrial Water Chiller Incorporate With Cooling Tower
1. Water cooled industrial chiller applications
Eurostars offers a complete selection of standard and custom water cooled chillers. The water cooling process is typically done with loop chilling from chiller to process and in return offers continuous or intermittent cooling to any fluid-cooled process or sensitive instruments or machines. Water cooled chillers are available in capacities from 2 ton- 56 ton capacities. Eurostars standard and custom chiller units have been used for applications in all industries, notably:
(1)Plastics:
injection moulding, PET, blow moulding, woven sack extrusion, sheet and profile extrusion, thermoforming, presses, etc
(2)Automobile and Mechanical Engineering
machine tool, induction hardening and heating, welding machines, rolling mills, presses, cutting, profiling, polishing, electric discharge machine, hydraulic oil cooling, heat treatment, component washing, component cooling, environmental test chambers, drive cooling, plasma spray, vacuum systems, etc
(3)Food and Beverages:
Microbreweries, confectionary, bakeries, distilleries, wineries, bottling, carbonation, vegetable, meat and fish processing,
(4)Medical
MRI, PET scan, CT scan, linear accelerator, electron microscope, etc
(5)Metal working
Water jet cutting, power press, hydraulic oil cooling, laser cutting, aluminium extrusion, precious metal processing, etc
(6)Lasers
cutting, welding, marking, profiling, optics, medical, engraving, etc
(7)Paper and related
printing machine, labeling machine, cardboard making, plastic film machine, etc
(8)Others
textile, semiconductor, air compressor, concrete batching, dynamometer, furnace, etc
2. Eurostars water cooled water chiller main components
(1)Intelligent digital controller(PLC controller optional)
(2)Copeland scroll
(3)Stainless steel/copper braze plate heat exchanger (shell tube optional)
(4)Shell and tube water cooled condenser (nickel copper or titanium is optional)
(5)Powder Coated, Heavy Gauge, Steel Cabinet (Stainless steel cabinet is optional)
(6)Rugged Stainless Steel Centrifugal Pumps
(7)Thermal expansion valve (electrical expansion valve is optional)
(8)Solenoid valve is optional;
(9)Standard insulated stainless steel unpressurized tank (pressurized tank is optional)
3. Water cooled industrial chillers characteristics
(1)Indoor installations
(2)Incorporate the use of cooling towers
(3)Standard model 2~56 tons
(4)Pre-insulated pump, piping and tank
(5)Condensing pressure switch available to control the fan
(6)Factory run-tested for easy and sure start up
(7)High efficient shell and tube evaporator( Plate type is optional)
(8)Remote communications (optional for controller display separate from chiller)
Please ask salesman for detailed complete data or visit our website:
eurostarschiller.en.made-in-china.com
eurostarschiller.en.made-in-china.com
Remarks:
(1) Rated Cooling Capacity Based on:Evaporating temperature 7ºC;Condensing temperature 40ºC.
(2)Chilled Water Range: 5~25ºC;
(3)Cooling Water Range: 20~40ºC.
1. Water cooled industrial chiller applications
Eurostars offers a complete selection of standard and custom water cooled chillers. The water cooling process is typically done with loop chilling from chiller to process and in return offers continuous or intermittent cooling to any fluid-cooled process or sensitive instruments or machines. Water cooled chillers are available in capacities from 2 ton- 56 ton capacities. Eurostars standard and custom chiller units have been used for applications in all industries, notably:
(1)Plastics:
injection moulding, PET, blow moulding, woven sack extrusion, sheet and profile extrusion, thermoforming, presses, etc
(2)Automobile and Mechanical Engineering
machine tool, induction hardening and heating, welding machines, rolling mills, presses, cutting, profiling, polishing, electric discharge machine, hydraulic oil cooling, heat treatment, component washing, component cooling, environmental test chambers, drive cooling, plasma spray, vacuum systems, etc
(3)Food and Beverages:
Microbreweries, confectionary, bakeries, distilleries, wineries, bottling, carbonation, vegetable, meat and fish processing,
(4)Medical
MRI, PET scan, CT scan, linear accelerator, electron microscope, etc
(5)Metal working
Water jet cutting, power press, hydraulic oil cooling, laser cutting, aluminium extrusion, precious metal processing, etc
(6)Lasers
cutting, welding, marking, profiling, optics, medical, engraving, etc
(7)Paper and related
printing machine, labeling machine, cardboard making, plastic film machine, etc
(8)Others
textile, semiconductor, air compressor, concrete batching, dynamometer, furnace, etc
2. Eurostars water cooled water chiller main components
(1)Intelligent digital controller(PLC controller optional)
(2)Copeland scroll
(3)Stainless steel/copper braze plate heat exchanger (shell tube optional)
(4)Shell and tube water cooled condenser (nickel copper or titanium is optional)
(5)Powder Coated, Heavy Gauge, Steel Cabinet (Stainless steel cabinet is optional)
(6)Rugged Stainless Steel Centrifugal Pumps
(7)Thermal expansion valve (electrical expansion valve is optional)
(8)Solenoid valve is optional;
(9)Standard insulated stainless steel unpressurized tank (pressurized tank is optional)
3. Water cooled industrial chillers characteristics
(1)Indoor installations
(2)Incorporate the use of cooling towers
(3)Standard model 2~56 tons
(4)Pre-insulated pump, piping and tank
(5)Condensing pressure switch available to control the fan
(6)Factory run-tested for easy and sure start up
(7)High efficient shell and tube evaporator( Plate type is optional)
(8)Remote communications (optional for controller display separate from chiller)
4.Factory testing of Eurostars every chiller unit
(1)Pressurization and helium leak detection of refrigeration circuit
(2)Pressurization and leak testing of fluid circuit
(3)Chiller performance and power consumption at full load
(4)Proper operation of all controls, safety devices, and alarms
(5)Electrical tests according to standards
5. Eurostars water cooled industrial chiller brief technical data (1)Pressurization and helium leak detection of refrigeration circuit
(2)Pressurization and leak testing of fluid circuit
(3)Chiller performance and power consumption at full load
(4)Proper operation of all controls, safety devices, and alarms
(5)Electrical tests according to standards
Please ask salesman for detailed complete data or visit our website:
eurostarschiller.en.made-in-china.com
eurostarschiller.en.made-in-china.com
| Water Cooled Chiller Unit | |||||||||
| Model ESSW- | 03ISCN | 04ISCN | 05ISCN | 06ISCN | 08IDCN | 10IDCN | 12IDCN | ||
| Item NO. | 3 | 4 | 5 | 6 | 8 | 10 | 12 | ||
| Rated Cooling Capacity | KW | 10.15 | 12.93 | 16.13 | 20.40 | 25.00 | 32.26 | 40.80 | |
| USRT | 2.89 | 3.68 | 4.59 | 5.80 | 7.11 | 9.17 | 11.60 | ||
| ×1000 kcal/h | 8.73 | 11.12 | 13.87 | 17.54 | 21.50 | 27.74 | 35.09 | ||
| Water Cooled Chiller Unit | |||||||||
| Model ESSW- | 15IDCN | 20IDCN | 25IDCN | 30IDCN | 40IQCN | 50IQCN | 60IQCN | ||
| Item NO. | 15 | 20 | 25 | 30 | 40 | 50 | 60 | ||
| Rated Cooling Capacity | KW | 49.23 | 66.21 | 80.44 | 99.56 | 132.42 | 160.89 | 199.12 | |
| USRT | 14.00 | 18.83 | 22.87 | 28.31 | 37.65 | 45.75 | 56.62 | ||
| ×1000 kcal/h | 42.34 | 56.94 | 69.18 | 85.62 | 113.88 | 138.37 | 171.24 | ||
(1) Rated Cooling Capacity Based on:Evaporating temperature 7ºC;Condensing temperature 40ºC.
(2)Chilled Water Range: 5~25ºC;
(3)Cooling Water Range: 20~40ºC.
6. Our OEM ODM Service
EUROSTARS was established in 2006, has a professional technical team to research and develope HVAC products. We offer OEM/ODM service to our clients.
Now EUROSTARS collaborate with our clients in the following ways:
(1)Produce EUROSTARS standard products under clients' brand.
(2)Modify the products to satisfy clients' personalized requirements.
(3)If clients have their own idea and design of the products, EUROSTARS can actualize it and modify it make it easy for mass production.
(4)Based on strong capability of research and development, EUROSTARS can work together with clients to design and produce a totally new products.
7. Industrial Process Chiller Refrigeration Basic Cycle
As the heated process fluid passes over the evaporator some of the heat contained in the fluid (process chillers use water for the medium instead of air) is absorbed into it.
The refrigerant inside the evaporator coil, originating from the condenser, has been metered causing a pressure drop of the refrigerant.
The process of the metering of the refrigerant and resulting pressure drop causes the temperature of the refrigerant to drop.
This causes the evaporator to be cooler than the air. As more warmer air passes over the evaporator coil the heat from the process fluid is absorbed into the coil and refrigerant, which is partially a liquid.
This heat transfer, from the process fluid, to the coils, to the refrigerant, causes the refrigerant to boil and turn into a vapor. The vapor leaves the evaporator coil and is pulled towards the compressor.
The vapor enters the compressor where it is compressed. This compression process raises the temperature and pressure of the refrigerant where it is discharged into the condenser coils.
Again using water being pulled through the coils, another heat exchange process occurs. This time the heat picked up from the evaporator coils is rejected to the water.
As the temperature of the refrigerant drops it once again becomes a liquid and is pumped back towards the metering device usually located near the evaporator coils where it will begin the process of absorbing heat from the evaporator all over again.
8. Eurostars Company Ceritifcate & Customer Visiting
We, EUROSTARS, which established in year 2006, is a modern hi-tech enterprise, specializing in Heating Ventilation Air Conditioning and Industrial Refrigeration research, development, production, sales and engineering services.
(1)With more certificate
(2) Professional team with over more than 10 years industry knowledge
(3) Oversea installation.
(4) Customer-made accepted.
(5) Diamond member of Made-In-China
(6) Audited supplier by SGS
9. Our factory view
Modern new process and assemble line, including copper tube straighten machine, aluminum fin punching machine, three dimensional copper tube bending machine, tube expander machine, sheet metal laser cutting machine, numerical control punching machine, CNC bending machine, chiller, fan coil unit and AHU assemble line,. etc..
Chiller production at our previous location as below
10. Eurostars industrial chiller package and delivery
Our standard package is plastic film with plywood case for safe delivery and easy to load/unload.

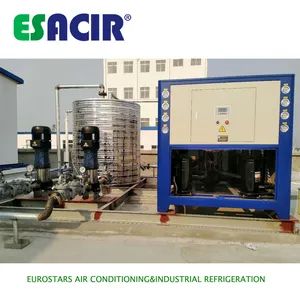

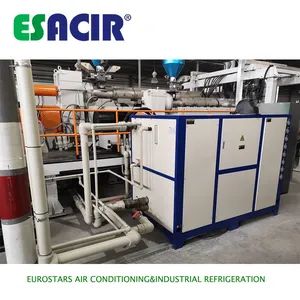

11. Eurostars industrial chiller projects
We exported chillers to Ukraine, New Zealand, Guatelmala, Peru, Chile, Norway, Serbia, Romania, Greece, France, South Africa, Australia, Uzbekistan, Sri Lanka, India, Saudi Arabia, Iran, Mexico, Argentina, etc..
EUROSTARS was established in 2006, has a professional technical team to research and develope HVAC products. We offer OEM/ODM service to our clients.
Now EUROSTARS collaborate with our clients in the following ways:
(1)Produce EUROSTARS standard products under clients' brand.
(2)Modify the products to satisfy clients' personalized requirements.
(3)If clients have their own idea and design of the products, EUROSTARS can actualize it and modify it make it easy for mass production.
(4)Based on strong capability of research and development, EUROSTARS can work together with clients to design and produce a totally new products.
7. Industrial Process Chiller Refrigeration Basic Cycle
As the heated process fluid passes over the evaporator some of the heat contained in the fluid (process chillers use water for the medium instead of air) is absorbed into it.
The refrigerant inside the evaporator coil, originating from the condenser, has been metered causing a pressure drop of the refrigerant.
The process of the metering of the refrigerant and resulting pressure drop causes the temperature of the refrigerant to drop.
This causes the evaporator to be cooler than the air. As more warmer air passes over the evaporator coil the heat from the process fluid is absorbed into the coil and refrigerant, which is partially a liquid.
This heat transfer, from the process fluid, to the coils, to the refrigerant, causes the refrigerant to boil and turn into a vapor. The vapor leaves the evaporator coil and is pulled towards the compressor.
The vapor enters the compressor where it is compressed. This compression process raises the temperature and pressure of the refrigerant where it is discharged into the condenser coils.
Again using water being pulled through the coils, another heat exchange process occurs. This time the heat picked up from the evaporator coils is rejected to the water.
As the temperature of the refrigerant drops it once again becomes a liquid and is pumped back towards the metering device usually located near the evaporator coils where it will begin the process of absorbing heat from the evaporator all over again.
8. Eurostars Company Ceritifcate & Customer Visiting
We, EUROSTARS, which established in year 2006, is a modern hi-tech enterprise, specializing in Heating Ventilation Air Conditioning and Industrial Refrigeration research, development, production, sales and engineering services.
(1)With more certificate
(2) Professional team with over more than 10 years industry knowledge
(3) Oversea installation.
(4) Customer-made accepted.
(5) Diamond member of Made-In-China
(6) Audited supplier by SGS
9. Our factory view
Modern new process and assemble line, including copper tube straighten machine, aluminum fin punching machine, three dimensional copper tube bending machine, tube expander machine, sheet metal laser cutting machine, numerical control punching machine, CNC bending machine, chiller, fan coil unit and AHU assemble line,. etc..
Chiller production at our previous location as below
10. Eurostars industrial chiller package and delivery
Our standard package is plastic film with plywood case for safe delivery and easy to load/unload.
11. Eurostars industrial chiller projects
We exported chillers to Ukraine, New Zealand, Guatelmala, Peru, Chile, Norway, Serbia, Romania, Greece, France, South Africa, Australia, Uzbekistan, Sri Lanka, India, Saudi Arabia, Iran, Mexico, Argentina, etc..
User Reviews
Write a review
File a complaint
Supplier Review
Summary by Vivian
TRUST STARS
3.0/5
0 Reviews
Company Verification
0/4
Profile Completeness
67%
Avg. Product Score
0/5
Responsiveness
0%
Certification
CE
Related searches
Frequently Asked Questions (FAQs)
How can I buy & import Industrial Pumps from China?
You can contact verified China supplier Shenzhen Eurostars Technology Co., Ltd. through platforms like Freshdi.com to purchase Water Cooled Industrial Water Chiller Incorporate with Cooling Tower. For direct inquiries, please contact Mr. Alex, the company’s representative. The supplier has a 3.0-star rating on Freshdi and has verified. You’ll receive product details, pricing, and shipping terms directly from supplier.
What are the payments and trade terms for Water Cooled Industrial Water Chiller Incorporate with Cooling Tower?
For Water Cooled Industrial Water Chiller Incorporate with Cooling Tower, Shenzhen Eurostars Technology Co., Ltd. accepts LC, T/T as the preferred payment method, the trade term is FOB, CIF, CFR, and shipments are typically arranged from port Shenzhen Port, ensuring secure and timely international delivery.
What is the current price of Water Cooled Industrial Water Chiller Incorporate with Cooling Tower?
The supplier Shenzhen Eurostars Technology Co., Ltd. offers Water Cooled Industrial Water Chiller Incorporate with Cooling Tower at negotiation.
What are the specifications of Water Cooled Industrial Water Chiller Incorporate with Cooling Tower from China?
Water Cooled Industrial Water Chiller Incorporate with Cooling Tower is sourced from China and meets international export standards. Key specifications include: Origin: Shenzhen, Refrigerant: R407c, R22, R134A, R404A, Casing: Anti-Corrosion, Compressor Number: 1,2,3,4,5, Expansion Valve: Danfoss, Emerson, Water Pump: Stainless Steel Chilled Pump (Cnp), Trade Term: FOB, CIF, CFR, Payment Term: LC, T/T
You are viewing details for Water Cooled Industrial Water Chiller Incorporate with Cooling Tower. The information provided here is either posted directly by the supplier, who is responsible for its accuracy, or collected by Freshdi AI from publicly available sources. Freshdi strives to make product information as useful and reliable as possible, but we do not guarantee complete accuracy. If you notice any incorrect or misleading details, please use the Report Product option so our team can review and address it quickly.
Negotiable
Min. order: Negotiable
Mr. Alex
Year Established: 2013-06-03
Visit Store
