Water Meters Available Sizes 40 Mm To 600 Mm Bulk Meter Range 50 Mm To 500 Mm Material High Grade Raw Material Certifications Isi, Eec, Iso

We are one of the leading Suppliers of high quality Water Meters in the market. Our range of Water Meters includes 40 – 600 mm Water meters, most of which have ISI approvals. We provide the best quality Water Meters to the customers which are fabricated out of high grade raw material. These Water Meters are available at highly economical prices. Our Water Meters are completely efficient and provide optimum efficiency.

Types

• Domestic Multijet Type : (40mm and 50mm)
• Bulk Type Meters : (50-500 mm)

Features

• Available in several sizes
• Wide range of optional accessories is available
• High grade raw material used
• Greater working life

Technical Data

Normal Water Meters
We can now offer water meters of sizes 15mm – 500 mm with EEC approved.

Domestic line of water meters of sizes 15 -50 mm are dry dial type Class “B” meters and are having EEC Approval meeting ISO 4064 specifications. Besides EEC approvals these “MINOL” branded meters are having approval in more than 16 leading countries including USA, Russia, china etc.

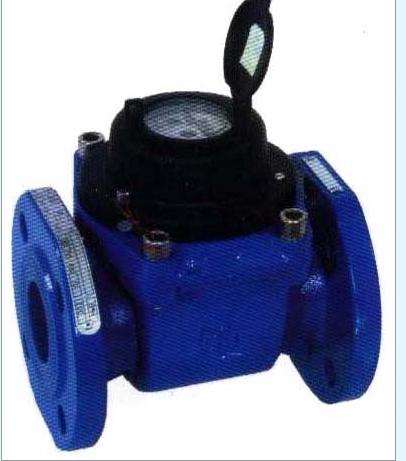

Bulk range of Woltmann type water meters from MINOL is latest addition after they had taken over M/s ZENNER another leading global Brand. These meters are available from 50 mm – 500 mm with EEC & other approvals.

These both domestic & Woltmann type are available with retrofitable option for remote monitoring the meter reading.

Extended Display of Meter Reading
Lot of our customer’s are preferring to have digital display of water meter reading. Hence we have devised a wired solution for displaying these reading in digital format. We have this solution available for all water meters.

Remote Monitoring of Water Meters
KAYCEE with R&D wing of CMS has developed locally complete range of wireless water meter solution. In this concept a small adaptor is fitted on top of the meter which senses the pulses coming from meter & internal microcontroller logs the count. Whole electronics works on battery which is long lasting. This meter transmits the data as & when required to data collector which is a Handheld Terminal which user has to carry.

As regards remote communication between Meter & Handheld Terminal we have mainly two options.

• RADIO Based communication @ 433 MHz
• Infra Red Based Communication

As regards fetching the data remotely; we have both solutions. Either user can directly connect a PC or laptop & fetch the data into our exclusively developed software from which user can transfer the data into EXCEL with real time stamping & meter number. Alternatively user can have a handheld terminal which will be provided by us which will collect the data of meter by sending the message to specific meter.
