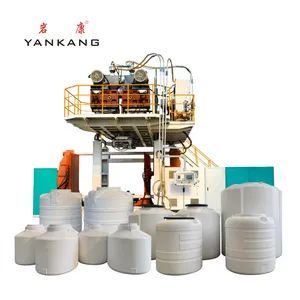

Water Tank Plastic Containers Production Extrusion Blow Molding Machine
set
Negotiable
Product information
High-quality Water Tank Plastic Containers Production Extrusion Blow Molding Machine supplied by Qingdao Yankang Plastic Machinery Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Production Capacity:
100 Sets/Year
Capacity:
300L -1000litres
HS Code:
8477301000
Automation:
Automatic
Specification:
CE
Certification:
CE, ISO9001:2008, QS
Computerized:
Computerized
Key Selling Points:
Energy Saving
Specifications
Production Capacity:
100 Sets/Year
Capacity:
300L -1000litres
HS Code:
8477301000
Automation:
Automatic
Specification:
CE
Certification:
CE, ISO9001:2008, QS
Computerized:
Computerized
Key Selling Points:
Energy Saving
Making Method Of Parison:
Extrusion-Blow Molding
Trade Term:
FOB, CIF, CFR, EXW
Raw Material:
HDPE
Advantages:
High Speed Saving Energy Low Cost
Marketing Type:
Hot Product
Payment Term:
LC, T/T, D/P, PayPal, Western Union
Parison Control:
Moog
After Sales Service:
Oversea Engineer Service
Machine Test Report:
Provided
Video Outgoing Inspection:
Provided
Origin:
Qingdao
Port Of Loading:
Qingdao Port
High Configuration:
Siemens Germany
After Sales Service Provided 2:
Training or Video Technical Support
Transport Package:
Wooden Packing or Nude
Trademark:
YANKANG
Model NO.:
YK-1000L
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2009-04-23
Annual Revenue Amount:
Not specified
Numbers Of Employees:
111
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Qingdao Port
Certificates:
CE
Product descriptions from the supplier
Technical Parameter of 1000L Machine

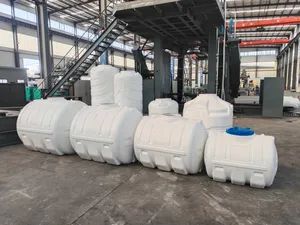

1000L water tank blow molding machine can use 300L, 500L,700L and 1000L blow molds.
| Capacity | Product | Unit | Weight | Thickness |
| 300L Tank | 18-20 | PC/H | 4-5KG | 2-2.5mm |
| 500L Tank | 16-18 | PC/H | 6-10KG | 2.5m |
| 750L Tank | 14-16 | PC/H | 10-15KG | 2.5-3m |
| 1000L Tank | 10-12 | PC/H | 16-20KG | 3-3.5mm |
Technical data for YK 1000L series
| 1000L blow molding machine | ||||||
| Model No. | YK 1000L-2 | YK 1000L-3 | YK 1000L-4 | YK 1000L-5 | YK 1000L-6 | |
| Specifications | 2 layers | 3 layers | 4 layers | 5 layers | 6 layers | |
| Extruders | Screw Diameter | ∮100/100 | ∮90*3 | ∮80*4 | ∮80*5 | ∮80*6 |
| Motor | 55/55kw | 45*3kw | 37*4kw | 37*5kw | 37*6kw | |
| Plasticizing Capacity | 350 kg/h | 350kg/h | 350kg/h | 350kg/h | 350kg/h | |
| L/D | 30/1 | 30/1 | 30/1 | 30/1 | 30/1 | |
| Max Screw Speed | 60 RPM | 60RPM | 60RPM | 60 RPM | 60 RPM | |
| Die Head | Accumulator Capacity | 45L | 45L | 50L | 50L | 50L |
| Heating Load | 72.7kw | 76.7kw | 67.8kw | 67.8kw | 74.8kw | |
| Max. Parison Weight | 33kg | 33kg | 40kg | 40 kg | 40kg | |
| Clamping Unit | Clamping Platen Size | 1600x1500mm | 1600x1500mm | 1600x1500mm | 1600x1500mm | 1600x1500mm |
| Max Mould Size | 1400x1600mm | 1400x1600mm | 1400x1600mm | 1400x1600mm | 1400x1600mm | |
| Clamping Force | 800 KN | 800 KN | 800 KN | 800 KN | 800 KN | |
| Mould Thickness | 950-1350mm | 950-1350mm | 950-1350mm | 950-1350mm | 950-1350mm | |
| Hydraulic System | Hydraulic Drive Motor (Main) | 42kw | 42kw | 42kw | 42kw | 42kw |
| Hydraulic Drive Motor (Parison Control) | 7.5kw | 7.5kw | 7.5kw | 7.5kw | 7.5kw | |
| Oil Tank Capacity | 1000L | 1000L | 1000L | 1000L | 1000L | |
| Machine Weight | 30 Ton | 32 Ton | 36 Ton | 40 Ton | 44 Ton | |
| Dimension | L x W x H | 9m*4.5m*5.2m | 9m*4.5m*5.2m | 9m*12m*5.2m | 9m*12m*5.2m | 9m*12m*5.2m |
| TotalPower | 287kw | 338kw | 348kw | 412 kw | 476kw | |
| Average Power Consumption | 130kw | 160kw | 195kw | 210 kw | 245kw | |
Blow Molding Machine Introduction Details
1. Adopt Siemens PLC,Siemens Touch Screen and MOOG to make the blow molding machine to operate easy,more intelligent .2. Adopt progressive hydraulic system by ourselves,easy to control.
3. Adopt servo motor to control the hydraulic system,saving a lot of energy.
4.The technology of Die Head is same with Germany.

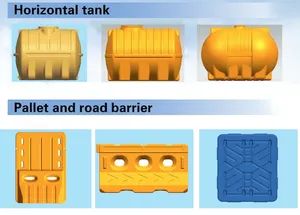

5. Adopt new integrated Multi-layers die head design. from one layer to six layers,support for productions of pallets and road barriers at same time.
Special Design-Customized Service
Qingdao Yankang Plastic Machinery Co., Ltd. is the largest professional blow molding machine integration enterprise in China, including product research and development, production, sales, and after-sales service. It is the pioneer and leader of the large blow molding machine. The company has its own professional research and development base.
The core technology is 100% independent R&d innovation. According to the needs of customers and the situation of the site, we can use the private customized model to create suitable products for customers.
Customized products: various blow molding machines including water tanks, IBC, road barriers, pallets, etc, and blow molds with different capacities.
After-Sales Service
TRAINING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory during the periods of installing & adjusting;
TRAINING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory during the periods of installing & adjusting;
INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines (free of charge) in the Buyer's factory.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in the buyer's factory. And the Buyer should also pay for the air ticket for the engineer.
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines (free of charge) in the Buyer's factory.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in the buyer's factory. And the Buyer should also pay for the air ticket for the engineer.
GUARANTEE
The guarantee time is one year after the machines normally work in the Buyer's factory if only the problem is caused due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you on how to solve the problems.
The guarantee time is one year after the machines normally work in the Buyer's factory if only the problem is caused due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you on how to solve the problems.
Sales Network
Now, Qingdao Yankang Plastic Machinery Co., Ltd. has successfully occupied the world's major markets. With excellent quality assurance and perfect after-sales service, it has won high praise from customers at home and abroad. The company's products have spread to 60 countries and regions. These include Southeast Asia, the Middle East, Europe, the Americas, Australia, Africa, and so on. It has become the well-deserved "leader" in the blow molding machine industry in China.
Now, Qingdao Yankang Plastic Machinery Co., Ltd. has successfully occupied the world's major markets. With excellent quality assurance and perfect after-sales service, it has won high praise from customers at home and abroad. The company's products have spread to 60 countries and regions. These include Southeast Asia, the Middle East, Europe, the Americas, Australia, Africa, and so on. It has become the well-deserved "leader" in the blow molding machine industry in China.
FAQ:
Q1: How Long is the warranty on the machine?
A1: The whole machine's warranty period is 12 months and key parts will be dependent.
Q2: Are you an integrated supplier for extrusion molding machines, mold, and auxiliary machinery?
A2: Yes, we can provide the complete solution line to customers according to the customer's requirements.
Q3: How about quality control in your factory?
A3: Yankang has the SOP (Standard Operation Procedure) and all the production steps must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold, and auxiliary selection but also water, electrical, machine layout in the factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machines and support training to workers as well.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 2-3 months.
A2: Yes, we can provide the complete solution line to customers according to the customer's requirements.
Q3: How about quality control in your factory?
A3: Yankang has the SOP (Standard Operation Procedure) and all the production steps must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold, and auxiliary selection but also water, electrical, machine layout in the factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machines and support training to workers as well.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 2-3 months.
Q7: Mold trial will be available in the Yankang factory?
A7: Yes, the customer can send the mold to the Yankang factory and test it.
Q8: Do you provide any spare parts with the machine?
A8: Yes, Yankang will provide one set of standard spare parts to customers.
