Water Treatment Plant Horizontal Flow Dissolved Air Flotation Solid-Liquid Separation Equipment
Set
Negotiable
Product information
High-quality Water Treatment Plant Horizontal Flow Dissolved Air Flotation Solid-Liquid Separation Equipment supplied by WUXI GONGYUAN ENVIRONMENTAL EQUIPMENT & TECHNOLOGY CO., LTD.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Treatment Capacity:
0.5-200m3/Hour
Production Capacity:
100 Sets/Month
HS Code:
8421219990
Transport Package:
Bulk or Plywood Case Packing
Certificate:
CE, ISO9001
Material:
Carbon Steel/ SS304/SS316L
Origin:
China
Specification:
Customized
Specifications
Treatment Capacity:
0.5-200m3/Hour
Production Capacity:
100 Sets/Month
HS Code:
8421219990
Transport Package:
Bulk or Plywood Case Packing
Certificate:
CE, ISO9001
Material:
Carbon Steel/ SS304/SS316L
Origin:
China
Specification:
Customized
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
Gongyuan
Usage:
Industrial, Hospital
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Port Of Loading:
Shanghai Port
Function:
Solid-Liquid Separation
Application:
Wastewater Treatment
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2010-06-08
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
CE, ISO14001
Product descriptions from the supplier
Product Description
Dissolved Air Flotation ( DAF System) is a water treatment process that clarifies wastewater (or other water, such as river or lake) by removing the susupended solids or oil & grease.It is widely used in the waste water treatment for solid-liquid separation, it can remove the suspended solids, oil & grease and colloidal substance effectively. Meanwhile, the COD, BOD can be reduced. It's the main equipment for the waste water treatment.
Technical Data Sheet
This is just for reference, if any special request, please contact with our sales and technicians, thanks.
Structure Features

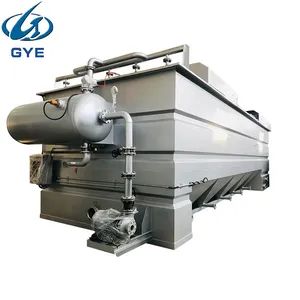

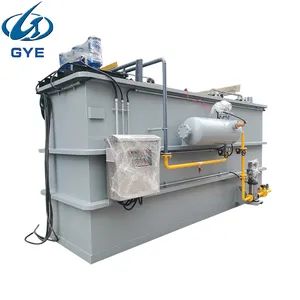

DAF System mainly consists of dissolved air pump, air compressor, dissolved air vessel, rectangle steel tank body, skimmer system.
1. Easy operation and simple management, convenient control the wastewater quantity and quality.
Working Theory
The dissolved air water produced by GFA system is pumped into the air releaser by reducing the pressure. 15-30um micro bubbles from the air releaser would adhere to the suspended solids make them lighter than water, then the solids combined with micro bubbles can float onto the surface to form a scum layer that would be scrapped by the skimmer system into the sludge tank. The lower clean water flows into the clean water tank. At least 30% of the clean water is recycled for GFA system while other is discharged or pumped to next process.
Application

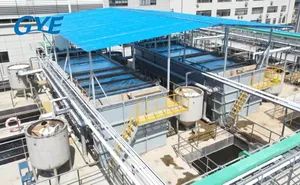

DAF System, as one waste water treatment process, it is widely used in sewage purification engineering. It can be used for these industries:
Workshops and Lab
Packing and Shipment
Dissolved Air Flotation ( DAF System) is a water treatment process that clarifies wastewater (or other water, such as river or lake) by removing the susupended solids or oil & grease.It is widely used in the waste water treatment for solid-liquid separation, it can remove the suspended solids, oil & grease and colloidal substance effectively. Meanwhile, the COD, BOD can be reduced. It's the main equipment for the waste water treatment.
Technical Data Sheet
| Model | Capacity (m3/h) |
Dissolved air volume (m3/h) | Main Motor (kw) | Air Compressor (kw) | Skimmer (kw) |
Agitator (kw)×2 | Total(kw) |
| Without/ with reaction |
|||||||
| GF-1 | 0.5-1 | 0.3-0.5 | 0.55 | 0.55 | 0.18 | 0.37×2 | 1.28 / 2.02 |
| GF-2 | 1-2 | 0.5-0.8 | 0.55 | 0.55 | 0.18 | 0.37×2 | 1.28 / 2.02 |
| GF-3 | 2-3 | 1-1.5 | 1.1 | 0.55 | 0.2 | 0.4×2 | 1.85 / 2.65 |
| GF-5 | 3-5 | 1.5-2 | 1.1 | 0.55 | 0.2 | 0.4×2 | 1.85 / 2.65 |
| GF-10 | 5-10 | 3-4 | 1.5 | 0.75 | 0.2 | 0.4×2 | 2.45 / 3.25 |
| GF-15 | 10-15 | 4-5 | 2.2 | 0.75 | 0.4 | 0.75×2 | 3.35 / 4.85 |
| GF-20 | 15-20 | 5-7 | 2.2 | 0.75 | 0.4 | 0.75×2 | 3.35 / 4.85 |
| GF-30 | 20-30 | 8-12 | 5.5 | 0.75 | 0.4 | 0.75×2 | 6.65 / 8.15 |
| GF-40 | 30-40 | 10-15 | 5.5 | 0.75 | 0.4 | 0.75×2 | 6.65 / 8.15 |
| GF-50 | 40-50 | 15-18 | 7.5 | 1.5 | 0.4 | 0.75×2 | 9.4 / 10.9 |
| GF-60 | 50-60 | 18-20 | 7.5 | 1.5 | 0.4 | 0.75×2 | 9.4 / 10.9 |
| GF-70 | 60-70 | 20-25 | 11 | 2.2 | 0.4 | 0.75×2 | 13.6 / 15.1 |
| GF-80 | 70-80 | 25-30 | 11 | 2.2 | 0.4 | 0.75×2 | 13.6 / 15.1 |
| GF-100 | 80-100 | 35-40 | 15 | 2.2 | 0.4 | 0.75×2 | 17.6 / 19.1 |
| GF-150 | 120-150 | 40-50 | 15 | 2.2 | 0.4 | 1.1×2 | 17.6 / 19.8 |
| GF-200 | 180-200 | 70-80 | 22 | 4 | 0.4 | 1.1×2 | 26.4 / 28.6 |

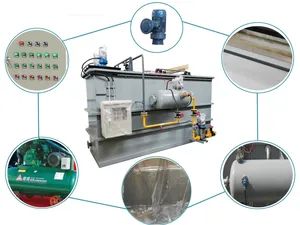

Structure Features
DAF System mainly consists of dissolved air pump, air compressor, dissolved air vessel, rectangle steel tank body, skimmer system.
1. Easy operation and simple management, convenient control the wastewater quantity and quality.
2.The micro bubbles produced by the dissolved air vessel are just 15-30um, it's adhesive with flocculant strongly to achieve better flotation effect.
3.Unique GFA dissolved air system,high efficiency of air dissolving can reach 90%+, strong ability for clogging
3.Unique GFA dissolved air system,high efficiency of air dissolving can reach 90%+, strong ability for clogging
4. Chain-plate type skimmer, stable operation and high efficiency to scrap.
Working Theory
The dissolved air water produced by GFA system is pumped into the air releaser by reducing the pressure. 15-30um micro bubbles from the air releaser would adhere to the suspended solids make them lighter than water, then the solids combined with micro bubbles can float onto the surface to form a scum layer that would be scrapped by the skimmer system into the sludge tank. The lower clean water flows into the clean water tank. At least 30% of the clean water is recycled for GFA system while other is discharged or pumped to next process.
Application
DAF System, as one waste water treatment process, it is widely used in sewage purification engineering. It can be used for these industries:
1. Paper industry -- pulp recycle in white water and clean water recycled for use.
2. Textile, printing and dyeing industry -- color chromaticity reduction and SS removal
3. Slaughterhouse and food industry
4. Petro-chemical industry -- oil-water separation
Workshops and Lab
Packing and Shipment
