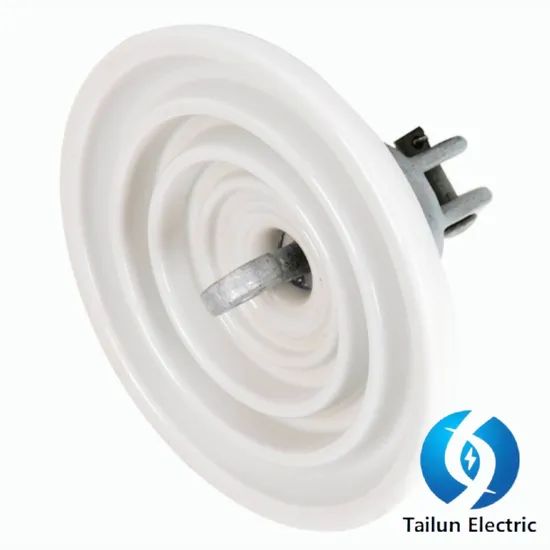

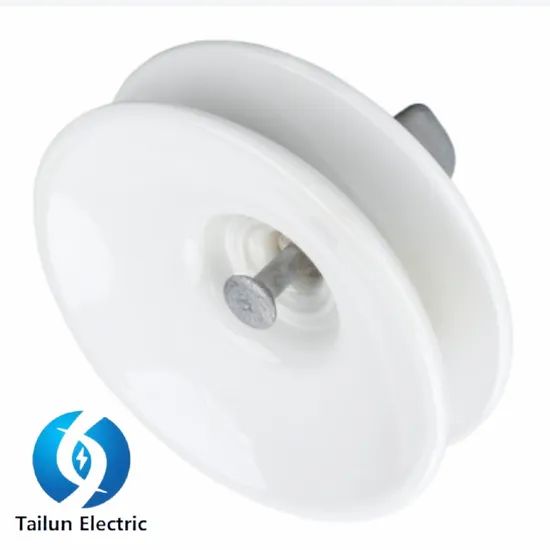

Weather-Resistant Ceramic Insulator XP-100 - Reliable for Overhead Power Lines
500-1999 Piece
$2.72000 Piece
$2.5Product information
High-quality Weather-Resistant Ceramic Insulator XP-100 - Reliable for Overhead Power Lines supplied by Hangzhou Tailun Electric Power Equipment Co., Ltd.. Bulk wholesale pricing ranges from $2.5 to $2.7 per Piece with a minimum order of 500 Piece. Inquiry for latest prices.
Weight:
0.5 Kg
Specification:
1000*1000*1000mm
Mechanical Failing Load:
12-13 kN
Delivery:
15-30days
Insulation Distance(Mm):
175-2800
Package Size:
255.00cm * 146.00cm * 320.00cm
Rated Voltage:
33kv
Package Gross Weight:
4.000kg
Specifications
Weight:
0.5 Kg
Specification:
1000*1000*1000mm
Mechanical Failing Load:
12-13 kN
Delivery:
15-30days
Insulation Distance(Mm):
175-2800
Package Size:
255.00cm * 146.00cm * 320.00cm
Rated Voltage:
33kv
Package Gross Weight:
4.000kg
Production Capacity:
5000000PCS/Week
Size Of Bearing Capacity:
60KN
HS Code:
8547100000
Type:
A Type Insulator
Customized:
Accept Special
OEM:
Accetable
Standard:
Asni
Certification:
CCC
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Core Material:
Epoxy Resin Fiberglass
Trade Term:
FOB, CIF, CFR, EXW
Color:
Grey Brown White
Trademark:
HDTL
Usage:
High Voltage Power Transmission, Insulation
Payment Term:
LC, T/T
Port Of Loading:
Ningbo port
Classification:
Organic Insulating Material
Connection Method:
Spherical Type
Payment Methods:
Support payments in USD
Structure:
Suspension Insulator
Model NO.:
U70BP/155T U70BP/146M U120B/146
Transport Package:
Wooden Box Packaging
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2020-12-10
Annual Revenue Amount:
Not specified
Numbers Of Employees:
7
Preferred Payment Term:
LC, T/T
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Ningbo port
Certificates:
Our certificates
Product descriptions from the supplier
SONA2024 2.2.1
High dielectric strength ensures reliable insulation even under extreme voltage conditions, minimizing the risk of flashover and leakage current.
Reinforced porcelain body with high compressive/tensile strength withstands heavy mechanical loads, vibrations, and impact, ensuring long service life.
Product Description

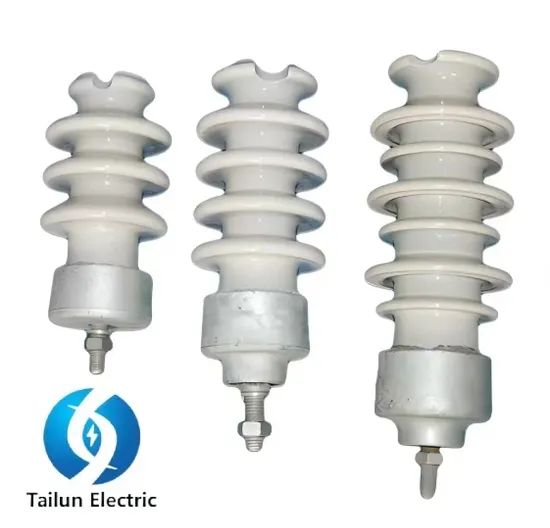

Ceramic Insulators
Superior Electrical Performance
High dielectric strength ensures reliable insulation even under extreme voltage conditions, minimizing the risk of flashover and leakage current.
Robust Mechanical Strength
Reinforced porcelain body with high compressive/tensile strength withstands heavy mechanical loads, vibrations, and impact, ensuring long service life.
Ceramic Insulators
Excellent Electrical Insulation
The premium glass material provides outstanding dielectric properties, resisting electrical discharges and maintaining consistent insulation efficiency even in polluted or humid environments, reducing the need for frequent maintenance.
Self-Cleaning & Anti-Pollution
Self-Cleaning & Anti-Pollution
Their smooth surface and hydrophobic coating effectively repel dust, dirt, and conductive contaminants, minimizing flashover incidents and extending service life in challenging atmospheric conditions.
Rated Mechanical Load (kN) | Model | Insulating Part Diameter (mm) | Structural Height (mm) | Creepage Distance (mm) | Connection Marking (mm) | Power Frequency Breakdown Voltage (kV) | Weight (kg) |
70 | U70B/146 | 255 | 146 | 320 | 16 | 110 | 4.7 |
70 | U70BP/146 | 255 | 146 | 400 | 16 | 110 | 4.7 |
70 | U70BP/146D | 280 | 146 | 450 | 16 | 110 | 4.8 |
70 | U70BP/155T | 320 | 155 | 550 | 16 | 110 | 4.8 |
70 | U70BP/146M | 350 | 146 | 300 | 16 | 110 | 4.8 |
120 | U120B/146 | 255 | 146 | 320 | 16 | 110 | 5.6 |
120 | U120BP/146 | 255 | 146 | 400 | 16 | 110 | 5.6 |
120 | U120BP/146D | 280 | 146 | 450 | 16 | 110 | 5.6 |
120 | U120BP/155T | 300 | 155 | 545 | 16 | 110 | 5.6 |
120 | U120BP/146M | 350 | 146 | 300 | 16 | 110 | 5.6 |
160 | U160B/155 | 300 | 155 | 400 | 20 | 110 | 7.8 |
160 | U160BP/155D | 300 | 155 | 450 | 20 | 110 | 7.8 |
160 | U160BP/170D | 340 | 170 | 525 | 20 | 110 | 7.8 |
160 | U160BP/155T | 330 | 155 | 545 | 20 | 110 | 7.8 |
160 | U160BP/155M | 425 | 155 | 385 | 20 | 110 | 7.8 |
210 | U210B/170 | 300 | 170 | 400 | 20 | 120 | 10.4 |
210 | U210BP/170 | 330 | 170 | 550 | 20 | 120 | 10.4 |
210 | U210BP/170D | 300 | 170 | 450 | 20 | 120 | 10.4 |
210 | U210BP/170T | 340 | 170 | 545 | 20 | 120 | 10.4 |
210 | U210BP/170M | 420 | 170 | 380 | 20 | 120 | 10.4 |
300 | U300B/195 | 320 | 195 | 390 | 24 | 130 | 14.3 |
300 | U300BP/195 | 330 | 195 | 505 | 24 | 130 | 14.3 |
300 | U300BP/195D | 330 | 195 | 480 | 24 | 130 | 14.3 |
300 | U300BP/195T | 360 | 195 | 550 | 24 | 130 | 14.3 |
420 | U420B/205 | 340 | 205 | 550 | 28 | 130 | 14.3 |
420 | U420BP/205D | 380 | 205 | 550 | 28 | 130 | 14.3 |
420 | U420BP/205T | 400 | 205 | 635 | 28 | 130 | 14.3 |
550 | U550BP/240 | 380 | 240 | 700 | 32 | 225 | 18.2 |
550 | U550B/240D | 420 | 240 | 600 | 32 | 225 | 18.2 |
550 | U550BP/240T | 400 | 240 | 650 | 32 | 225 | 18.2 |
Company Profile
Hangzhou Tailun Electric Power Equipment Co., Ltd
Hangzhou Tailun Electric Power Equipment Co., Ltdis a high-tech enterprise focusing on the research and development, production and sales of power transmission and distribution equipment, located in the beautiful city of Hangzhou. With technological innovation as its core, the company is committed to providing safe, reliable and environmentally friendly insulation and protection products for the global power industry, which are widely used in power grid construction, new energy power generation, industrial electricity and other fields.
The company adheres to the concept of "quality first, innovation for the future", continuously improves the competitiveness of its products, and promotes the development of smart grids and green energy.
We adhere to the principle of "Quality First, Customer Foremost" and are committed to building long-term partnerships with our clients. Whether for small batch customiz-ations or large-scale orders, Hangzhou Tailun Electric Power Equipment Co., Ltd offers high-quality products and excellent service to support your business success.
The company adheres to the concept of "quality first, innovation for the future", continuously improves the competitiveness of its products, and promotes the development of smart grids and green energy.
We adhere to the principle of "Quality First, Customer Foremost" and are committed to building long-term partnerships with our clients. Whether for small batch customiz-ations or large-scale orders, Hangzhou Tailun Electric Power Equipment Co., Ltd offers high-quality products and excellent service to support your business success.
Product competitiveness
Excellent insulation performance
- With high insulation resistance and electrical breakdown resistance, it can effectively prevent current leakage and ensure the insulation reliability of transmission lines.
- In different environments such as dry and humid, it can maintain a stable insulation level and reduce the risk of insulation failure caused by environmental changes.
Good mechanical strength
- It has high tensile strength and bending strength, can withstand the tension of the wire, its own weight, and external loads such as wind, ice and snow, to ensure that it is not easy to break or damage during long-term operation.
Strong weather resistance
- It can resist the erosion of natural environmental factors such as sun exposure, temperature changes, rain and snow freezing, acid and alkali corrosion, etc., has a long service life and is suitable for various complex climatic conditions.
Good self-cleaning property
- The glass surface is smooth and not easy to accumulate dirt. Under natural effects such as rain scouring, it can keep the surface clean and reduce the problem of insulation performance degradation caused by dirt.
High stability
- The material is stable, not easy to age, and the performance changes little during long-term operation, which can provide continuous and reliable insulation support for transmission lines.
- With high insulation resistance and electrical breakdown resistance, it can effectively prevent current leakage and ensure the insulation reliability of transmission lines.
- In different environments such as dry and humid, it can maintain a stable insulation level and reduce the risk of insulation failure caused by environmental changes.
Good mechanical strength
- It has high tensile strength and bending strength, can withstand the tension of the wire, its own weight, and external loads such as wind, ice and snow, to ensure that it is not easy to break or damage during long-term operation.
Strong weather resistance
- It can resist the erosion of natural environmental factors such as sun exposure, temperature changes, rain and snow freezing, acid and alkali corrosion, etc., has a long service life and is suitable for various complex climatic conditions.
Good self-cleaning property
- The glass surface is smooth and not easy to accumulate dirt. Under natural effects such as rain scouring, it can keep the surface clean and reduce the problem of insulation performance degradation caused by dirt.
High stability
- The material is stable, not easy to age, and the performance changes little during long-term operation, which can provide continuous and reliable insulation support for transmission lines.
