Weld Overlay Vertical Valve Cladding Systems Type TIG Welder Trademark Fitco HS Code 8518809090 Origin Suzhou, China Arc Starting
1 Set
$45,0001 Set
$68,000Product information
High-quality Weld Overlay Vertical Valve Cladding Systems Type TIG Welder Trademark Fitco HS Code 8518809090 Origin Suzhou, China Arc Starting supplied by Faith-Han Intelligent Technology Co., Ltd.. Bulk wholesale pricing ranges from $45,000 to $68,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Wire Dia.:
1.0/1.2mm (1.6mm Optional)
Automatic TIG Hotwire:
1.3kg/H
Dia. Of Turntable:
1200mm
Recommend Gas Flow Rate:
12~20L/Min
Clad Thickness:
1~3mm/Layer, Multilayer Cladding, Standard Clad Th
Package Gross Weight:
2300.000kg
Tungsten Dia.:
3.2mm (4.0mm Optional)
Package Size:
3200.00cm * 2200.00cm * 1300.00cm
Specifications
Wire Dia.:
1.0/1.2mm (1.6mm Optional)
Automatic TIG Hotwire:
1.3kg/H
Dia. Of Turntable:
1200mm
Recommend Gas Flow Rate:
12~20L/Min
Clad Thickness:
1~3mm/Layer, Multilayer Cladding, Standard Clad Th
Package Gross Weight:
2300.000kg
Tungsten Dia.:
3.2mm (4.0mm Optional)
Package Size:
3200.00cm * 2200.00cm * 1300.00cm
Specification:
3700*1700*4000mm
Equipment Dimension:
3700mmx1700mmx4000mm
Loading Bearing:
5 Metric Tons
Displayer:
5.7 Inch Screen Chinese/English Displayer
HS Code:
8518809090
Welding Process:
Automatic TIG Hotwire
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Overlay Processing:
Dia.:ID30 (After Cladding) -ID1500mm
Hot Wire Source:
Ewm 200 Hot Wire
Power Source:
Ewm Ethernet/IP Tetrix 452
Model NO.:
FIT-VCS-IV-E-5-1200
Trade Term:
FOB, CIF, CFR, EXW
Trademark:
Fitco
Work Form:
Gtaw Hot Wire Cladding
Arc Starting:
Hf/Contact
Frequency Range:
High Frequency
Electric Current:
Inverter
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Max Height For Vertical Overlay:
Less Than 1500mm
Transport Package:
Plywood Case
Port Of Loading:
Shanghai Port
Payment Methods:
Support payments in USD
Origin:
Suzhou, China
Type:
TIG Welder
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2018-06-19
Annual Revenue Amount:
Not specified
Numbers Of Employees:
385
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Preferred Trade Term:
FOB, CIF, CFR, EXW
Port Of Loading:
Shanghai Port
Certificates:
ISO9001:2015
Product descriptions from the supplier
The compact type vertical cladding station is designed for oil and gas, chemical, valve manufacturing, pressure vessels and other industries. Requirements of products with a variety of shapes can be met. This model can be used for precision welding of corrosion-resistant and wear-resistant materials.
With compact design, this model is space-saving and powerful. Configured with the basic functions of internal and external surface together with flat surface welding, this mode also boasts optional functions such as two holes 90-degree crossing intersection surface cladding, multi-bore intersection surface automatic welding, workpiece pre-heat system, workpiece cooling system, etc. For final function blocks of your machine, please refer to commercial contract options.
Technical Parameter
| 1 | Type of Power Source | DC Type Inverter |
| 2 | Welder Current Duty Circle (40ºC) |
5~450A 450A 80%; 420A 100A |
| 3 | Hot Wre Current Duty Cycle (40ºC) |
5~200A 200A 60%; 100A 100% |
| 4 | Open Circuit Voltage | 80V |
| 5 | Input Voltage | 3×400V (-25%+20%) 50/60Hz |
| 6 | Input Power | 35KVA |
| 7 | AVC Accuracy | ±0.2V |
| 8 | Recommend Peak Current | 150~280A |
| 1 | Welding Process | Automatic TIG Hot Wire |
| 2 | Inverter Cooling | Air cooling |
| 3 | Displayer | 5.7"screen Chinese/English displayer Real-time parameter displayer |
| 4 | Fault Detect | Work piece short circuit, over temperature protection, over current protection, over voltage protection, water shortage protection, lack of gas protection, power error, arc failure, servo error. |
| 5 | Torch Cooling | External Constant Temperature Circulating Water Cooling |
| 6 | Overlay Processing | Dia.: φ30 (after cladding) - φ1500mm Max height for vertical overlay: ≤1500mm Loading bearing 5 tons Dia. of turntable 1200mm. |
| 7 | Single Layer Thickness | 1-3mm |
| 8 | Tungsten Dia. | 3.2mm (4.0mm optional) |
| 9 | Wire Dia. | 1.0/1.2mm (1.6mm Optional) |
| 10 | Recommend Gas Flow RatE | 12~20L/min |
| 11 | ARC Starting | HF/Contact |
| 12 | Insulation Safety Level /Standard | H/IP70 |
| 13 | Equipment Diamension | 3700 x 1700 x 4000mm |
Application Products
Pipe rings, Fittings, Flanges, LR bends, Valve Bodies, Valve Balls, Risers, Well head block tree valves, Pressure Vessel Components, Nozzle, Dished ends, etc.
 |
 |
 |
 |
 |
 |
 |
 |
 |

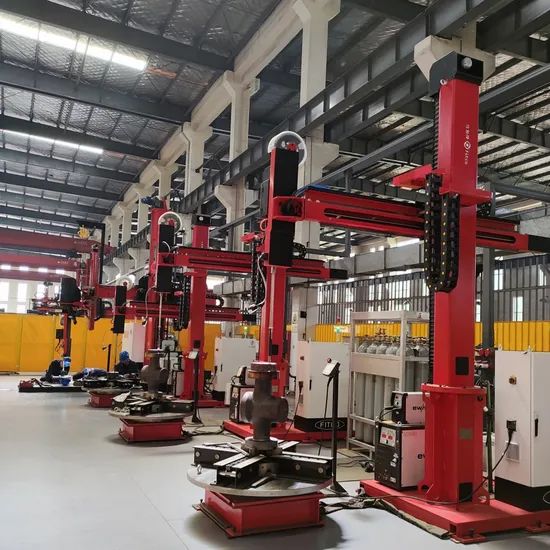

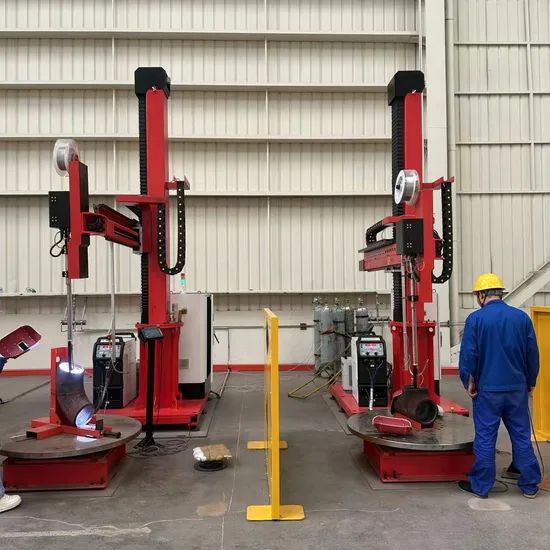

Vertical cladding systems.
Weld Overlay for Valves, Flanges and Plates

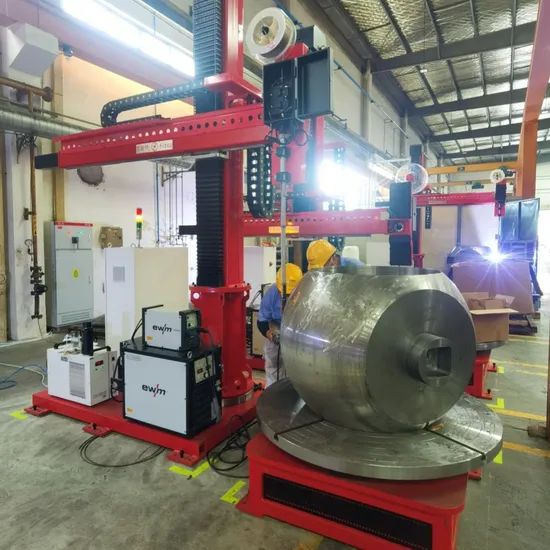

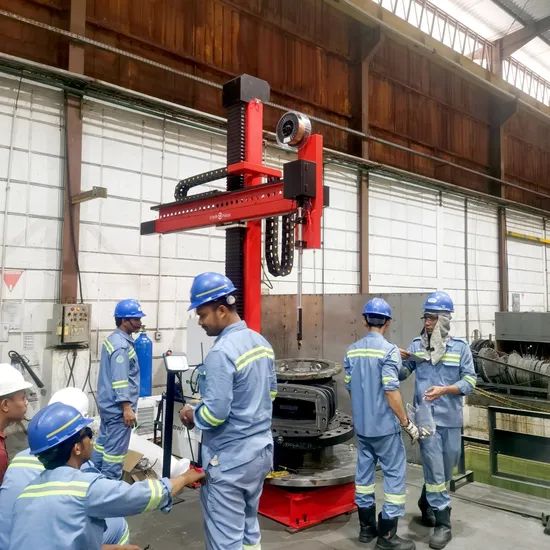

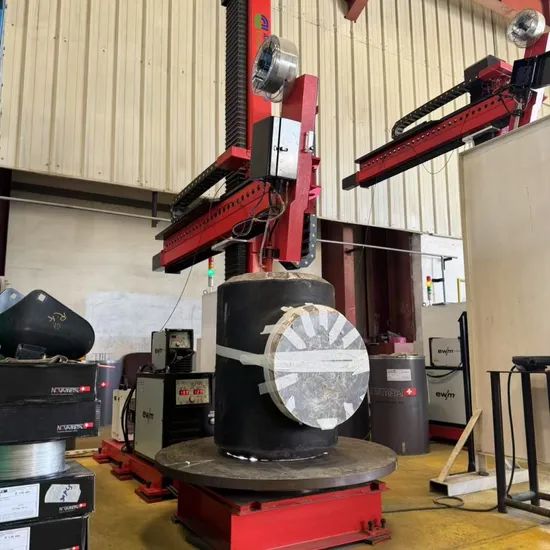

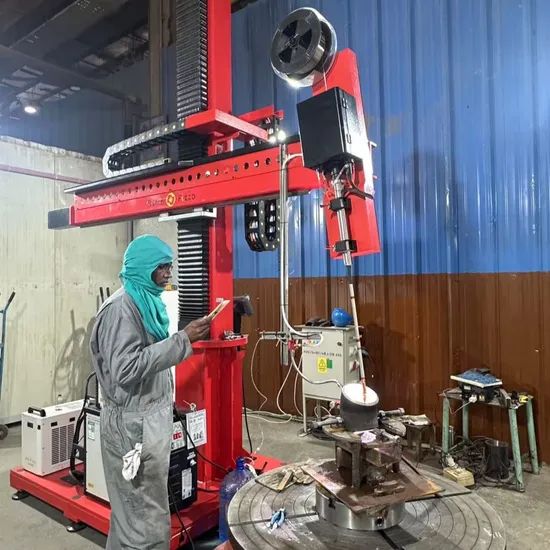

For those seeking vertical cladding solutions, our systems incorporate a Column & Boom Manipulator with a Floor Turntable. Optionally, you can add a second turntable or welding positioner to maximise productivity. The Floor Turntable/Positioner also comes with a preheat option and an anti-backlash gearbox design.
Advantages:
Fitco originated and grew up in manufacturing plants that use our equipment to produce products, so we understand the needs of our products, processes and operators better than other equipment manufacturers Fitco is from China's largest and the world's leading welding products manufacturing plant. Our equipment is more stable and intelligent with higher customer recognition; We use the world's top programmable controller platform and mathematical models to program our devices more intelligently!Weld overlay, or cladding, involves covering the 'wetted' surfaces of a workpiece (those exposed to hostile media) with a protective layer, usually of stainless steel or nickel-based alloy.
The use of TIG welding in this clad welding process has certain advantages:
The accuracy of the process when welding overlay complex surfaces, especially when welding overlay zones with corners, curves or inside or outside edges, avoids the need for manual touch-ups.
- The separate control of arc energy and the quantity of metal deposited is advantageous when cladding tricky geometries.
- Welding energy transferred to the workpiece is controlled, optimising the ratio of welding energy-to-deposition rate according to workpiece typology.
- The welding sequences can be interrupted and resumed at any time, avoiding microcracks and craters at the start and end of beads.
Our Company--Faith-Han Intelligent Technology Co., Ltd.
Founded and registered in 2018, Fitco is located in Kunshan High-tech District, between Shanghai and Suzhou.
Fitco is committed to designing and manufacturing non-standard customized automation control intelligent industrial welding/welding equipment, manufacturing information software, auxiliary equipment and related products and services.
Fitco has designed and manufactured more than 150 sets of welding equipment for the Chinese and the international market. Our equipment is highly stable and intelligent that has been proven on-site for many years, gaining the respect of our global customers and markets. The extensive use of mathematical models in our programs makes our machines more intelligent than our competitors' products. Environmental friendliness and safety are always our top priority when it comes to mechanical and electrical design.
