Welding Fixture Table for Robotic Welding Solution Feet Yes MOQ 1 Set System D28 Brand Lemar Condition New Customized
1 Piece
$500Product information
High-quality Welding Fixture Table for Robotic Welding Solution Feet Yes MOQ 1 Set System D28 Brand Lemar Condition New Customized supplied by Wuxi Lemar Machinery Equipments Co., Ltd.. Bulk wholesale pricing is $500 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.
MOQ:
1 Set
Hole Distance:
100mm
Specification:
1200*2400mm
Model NO.:
1200*2400mm
Package Size:
123.00cm * 243.00cm * 23.00cm
Duration:
20 Days
Table Height:
200mm
Thickness:
25mm
Specifications
MOQ:
1 Set
Hole Distance:
100mm
Specification:
1200*2400mm
Model NO.:
1200*2400mm
Package Size:
123.00cm * 243.00cm * 23.00cm
Duration:
20 Days
Table Height:
200mm
Thickness:
25mm
Hole Diameter:
28mm System Welding Table
Welding Tilter Type:
3D Welding Table
Tilting Angle:
3D Welding Table
Voltage:
3D Welding Table
Rotaion Speed:
3D Welding Table
Max Eccentricity Distance:
3D Welding Table
Welding Turning Rolls Type:
3D Welding Table
Production Capacity:
500pieces/Month
HS Code:
8515900000
Package Gross Weight:
870.000kg
Certificate:
CE
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
System:
D28
Model:
D28 Welding Table
Trade Term:
FOB
Origin:
Jiangsu, China
Brand:
Lemar
Trademark:
Lemar
Condition:
New
Treatment:
Normal
Material:
Steel
Payment Methods:
Support payments in USD
Payment Term:
To be discussed
Function:
Welding and Assembly
Transport Package:
Wooden Package
Customized:
Yes
Feet:
Yes
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
Not specified
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
Not specified
Preferred Trade Term:
FOB
Port Of Loading:
Not specified
Certificates:
BV Certificate, CE Certificate, Certificate, Quantity Certificate, Rotator CE Certificate, Supplier certificate
Product descriptions from the supplier
Product Classification
| Material | Steel Welding Tables | Grade: High-carbon steel (e.g., ASTM A36) or alloy steel (e.g., 4140) for superior strength. |
| Advantages: Lightweight compared to cast iron, easier to machine, cost-effective for modular designs. | ||
| Cast Iron Welding Tables | Grade: Gray cast iron (e.g., ASTM A48) or ductile iron. | |
| Advantages: Exceptional vibration damping, thermal stability, and resistance to warping under heat. | ||
| Design | Modular Welding Tables |
Grid patterns with standardized T-slots (e.g., 28mm/1.1" slots) for multi-axis clamping systems. |
| Interchangeable tops for plasma cutting (slag-resistant coating) or welding (grounding-ready surfaces). | ||
| Fixed Heavy-Duty Platforms | Solid cast iron bases with non-reflective, nitrided surfaces (e.g., 0.2-0.4mm nitride layer) to prevent arc glare and spatter adhesion. | |
| Application | General-Purpose Workbenches | Basic models for light-duty arc welding and assembly. |
| Plasma-Cutting Specialized Tables | Integrated slag pans, water-cooled tops, or ceramic-coated surfaces to withstand >1,600°C plasma arcs. | |
| Nitriding-Compatible Workstations | Pre-hardened surfaces compatible with post-weld gas nitriding or salt bath nitriding processes. | |
D16 3D Welding Table
Material:a. HT300 casting, b. Q355 steel plate welding, c. High hardness steel plate welding, d. Stainless steel plate welding.
Aperture:A=φ16.065--φ16.149mm.
Hole spacing:L1=50±0.05mm.
Engraving:Graduation line spacing W1=50±0.05mm.
Flatness:0.1/1000mm.
Verticality:0.05/200mm.
Roughness:Ra3.2.
Load-bearing:Standard type: 2T, frame type: 5T.
Hardness:Material body hardness.
Aperture:A=φ16.065--φ16.149mm.
Hole spacing:L1=50±0.05mm.
Engraving:Graduation line spacing W1=50±0.05mm.
Flatness:0.1/1000mm.
Verticality:0.05/200mm.
Roughness:Ra3.2.
Load-bearing:Standard type: 2T, frame type: 5T.
Hardness:Material body hardness.

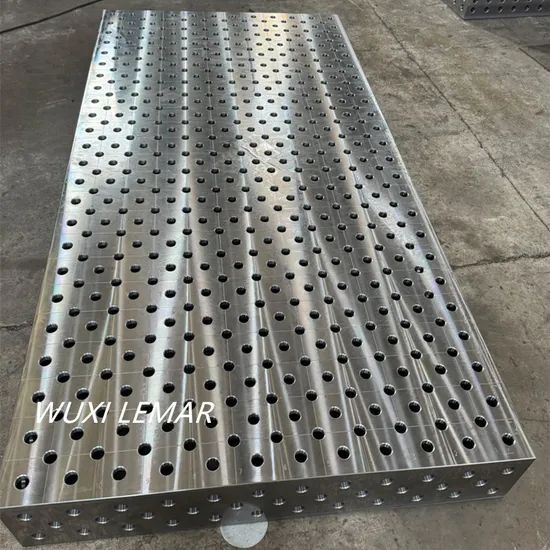

D28 3D Welding Table
Material:a. HT300 casting, b. Q355 steel plate welding, c. High hardness steel plate welding, d. Stainless steel plate welding.

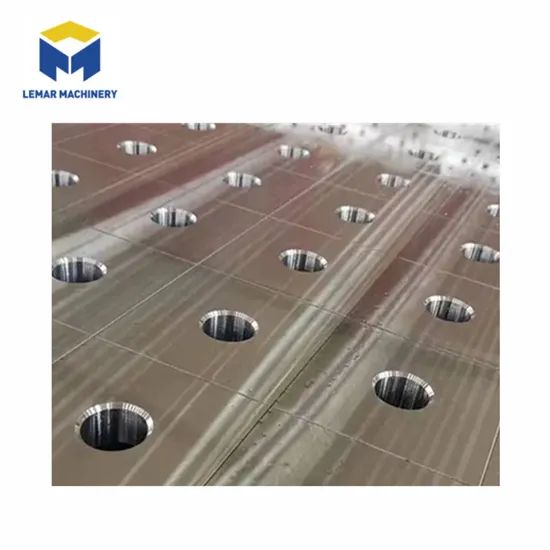

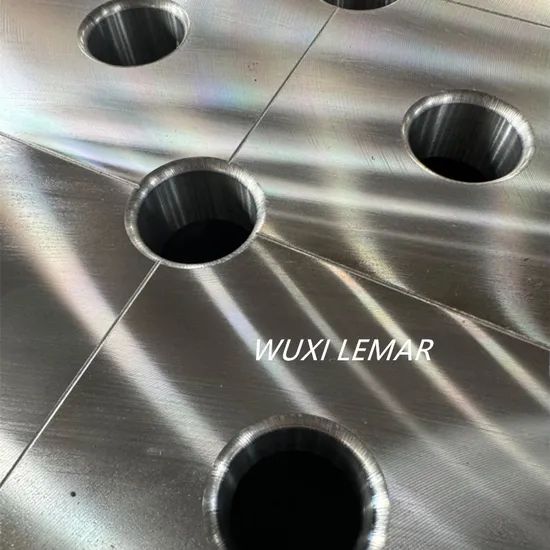

Aperture:A=φ28.065--φ28.149mm.
Hole spacing:L1=100±0.05mm.L2=100±0.05mm.

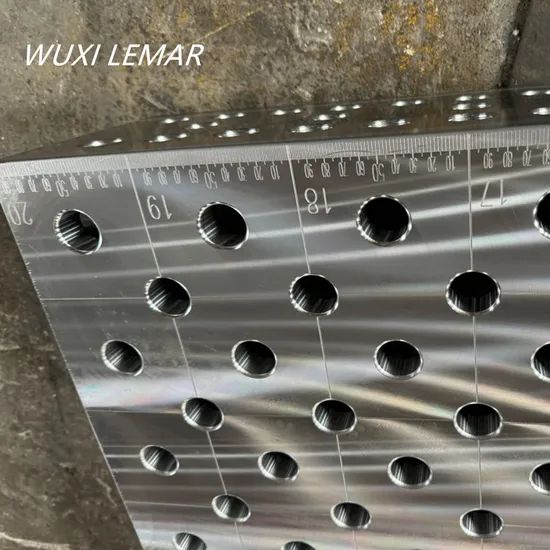

Engraving:Graduation line spacing W1=100±0.05mm.
Flatness:0.1/1000mm.
Verticality:0.1/200mm.
Roughness:Ra3.2.
Load-bearing:Standard type: 2T, frame type: 5T.
Hardness:Material body hardness, nitriding layer hardness: HV450-HV630
Material:a. HT300 casting, b. Q355 steel plate welding, c. High hardness steel plate welding, d. Stainless steel plate welding.
Aperture:A=φ28.065--φ28.149mm.
Hole spacing:L1=100±0.05mm.L2=100±0.05mm.
Engraving:Graduation line spacing W1=100±0.05mm.
Flatness:0.1/1000mm.
Verticality:0.1/200mm.
Roughness:Ra3.2.
Load-bearing:Standard type: 2T, frame type: 5T.
Hardness:Material body hardness, nitriding layer hardness: HV450-HV630
Main Applications ofWelding Fixture Table for Robotic Welding Solution
• Automotive parts manufacturing: Welding of high-volume components such as subframes, control arms, mufflers, and seat frames.
• Construction machinery: Automated welding of medium to high-volume structural parts such as excavator booms, buckets, and frames.
• Metal furniture and shelves: High-volume, high-efficiency automated production of standardized products.
• Electric vehicle frames: Robotic welding of frames for bicycles, motorcycles, electric tricycles, etc.
• Any metal products with medium to high output and relatively fixed structures that are suitable for robotic welding.
Advantages
1. Maximize robot efficiency:
√ Through automated clamping and dual-station design, the proportion of the robot's welding time (arc welding time) is increased from the usual 30%-50% to more than 70%, significantly improving the return on investment.
2. Unmanned operation and cost reduction:
√ Reduce reliance on senior welders; operators only need to be responsible for loading and unloading. It can realize "light-out production", greatly reducing labor costs and ensuring stable production takt.
-
3. Excellent quality consistency:
√ The robot's precise path + the workbench's precise repeat positioning ensure absolute consistency in the position, size and quality of each workpiece's weld, with almost zero defects.
4. High productivity and predictability:
√ The production takt is fixed and can be accurately calculated, which is very beneficial to production planning, material management and process optimization of the entire factory.
√Wuxi Lemar Machinery Equipments Co., Ltd. is a high-tech enterprise specializing in automated welding equipment and H-beam equipment. Our company has developed a series of professional equipment such as CNC cutting equipment, Beveling equipment, welding equipment, etc.
√On the basis of continuously absorbing advanced technologies and processes domestic and abroad,our products are widely used in pressure vessels, petrochemicals, power stations, heavy machinery, ships, steel structure buildings and other industries.Most of the products have reached advanced international levels.
√Lemar Machinery has won the praise of users with the corporate spirit of "motivational and enterprising, honest and trustworthy", and is wi ling to work hand in hand with friends from all walks of life to realize its vision.
√On the basis of continuously absorbing advanced technologies and processes domestic and abroad,our products are widely used in pressure vessels, petrochemicals, power stations, heavy machinery, ships, steel structure buildings and other industries.Most of the products have reached advanced international levels.
√Lemar Machinery has won the praise of users with the corporate spirit of "motivational and enterprising, honest and trustworthy", and is wi ling to work hand in hand with friends from all walks of life to realize its vision.
Q: What's the lead time for custom configurations?
A: StandardWelding Fixture Table for Robotic Welding Solutionship in 3-5 business days. Custom welding tables require 2-3 weeks for production.
Q:How should the three-dimensional welding platform be installed and used?
A:Unboxing Inspection: Check and count all components against the checklist to see if there is any transportation damage.
Positioning: Use lifting equipment to hoist the main body of the platform stably to the predetermined position.
Leveling: This is the most critical step. Use a high-precision level (such as a frame level or electronic level) to level the platform at multiple measuring points. Adjust the adjustable shims at the bottom of the platform to ensure that the tabletop meets the required level accuracy (usually ≤0.05mm/m).
Fixing: After leveling, firmly fix the platform on the foundation with anchor bolts.

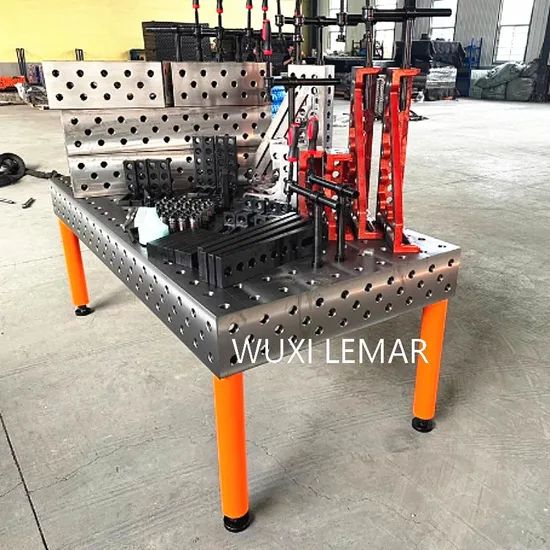

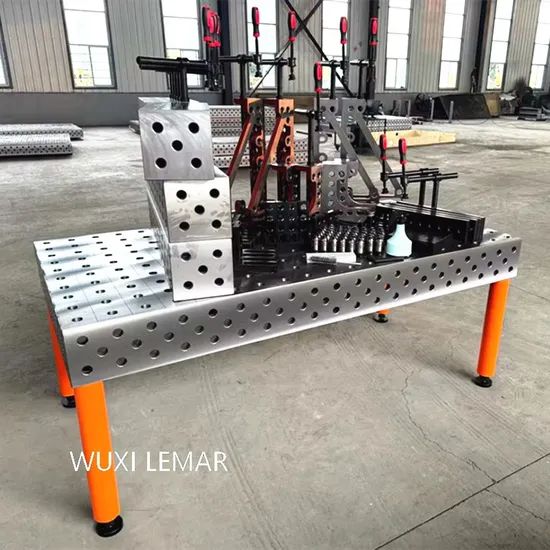

Accessory Assembly: Install accessories such as columns, locking mechanisms, and extended table tops.
Q: What warranty coverage is included?
A: 1-year limited warranty on welding tables accessories.
Q:How is the product packaged to prevent damage during transportation?
A:We use pallets with moisture-proof and rust-proof packaging. The surface of the pallet will be coated with rust-proof oil and covered with rust-proof paper. Protective pads will be added to the precision working surfaces to avoid scratches. For large platforms, they are packaged in flat forms, combined with reinforced steel straps to prevent deformation during transportation. At the same time, the lifting points and moisture-proof, collision-prevention marks are marked.
Q:What certifications are required for exporting to the EU / the US?
A:To export to the EU, one needs to obtain the CE certification to ensure that the products comply with the relevant mechanical safety standards of the EU; for exporting to the US, there is no mandatory exclusive certification, but it must meet the local mechanical safety regulations and the import requirements of the customs for industrial equipment. In addition, auxiliary documents such as raw material traceability labels and mechanical test reports can be provided as needed to facilitate customs clearance.
Q:Can you provide the necessary documents for customs clearance, such as the origin certificate?
A:We can provide all the customs clearance documents, including the origin certificate, commercial invoice, packing list, quality certificate, etc. If any special documents are needed, we can communicate in advance to customize them, helping the goods smoothly pass through the customs inspection in the destination country.
Q:Which payment methods are supported?
A:We support various commonly used payment methods in international trade, including telegraphic transfer (T/T), Western Union remittance, letter of credit, and third-party escrow payment, etc. The specific payment ratio can be determined through negotiation based on the order amount.
Request Custom Quote
Complete the configuration wizard or speak with our sales engineers:
Shipping & Support
✓ FOB/CIFterms available
✓DDU/DDP shipping to 50+ countries
✓ Trade assurance throughPICC/Country bank
Welding Fixture Table for Robotic Welding Solutionis an "intelligent bridge" connecting automated hardware (robots) and production processes (welded parts). Its value does not lie in its standalone use, but in how it transforms the flexibility of the robot itself into the ability to produce specific products efficiently, stably, and reliably.
It marks a crucial leap from "having a robot" to "achieving efficient robotic automated production". A well-designed special fixture workbench is often the decisive factor in whether the entire robotic welding unit can succeed and be profitable. Its core design concept is: to create optimal working conditions for the robot - precise, stable, predictable, and uninterrupted workpiece positioning, thereby maximizing the potential of automated equipment.
