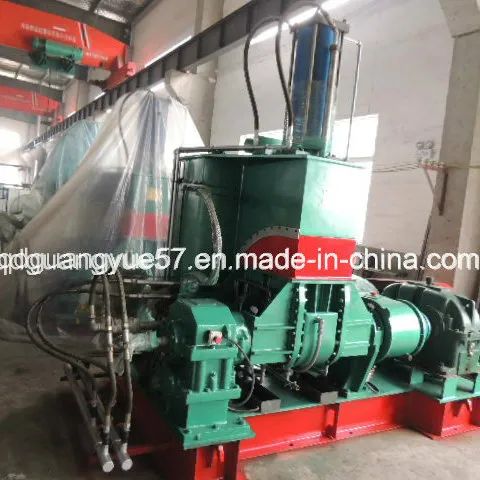

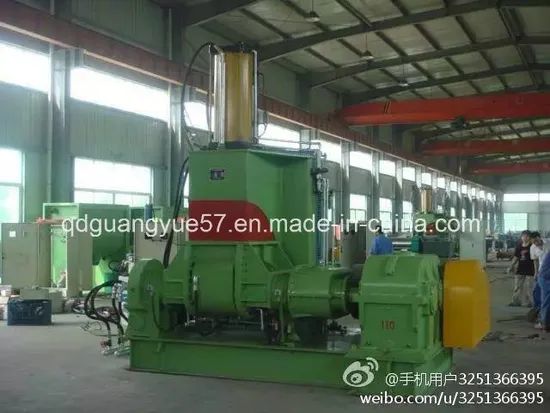

Well-Sealed Rubber Kneader Machine of X (S) N-75/30
1 Set
$30,0001 Set
$1,000Product information
High-quality Well-Sealed Rubber Kneader Machine of X (S) N-75/30 supplied by Qingdao Guangyue Rubber Machinery Manufacturing Co., Ltd.. Bulk wholesale pricing ranges from $1,000 to $30,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Warranty:
1 Years
Power:
10~100kw
Voltage:
380V
Production Capacity:
50 Sets/ Month
Weight:
50~300 Tons
HS Code:
8477800000
Automatic Grade:
Automatic
Feeding Way:
Back Door Feed
Specifications
Warranty:
1 Years
Power:
10~100kw
Voltage:
380V
Production Capacity:
50 Sets/ Month
Weight:
50~300 Tons
HS Code:
8477800000
Automatic Grade:
Automatic
Feeding Way:
Back Door Feed
Customized:
Customized
Trade Term:
FOB, CFR, CIF, DDP, DAP
Type:
General Rubber Machinery
Trademark:
Guangyue / OEM
Payment Term:
LC, T/T, D/P, PayPal, Western Union, Money Gram
Type Of General Rubber Machinery:
Material Processing Machine
Port Of Loading:
Qingdao
Origin:
Qingdao, China
Type Of Tire Machinery:
Rubber Regeneration Machinery
Structure:
Vertical
Advantage:
Well Sealed
Specification:
X(S)N-75/30
Model NO.:
X(S)N-75/30

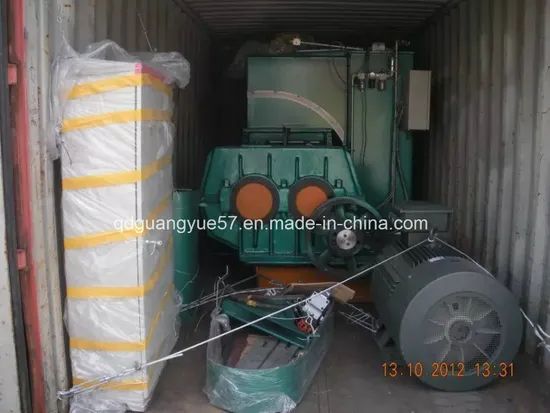

Transport Package:
in Bulk or as Customer's Need
Using Life:
≥15 Years
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2008-04-11
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, D/P, PayPal, Western Union, Money Gram
Preferred Trade Term:
FOB, CFR, CIF, DDP, DAP
Port Of Loading:
Qingdao
Certificates:
CE Certificate, ISO 9001, SGS, SGS cert
Product descriptions from the supplier
35L / 55L / 75L / 110L Rubber Kneader, rubber banbury kneader / banbury rubber mixer/ internal mixer machine with certificated of ISO9001,SGS,CE
Application:
The machine is used for all kinds of rubber and plastic material's mixing and plasticizing.
Features:

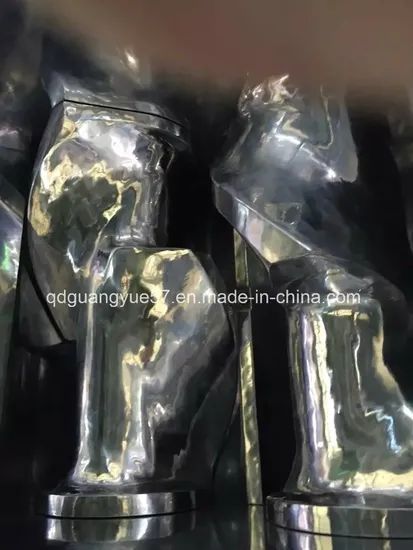

Rotor:
It is designed to the hollow blades of Banbury type. The hollows are connected with axial hole of rotor shaft used as cooling or heating passage. The top edges of blades and the end faces of ~ rotor shaft are surface welded with cobalt-base hard alloy and grinding, then plating with hard chrome and polishing.
Cooling/heating system:
A common piping system is adopted for either cooling or heating material in mixing operation. Through the system cooling water or steam is fed in three ways to the cavities of the rotors blades, the mixing chamber and the top ram.
Tilting mechanism:
It consists of a rotor with brake, cycloidal gear reducer, TP type worm and worm gear, etc...It is able to actuate the mixing chamber tilting by 140° Around the front rotors.
Dust sealing device:

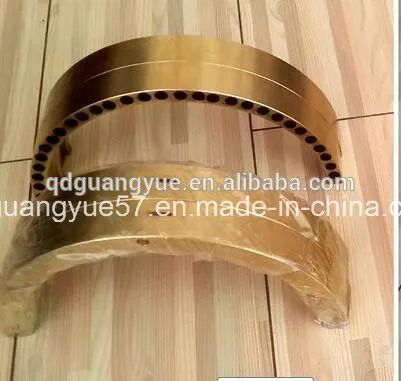

At the joint between the top of the mixing chamber and the cantilevered arm of the machine frame, the dust sealing assemblies with curved slotted partings are used obtaining an excellent and reliable sealing purpose.
The end face of the rotor is sealed by end contact sealing with nor oil-lubrication and is seals well and is wear-resistant and durable.
Main driving system:
The part is made up with main motor, reducer, connecting gears. It realizes odd-speed rotation of the rotors with running face one other.
Hard Gear Gearbox, 6 degree meshing
Pneumatic control system:
Pneumatic control system is controlled by XG order. The bi-directional air cylinder makes the ram up or down. In case the over load occurs in the mixing chamber, the top ram can be raised automatically or manually if necessary, so as to protect motor from overload.
Electric control system
Imported PLC device and electric control components which are all imported products or imported technology products are adopted in the electric control system as to raise control reliability.
Application:
The machine is used for all kinds of rubber and plastic material's mixing and plasticizing.
Features:
Rotor:
It is designed to the hollow blades of Banbury type. The hollows are connected with axial hole of rotor shaft used as cooling or heating passage. The top edges of blades and the end faces of ~ rotor shaft are surface welded with cobalt-base hard alloy and grinding, then plating with hard chrome and polishing.
Cooling/heating system:
A common piping system is adopted for either cooling or heating material in mixing operation. Through the system cooling water or steam is fed in three ways to the cavities of the rotors blades, the mixing chamber and the top ram.
Tilting mechanism:
It consists of a rotor with brake, cycloidal gear reducer, TP type worm and worm gear, etc...It is able to actuate the mixing chamber tilting by 140° Around the front rotors.
Dust sealing device:
At the joint between the top of the mixing chamber and the cantilevered arm of the machine frame, the dust sealing assemblies with curved slotted partings are used obtaining an excellent and reliable sealing purpose.
The end face of the rotor is sealed by end contact sealing with nor oil-lubrication and is seals well and is wear-resistant and durable.
Main driving system:
The part is made up with main motor, reducer, connecting gears. It realizes odd-speed rotation of the rotors with running face one other.
Hard Gear Gearbox, 6 degree meshing
Pneumatic control system:
Pneumatic control system is controlled by XG order. The bi-directional air cylinder makes the ram up or down. In case the over load occurs in the mixing chamber, the top ram can be raised automatically or manually if necessary, so as to protect motor from overload.
Electric control system
Imported PLC device and electric control components which are all imported products or imported technology products are adopted in the electric control system as to raise control reliability.
| Type of internal mixer | 10L | 20L | 35L | 55L | 75L | 110L |
| Mixing chamber volume(L) | 10L | 20L | 35L | 55L | 75L | 110L |
| Main motor power(kw) | 15KW | 37KW | 55KW | 75KW | 110KW | 160KW |
| Tilting motor power(kw) | 0.75KW | 1.5KW | 1.5KW | 2.2KW | 3.75KW | 5.5KW |
| Diameter of cylinder(mm) | 160 | 200 | 250 | 300 | 350 | 420 |
| Dust collector motor power(kw) | _ | 0.375KW | 1.5KW | 1.5KW | 1.5KW | 2.2KW |
| Tilling angle | 140 | 140 | 140 | 140 | 140 | 140 |
| Feed mode(F/R) | F | F | F | F/R | F/R | F/ |
| Steam/cooling shift mode | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic |
| Shipping volume( m³ ) | 5 | 12 | 20 | 26 | 29 | 32 |
| Equipment weight(kg) | 2300 | 4200 | 6500 | 8800 | 10600 | 14000 |
| Install dimension(mm) | 2150χ 1350χ 2200 | 2350χ 1550χ 2400 | 2570χ 2180χ 2570 | 3370χ 2460χ 3180 | 3550χ 2560χ 3220 | 4245χ 2950χ 3380 |
| Chum up shaft forwand speed(RPM) | 38/32 | 38/32 | 38/32 | 38/32 | 38/32 | 38/32 |
| Chum up shaft backwand speed(RPM) | 29/25 | 29/25 | 29/25 | 29/25 | 29/25 | 29/25 |
