Wet Pulverizer Stone Grinder Soy Milk Machine Electric 30Sets/Yr xiandai Haerbin 1Y

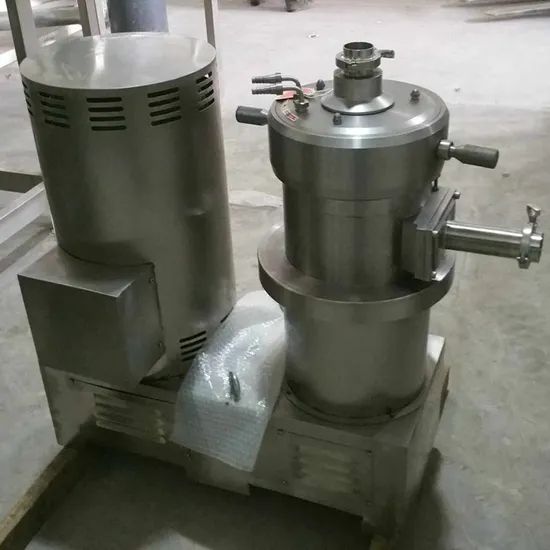

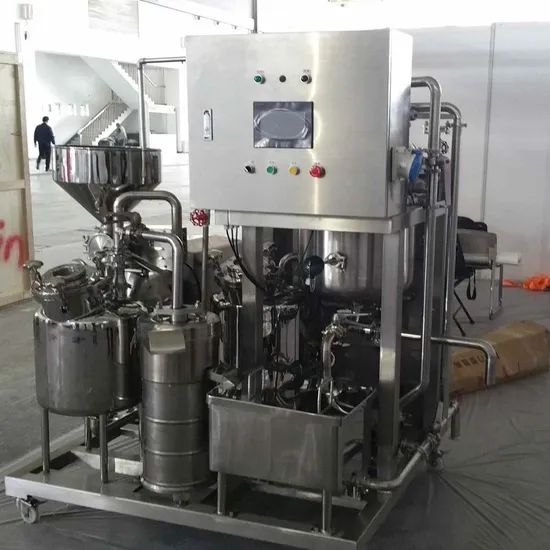

No soaking required for the small soybean milk machine
This unit combines a soybean rough grinder, a precision grinding and separation unit, and a cooking vessel in a single, compact structure. The rough grinding component is constructed from steel, whereas the fine grinding and separation section features rotating grinding elements and a vertical centrifugal sieve. For the smaller 10–30 liter version, the cooking chamber uses electric heating, while the larger 30–100 liter model supports an optional external steam generator (a compact steam boiler).
Soybeans can be hand-washed and immediately introduced into the milk-making machine, removing the step of soaking. The process is simple and fast, yielding up to four batches of milk hourly.
This machine is suitable for restaurants and small soybean milk production plants.

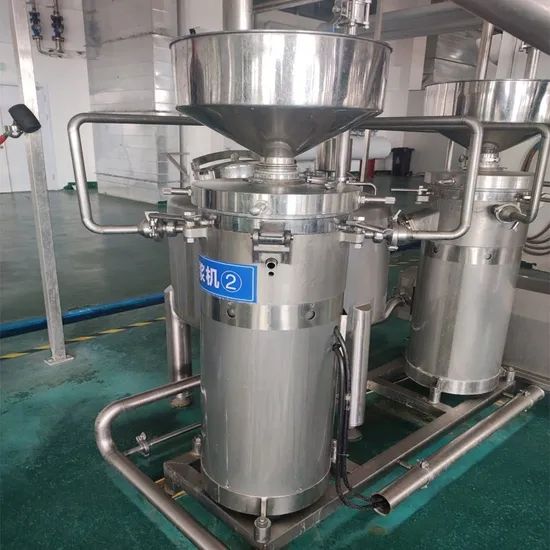

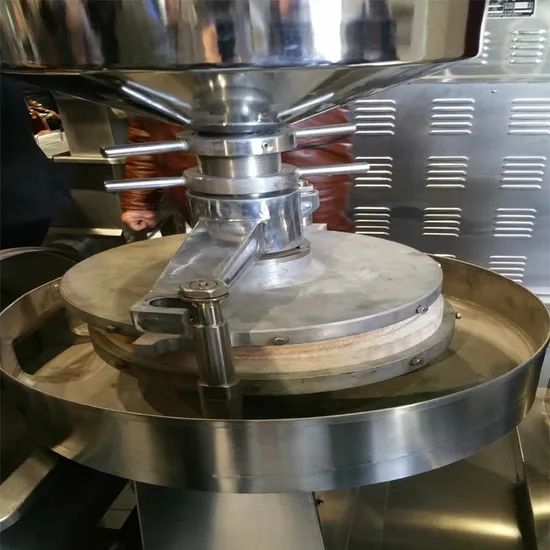

Grinding Wheel Mill
A specialized machine for making soybean milk features a unique grinding wheel system. Soybeans must be soaked completely prior to processing. Unlike standard grinders, this model allows precise control over the distance between the top and bottom grinding surfaces. It integrates a grinding and separation unit with rotating grinding plates and a vertical sieve basket constructed from aluminum, featuring an internal mesh structure. The main housing is typically aluminum, though stainless steel options are available upon request. Built for simplicity and minimal upkeep, the most powerful version handles up to 500 kilograms per hour of soybeans.

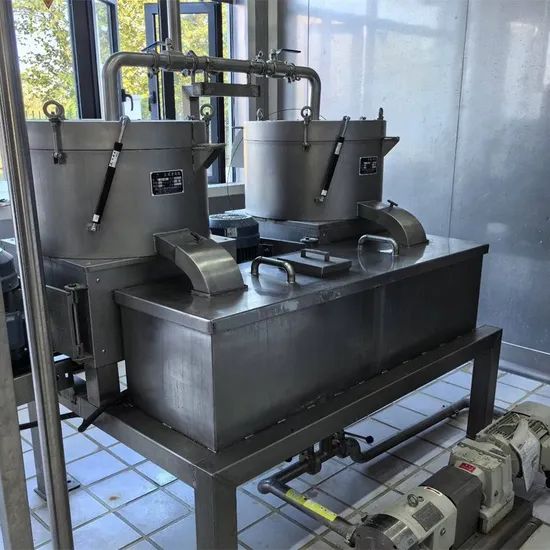

Centrifugal Basket Separator
This centrifugal basket separator is available in vertical and horizontal configurations. The cone-shaped basket houses a woven or stainless steel mesh. Typically constructed from aluminum, the basket can also be made from stainless steel upon request. Once ground, soy milk flows into the unit, where centrifugal force drives it through the filtering mesh, leaving the soybean residue behind
The production technology process and features of equipment of Semi-dry wet soymilk production
A The technics characteristic of Semi-dry wet soymilk production:
( a ) The semi-dry wet soymilk technics adopts the internationally production technology, such as soymilk pulping equipment produced by Tetra Pak.
( b )The technics characteristic of Semi-dry wet soymilk production:
1.    Soybeans are dehulled after cleaned and dried to reduce the bitterness taste and remove contaminants and bacteria that adhere to the skin.
Soybeans require no soaking. After softening and deactivation, dehulled soybeans are immediately ground. Combining blanching with hot grinding effectively minimizes beany odor. This method produces no effluent, supporting eco-friendly practices and lowering expenses related to water waste management.
3.    The purification and odor removal stage uses high-temperature short-time treatment to thoroughly eliminate Thermophilic Bacillus, a heat-sensitive microorganism common in soybeans, and eliminates bean odors through vacuum flash distillation. This ensures soybean milk retains its natural freshness and delivers a superior flavor profile
4.    The entire production line is continuously produced and the materials are in the pipeline, which reduces the secondary pollution in the production process..
B  The production technology process
( a )Soybean pre-pretreatment production process: Soybeans undergo cleaning, drying, cooling, detritus and iron removal, followed by dehulling using a dehulling machine. The resulting dehulled soybeans are transported to the pulping stage via a lifter.
The main purpose of the pre-treatment is to remove impurities and remove the skin.





According to the technical requirement the burdening and homogenizing equipment can be placed before or after sterilization and deodorization.
Raw dehulled soybeans are transported to a precision feed hopper via bucket elevator (the hopper regulates material flow by adjusting feed rate to match the required water-to-bean proportion in the inactivation tank) → Proceed to the inactivation and softening stage: A measured amount of alkaline water (monitored by flow meter) is introduced during steam heating to deactivate key lipase enzymes. This reduces the beans’ natural smell and makes them more pliable for processing. Hot water is then introduced into the coarse grinder in accordance with flow meter settings, combining with the treated soybeans (the heat helps dissolve proteins efficiently; no soaking is needed, which conserves energy and ensures a healthier process). Following grinding, the resulting soy milk moves into a separation system to divide the liquid from the solid residue. To maximize protein yield, the initial bean pulp is rehydrated and fed into a second separation stage, while the second-stage slurry is then ground further. The first-stage slurry is pumped via centrifugal pump to a holding tank, and the clarified soy milk is then moved from there to the pasteurization and deodorization unit. Here, purified steam is directly blended with the mixture, raising the temperature to 130–140°C for 10–20 seconds before entering a vacuum deodorizer to remove volatile odor compounds. The mixture is then cooled to 90–95°C and discharged through a plate cooler (to preserve optimal taste and color, the milk must be rapidly chilled below 30°C). Finally, the processed soymilk is directed into the formulation stage.
C  The main production equipment features:
Harbin Modern Dairy Machinery Co., Ltd. specializes in semi-dry wet soymilk processing equipment. Through over two decades of development and innovation, the company has refined key machinery components. The overall system now delivers enhanced functionality and optimal efficiency.
( a )Characteristics of soybean pre-processing section equipment:
1.    Soybean Continuous Dryer: This unit is specifically designed as a high-efficiency continuous soy dryer, unlike most local counterparts that rely on batch processing or basic box and fluidized bed systems. While batch and standard box dryers offer lower initial investment, they suffer from inconsistent heat distribution—leading to some soybeans not drying fully and others being exposed to excessive heat, causing scorching and compromising final quality. Fluidized bed dryers face limitations due to extremely short material retention time, necessitating very hot inlet air. Our continuous dryer delivers superior throughput, featuring a multi-stage angled diversion system within the chamber that constantly redistributes and blends the soybeans as they move through. This ensures extensive and uniform exposure to heat, achieving excellent drying results with minimal operational expenses. Integrated cold and hot air exchange technology further enhances energy efficiency.
2.    Soybean hull removal and separation unit (Patent No.: ZL201320223568.0): This soybean hulling and separation system from our firm is designed for high-pulp production lines and offers either single-stage or dual-stage hulling based on user needs. It features a hulling crusher, a hulling device, and a hulling sieve, ensuring efficient and effective hulling performance.
3.    Basic structure and characteristics of soybean dehulling and separating equipment:
The system includes a peeling section, a crushing chamber, a bean coat separation screen, and additional components. Soybeans under 10mm in diameter are processed to remove their outer layer and crack. Once cracked, any bean hull stuck to the bean valves within the crushing area is dislodged using a blowing bar, followed by the separation of the hulls from the system.
Once dried, soybeans proceed to the peeling section where they are cracked and stripped using static and dynamic fluted discs. The bean fragments go straight to the impact chamber, while others move into the skin processing zone, where residual skin clinging to the beans is easily removed. Both the beans and their skins reach the bean skin separation vibrating screen. On the screen, the beans and skins spread out uniformly in a thin, even layer. The skin is drawn off by a cyclone system, while the cleaned beans exit through the discharge port. This process achieves a soybean peeling efficiency exceeding 90%.
The unit is currently a relatively new device, designed and manufactured under the innovative ideas.
The machinery meets its intended objectives, boosting soybean shell removal during soy milk and soybean milk manufacturing, thereby enhancing the quality of both soy milk and soy milk powder final products.
( B )The Characteristics of pulp section equipment:
Precise control: Because of the non-linear relationship between the rotational speed of the inclined screw conveyor and the material input, we have developed a dedicated feeding system for the metering feeder. The exact feed volume needed for production is achieved by adjusting the transmission speed. Using flow sensors in the deactivation softening unit, the proportions of soybeans, water, soy, and alkali water can be smoothly modified.
Soybean deactivation and softening unit: Consists of three main components—deactivation system, alkaline water system, and hot water system. The deactivation section uses stainless steel bearings, while both ends of the deactivated cylinder feature quick-release (clamp) connections, facilitating simple cleaning and sterilization. The alkaline water setup includes two agitated low-level tanks and one high-level balancing tank. These low tanks are filled with alkali in rotation to maintain uninterrupted operation and consistent alkaline solution concentration. Hot water is generated via a plate heat exchanger to guarantee a steady flow. Both alkaline and hot water systems are fitted with flow sensors.
Stainless steel coarse grinder: All components that come into direct contact with materials are constructed from stainless steel. The transmission bearings use a single-piece design, maintaining precise alignment between the two bearing centers on the drive shaft, ensuring seamless operation. This design offers extended service life and minimal upkeep requirements. The spacious hollow crushing chamber provides ample room for effective material reduction.
The refining mill features a pelletizing unit that achieves fine material processing through rapid pendulum motion. This process yields a particle size marginally larger than that produced by a colloid mill, yet enhances slurry and slag separation efficiency. Specifically designed for soybean milk and soy milk manufacturing, this machine offers straightforward operation and low maintenance requirements.

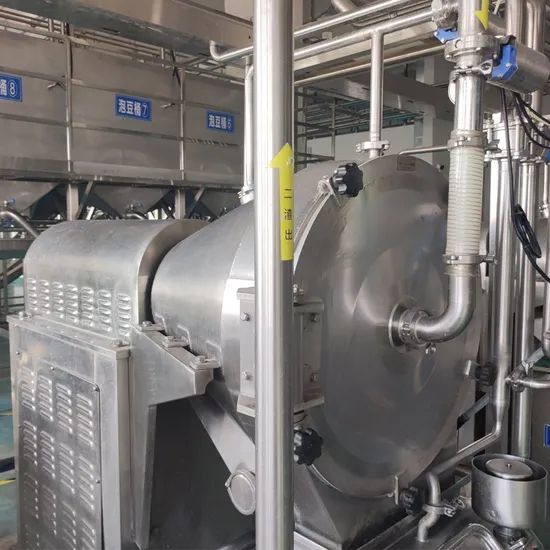

The user has the option to select a horizontal sedimentation slagging unit. This model outperforms the vertical design in performance, offers smooth uninterrupted operation, and handles higher throughput.
6. The sterilizing and deodorizing equipment (patent number: ZL201220390580.6):
The unit's sterilizer is based on the design and operating method of a protein isolation sterilizer. Steam and the product combine within the piping system, ensuring a secure and dependable process.
b. The unit produced by our company adds a static mixer to make the steam and material mix more evenly.
c. Steam is filtered through a titanium alloy filter to ensure the purity of the steam.
d. The feed pump uses an adjustable flow volumetric pump that can regulated flow based on production needs.
e. The use of flashed secondary steam to preheat the material saves energy.
