Whole Set Flexible Metal Hose Production Line Trademark HLT Length <7500mm Theory Inverter Size DN50-300mm HS Code 73072900
1 Set
$50,0002 Set
$30,000Product information
High-quality Whole Set Flexible Metal Hose Production Line Trademark HLT Length <7500mm Theory Inverter Size DN50-300mm HS Code 73072900 supplied by Comflex Industrial Co., Ltd.. Bulk wholesale pricing ranges from $30,000 to $50,000 per Set with a minimum order of 1 Set. Inquiry for latest prices.
Production Capacity:
15 Sets Per Year
Material Grade:
300 Series
Forming Speed:
5-10 Seconds Per Convolution
HS Code:
73072900
Length:
<7500mm
Model NO.:
Comflex
Wall Thickness:
DN0.3-1.5mm
Size:
DN50-300mm
Specifications
Production Capacity:
15 Sets Per Year
Material Grade:
300 Series
Forming Speed:
5-10 Seconds Per Convolution
HS Code:
73072900
Length:
<7500mm
Model NO.:
Comflex
Wall Thickness:
DN0.3-1.5mm
Size:
DN50-300mm
Pitch Distance:
DN9-30mm
Expanding Medium:
Emulsified Liquid
Trade Term:
FOB, CFR, CIF, EXW
Product Name:
Flexible Metal Hoses Hydro Making Machine
Trademark:
HLT
Type:
Hose Making Machine
Application:
Industry, Decoration, Chemical
Theory:
Inverter
Origin:
Jiangsu, China
Payment Term:
LC, T/T, Western Union
Control:
PLC Control
Specification:
SGS, ISO, AISI
Port Of Loading:
Shanghai, Qingdao, Hangzhou
No. Of Layers:
Single or Double
Transport Package:
Standard Seaworthy Package
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2004-10-01
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
LC, T/T, Western Union
Preferred Trade Term:
FOB, CFR, CIF, EXW
Port Of Loading:
Shanghai, Qingdao, Hangzhou
Certificates:
Flexible Metal Hose Forming Machine
Product descriptions from the supplier
Whole Set Flexible Metal Hose Production Line
Products description
We make all kinds of hose making machines including the following:
1. Elastomer Annular Hose Forming Machine: DN12-DN100
1). Diameter: DN12mm-DN100mm
2). Mill Length: 4m-8m
3). Hydraulic pressure: 3.5-4.5MPa
4). Operation mode: manual/automatic
2. Helical Hose Forming Machine:
1). Diameter: DN8-DN50mm
2). Thickness: 0.2-0.6mm
3). Speed: 1m/min
4). Welding machine: Panasonic TIG150 or Kemppi Finland(made in China)
5). Voltage rating: motor 380V, argon welder 220V
6). Electric power: 6KW
7). Adjustable speed: control by inverter
3. Hydraulic Hose Forming Machine: DN25-DN100
1). Range: DN25-DN100mm
2). Length 3.5-4.5m
3). Thickness: 0.2-0.5mm*2 layer
4). Lathe outline dimension: 4960mm * 560mm
4. DN50-300 Hydraulic Forming Machine
Diameter: DN50-300mm
No. of layers: single or double layers
Type of the bellows: annular bellows
Applications: for auto exhaust bellows, flexible metal hoses, and expansion joints
Control: PLC control
Length: ≤7500mm
Expanding medium: emulsified liquid
Forming speed:5-10seconds per convolution
|
ID |
DN50 |
DN65 |
DN80 |
DN100 |
DN125 |
DN150 |
DN200 |
DN250 |
DN300 |
|
Single wall thickness |
0.4 |
0.5 |
0.6 |
0.7 |
0.8 |
0.9 |
1.0 |
1.2 |
1.5 |
|
Double layer wall thickness |
0.25*2 |
0.3*2 |
0.4*2 |
0.50X2 |
0.60X2 |
0.70X2 |
0.80X2 |
0.90X2 |
1.0X2 |
The parts will go with the machines: The molds for DN50,65,80,100,125, 150,200,250,300mm
5.DN200-630 Hydraulic Forming Machine
Diameter: DN200-630mm
No. of layers: single or double layers
Wall thickness: Single layer1.0-3.0mm
Double layers:0.8*2-1.6*2
Type of the bellows: annular bellows
Control: PLC control, manual or automatic control
Straight tube length: ≤1800mm
Expanding medium: emulsified liquid
Forming speed:8-28seconds per convolution
Molds and water injection head: DN200,250, 300,350,400,450,500,550,600mm
| Hydraulic Hose Making Machine | |
| Machine Type No. | HLT-H-150 |
| Technical Data | Application of the hose: water, oil, steam Size range: DN32 up to DN150 Wall thickness: 0.2-0.3mm Production speed:2.5~3.5m/min Strip thickness: 0.18-0.3mm Material: sus304, 321 and 316L Outer dimensions:15000*1100*1700 |
| Packing details | Plywood box and standard pallet |
| MOQ | 1 set |
| Warranty | 1 year |
| Payment terms | T/T, L/C, D/P, Western union |

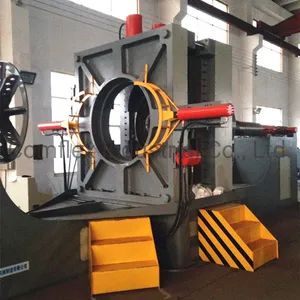

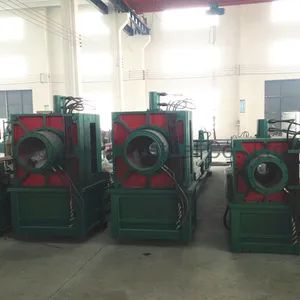

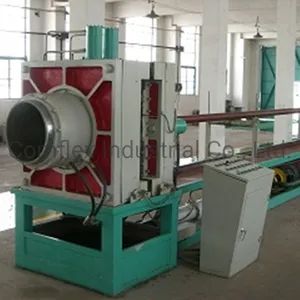

Picture of machine
DN200- DN630
Spare Parts of Machine

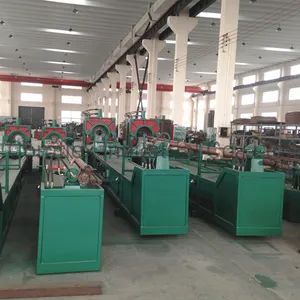

Products show
Customer's visit
Tecnique Communication
Customer visit our factory
Related machines
DN10-150 Tube welding machine
Wall thickness d³0.18mm
Tube diameter Ф10―Ф65mm
Control Inverter control
Welding speed About 250mtrs/hr
Tube length No limit
DN15-100 Elastomer forming metal hose making machine
Omega shape
1). Diameter: DN12mm-DN100mm
2). Mill Length: 4m-8m
3). Hydraulic pressure: 3.5-4.5MPa
4). Operation mode: manual/automatic
Company information
We are professional manufacturer of all types of metal flexible metal hose and machinery, such as corrugated metal hose, square lock and interlock hose/ conduit with more than 25 years of experience. The hoses are widely used in many industries: gas hose, water hose ,chemical hose, etc..Annular and corrugated metal hose: ID8 till ID600 on different machine.
Package Pictures
Our service
Warranty period of one year
standard seaworthy package
Engineers available to service machinery oversea
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
