Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller

Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller - Image 1
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller - Image 2
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller - Image 3
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller - Image 4
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller - Image 5
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller - Image 6
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller - Image 1
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller - Image 2
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller - Image 3
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller - Image 4
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller - Image 5
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller - Image 6

1-4 Piece

$607.5

5 Piece

$578.57

Product information

High-quality Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller supplied by Yucheng Yijia Machinery Co., Ltd.. Bulk wholesale pricing ranges from $578.57 to $607.5 per Piece with a minimum order of 1 Piece. Inquiry for latest prices.

Working Depth(Mm):

140-180

Warranty:

1year

Working Width(Mm):

2200

Weight(Kg):

400

Production Capacity:

5000pieces/Year

HS Code:

8432290000

Application Field:

Agriculture

Certification:

CE

Specifications

Working Depth(Mm):

140-180

Warranty:

1year

Working Width(Mm):

2200

Weight(Kg):

400

Production Capacity:

5000pieces/Year

HS Code:

8432290000

Application Field:

Agriculture

Certification:

CE

Origin:

Dezhou

Farming Policy:

Dry Cultivating Machinery

Trade Term:

FOB, CIF, CFR, EXW

Arbor Configuration:

Horizontal Axis

Transport Package:

Iron Box

Port Of Loading:

Qingdao Port

Color:

Red

Operation:

Soil Preparation Machinery, Continuous Running Operation

Payment Term:

T/T, LC, D/P

Traction Type:

Traction

Power Source:

Tractor

Drive Type:

Tractor Drive

Linkage:

Type II Three Point Mounted

Trademark:

YCM

Model NO.:

YJ-1LYTA-1022

Business Details

Country:

China

Business Types:

Not specified

Main Markets:

Not specified

Main Products:

Year Established:

2003-07-23

Annual Revenue Amount:

Not specified

Numbers Of Employees:

128

Preferred Payment Term:

T/T, LC, D/P

Preferred Trade Term:

FOB, CIF, CFR, EXW

Port Of Loading:

Qingdao Port

Certificates:

ISO9001:2015

Product descriptions from the supplier

SONA2024 2.2.1
DISC TILLER
YJ-1LYTA series disc tiller is designed for field work as breaking hardened and impervious soilsurface, shattering soil after tillage, planting the land before tillage. It can make soil and fertilizer mix up, clear away the stump of plants and it can be used on cultivated land for tillage, harrowing instead of ploughing.
This disc tiller is scientific in design, durable in service, ready to operate, easy to maintain and efficient in pulverizing and penetrating into the soil and leaves the land with smooth. All these satisfy the agricultural requirements of intensive cultivation, and have the characteristics of small tillage resistance and easy operation.
Specification
Applications
Agriculture
YJ-1LYTA series disc tiller is designed for field work as breaking hardened and impervious soil surface, shattering soil after tillage, planting the land before tillage. It can make soil and fertilizer mix up, clear away the stump of plants and it can be used on cultivated land for tillage, harrowing instead of ploughing.
Key Configurations

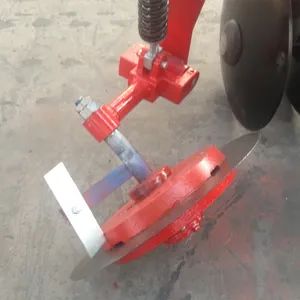

Disc blade: This is the core working component of the disc tiller, usually made of high-strength alloy steel, with excellent wear resistance and toughness. The diameter, thickness, quantity, and blade edge shape of the disc blade all affect the tillage effect. Larger diameter disc blades have a deeper penetration depth and are suitable for harder or deeper soil loosening; the more disc blades there are, the more times the unit area is operated, and the finer the tillage effect. Common disc blade edges include straight and curved types. The curved blade edge has stronger penetration and soil-breaking capabilities.
Rake frame: It is used to support and fix components such as disc blades, usually made by welding or bolt connection with high-quality steel, and requires sufficient strength and rigidity to withstand various external forces during operation. The structural design of the rake frame also affects the stability and operation performance of the entire machine. For example, a triangular or trapezoidal structure rake frame can provide better stability.
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller



Technical Specifications
(Custom configurations available upon request.)
Model
YJ-1LYTA-822
YJ-1LYTA-922
YJ-1LYTA-1022
Color
Red
Red
Red
Working width(mm)
1760
1980
2200
Disc quantity(pc)
8
9
10
Weight(kg)
350
380
400
Linkage
Type II Three Points Mounted
Type II Three Points Mounted
Type II Three Points Mounted
Matched power(hp)
≥60
≥65
≥70
After Sales Service
One year warranty for the whole machine
Company Profile
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller
YUCHENG YIJIA MACHINERY CO.,LTD.
Yucheng Yijia Machinery Co., Ltd. was founded in 1958 and underwent a private restructuring in 2003 The company has always adhered to the corporate philosophy of seeking innovation in technology and seeking development through innovation. It has now developed into a private joint-stock enterprise integrating agricultural machinery development and design, production and manufacturing, domestic and international sales, and network technology operation.
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller
Why Choose Us?
Other Products
Complete assembly line
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Hole Digger
Chain Harrow
Land Scraper
Disc Harrow

HONOR
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller

Exhibition hall and workshop
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller
Wide Application Range, Low Resistance, and Easy Operation Agricultural Machinery Disc Tiller
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
Q:Can I customize the size of the product?
A: Absolutely!
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
