Wide Frequency Omnidirectional Antenna for RF Systems VSWR <1.5 Origin China Trademark none Model NO. 100W Connector Type
Pieces
Negotiable
Product information
High-quality Wide Frequency Omnidirectional Antenna for RF Systems VSWR <1.5 Origin China Trademark none Model NO. 100W Connector Type supplied by Shenzhen Jingwei Technology Co., Ltd.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Operating Temperature:
-20°C ~ +85°C
Max Input Power:
100 W
Model NO.:
100W
Pole Diameter:
25 to 40 mm
Antenna Diameter:
32 mm
Input Impedance:
50 Ohm
Wind Resistance:
60 M/S
Antenna Length:
600 mm
Specifications
Operating Temperature:
-20°C ~ +85°C
Max Input Power:
100 W
Model NO.:
100W
Pole Diameter:
25 to 40 mm
Antenna Diameter:
32 mm
Input Impedance:
50 Ohm
Wind Resistance:
60 M/S
Antenna Length:
600 mm
Specification:
600*32cm
Package Gross Weight:
650.000kg
Package Size:
650.00cm * 3.50cm * 3.50cm
VSWR:
<1.5
Transport Package:
Box
Usage:
Broadcasting Antenna
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Lightning Protection:
DC Grounding
Trade Term:
FOB
Usage Occasion:
Handheld Antenna
Mounting Type:
L Bracket Installation
Frequency Range:
Multiple Bands (580 to 6200 MHz Optional)
Operating Wavelength:
Myriametric Wave
Connector Type:
N-Jack
Product Name:
Omnidirectional Antenna
Payment Methods:
Support payments in USD
Payment Term:
T/T, D/P, PayPal, Western Union, Money Gram
Nature Of Operation:
Transmitting Antenna
Polarization:
Vertical
Sturcture Form:
Wire Antenna
Application:
Wireless Communication / RF Systems
Trademark:
none
Port Of Loading:
shenzhen
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023-10-10
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T, D/P, PayPal, Western Union, Money Gram
Preferred Trade Term:
FOB
Port Of Loading:
shenzhen
Certificates:
ENVIRONMENT MANAGEMENT SYSTEM CERTIFICATION, OCCUPATIONAL HEALTH AND SAFETY MANAGEMENT SYSTEM CERTIFICATION, QUALITY MANAGEMENT SYSTEM CERTIFICATION
Product descriptions from the supplier
Omnidirectional Fiberglass Antenna for Wireless Communication Systems
-
Vertical polarization with stable omnidirectional radiation
-
Fiberglass radome for outdoor and harsh environments
-
Wide frequency options from 580 MHz to 6200 MHz
-
Low VSWR ≤1.8 for efficient signal transmission
-
DC grounding design for lightning protection
1 Electrical Specifications
| Parameter | Specification |
|---|---|
| Input Impedance | 50 Ω |
| VSWR | ≤1.8 |
| Polarization | Vertical |
| Radiation Direction | Omnidirectional |
| Max Input Power | 100 W |
2 Mechanical Specifications
| Parameter | Specification |
|---|---|
| Antenna Size | Ø32 × 600 mm |
| Radome Material | Fiberglass |
| Connector Type | N-Jack |
| Operating Temperature | -20ºC ~ +85ºC |
| Storage Temperature | -40ºC ~ +85ºC |
| Mounting | L Bracket Installation |
| Lightning Protection | DC Grounding |
| Wind Resistance | 60 m/s |
| Pole Diameter | Ø25-Ø40 mm |
| Weight | 450 g |
3 Frequency Band Variants
| Frequency Range (MHz) | Bandwidth (MHz) | Gain (dBi) | Half Power Beamwidth |
|---|---|---|---|
| 580-700 | 120 | 2 ±0.3 | H 360° / E 85° |
| 700-840 | 140 | 4 ±0.3 | H 360° / E 65° |
| 840-960 | 120 | 4 ±0.3 | H 360° / E 65° |
| 960-1150 | 190 | 4 ±0.3 | H 360° / E 65° |
| 1150-1350 | 200 | 4 ±0.3 | H 360° / E 65° |
| 1450-1650 | 200 | 4 ±0.3 | H 360° / E 65° |
| 1950-2150 | 200 | 6 ±0.3 | H 360° / E 58° |
| 2350-2550 | 200 | 6 ±0.3 | H 360° / E 58° |
| 2950-3150 | 200 | 9 ±0.3 | H 360° / E 18° |
| 3500-3700 | 200 | 9 ±0.3 | H 360° / E 18° |
| 5700-5950 | 250 | 9 ±0.3 | H 360° / E 18° |
| 5950-6200 | 250 | 9 ±0.3 | H 360° / E 18° |

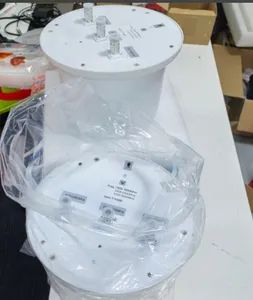

Packaging way
60cmx27cm/each carton
each carton with 2pieces antennas

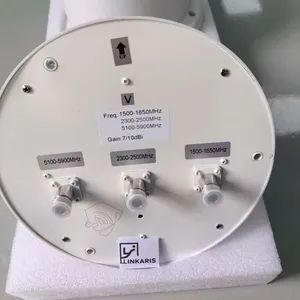

Other type of antenna pictures show.
-
Frequency Range: 400-6000 MHz
-
Gain: 2-12 dBi
-
Output Impedance: 50 Ω
-
VSWR: ≤ 1.5
-
Ingress Protection: IP67
-
Polarization: Vertical
-
Connector Type: N-type / Custom
-
Antenna Color: Black / Gray / Custom
-
Antenna Size: Customized as required
-
Operating Temperature: −35 °C to +65 °C
Band Detailed Frequency Gain @ 0.4 m Gain @ 0.6 m Gain @ 0.8 m Gain @ 1.2 m Power Handling 433 M 420-450 MHz 2 ± 1 dBi 3 ± 1 dBi 5 ± 1 dBi 5 ± 1 dBi 50 W / 100 W / 150 W / 200 W 700 M 610-720 MHz 2 ± 1 dBi 3 ± 1 dBi 5 ± 1 dBi 5 ± 1 dBi 50 W / 100 W / 150 W / 200 W 800 M 720-840 MHz 2 ± 1 dBi 3 ± 1 dBi 5 ± 1 dBi 5 ± 1 dBi 50 W / 100 W / 150 W / 200 W 900 M 830-940 MHz 3 ± 1 dBi 3 ± 1 dBi 5 ± 1 dBi 5 ± 1 dBi 50 W / 100 W / 150 W / 200 W 1050 M 950-1050 MHz 3 ± 1 dBi 3 ± 1 dBi 6 ± 1 dBi 6 ± 1 dBi 50 W / 100 W / 150 W / 200 W 1.2 G 1150-1250 MHz 5 ± 1 dBi 5 ± 1 dBi 8 ± 1 dBi 8 ± 1 dBi 50 W / 100 W / 150 W / 200 W 1.4 G 1410-1250 MHz* 5 ± 1 dBi 6 ± 1 dBi 8 ± 1 dBi 8 ± 1 dBi 50 W / 100 W / 150 W / 200 W 1.5 G 1560-1620 MHz 5 ± 1 dBi 6 ± 1 dBi 8 ± 1 dBi 8 ± 1 dBi 50 W / 100 W / 150 W / 200 W 2.4 G 2400-2500 MHz 6 ± 1 dBi 8 ± 1 dBi 12 ± 1 dBi 12 ± 1 dBi 50 W / 100 W / 150 W / 200 W 5.2 G 5150-5350 MHz 8 ± 1 dBi 10 ± 1 dBi 12 ± 1 dBi 12 ± 1 dBi 50 W / 100 W / 150 W / 200 W 5.8 G 5150-5850 MHz 8 ± 1 dBi 10 ± 1 dBi 12 ± 1 dBi 12 ± 1 dBi 50 W / 100 W / 150 W / 200 W 6 G 5900-6000 MHz 8 ± 1 dBi 10 ± 1 dBi 12 ± 1 dBi 12 ± 1 dBi 50 W / 100 W / 150 W / 200 W
Suitable for use in restricted areas, airports, important security areas and other scenes with strong signals and zero interference to protect low-altitude safety
