Window Manufacturing Machine Aluminum Window Door Machine Window Making Machines Aluminium Corner Joint Crimping Machine
Set
Negotiable
Product information

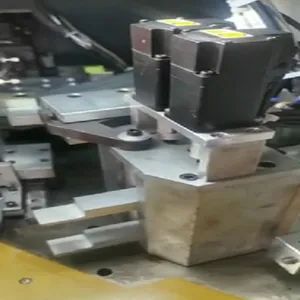

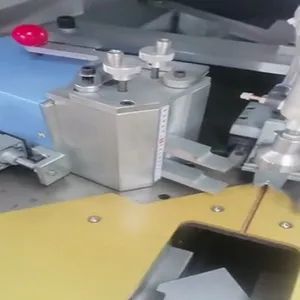

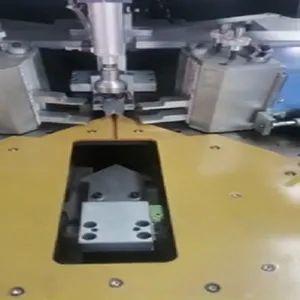

High-quality Window Manufacturing Machine Aluminum Window Door Machine Window Making Machines Aluminium Corner Joint Crimping Machine supplied by BEIJING DAFEI WEIYE INDUSTRIAL & TRADING CO., LTD.. Bulk wholesale pricing is negotiable. Inquiry for latest prices.
Weight:
1000 Kg
Package Gross Weight:
1000.000kg
Crimping Height:
180 mm
Package Size:
190.00cm * 120.00cm * 180.00cm
Dimensions:
1900 X 1200 X 1800 mm
Specification:
1900 x 1200 x 1800 mm
Clamping Strength:
2 X 5 T ~2 X 10 T
Max. Travel Of Crimping Head:
30 mm
Specifications
Weight:
1000 Kg
Package Gross Weight:
1000.000kg
Crimping Height:
180 mm
Package Size:
190.00cm * 120.00cm * 180.00cm
Dimensions:
1900 X 1200 X 1800 mm
Specification:
1900 x 1200 x 1800 mm
Clamping Strength:
2 X 5 T ~2 X 10 T
Max. Travel Of Crimping Head:
30 mm
Voltage:
380V
Power Supply:
380V 50Hz
Production Capacity:
5000 PCS/Year
Power:
6 Kw
Crimping Head In Up And Down Range:
60 mm
Product Name:
Aluminium Corner Joint Crimping Machine
Automatic Grade:
Automatic
CNC Or Not:
CNC
Origin:
China
Refund Policy:
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Trade Term:
EXW, CIF
Trademark:
FEIDA
Certification:
ISO, CE, TUV
Model NO.:
JM3-CNC-DW600
Condition:
New
Transport Package:
Non Fumigation Plywood Wooden Box
Port Of Loading:
Qingdao port, Tianjin port, Beijing
Payment Methods:
Support payments in USD
Payment Term:
T/T
Business Details
Country:
China
Business Types:
Not specified
Main Markets:
Not specified
Main Products:
Year Established:
2023-08-03
Annual Revenue Amount:
Not specified
Numbers Of Employees:
Not specified
Preferred Payment Term:
T/T
Preferred Trade Term:
EXW, CIF
Port Of Loading:
Qingdao port, Tianjin port, Beijing
Certificates:
CE, ISO9000, Patent certificate
Product descriptions from the supplier
Window manufacturing machine aluminum window door machine window making machines aluminium corner joint crimping machine
Performances and Features
--This machine is a pure numerical control angle setting machine with independent property right and patent.
--It not only realizes the fast and accurate conversion of various adjustment links during the conversion of various profiles, but also automatically stores the angle data after
adjustment into the database.
--The next time you use it, you can call it out without further adjustment, and you can store 100 groups of data.
--The whole mechanical structure of this machine has changed the structural mode of existing models all over the world. The main power does not use oil or gas, and there is
no need to worry about air leakage, oil leakage and aging of sealing rings.
--It not only ensures the complete synchronization of feeding, but also ensures the long-term stable operation without wear and deformation (the theoretical data can be kept
unchanged for 20 years).
--This new type of CNC angle setting machine can be said to be a subversive change to similar models, creating a new era in the history of angle setting machine.
--The angle tool can be replaced quickly and independently. The height of each cutter can be adjusted up and down arbitrarily. There is an independent quick clamping
mechanism. The adjustment of the cutter can be completed within 10 seconds.
--The uninterrupted operation of the main feed structure for many years can ensure no wear, deformation and no adjustment.
--The angle data of each profile can be stored, which can be called out when in use, and different types of profiles can be replaced and processed within 20 seconds.
--The positioning and feed speed can be adjusted arbitrarily, with high processing efficiency.
--All mechanical feed data and parameters are adjusted and controlled by touch screen, and the position and depth of angle assembly do not need mechanical adjustment.
--Large corner crimping range, corner crimping height can reach 180mm, and large-size doors and windows with thick wall can be made.
--There are two CNC corner modes, which can be selected arbitrarily according to the proficiency of workers.
--This model can be mastered quickly without professional workers and is not easy to make mistakes.
--It not only realizes the fast and accurate conversion of various adjustment links during the conversion of various profiles, but also automatically stores the angle data after
adjustment into the database.
--The next time you use it, you can call it out without further adjustment, and you can store 100 groups of data.
--The whole mechanical structure of this machine has changed the structural mode of existing models all over the world. The main power does not use oil or gas, and there is
no need to worry about air leakage, oil leakage and aging of sealing rings.
--It not only ensures the complete synchronization of feeding, but also ensures the long-term stable operation without wear and deformation (the theoretical data can be kept
unchanged for 20 years).
--This new type of CNC angle setting machine can be said to be a subversive change to similar models, creating a new era in the history of angle setting machine.
--The angle tool can be replaced quickly and independently. The height of each cutter can be adjusted up and down arbitrarily. There is an independent quick clamping
mechanism. The adjustment of the cutter can be completed within 10 seconds.
--The uninterrupted operation of the main feed structure for many years can ensure no wear, deformation and no adjustment.
--The angle data of each profile can be stored, which can be called out when in use, and different types of profiles can be replaced and processed within 20 seconds.
--The positioning and feed speed can be adjusted arbitrarily, with high processing efficiency.
--All mechanical feed data and parameters are adjusted and controlled by touch screen, and the position and depth of angle assembly do not need mechanical adjustment.
--Large corner crimping range, corner crimping height can reach 180mm, and large-size doors and windows with thick wall can be made.
--There are two CNC corner modes, which can be selected arbitrarily according to the proficiency of workers.
--This model can be mastered quickly without professional workers and is not easy to make mistakes.
Machining precision
--Crimped corner seam: ≤0.2 mm
--Tolerance of height: ≤0.1 mm
--Tolerance of angle: ± 5'
--Tolerance of height: ≤0.1 mm
--Tolerance of angle: ± 5'
Friendly reminder:If you do not see the ideal machine in our store (due to time and space constraints, we did not display all the machines on the page), please contact our online sales. We will provide you with a more suitable machine solution!
| The after-sales service of our machines | ||
| No. | Item | Service |
| 1 | Service duration | 7*24 Hours (All Weather Service) |
| 2 | Warranty period | 1 year |
Q1: If I make Aluminum window and door, how many basic machines do i need?
A: Double headCuttingSaw;
CopyRouter Machine;
EndMillingMachine;
Automatic CornerConnectorAutomaticCuttingSaw;
SingleHead Corner CrimpingMachine.
Q2: How can I get the best machine for our business?
A: Just let us know your cutting material, size, thickness and working needed.
We will suggest the most suitable professional solution.
Q3: This is my first time using this kind of machine, is it easy to operate?
A: Of course, Itis easy to operate.
We will send you the English version user manual and install video whichshows how to assembly and use clearly.
Don't worry!We will always be here to help!
Q4: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the usermanual.
But in case you have any problem,wewill provide you any supportatanytime!
B: We can send you free components if your machines are in guarantee time.
C: We can send our engineers to repair your machines.
Q5: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirements, wehaveresearched many other different machines.
Q6: When can we arrange shipment?
A: We usually arrange shipment in 15 days after getting deposit. But customized machines should be more than 25 days.
Q7: What services can provide in your company?
A: Two years guarantee
B: Free training to operation and maintenance.
D: Free investment analysis for windows, doors and curtain wall project.
E: Free layout design for windows,doors and curtain wall production lines.
G: Provide technical support including pressure design and calculate for windowand curtain wall.
H:Quickly provide supply of spare parts
